How to use attributes to build an item – Content Studio

This article presents detailed examples illustrating the utilization of attributes when customizing an item, offering a comprehensive guide on how to effectively apply them. Additionally, it provides clear instructions on how to navigate our attribute database in order to locate and select the appropriate attributes and respective values for your customization needs.

Each item construction example links to the article where you can find the attribute and its possible values. These examples can be used as a basis for better understanding how to use and find the necessary attributes.

Below is an example of each category:

Construction - Structures and configurations

Below are the most generic examples of the library with the most used attributes, divided into Base, Wall and Tall, and each one with an example of a cabinet corner.

Base Standard

To start creating your Base Cabinet, you need to define what type of structure you want to use, for example: Standard, Corner Square, Corner Blind, Corner Diagonal, Peninsula, etc. All model attributes related to the chosen structure with their proposed values, can be found at Attributes: Item Construction - Cabinet Base and Mid Base. The tables in this document are divided into categories. So, if you want to build a Standard item, you need to open this category and look for the required attributes as well as their proposed values.

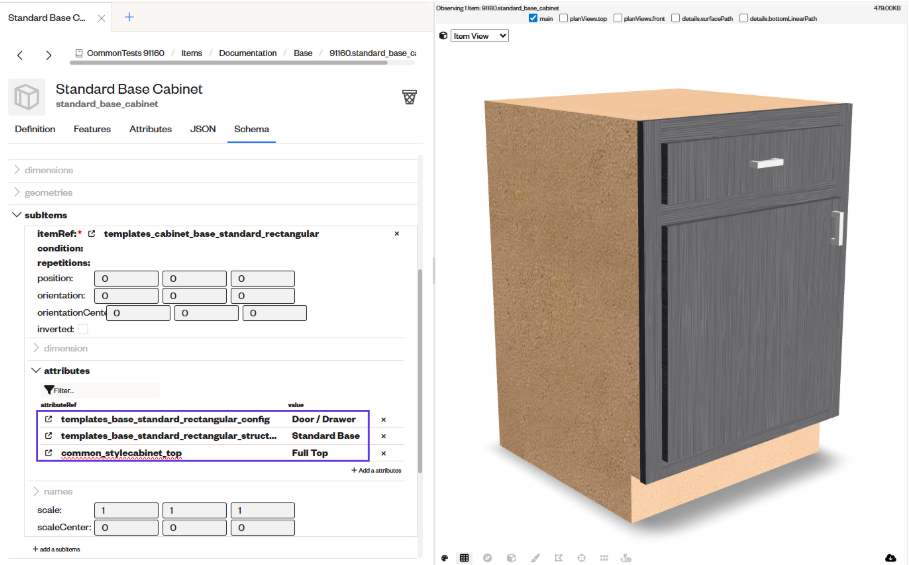

Inserting the structure and configuration into the template:

Example:

TEMPLATES_BASE_STANDARD_RECTANGULAR_CONFIG = Door / Drawer

TEMPLATES_BASE_STANDARD_RECTANGULAR_STRUCTURE = Standard Base

COMMON_STYLECABINET_TOP = Full Top

Editing the Structure in more details:

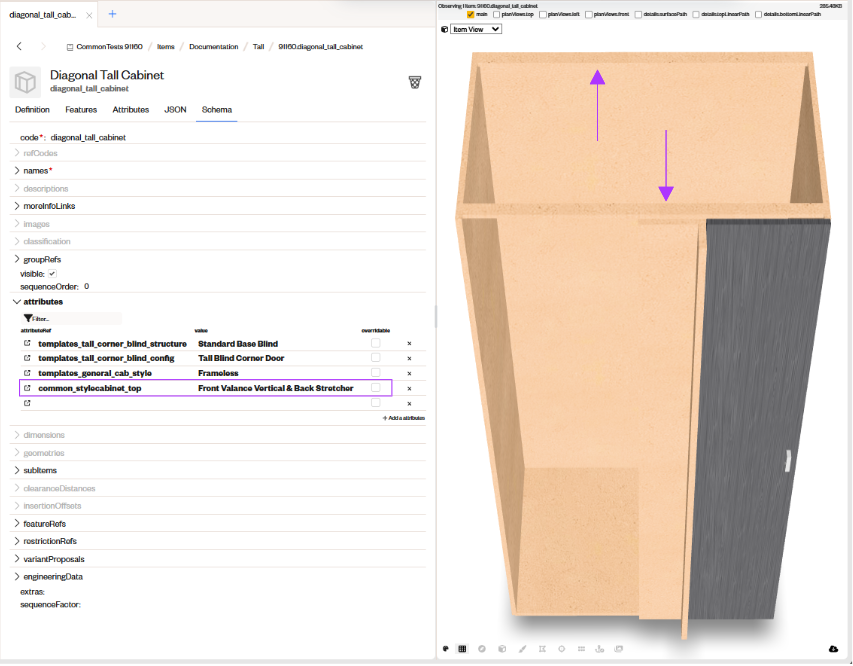

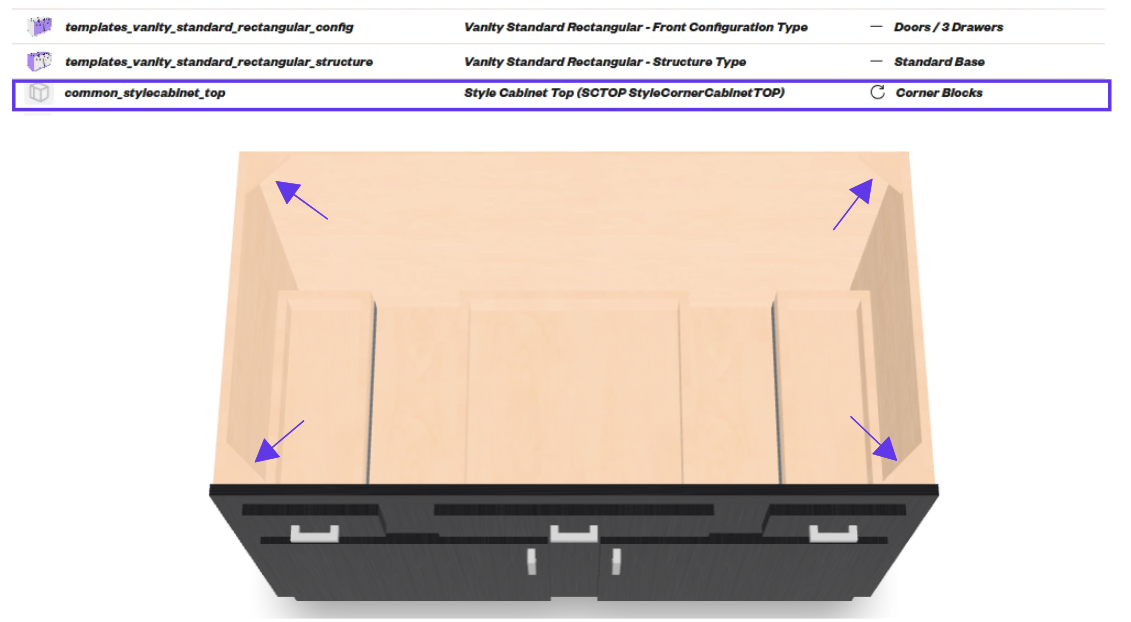

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

Example:

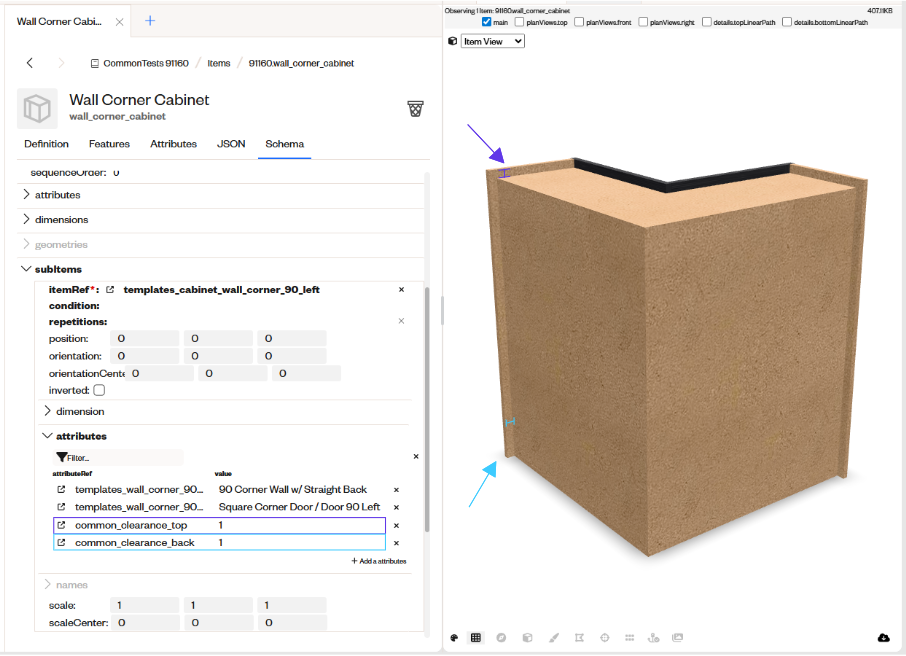

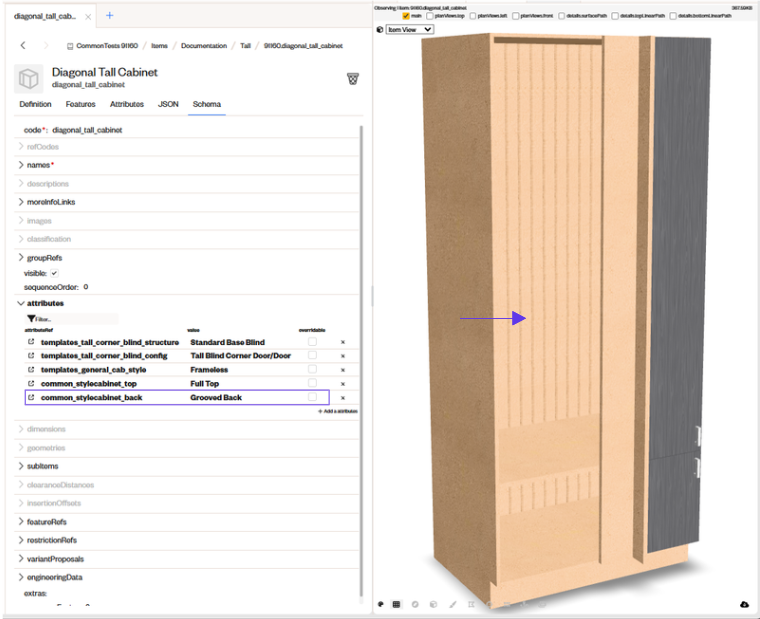

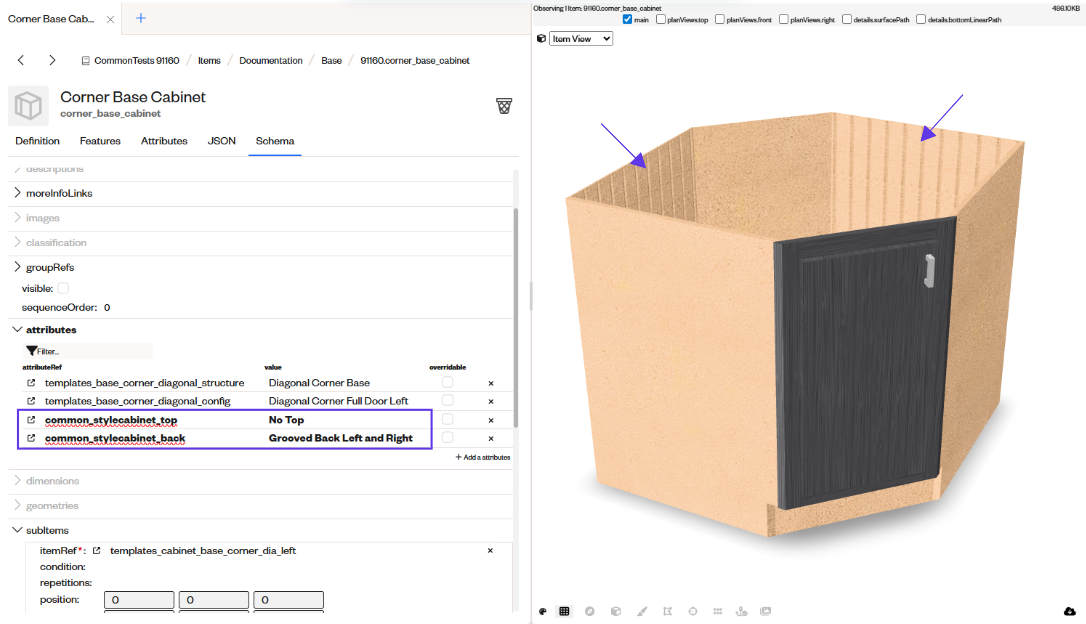

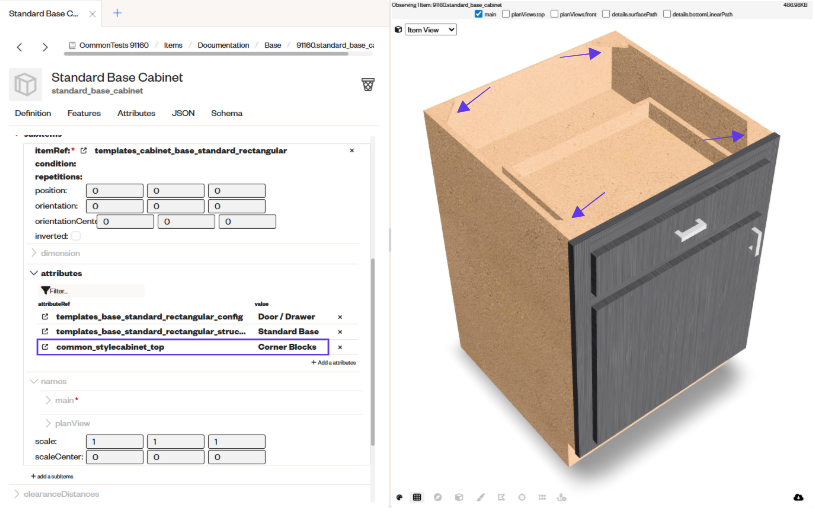

COMMON_STYLECABINET_TOP = Corner Blocks

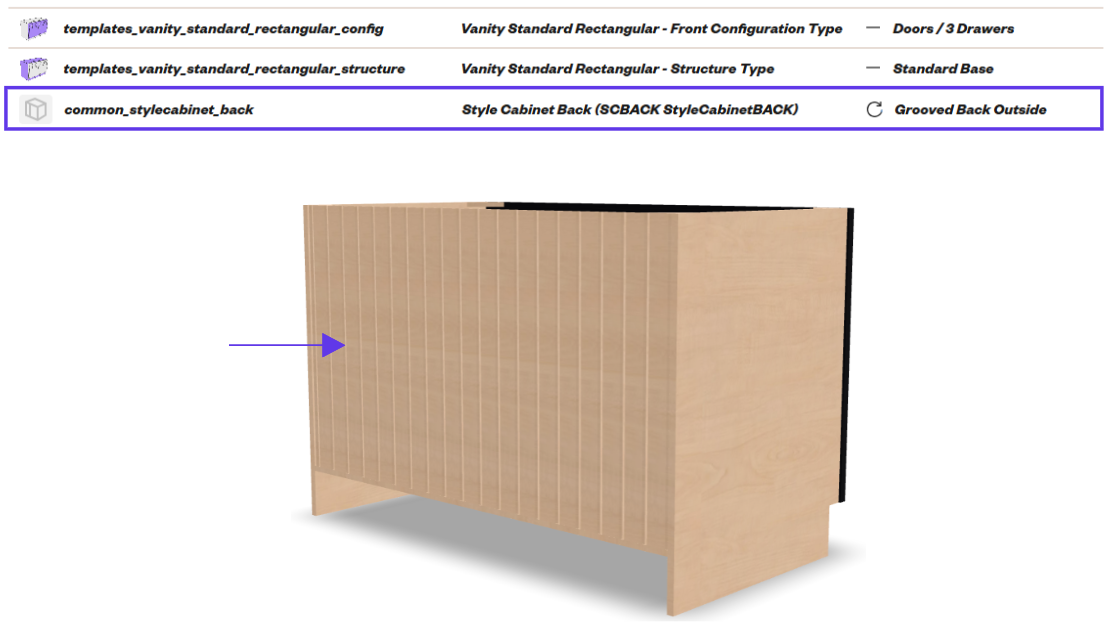

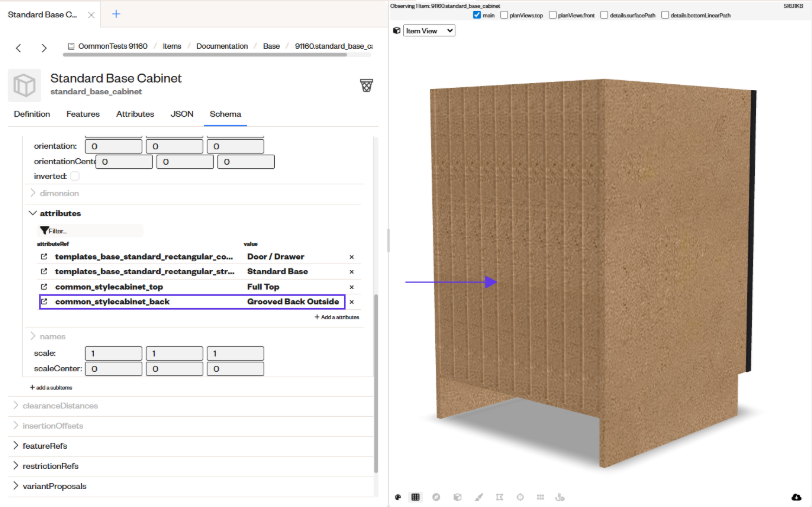

COMMON_STYLECABINET_BACK = Grooved Back Outside

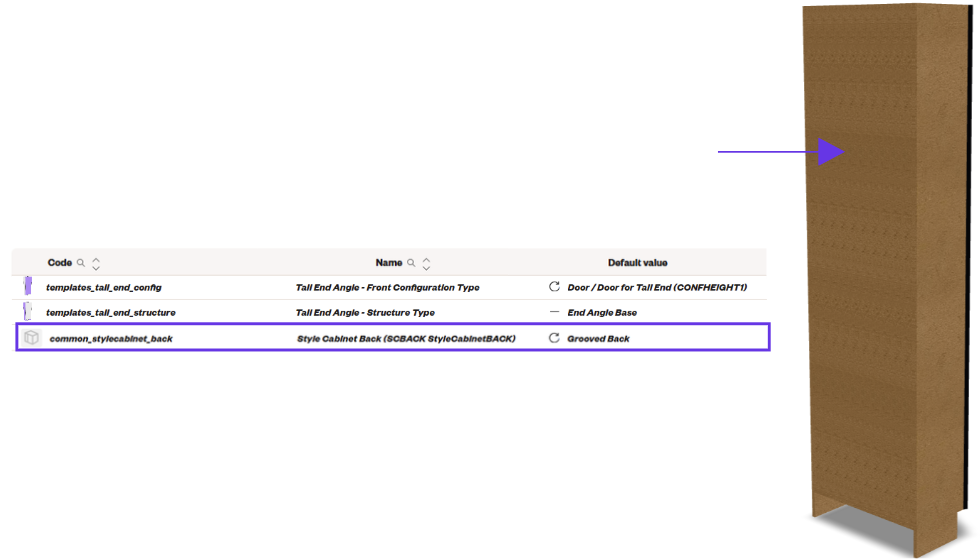

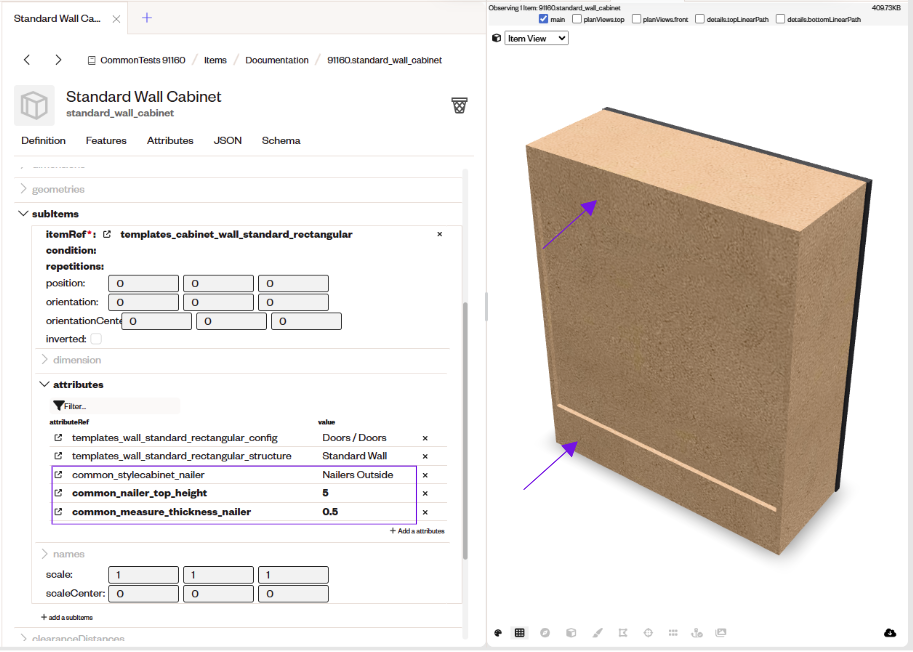

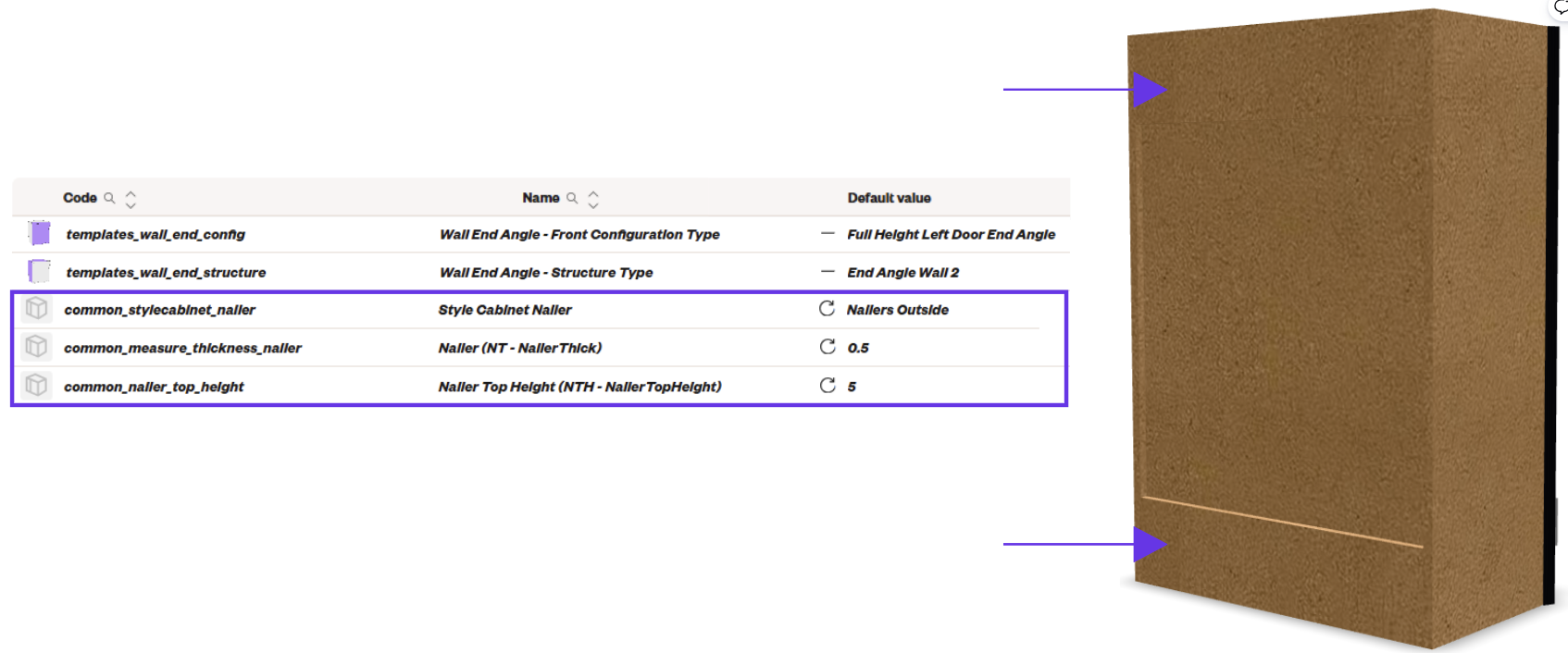

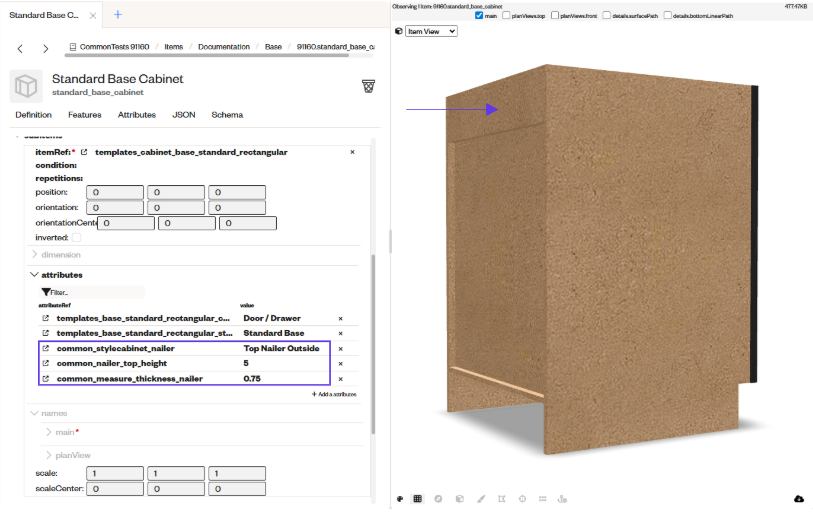

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_STYLECABINET_NAILER = Nailers Outside

COMMON_NAILER_TOP_HEIGHT = 5

COMMON_MEASURE_THICKNESS_NAILER = 0.75

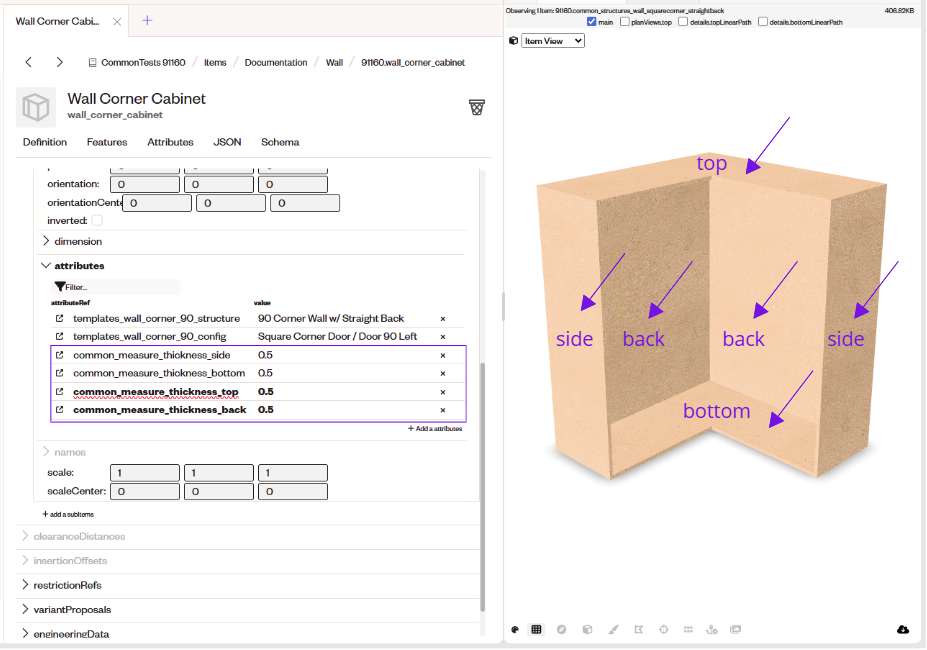

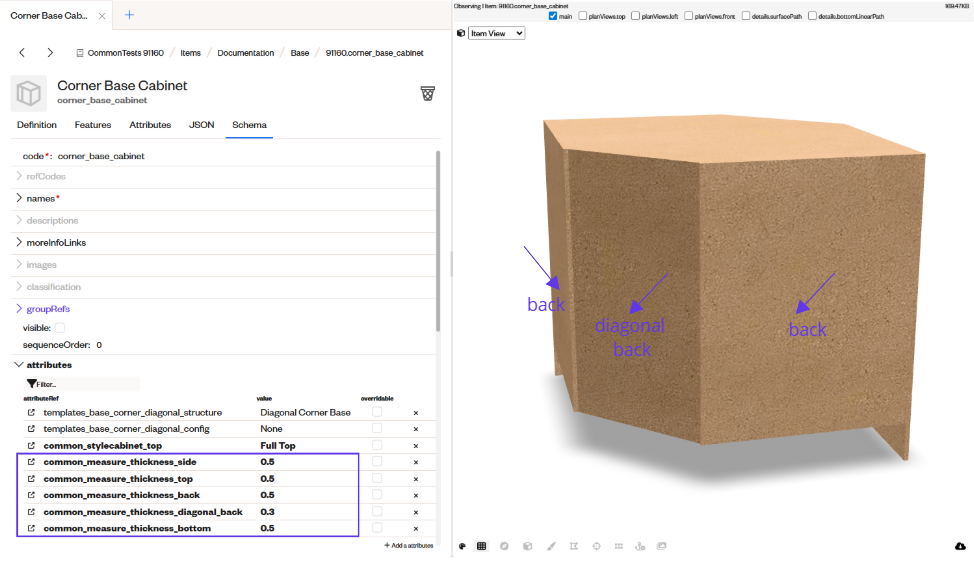

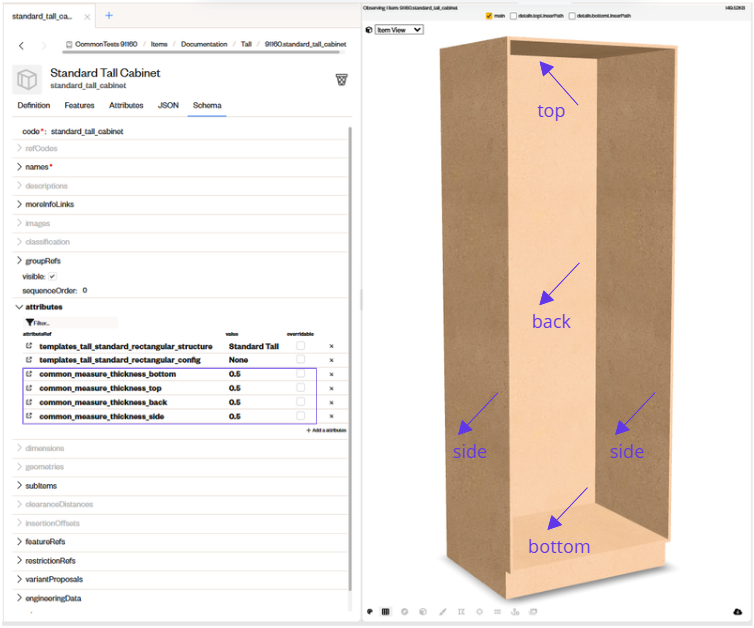

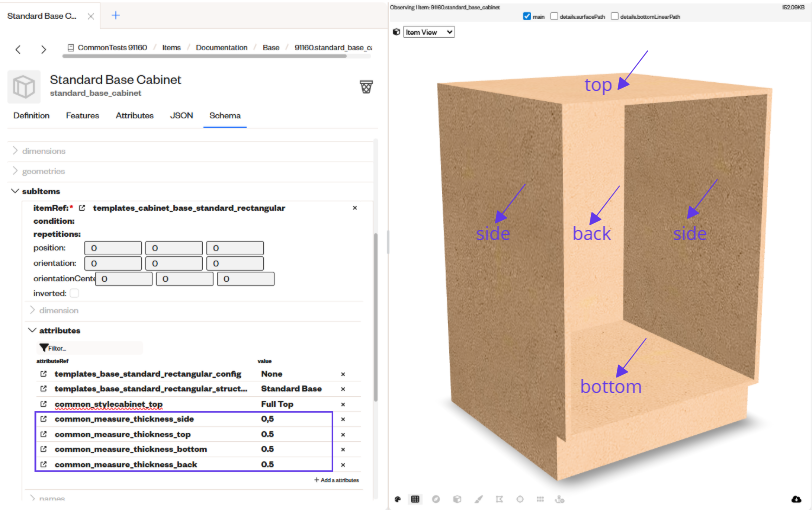

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

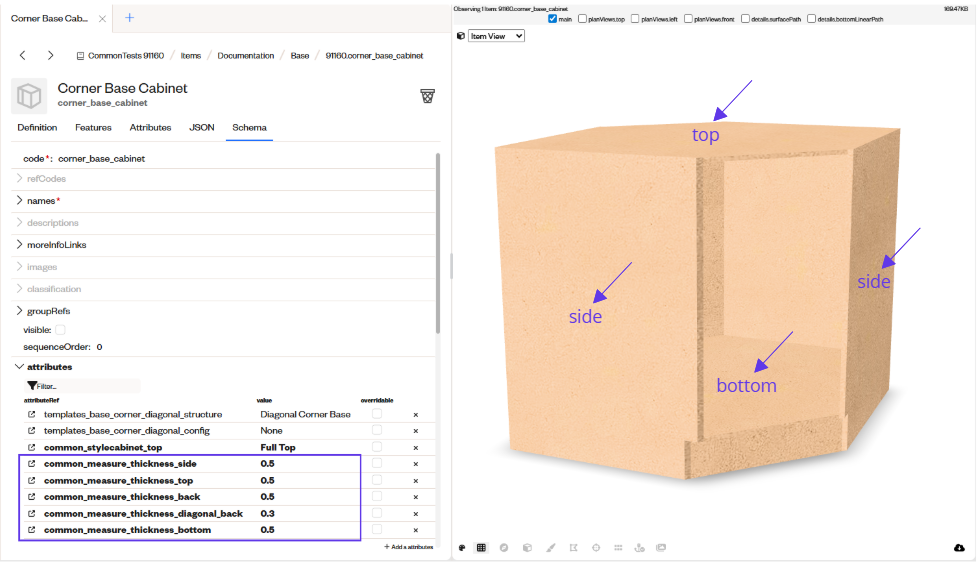

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

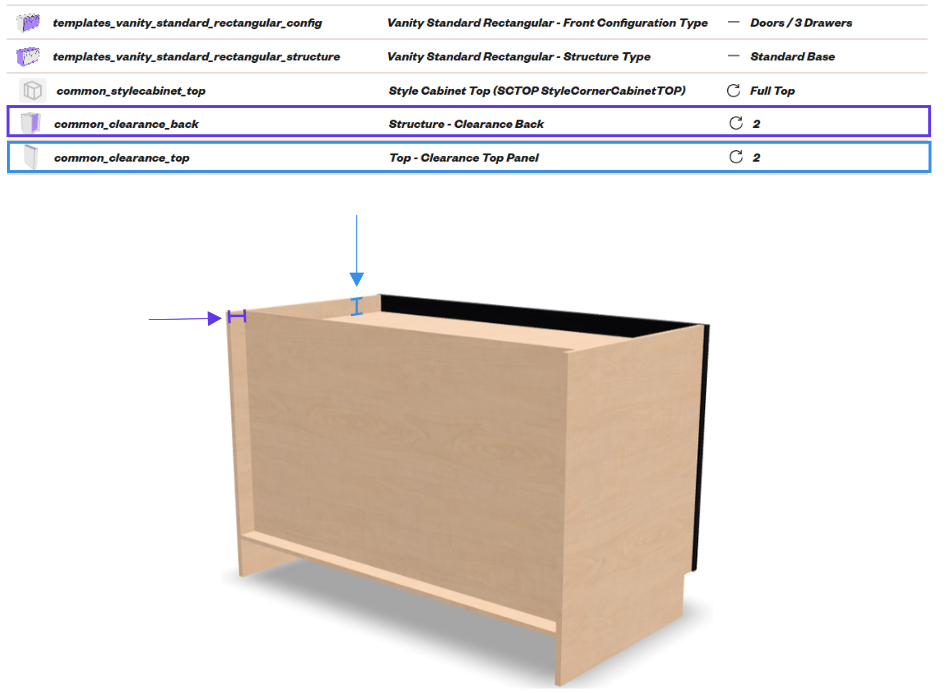

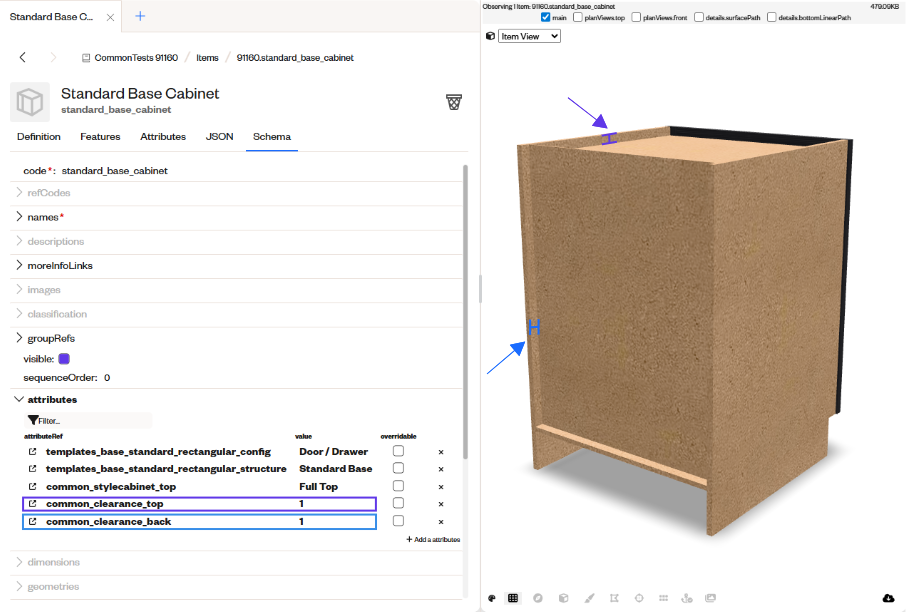

To edit the clearances use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 1

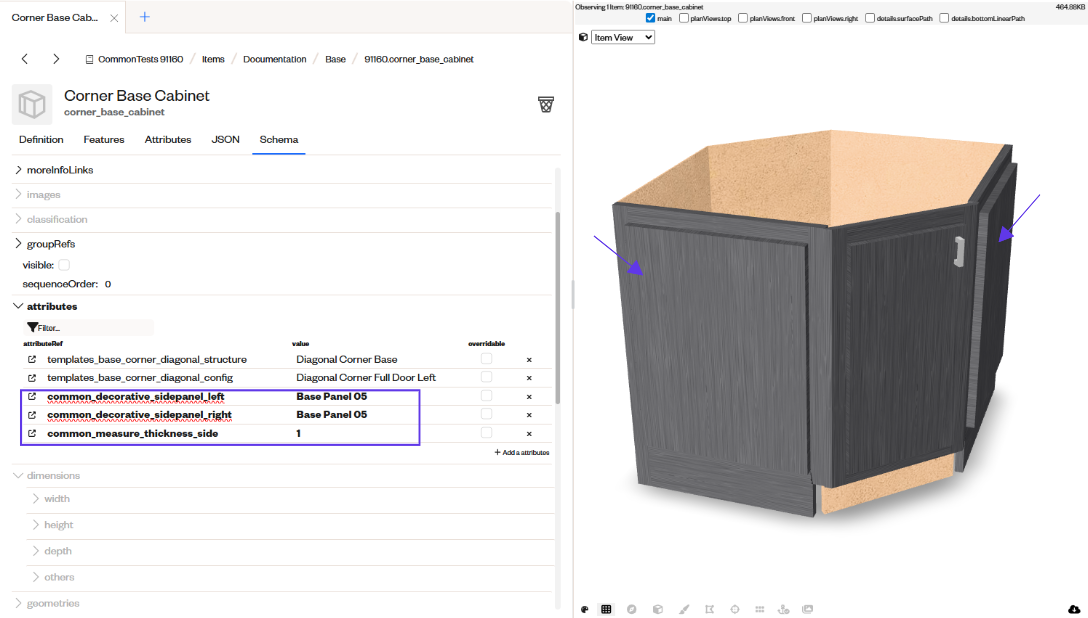

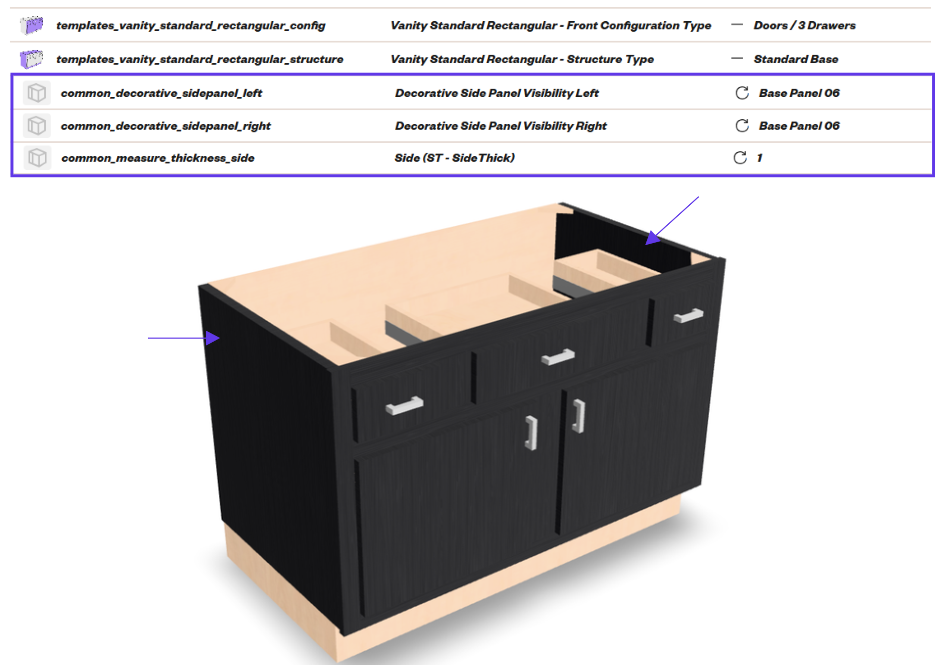

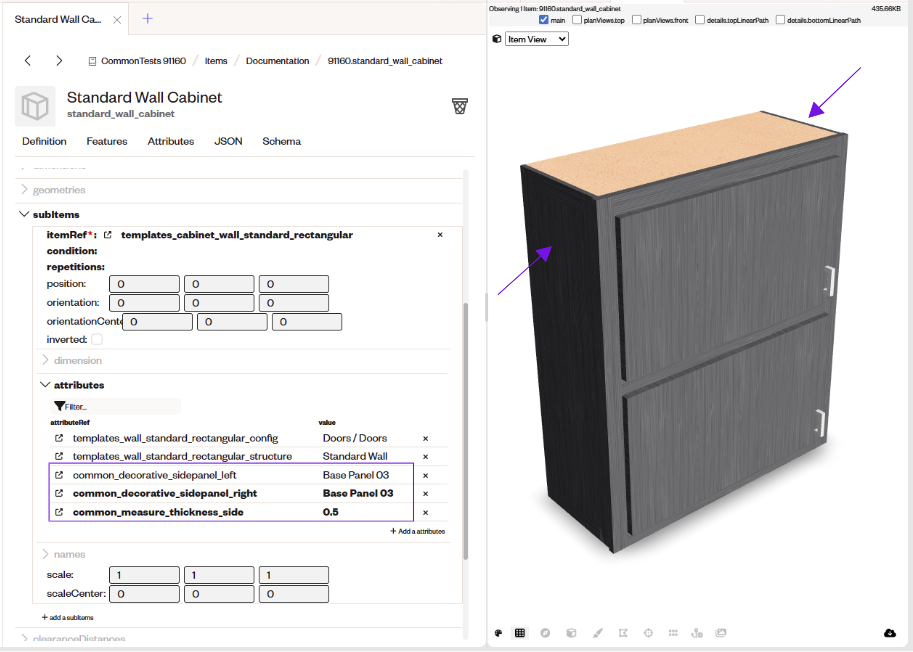

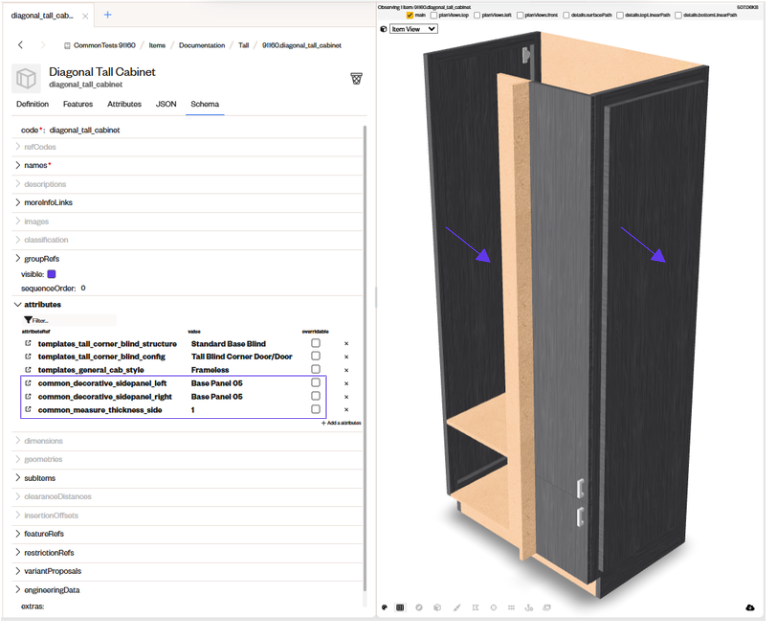

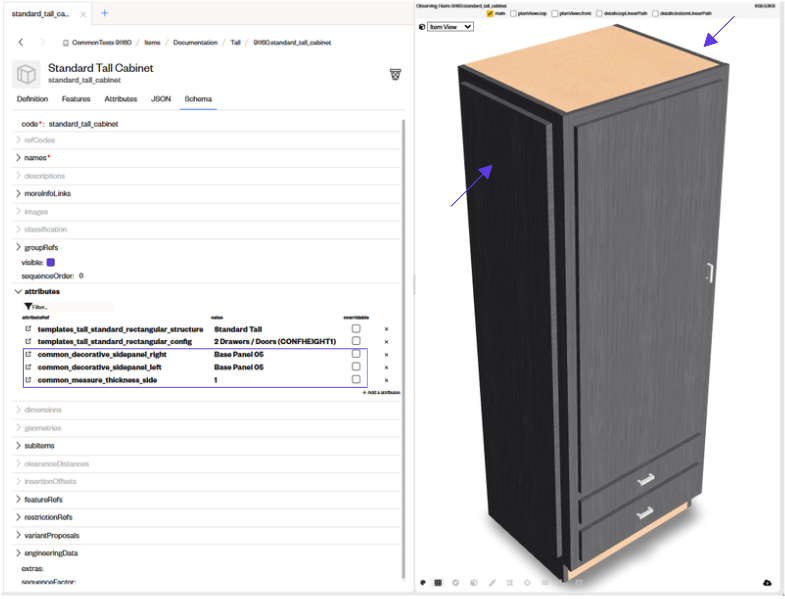

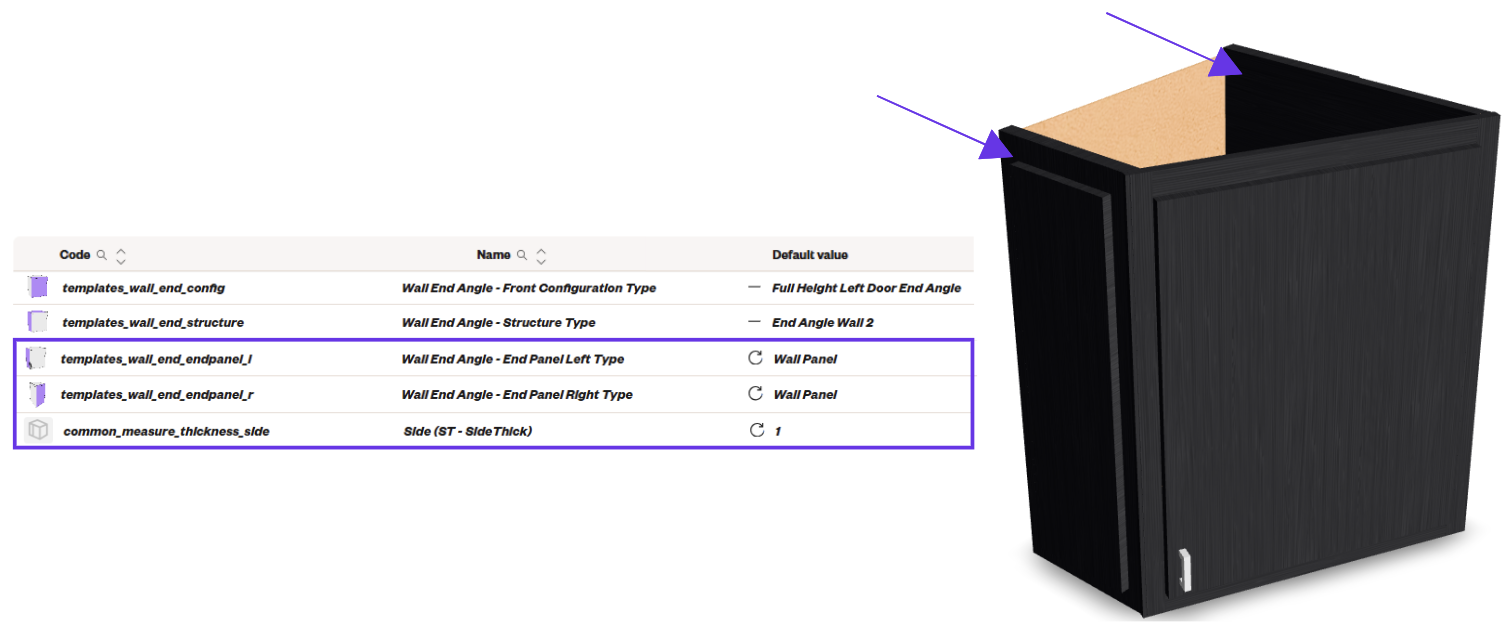

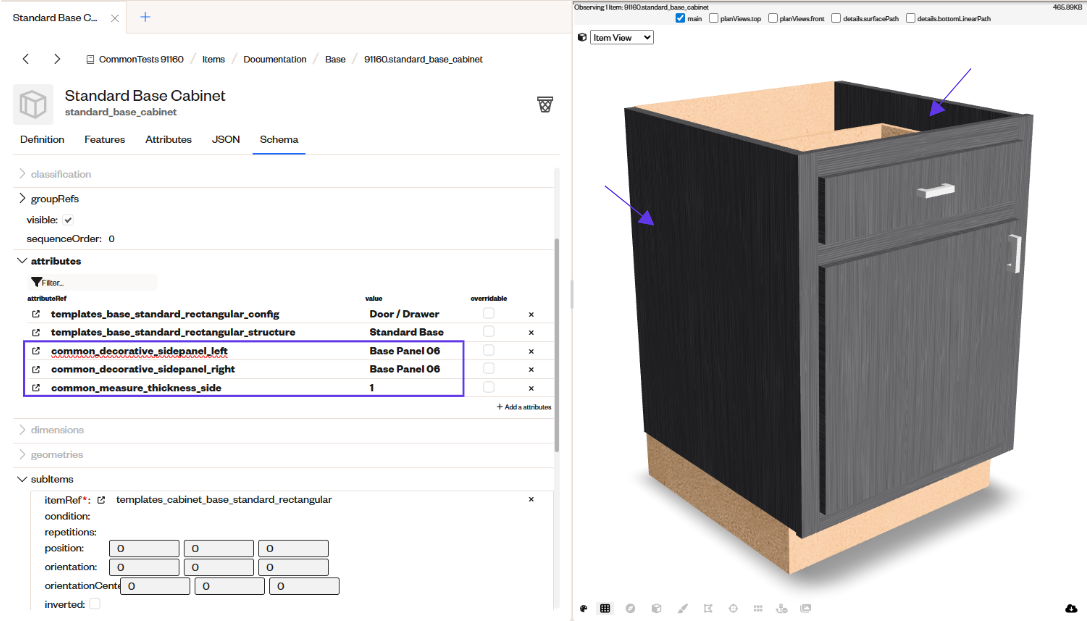

To add the decorative panels and edit its dimensions, use the attributes below, you can find them and their respective values in the articles Attributes: Item Configuration - Visibility and Attributes: Item Configuration - Dimensioning .

Example:

COMMON_DECORATIVE_SIDEPANEL_LEFT = Base Panel 06

COMMON_MEASURE_THICKNESS_SIDE = 1

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

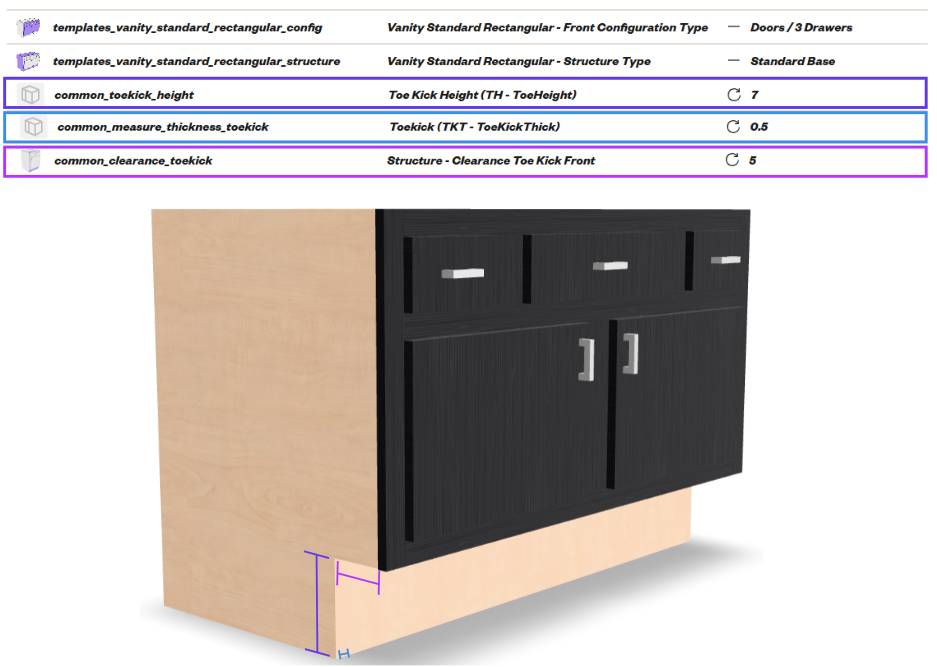

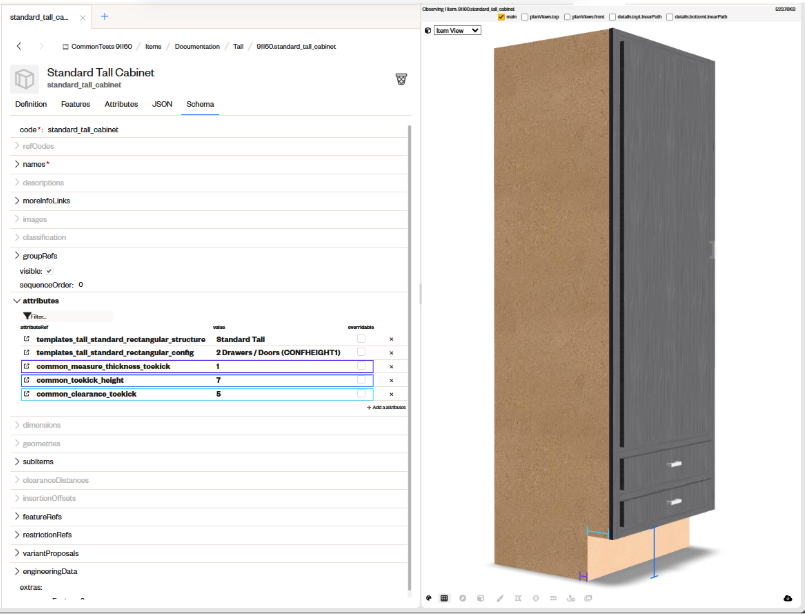

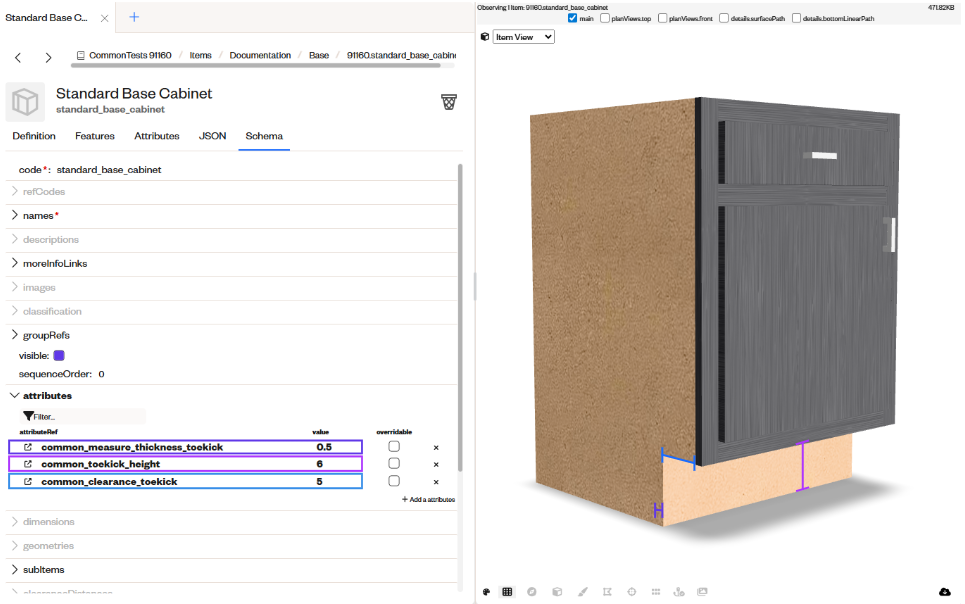

To edit the toekick use the attributes listed below, you can find them in the articles Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Clearances.

Example:

COMMON_MEASURE_THICKNESS_TOEKICK = 0.5

COMMON_TOEKICK_HEIGHT = 6

COMMON_CLEARANCE_TOEKICK = 5

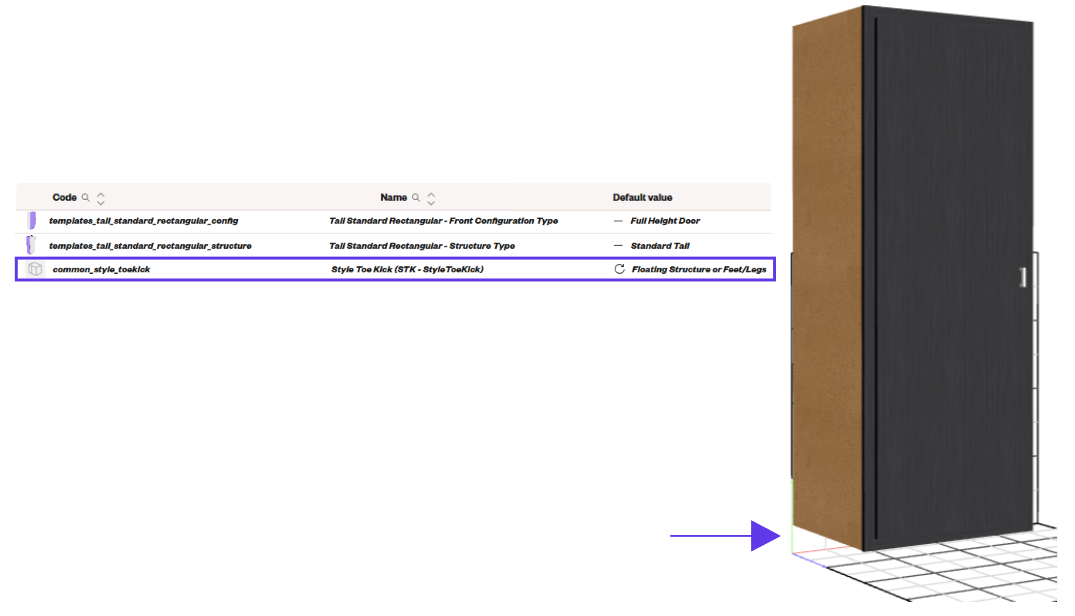

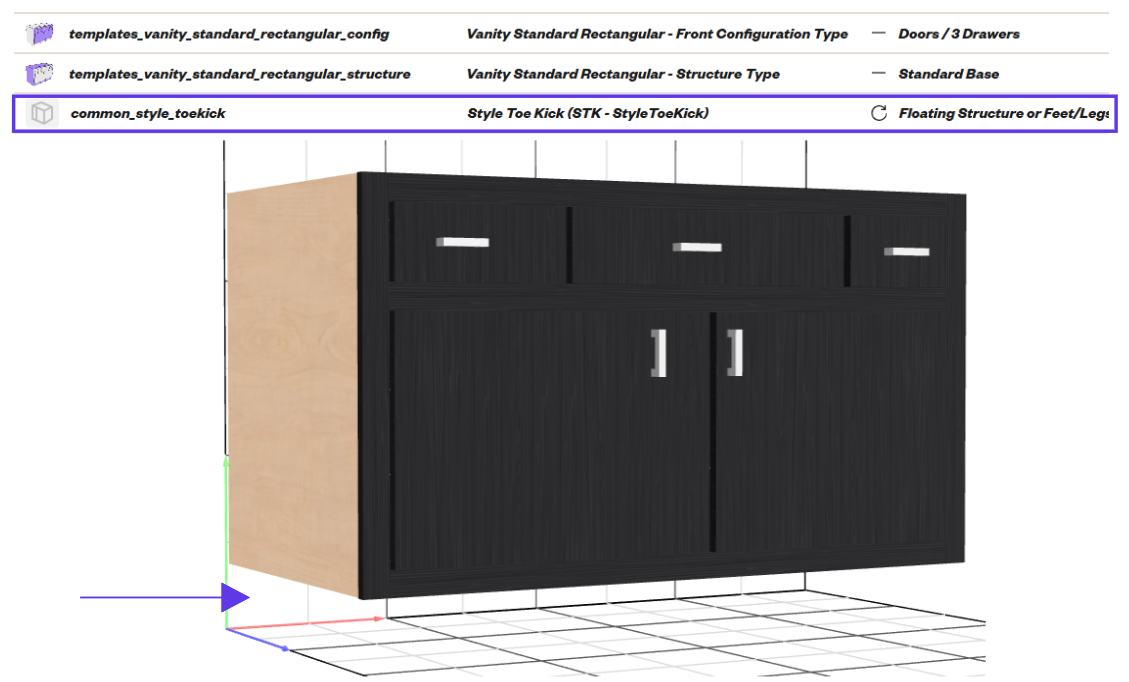

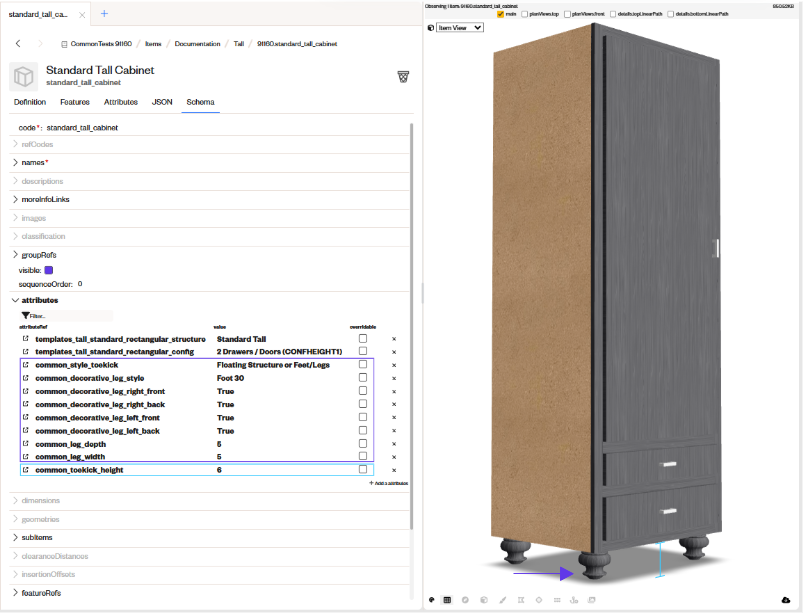

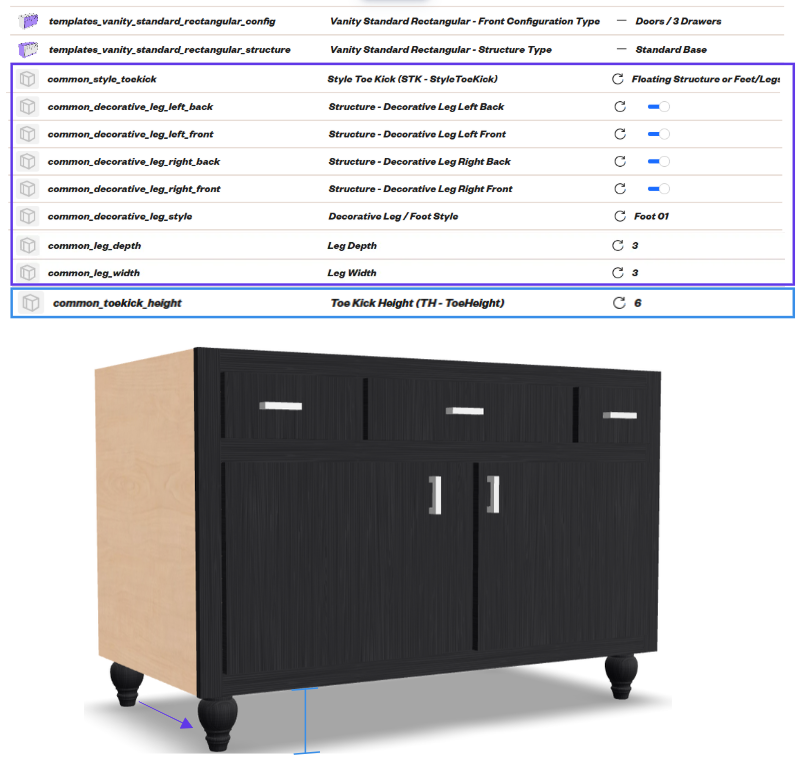

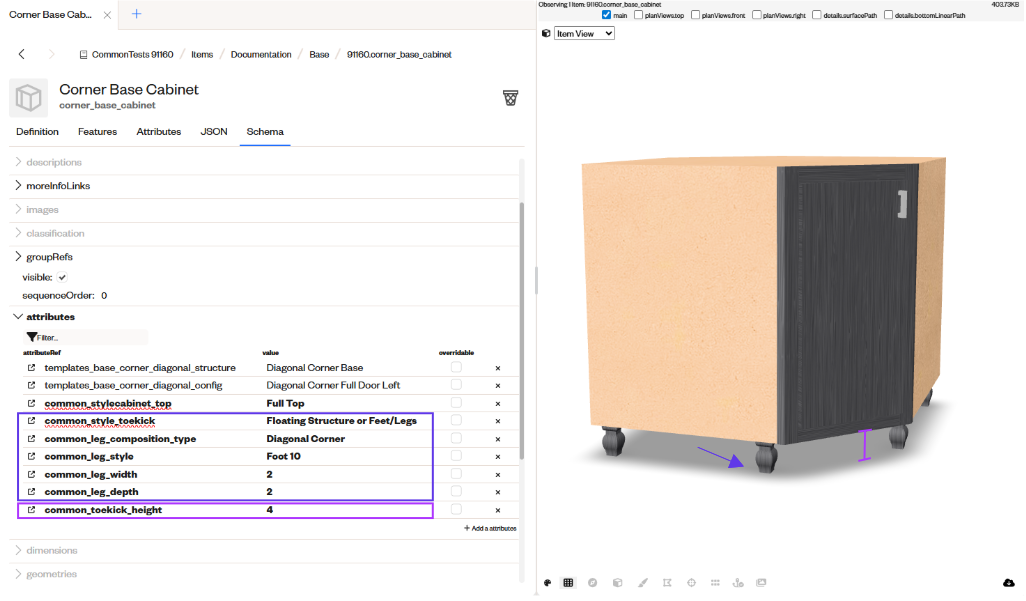

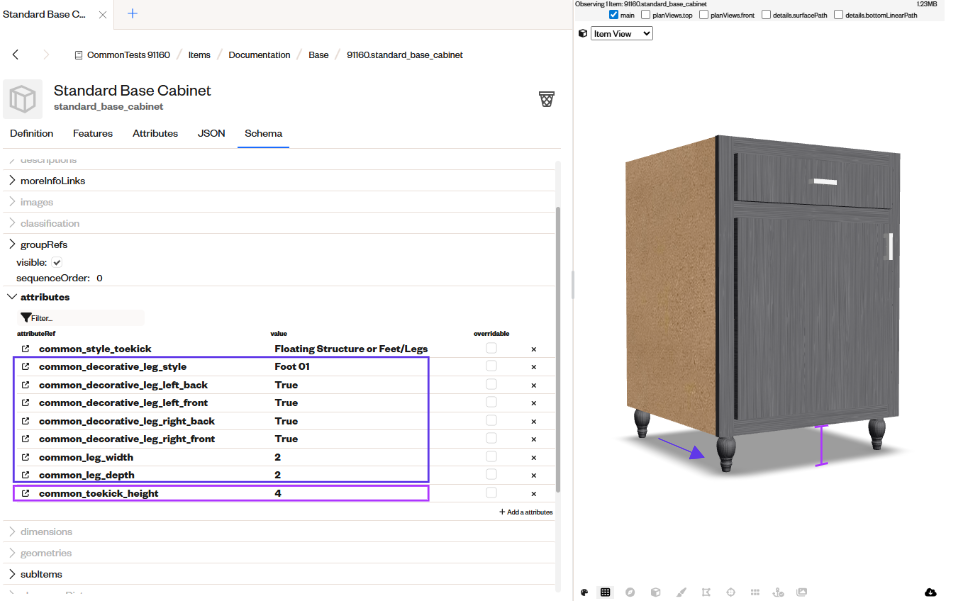

To edit the style toekick, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

COMMON_DECORATIVE_LEG_STYLE = Foot 01

COMMON_DECORATIVE_LEG_LEFT_BACK = True

COMMON_DECORATIVE_LEG_LEFT_FRONT = True

COMMON_DECORATIVE_LEG_RIGHT_BACK = True

COMMON_DECORATIVE_LEG_RIGHT_FRONT = True

COMMON_LEG_WIDTH = 2

COMMON_LEG_DEPTH = 2

COMMON_TOEKICK_HEIGHT = 4

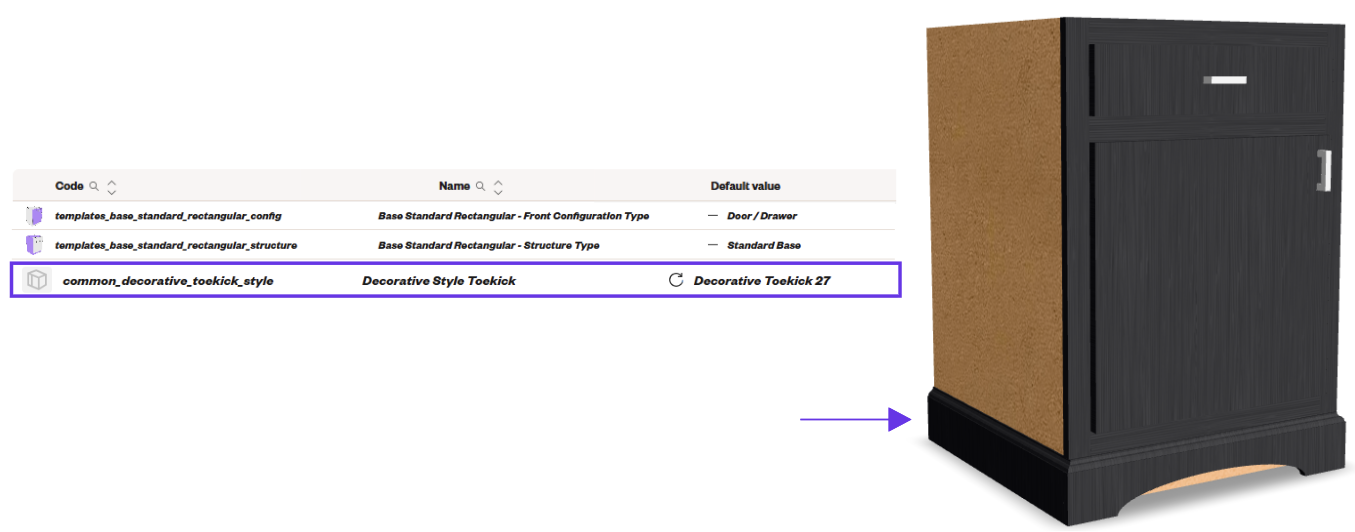

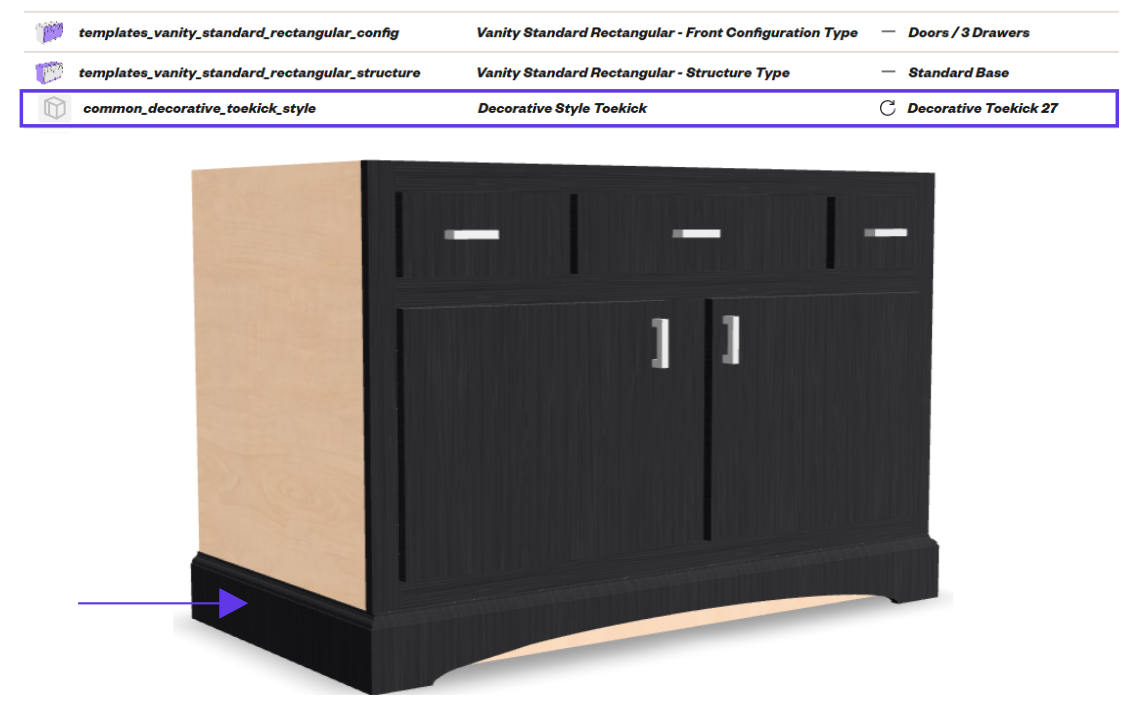

To edit the style toekick and use the decorative style, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

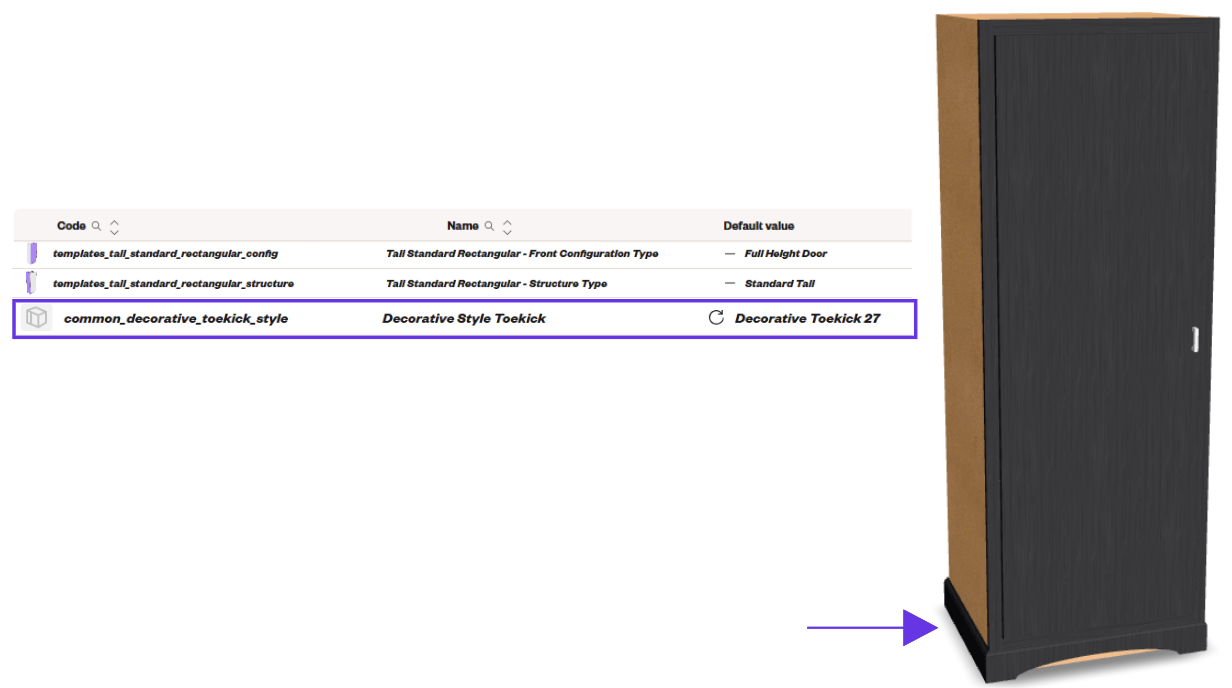

COMMON_DECORATIVE_TOEKICK_STYLE = Decorative Toekick 27

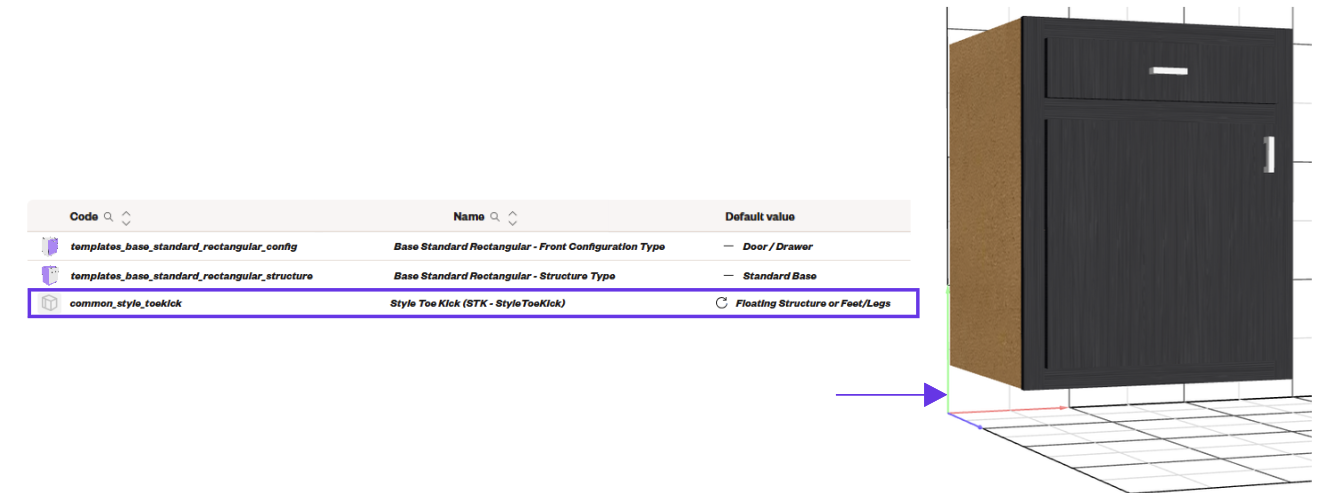

To edit the style toekick and use the floating style, use the attributes listed below, you can find them in the article INTERNAL: Core Library - Structures – Content Studio. With this option, the item seems to be floating and there is no visual structure between it and the floor.

Example:

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

Editing the Configuration in more details:

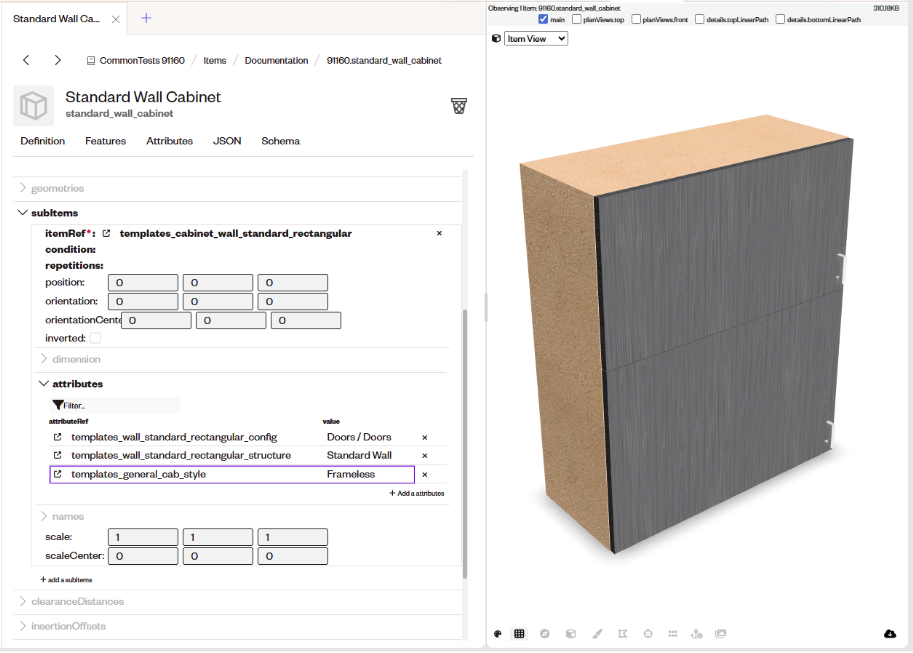

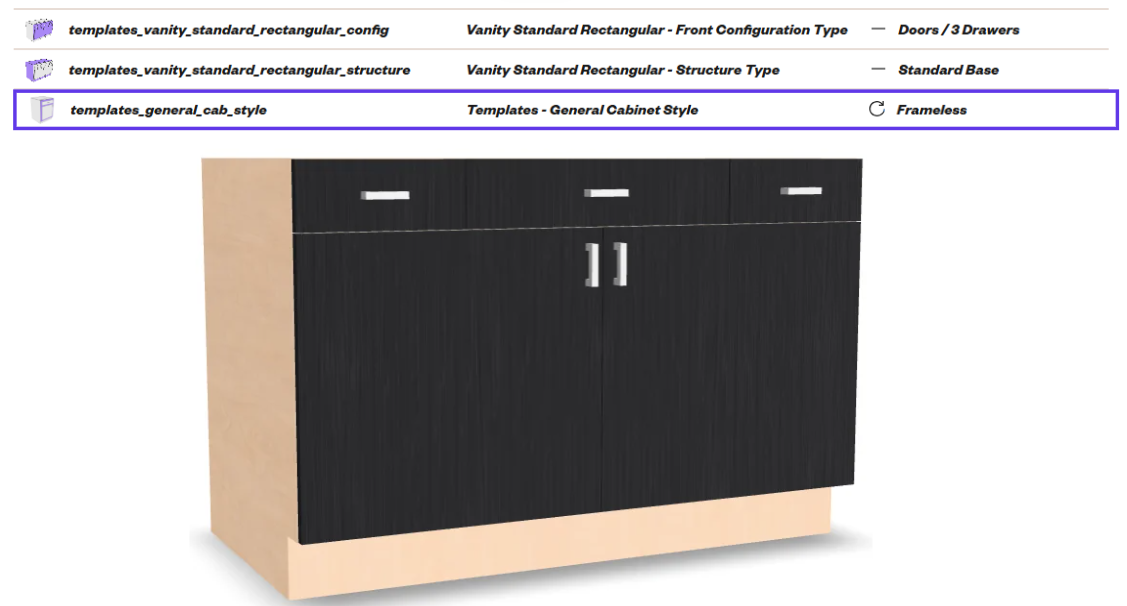

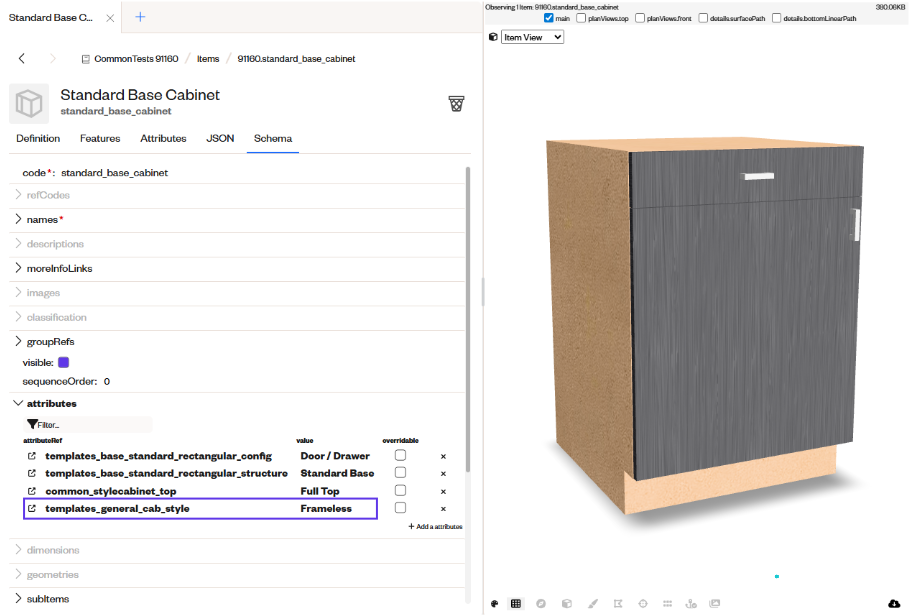

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

TEMPLATES_GENERAL_CAB_STYLE = Frameless

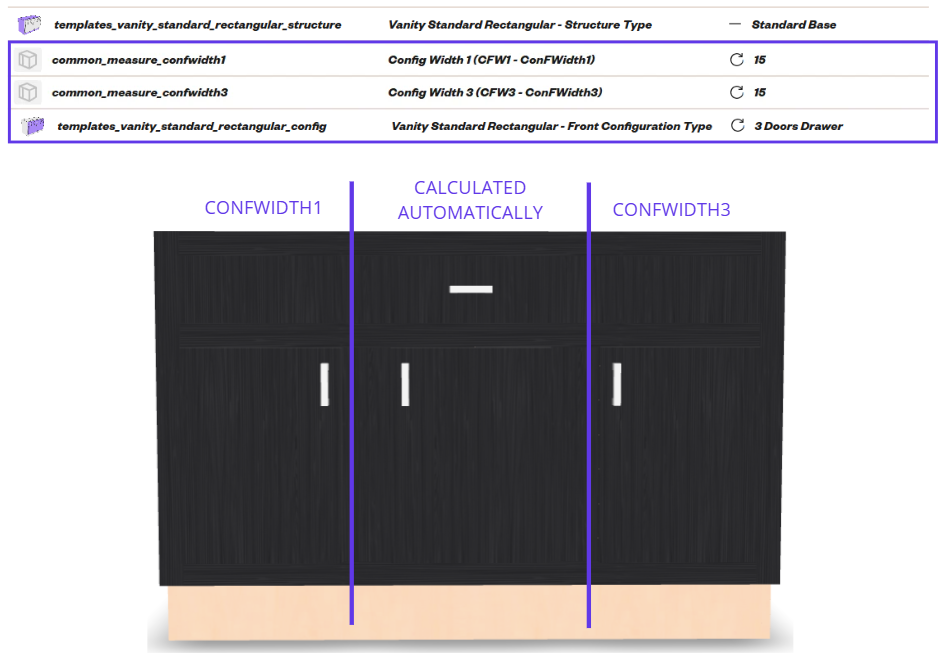

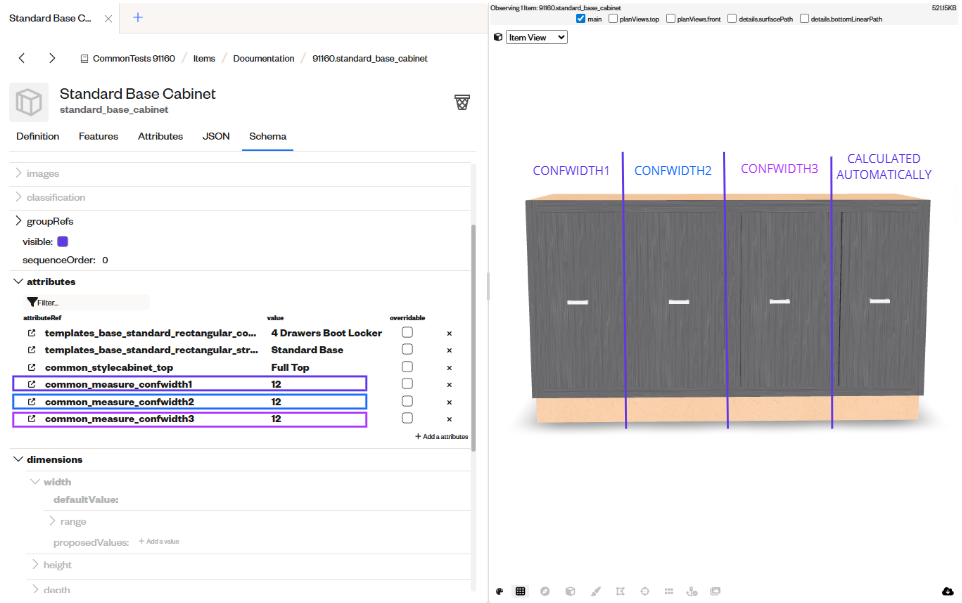

To edit the separation in the configuration, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

Example:

COMMON_MEASURE_CONFWIDTH1 = 12

COMMON_MEASURE_CONFWIDTH2 = 12

COMMON_MEASURE_CONFWIDTH3 =12

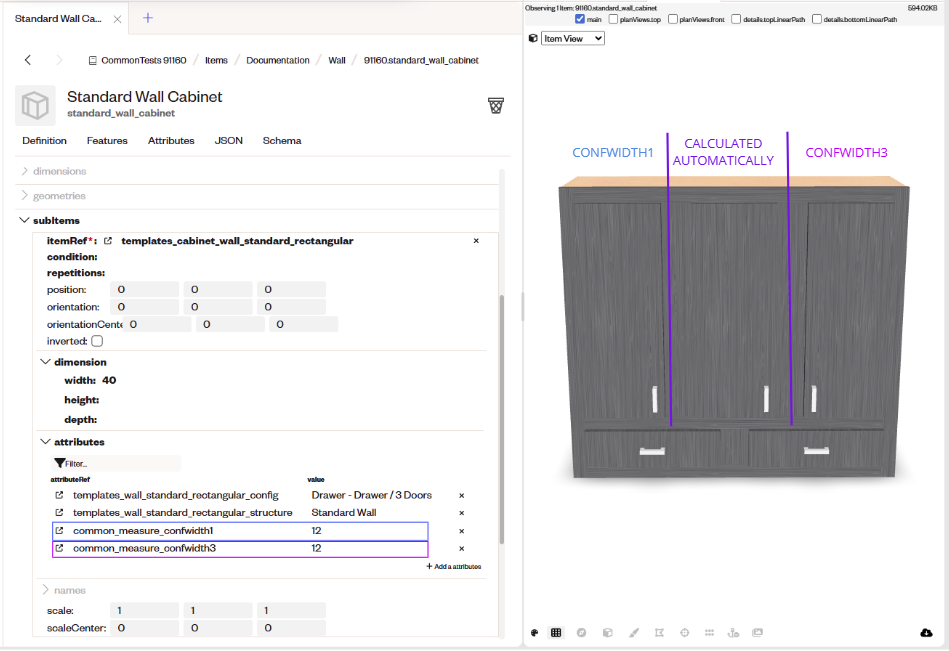

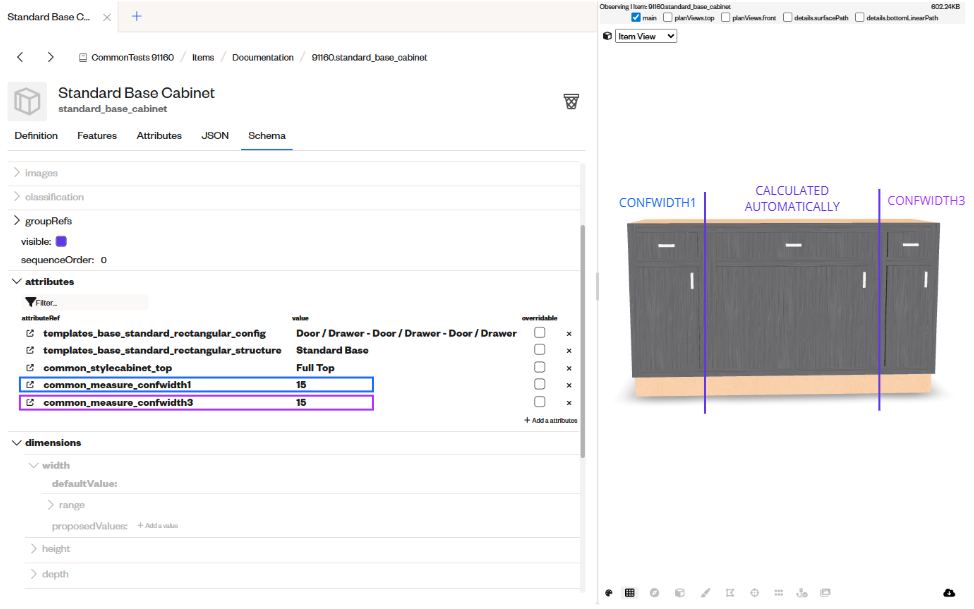

Note: this attribute is used in cases where the configuration is separated by dividers.

COMMON_MEASURE_CONFWIDTH1 = 15

COMMON_MEASURE_CONFWIDTH3 =15

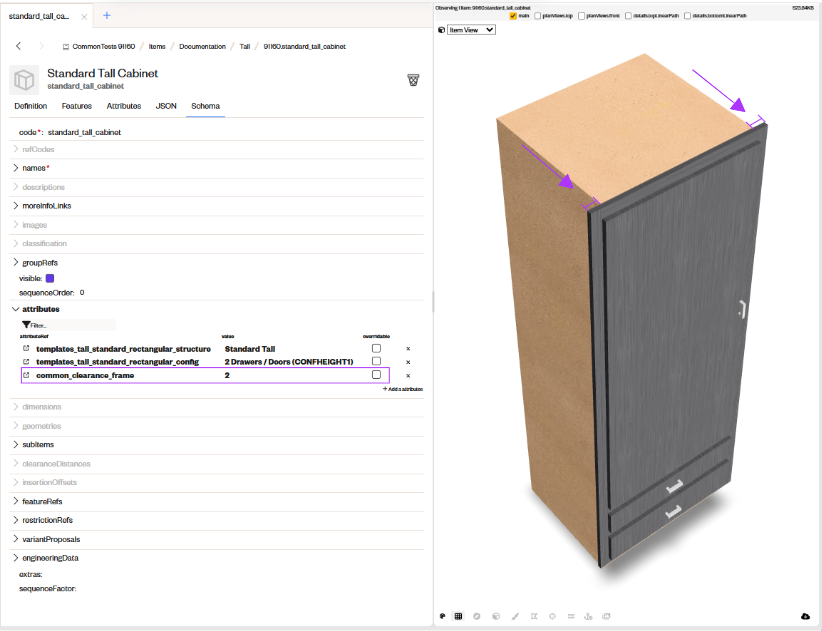

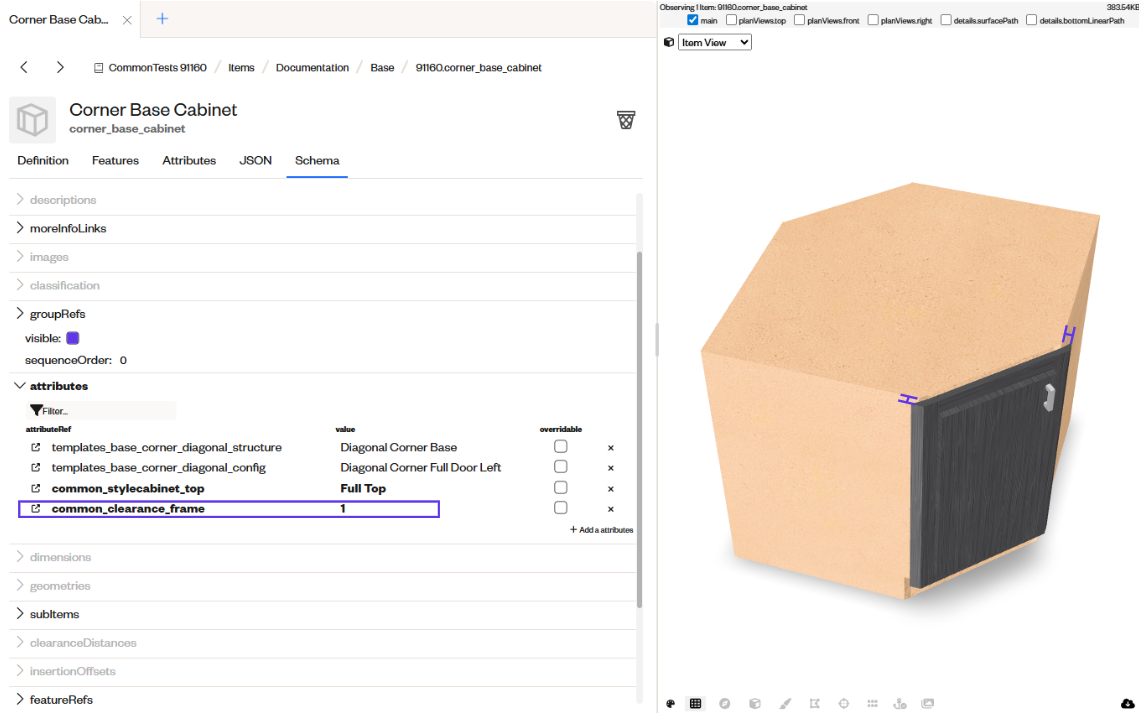

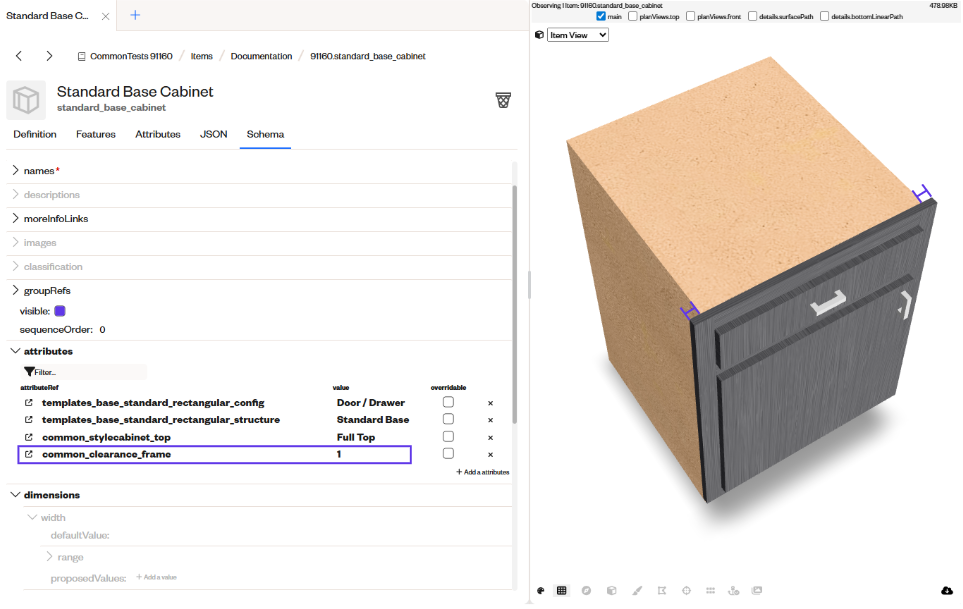

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_FRAME = 1

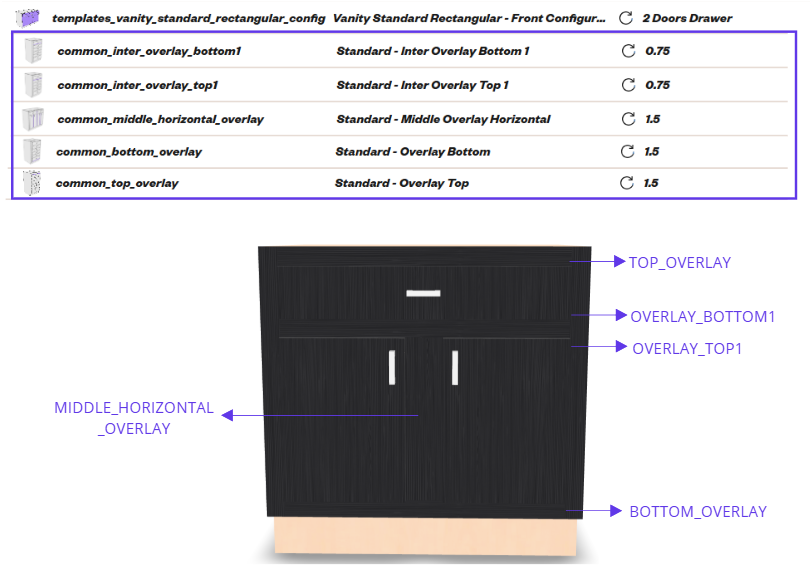

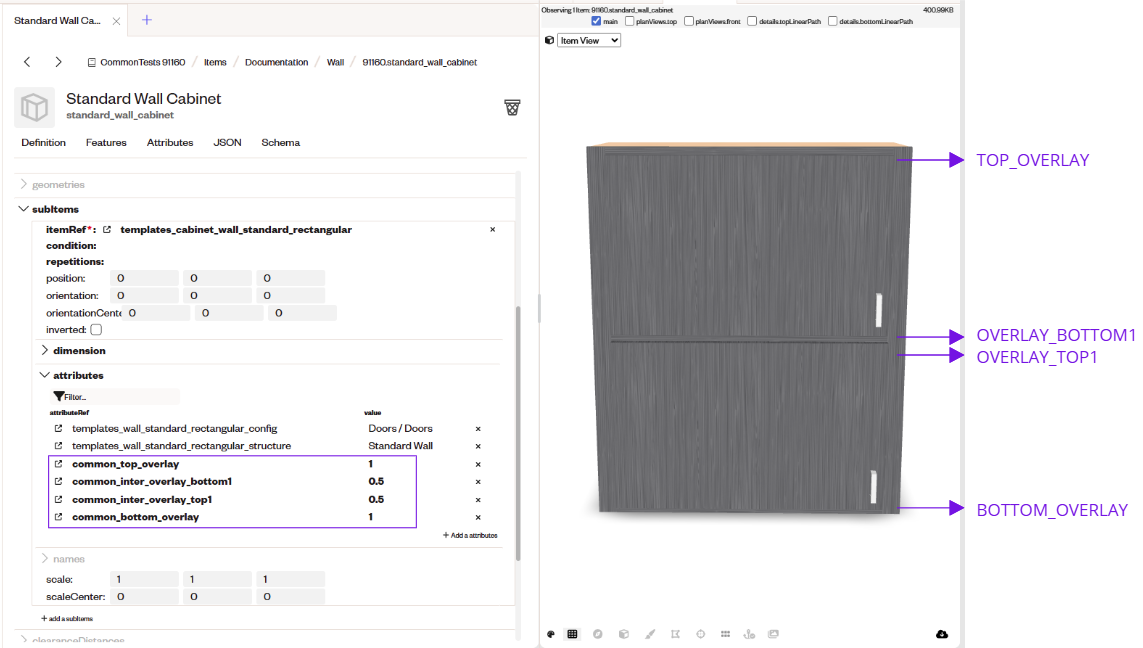

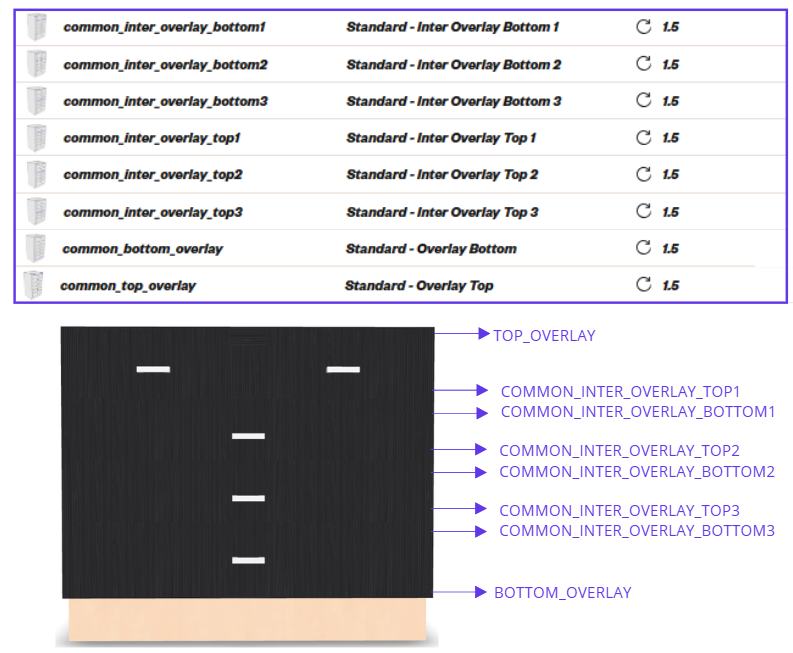

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example 1:

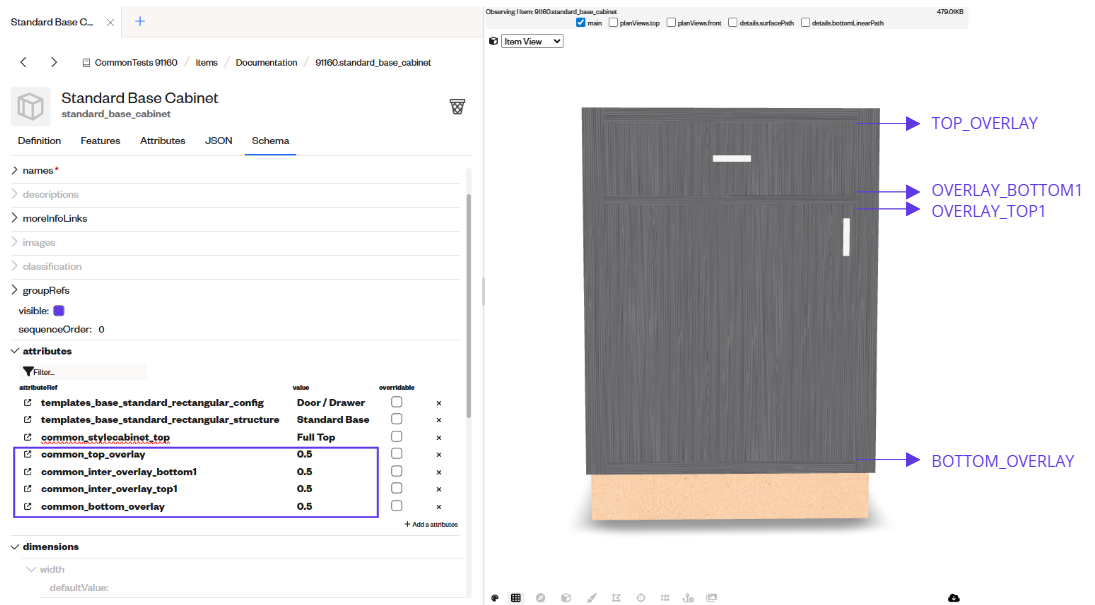

COMMON_TOP_OVERLAY = 0.5

COMMON_INTER_OVERLAY_BOTTOM1 = 0.5

COMMON_INTER_OVERLAY_TOP1 = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

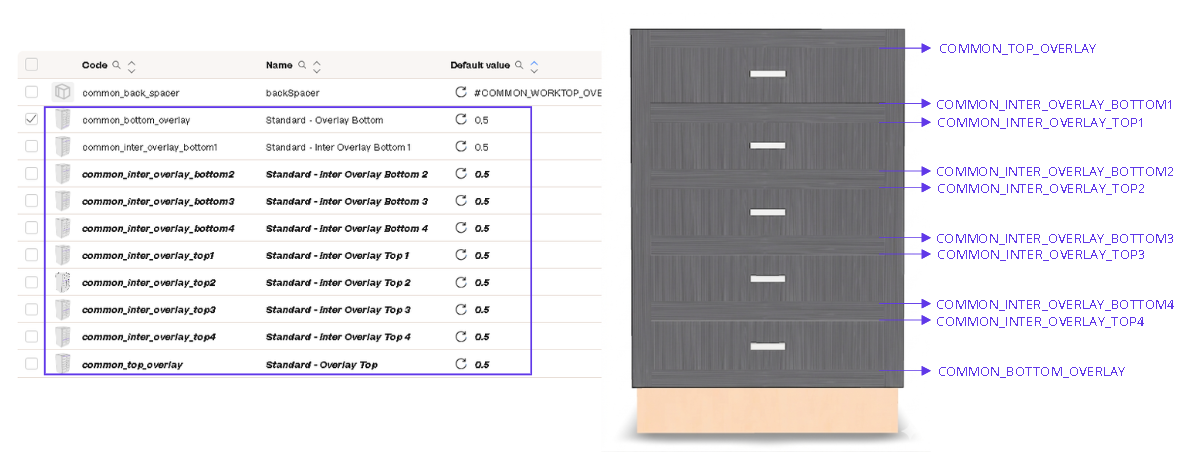

Example 2:

COMMON_TOP_OVERLAY = 0.5

COMMON_INTER_OVERLAY_BOTTOM1 = 0.5

COMMON_INTER_OVERLAY_TOP1 = 0.5

COMMON_INTER_OVERLAY_BOTTOM2 = 0.5

COMMON_INTER_OVERLAY_TOP2 = 0.5

COMMON_INTER_OVERLAY_BOTTOM3 = 0.5

COMMON_INTER_OVERLAY_TOP3 = 0.5

COMMON_INTER_OVERLAY_BOTTOM4 = 0.5

COMMON_INTER_OVERLAY_TOP4 = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

Example of Doors:

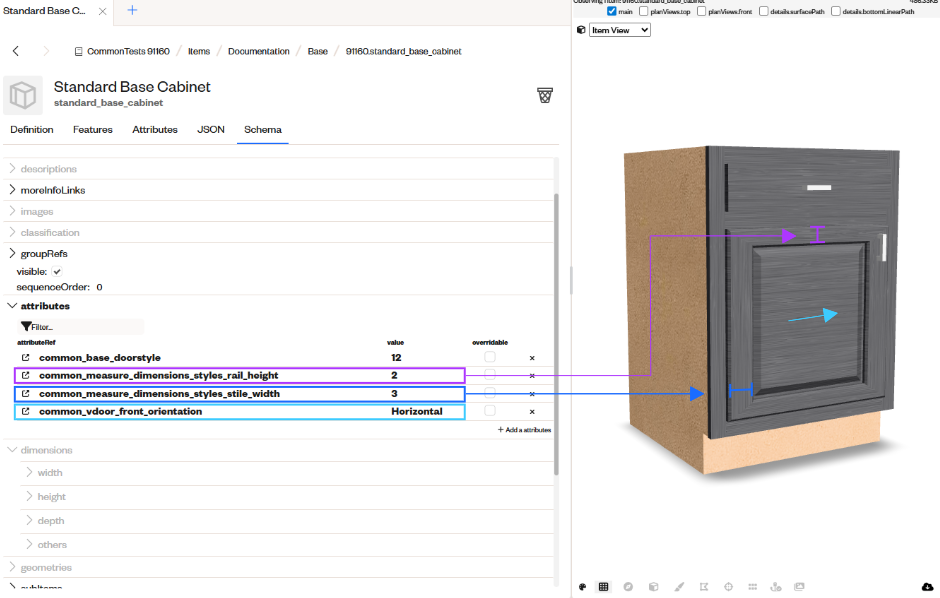

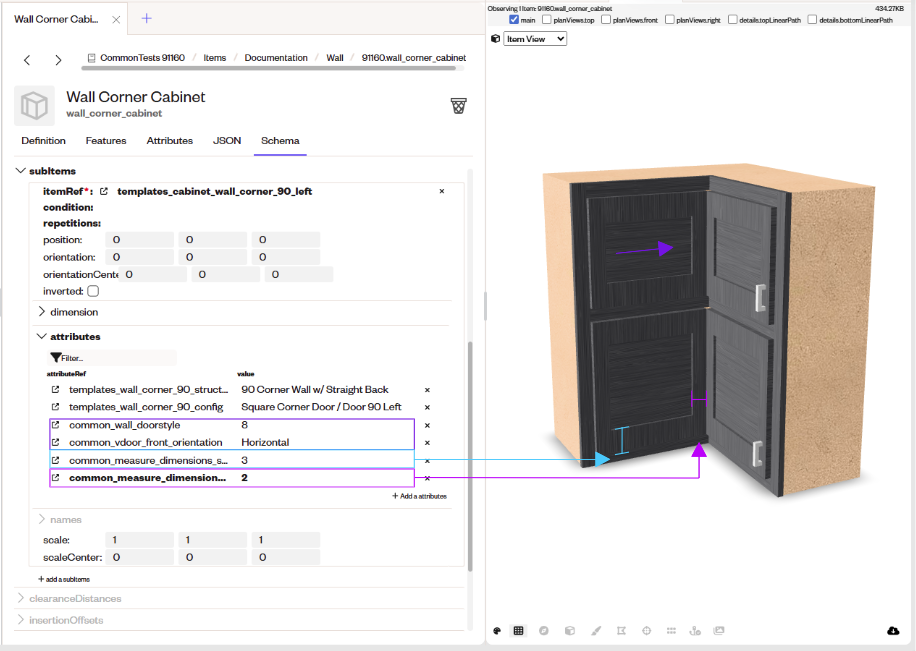

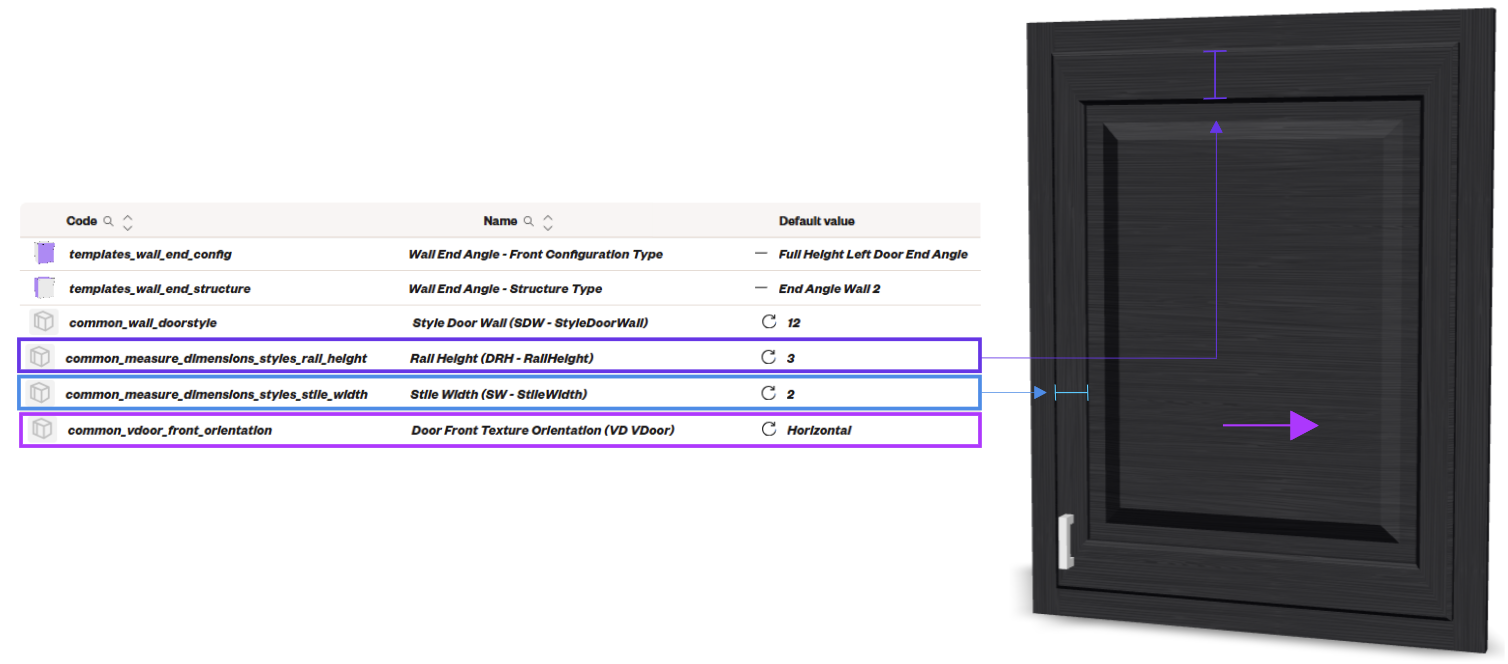

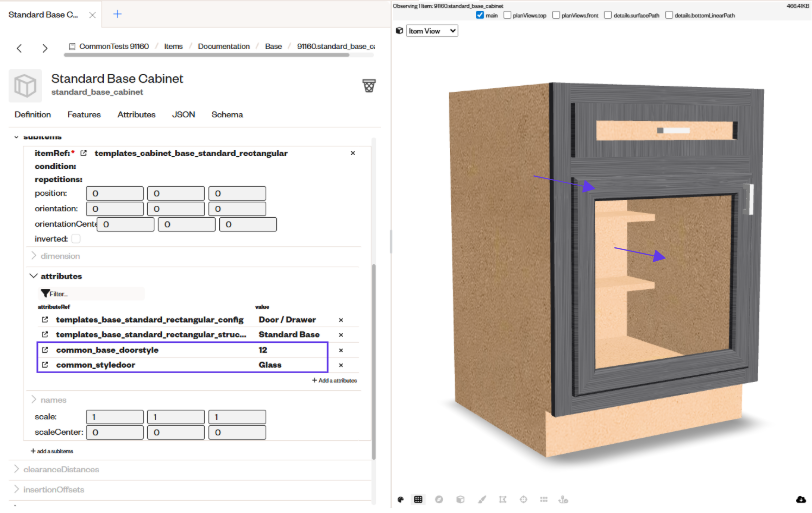

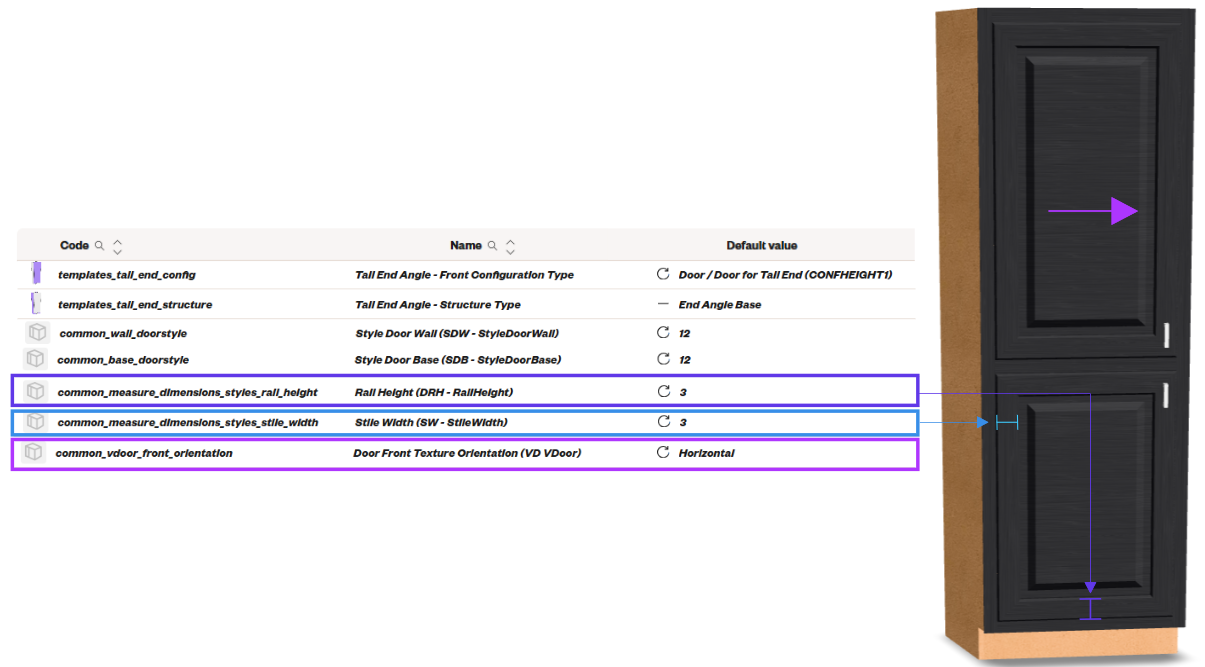

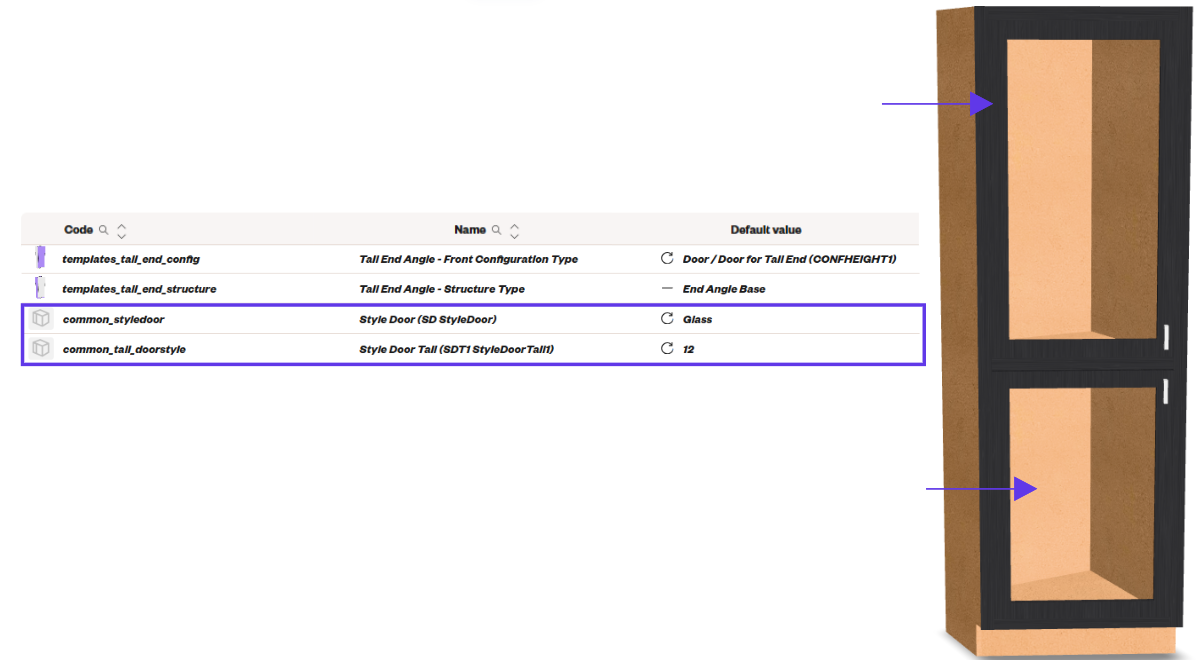

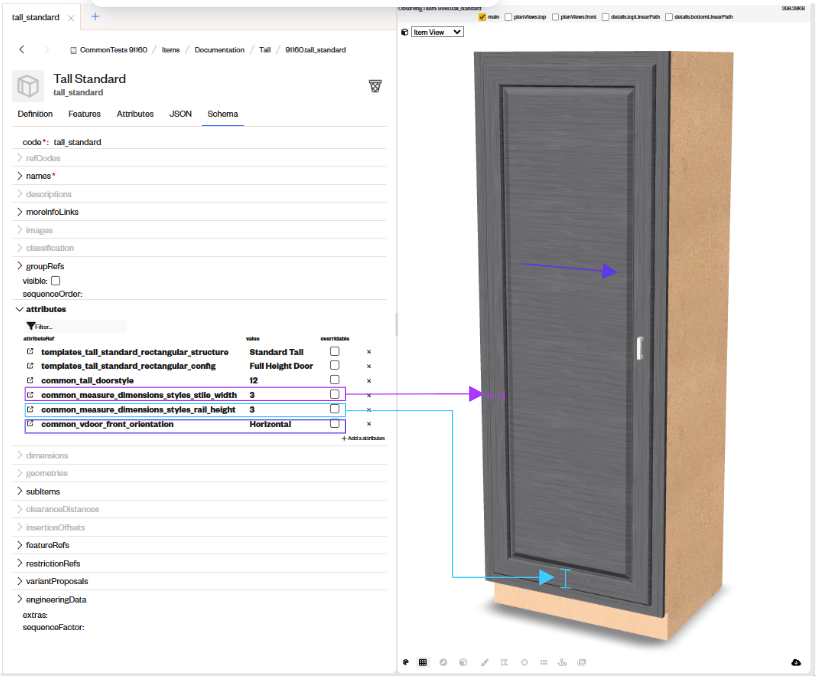

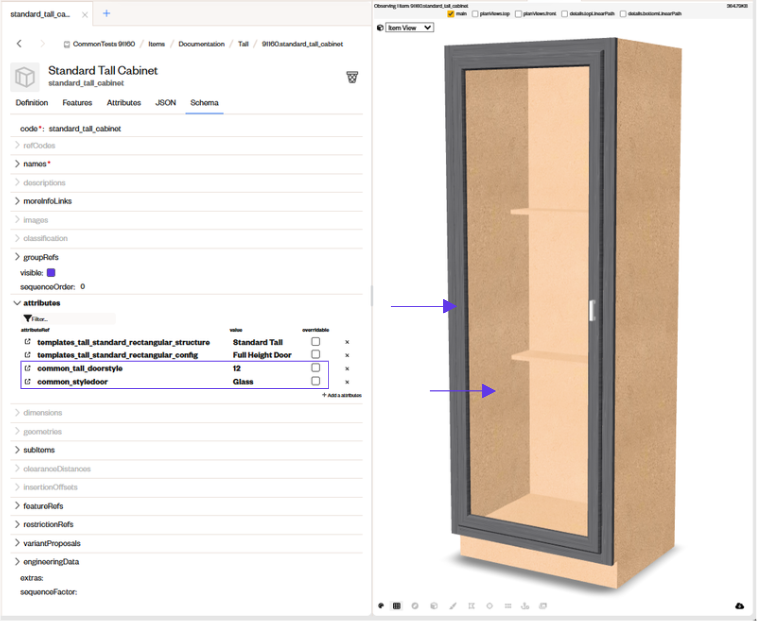

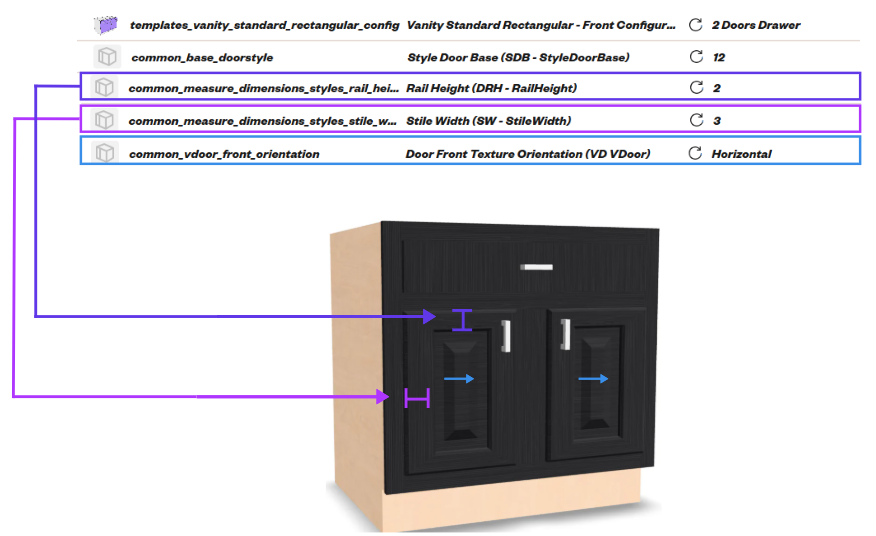

To edit the door style and the dimensions of the frames (when available), use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 2 and Attributes: Item Configuration - Dimensioning.

Example:

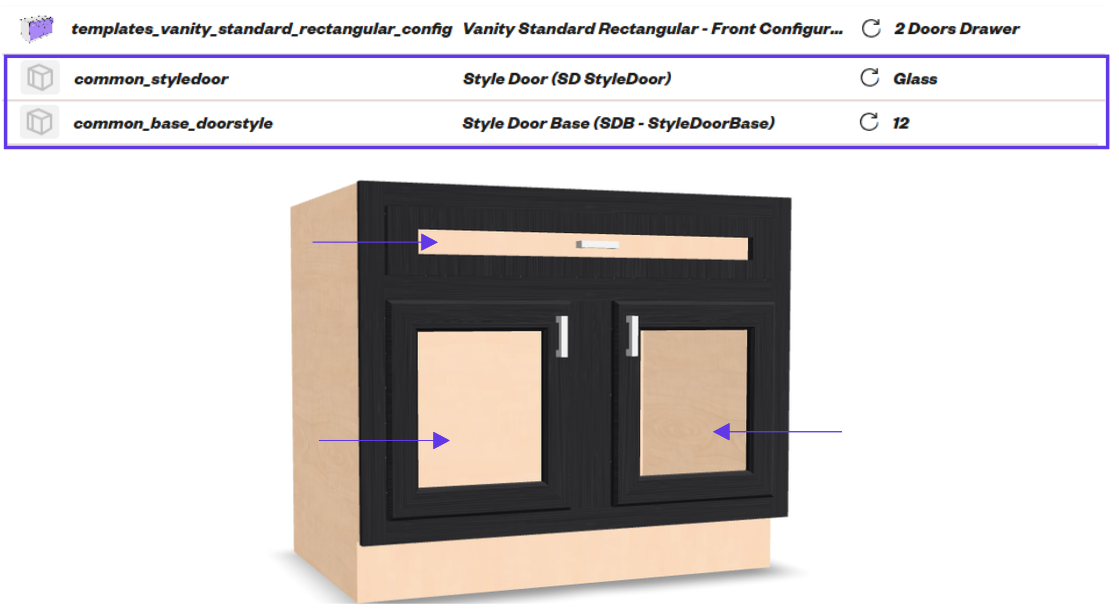

COMMON_BASE_DOORSTYLE = 12

COMMON_STYLEDOOR = Glass

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 2

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 3

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

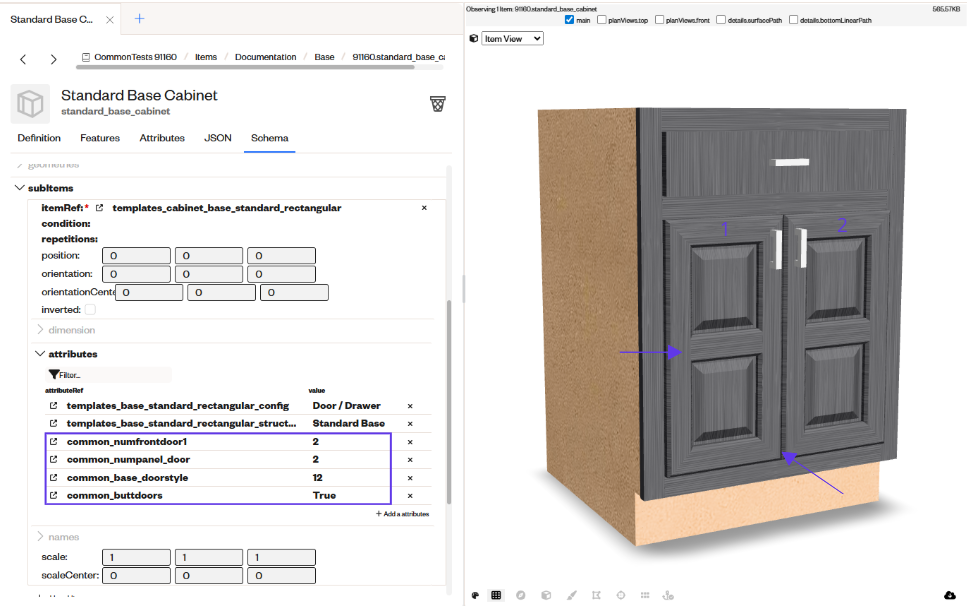

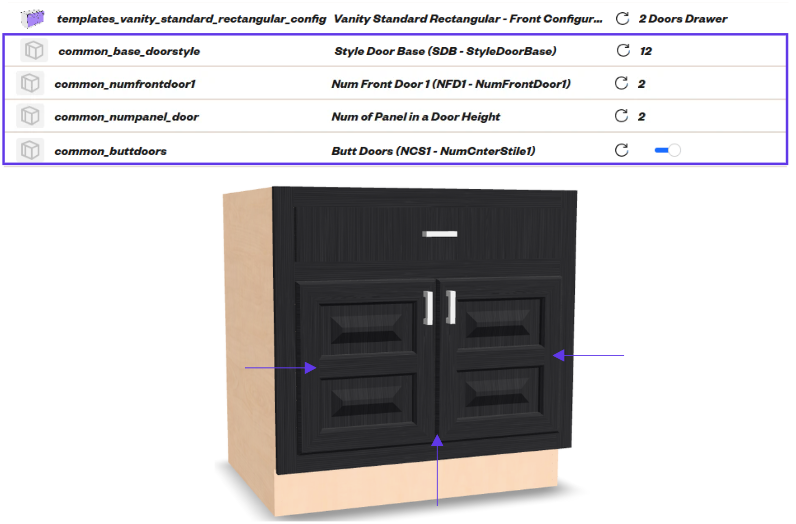

To edit the number of doors, the panel style and whether or not the doors have a center stile, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Quantity, Attributes: Item Configuration - Style 2 and Attributes: Item Configuration - Visibility.

Example:

COMMON_BASE_DOORSTYLE = 12

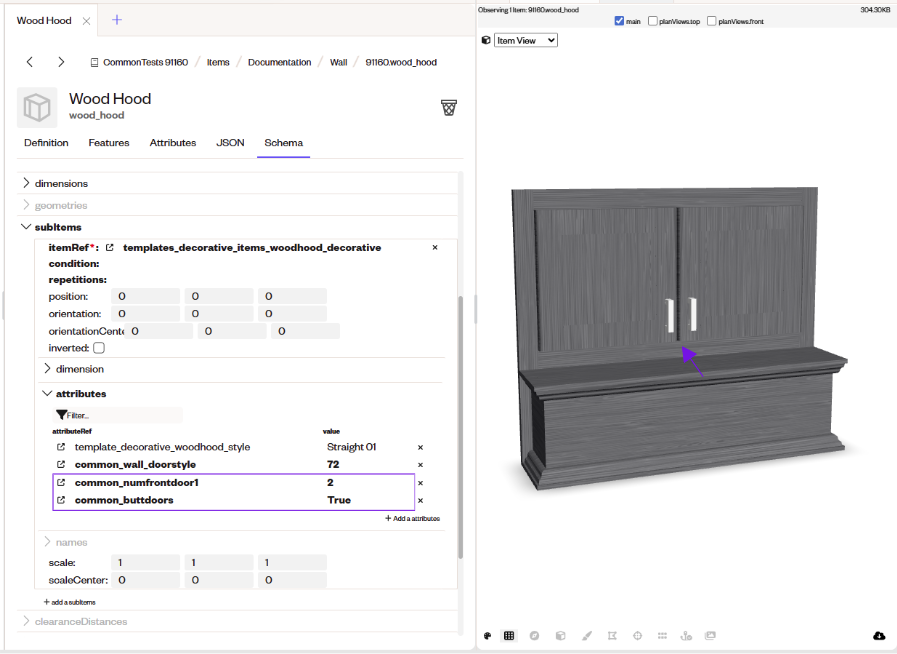

COMMON_NUMFRONTDOOR1 = 2

COMMON_NUMPANEL_DOOR = 2

COMMON_BUTTDOORS = True

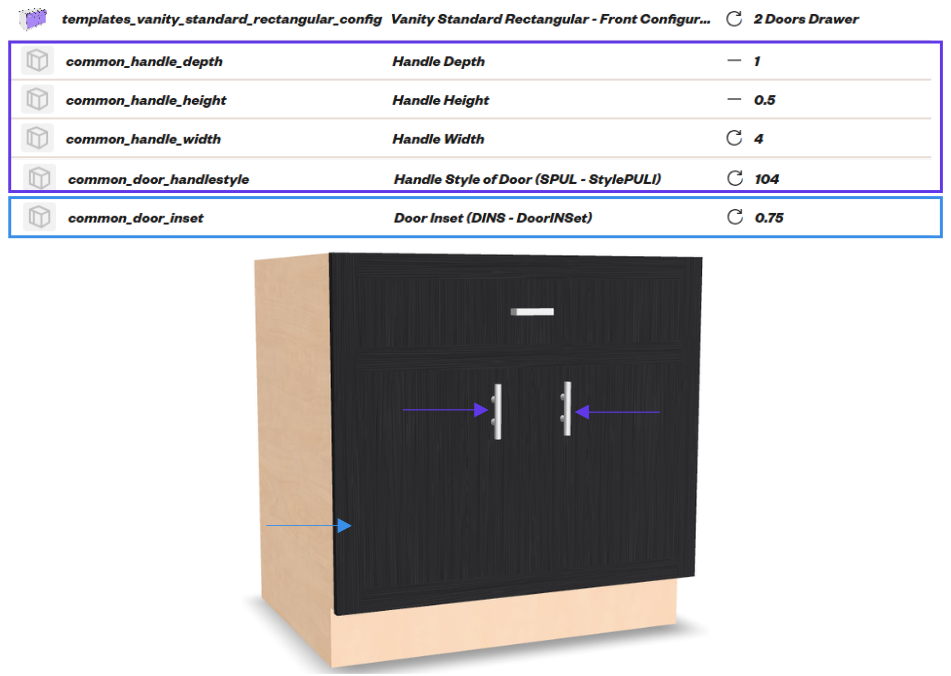

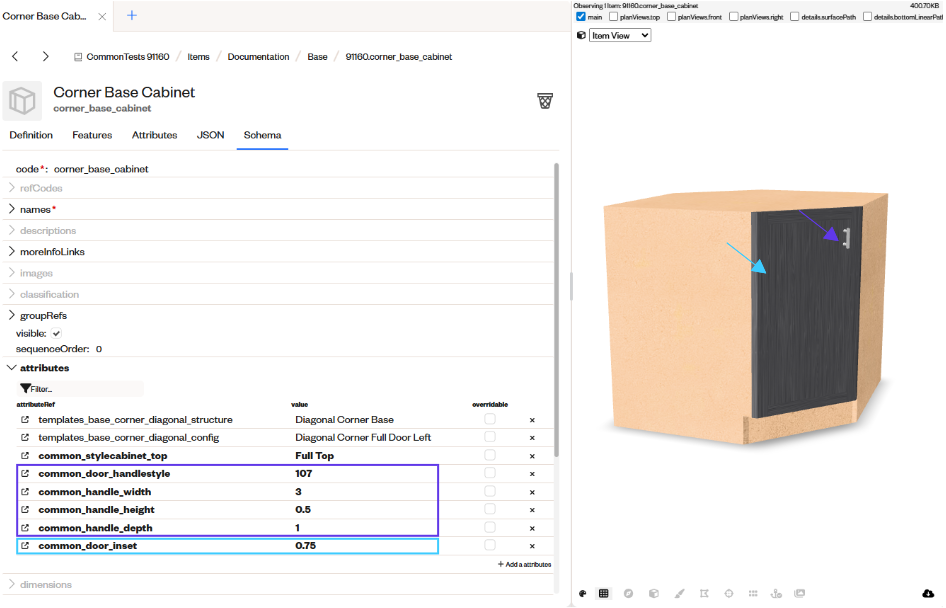

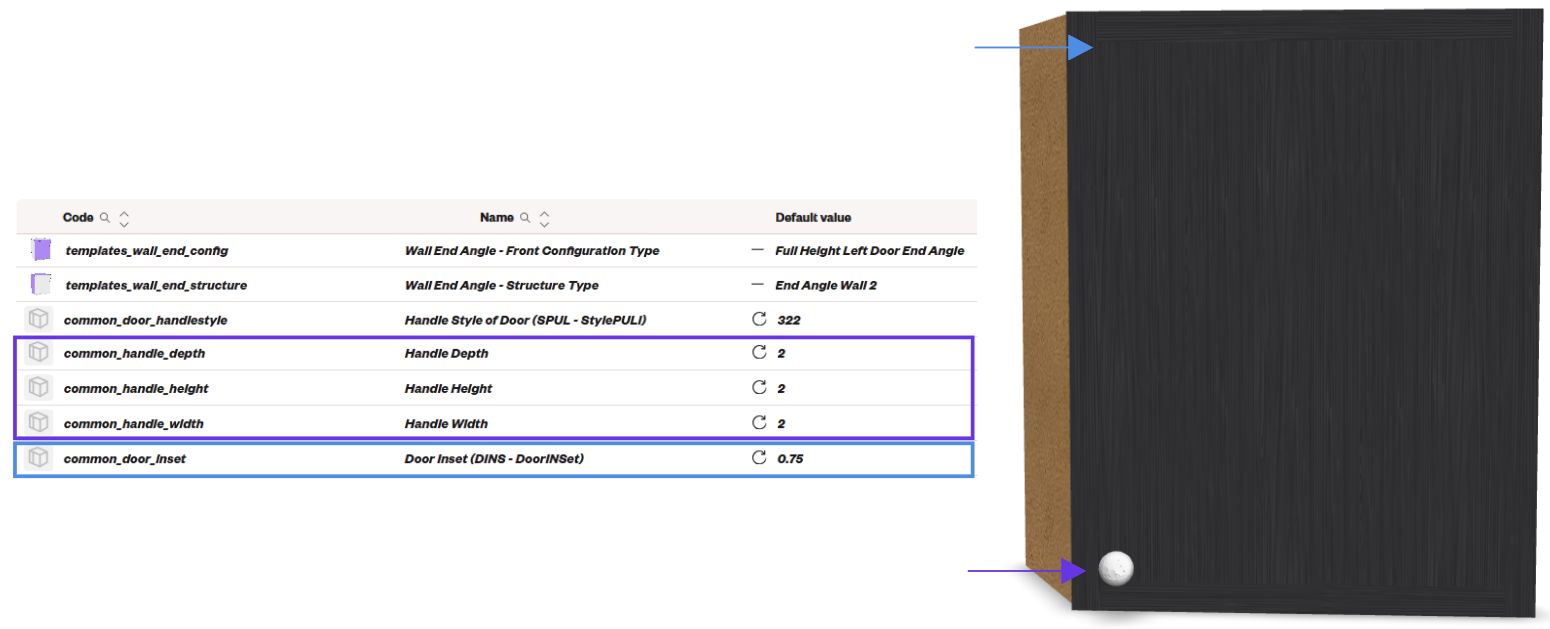

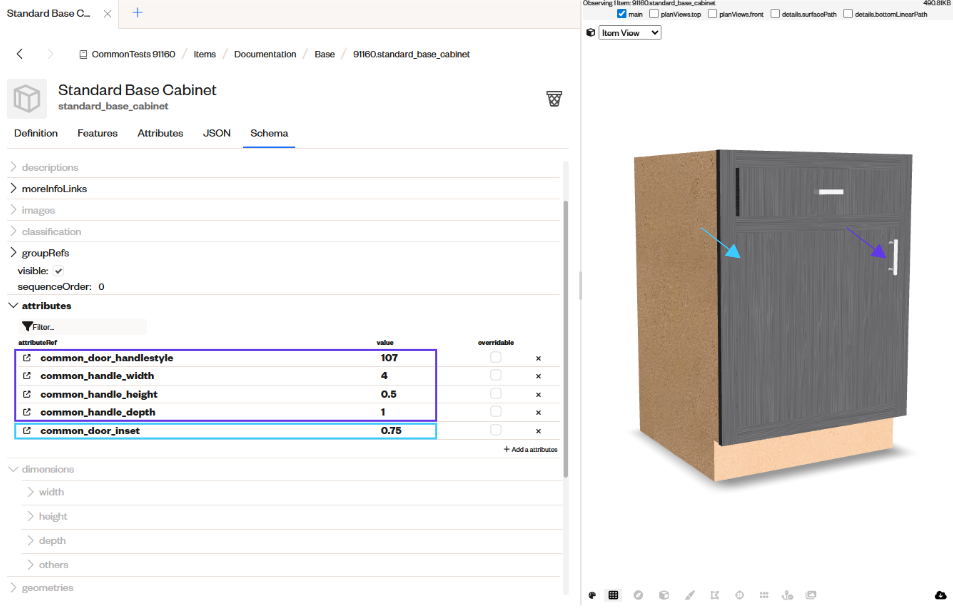

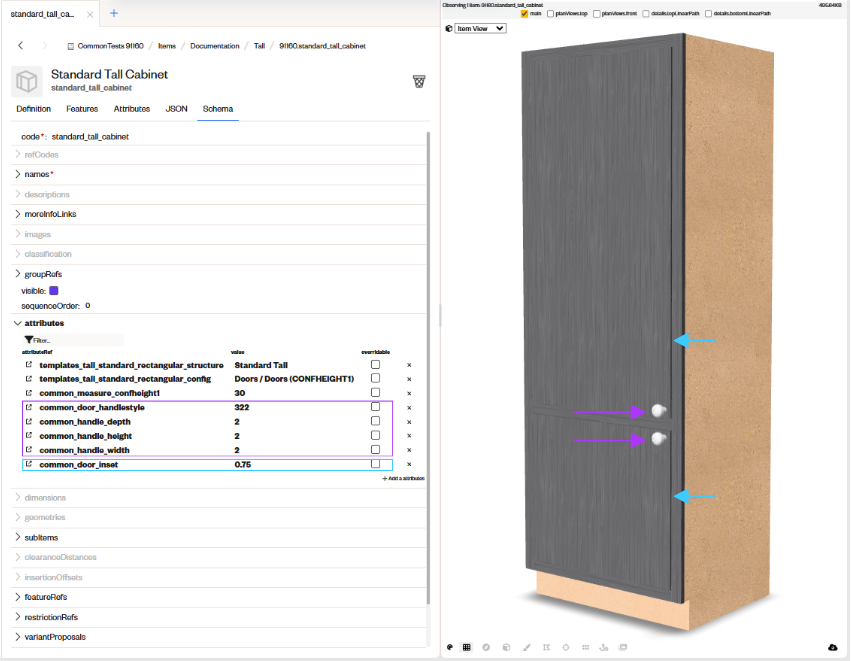

To edit the handle style, door inset and dimensions, use the attribute listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1, Attributes: Item Configuration - Style 2 and Attributes: Item Configuration - Dimensioning .

Example:

COMMON_DOOR_HANDLESTYLE = 104

COMMON_HANDLE_WIDTH = 4

COMMON_HANDLE_HEIGHT = 0.5

COMMON_HANDLE_DEPTH = 1

COMMON_DOOR_INSET = 0.75

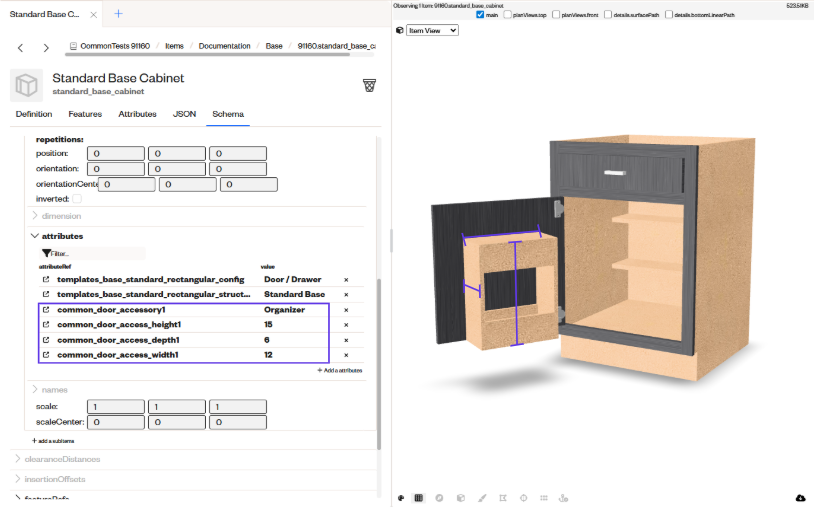

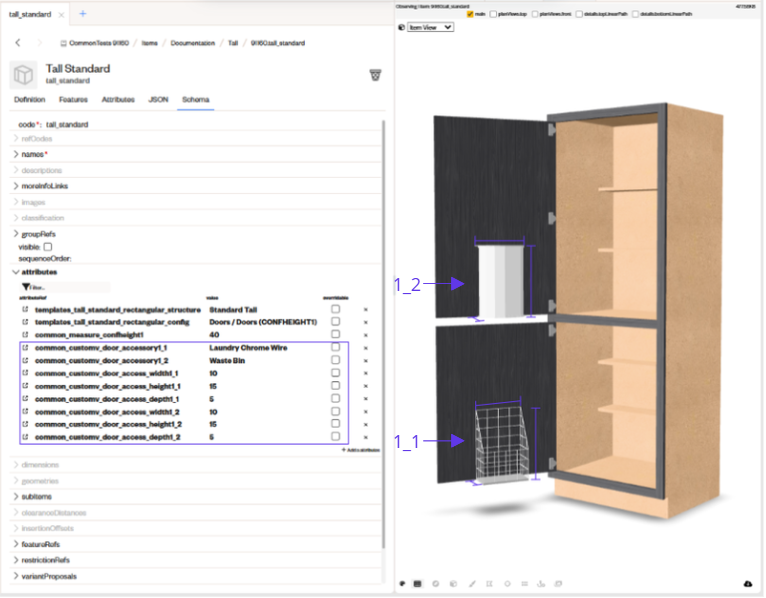

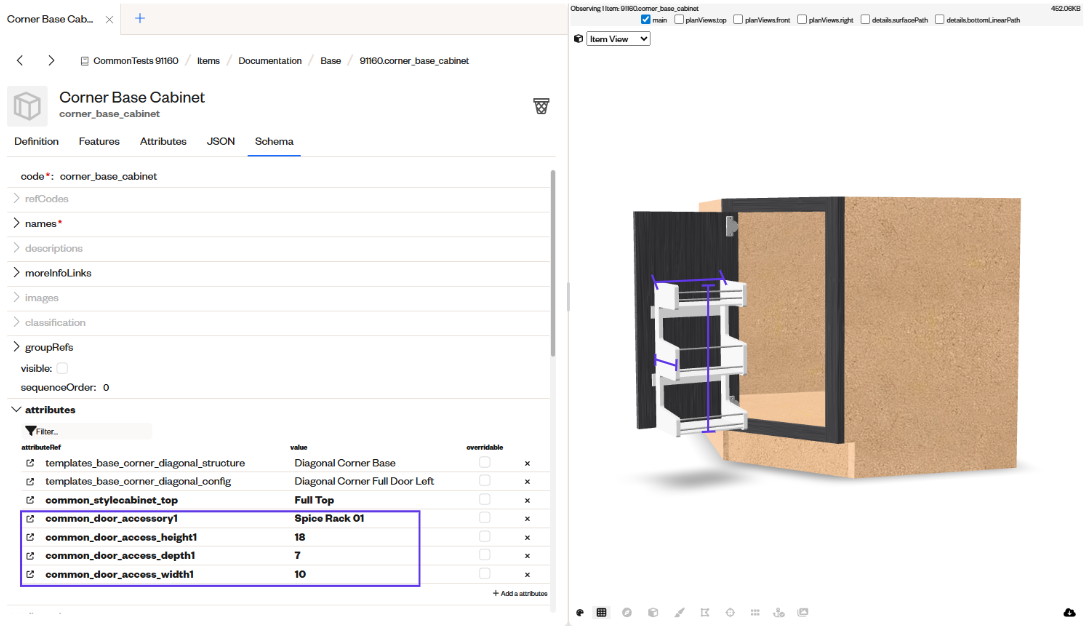

To add the accessories and edit their dimension, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 and Attributes: Item Configuration - Dimensioning.

Example:

COMMON_DOOR_ACCESSORY1 = Organizer

COMMON_DOOR_ACCESS_HEIGHT1 = 15

COMMON_DOOR_ACCESS_DEPTH1 = 6

COMMON_DOOR_ACCESS_WIDTH1 = 12

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESSORY1 until COMMON_DOOR_ACCESSORY14

COMMON_DOOR_ACCESS_HEIGHT1 until COMMON_DOOR_ACCESS_HEIGHT8

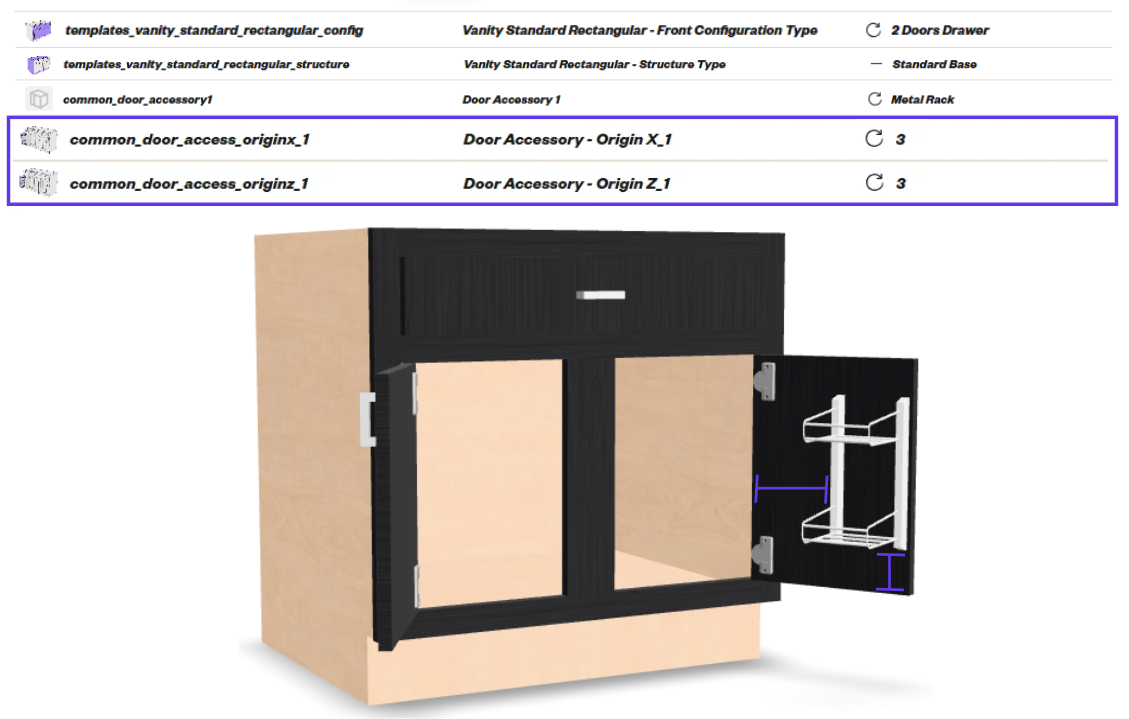

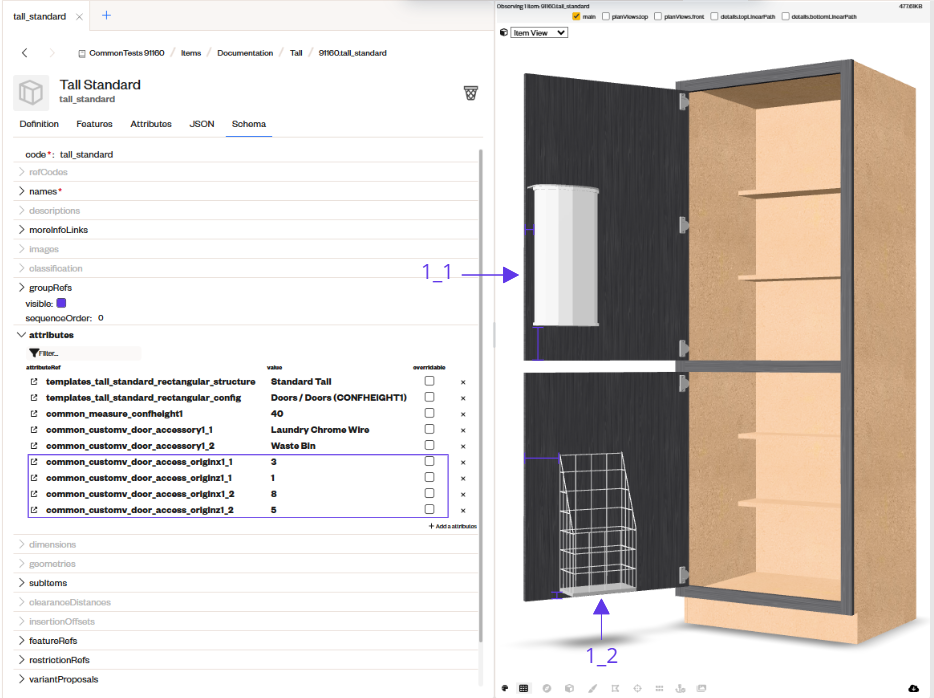

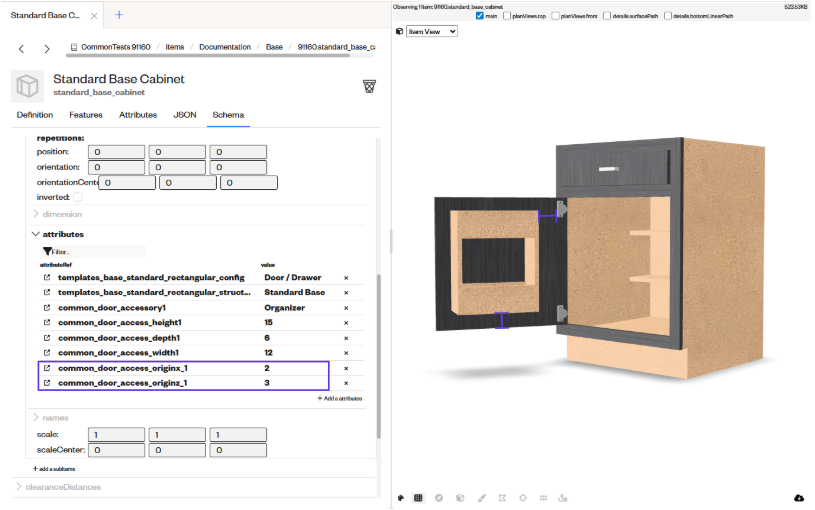

To edit the accessories position, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_DOOR_ACCESS_ORIGINX_1 = 2

COMMON_DOOR_ACCESS_ORIGINZ_1 = 3

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESS_ORIGINX_1 until COMMON_DOOR_ACCESS_ORIGINX_8

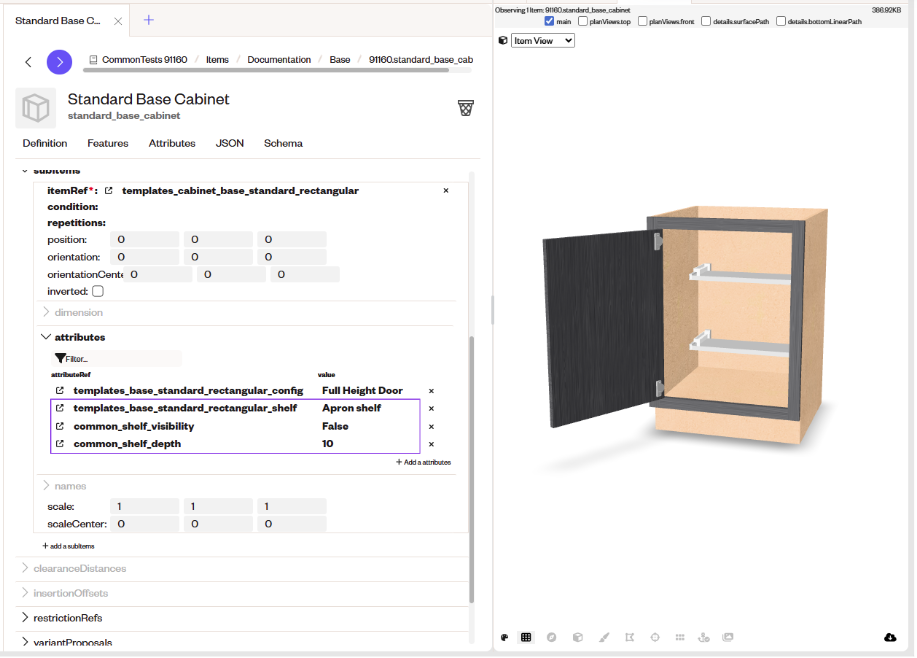

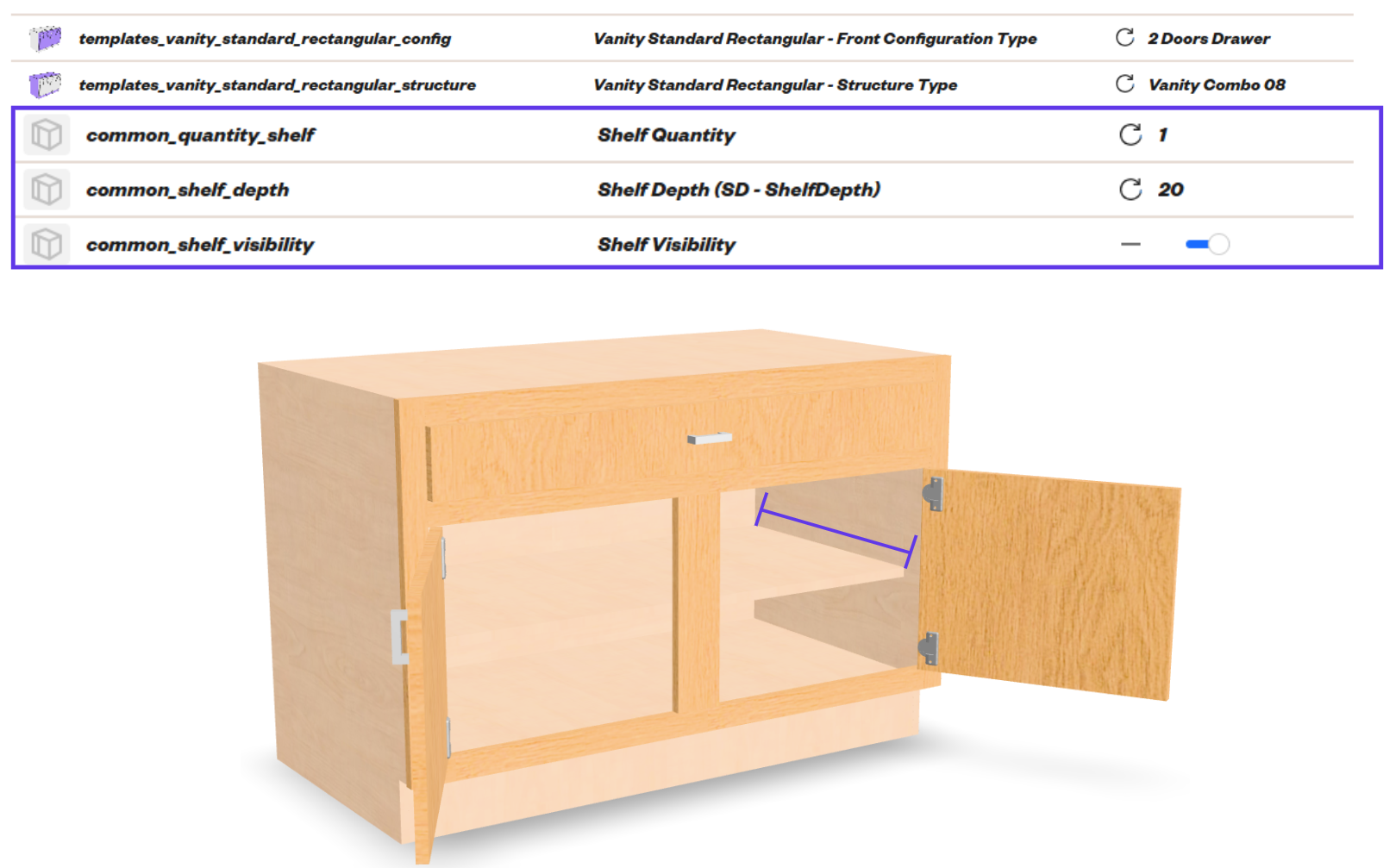

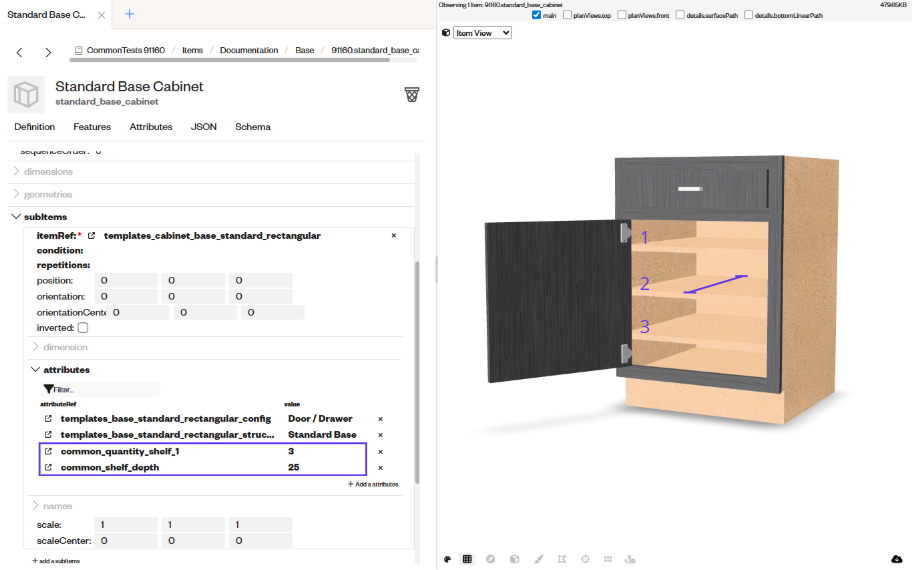

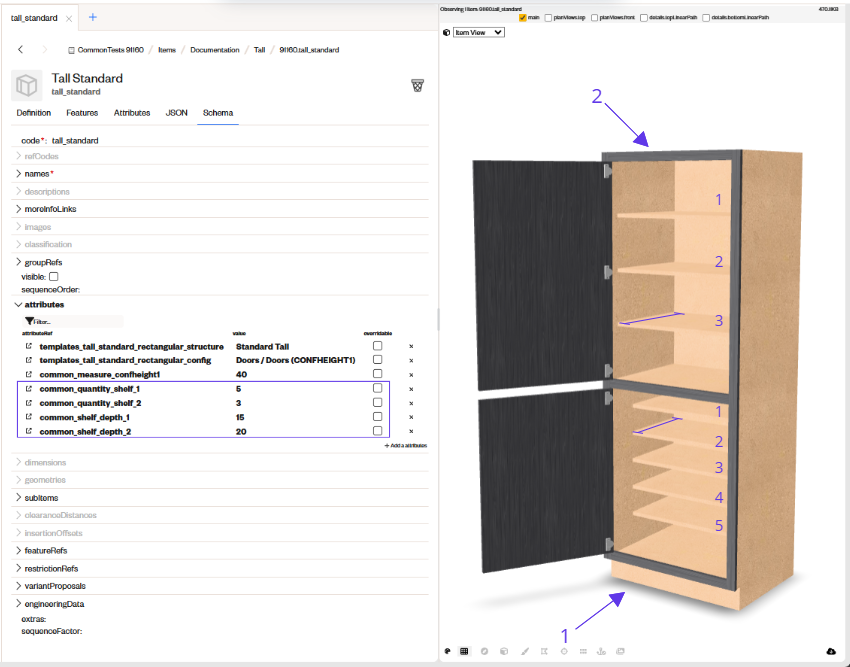

To edit the shelves, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Configuration - Quantity and Attributes: Item Configuration - Dimensioning .

Example:

COMMON_QUANTITY_SHELF_1 = 3

COMMON_SHELF_DEPTH = 25

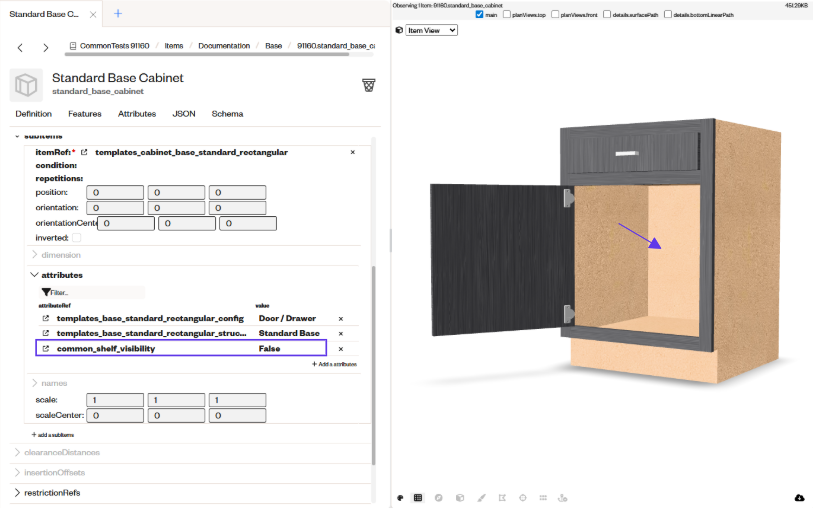

To edit the shelves visibility, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Configuration - Visibility

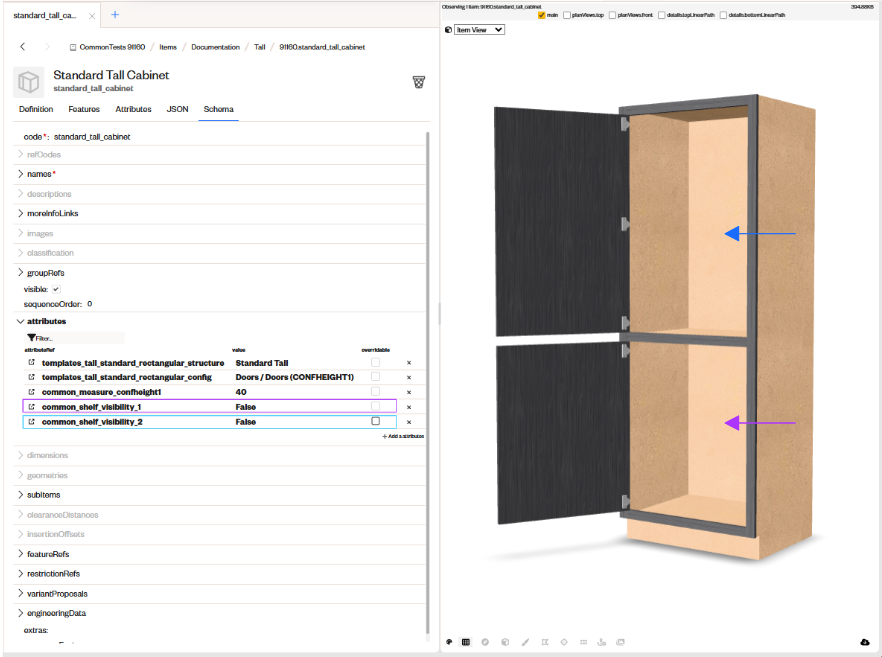

COMMON_SHELF_VISIBILITY = False

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, for example:

COMMON_SHELF_VISIBILITY until COMMON_SHELF_VISIBILITY_5

Example of Drawers:

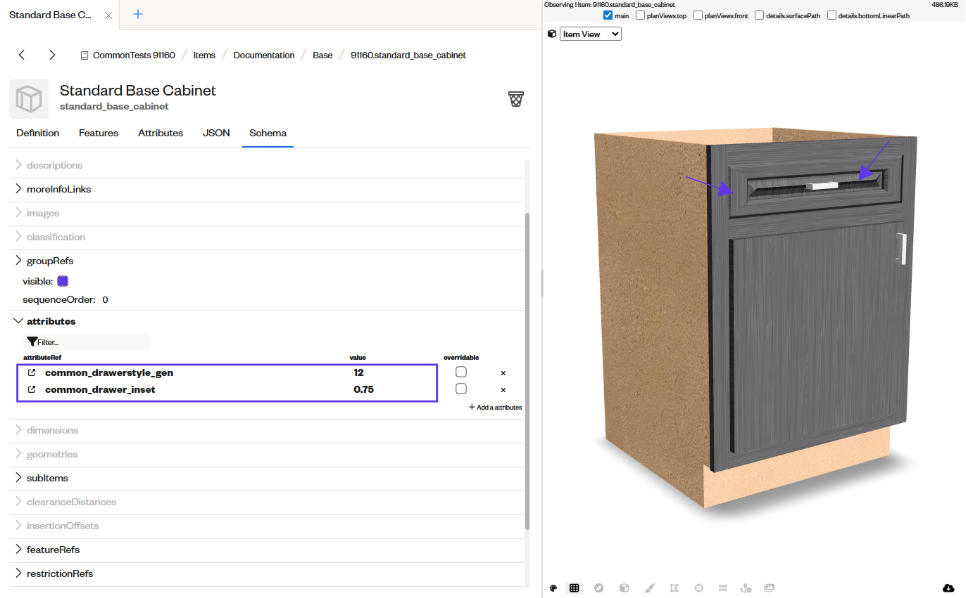

To edit the drawer style and the dimensions of the frames (when available), use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1, Attributes: Item Configuration - Style 2 and Attributes: Item Configuration - Quantity.

Example:

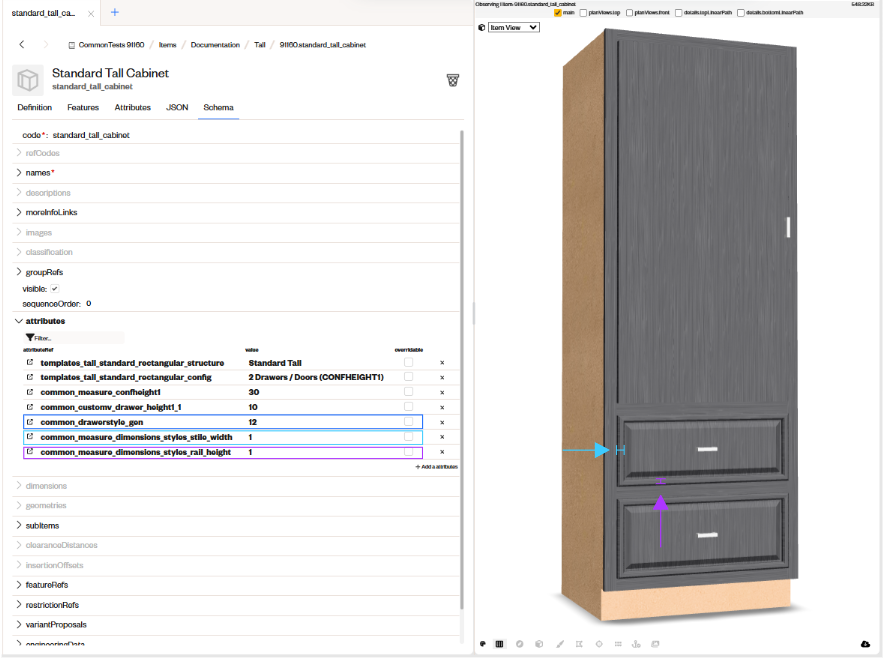

COMMON_DRAWERSTYLE_GEN = 12

COMMON_DRAWER_INSET = 0.75

COMMON_DRAWERSTYLE_GEN = 12

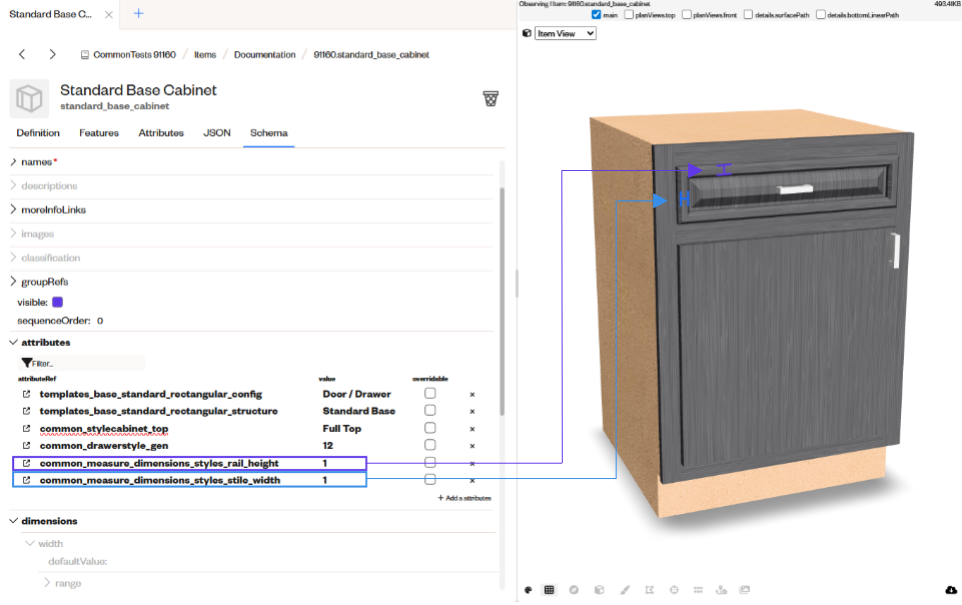

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 1

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 1

Note: Not all drawer styles have rails and styles.

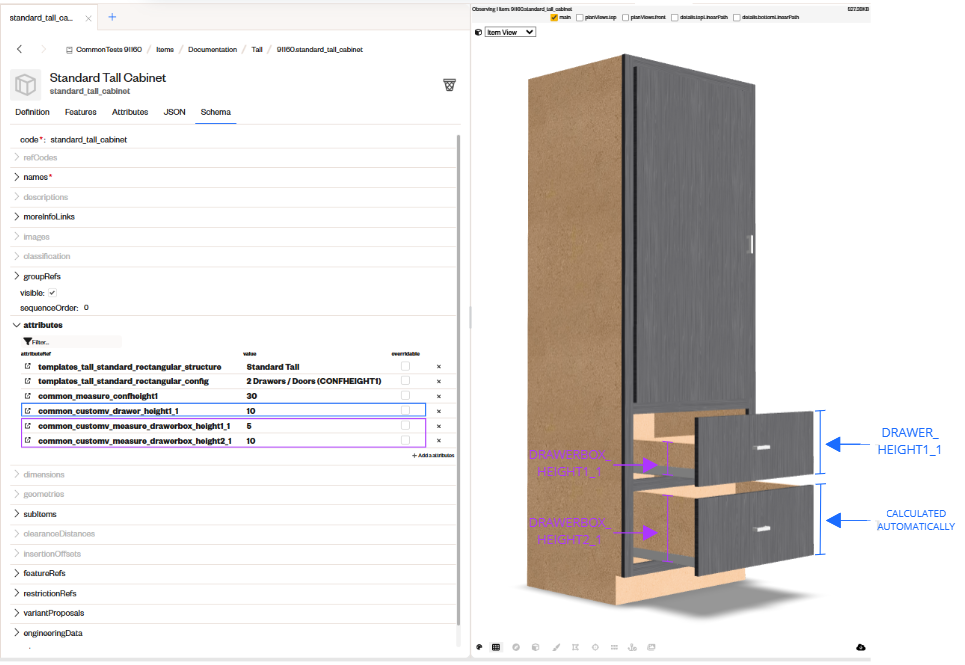

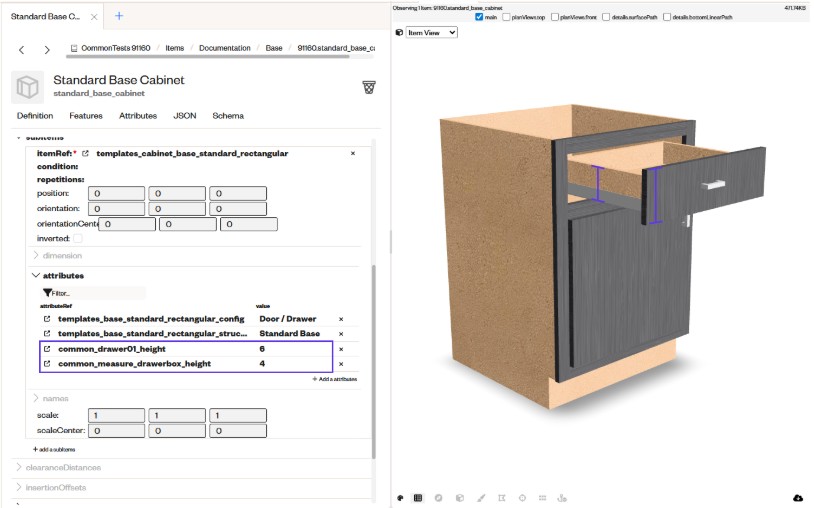

To edit the drawer front and drawer box height, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

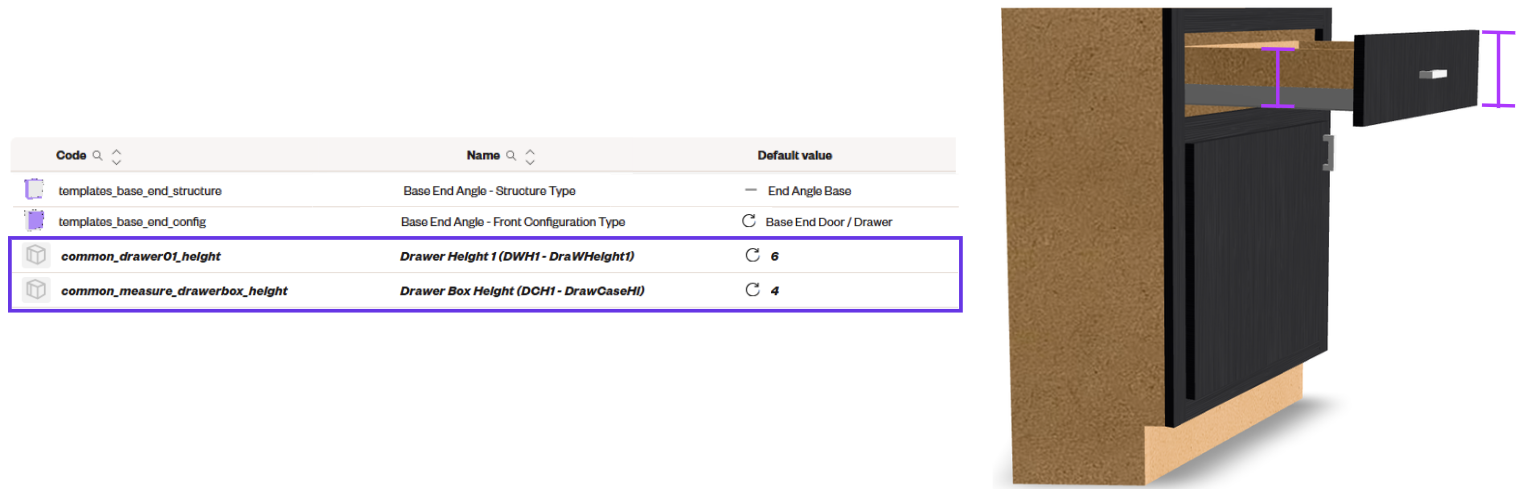

COMMON_MEASURE_DRAWERBOX_HEIGHT = 4

COMMON_DRAWER01_HEIGHT = 6

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom and the last drawer (from top to bottom) is calculated automatically, for example:

COMMON_DRAWER01_HEIGHT until COMMON_DRAWER14_HEIGHT

COMMON_MEASURE_DRAWERBOX_HEIGHT until COMMON_MEASURE_DRAWERBOX14_HEIGHT

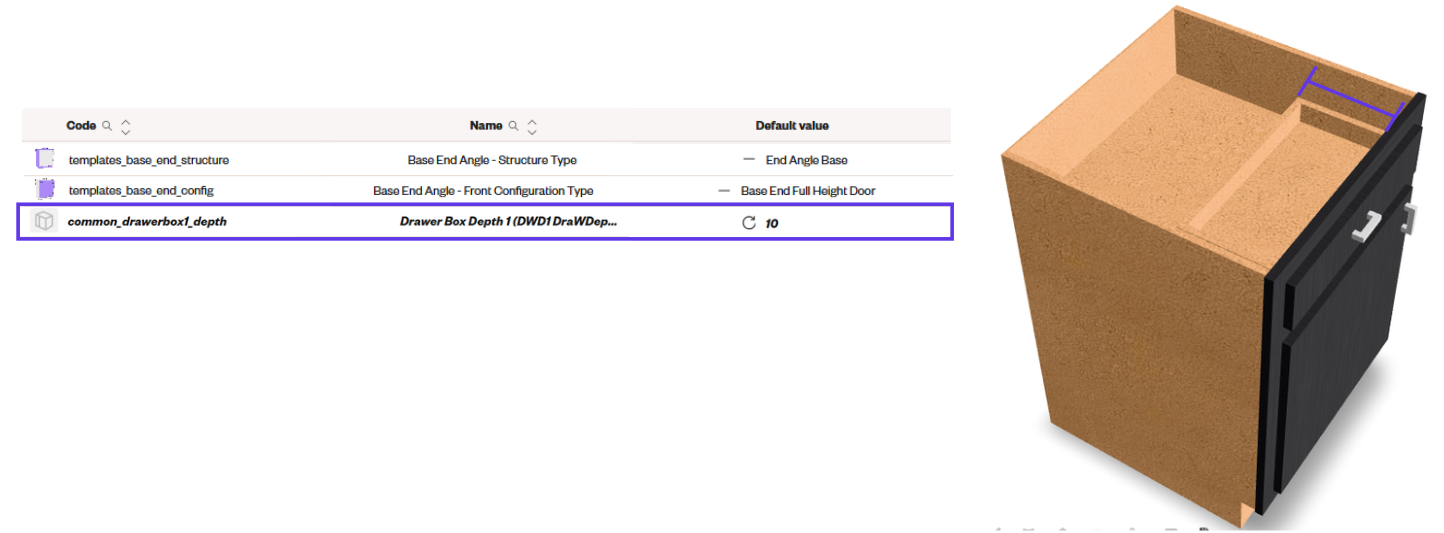

To edit the drawer box depth, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

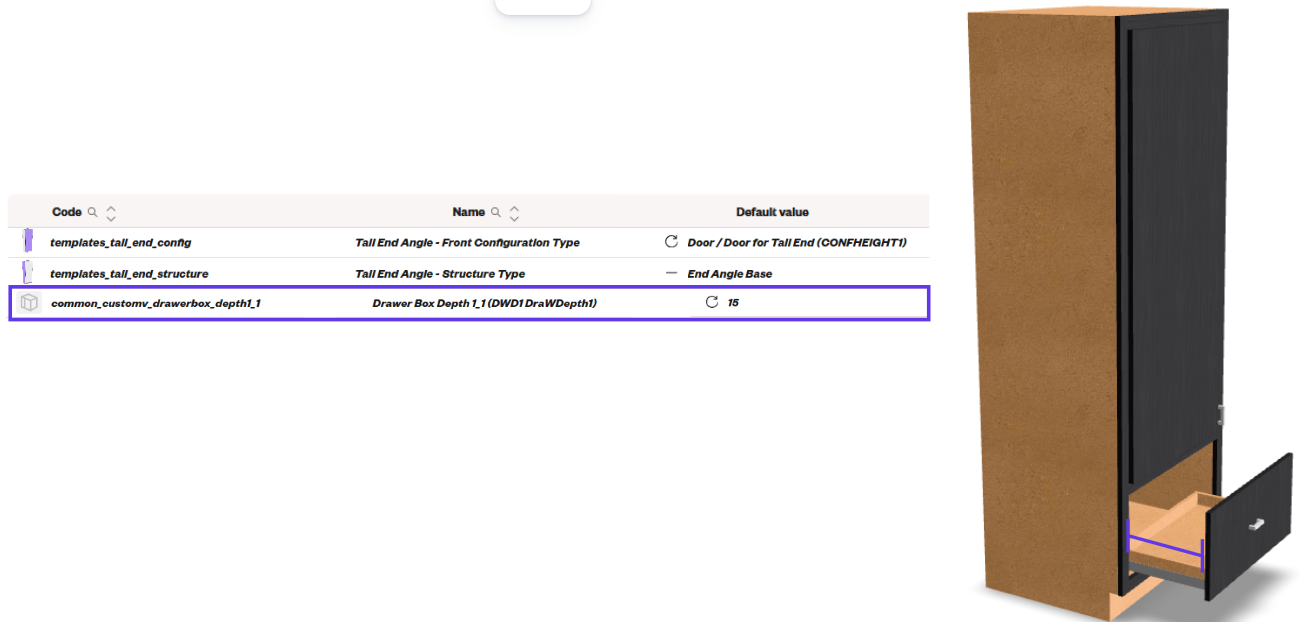

COMMON_DRAWERBOX1_DEPTH = 5

COMMON_DRAWERBOX1_DEPTH until COMMON_DRAWERBOX6_DEPTH

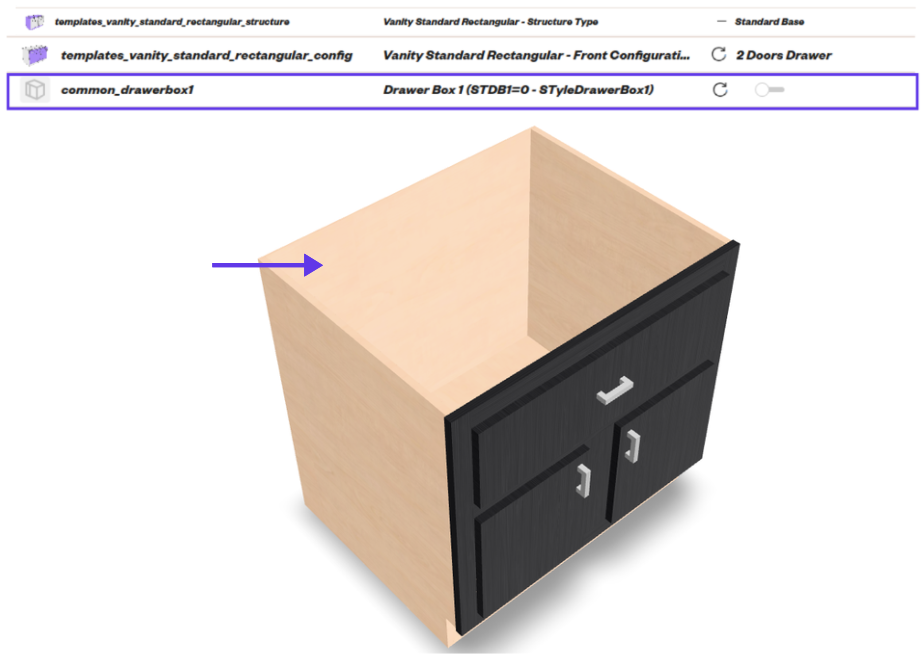

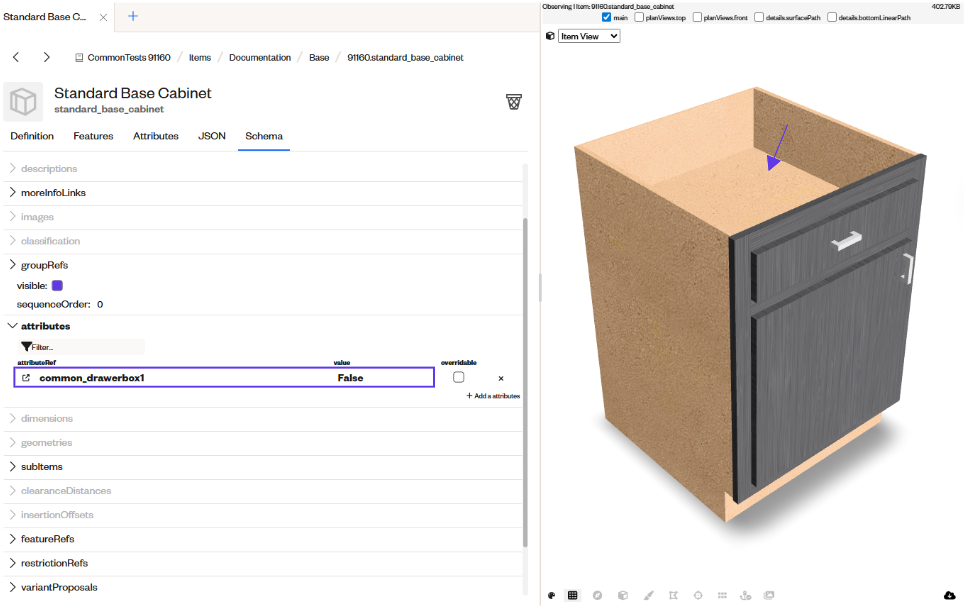

To disable the drawer box, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Visibility.

COMMON_DRAWERBOX1 = False

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWERBOX1 until COMMON_DRAWERBOX14

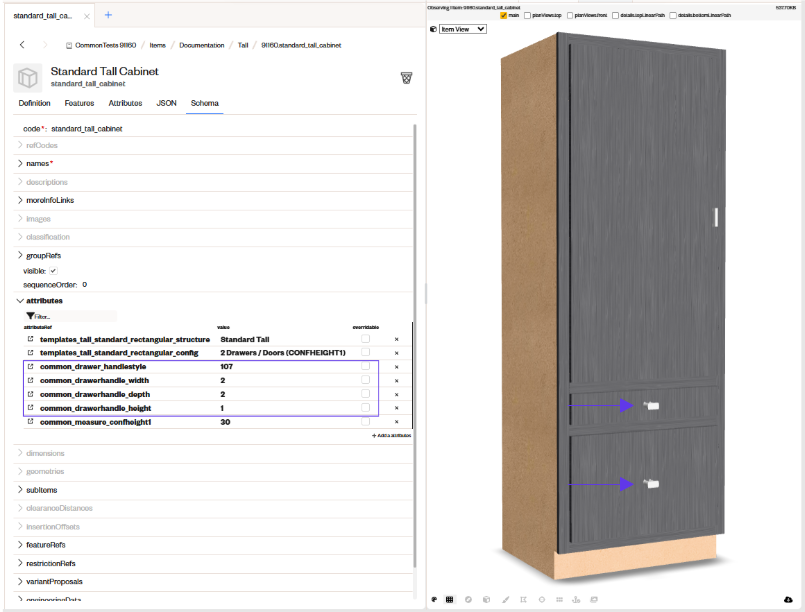

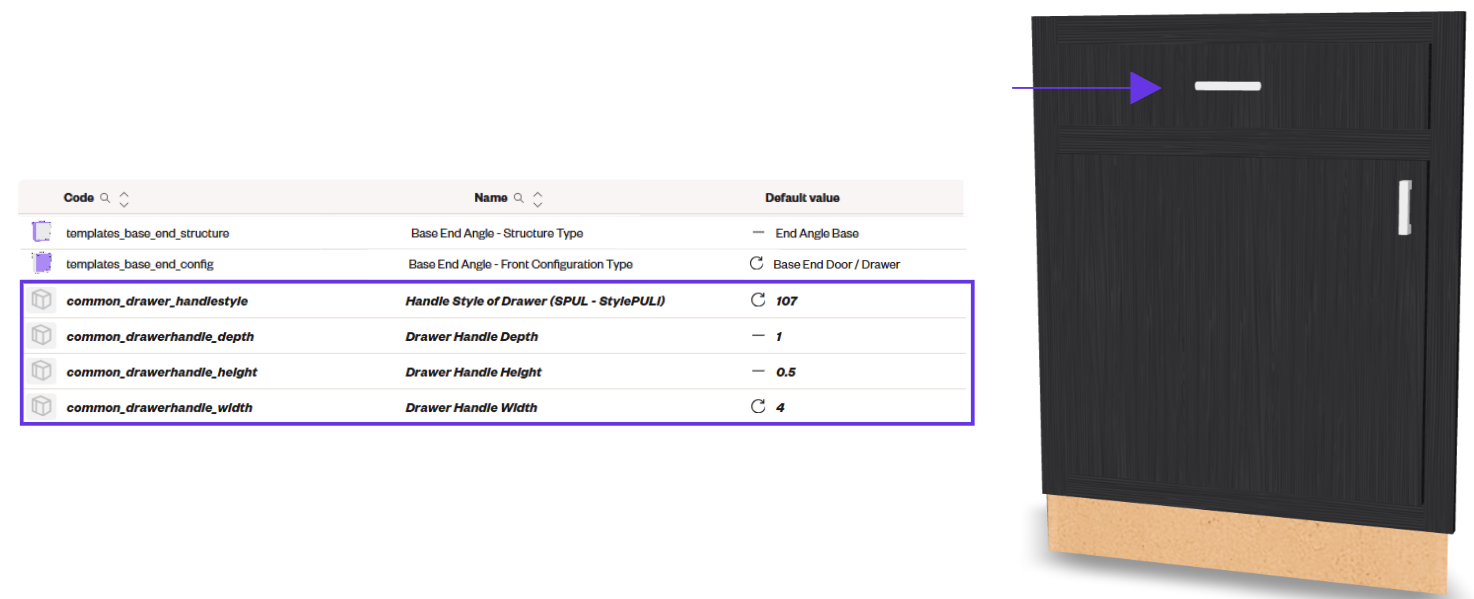

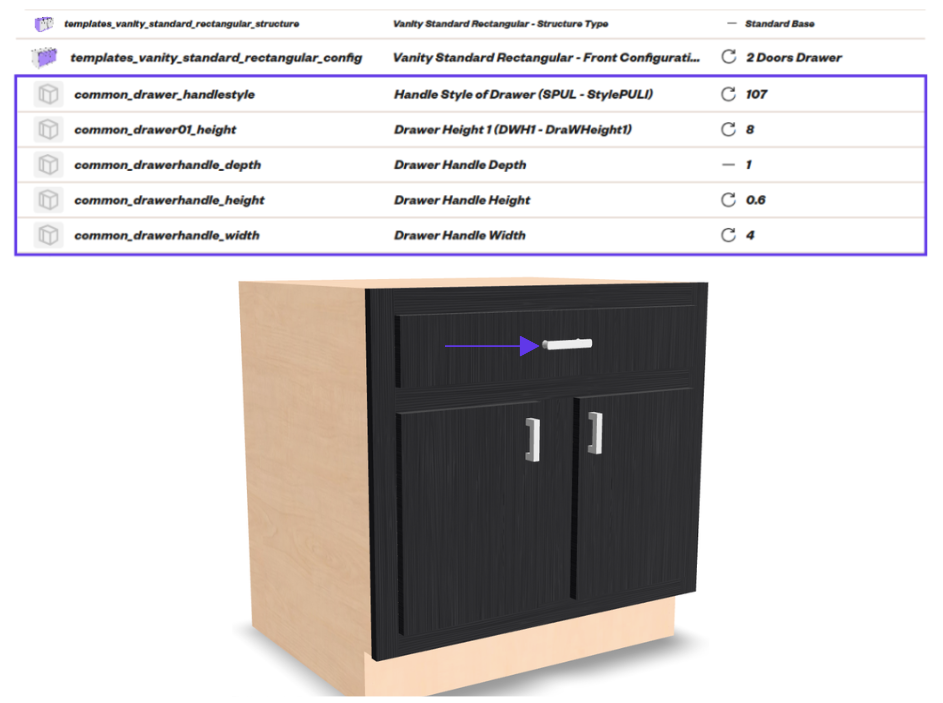

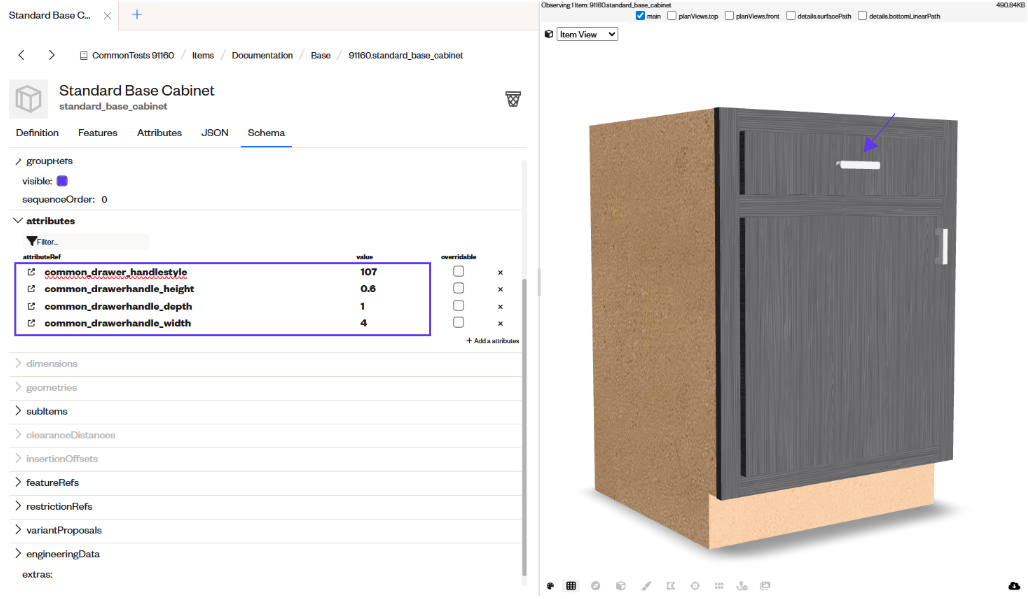

To edit the handles and their dimensions, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 and Attributes: Item Configuration - Dimensioning.

COMMON_DRAWER_HANDLESTYLE = 107

COMMON_DRAWERHANDLE_HEIGHT = 0.6

COMMON_DRAWERHANDLE_DEPTH = 1

COMMON_DRAWERHANDLE_WIDTH = 4

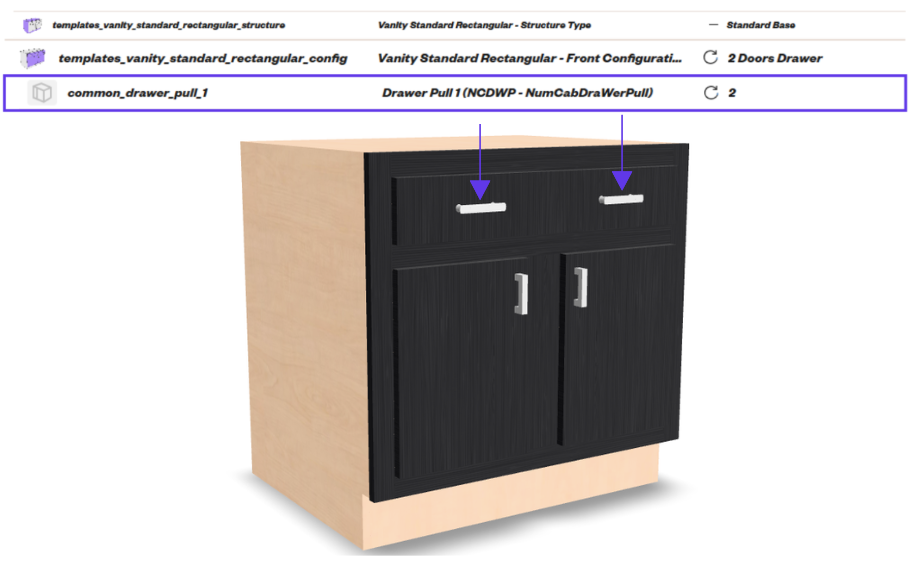

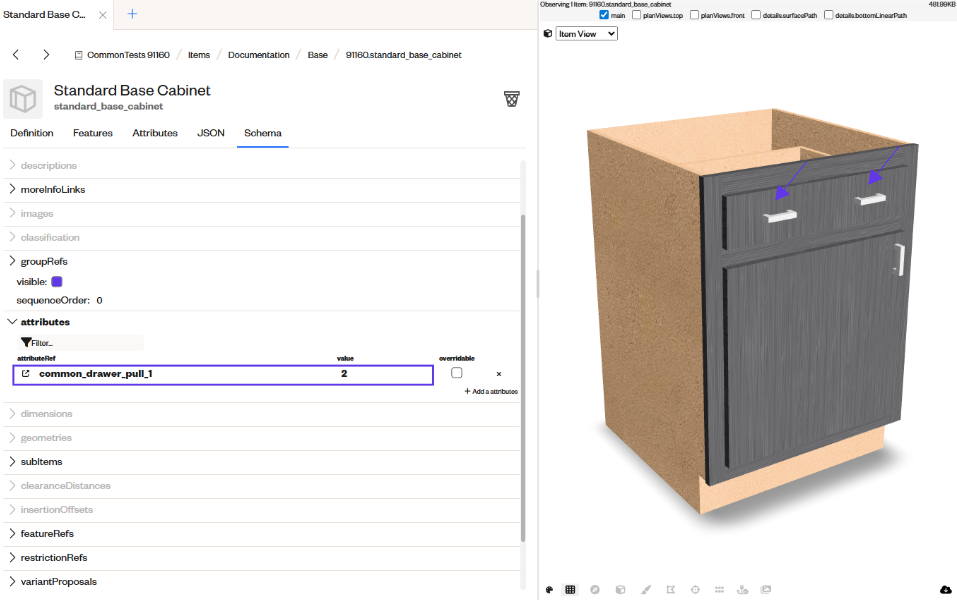

To edit the handle quantity, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Quantity.

COMMON_DRAWER_PULL_1 = 2

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWER_PULL_1 until COMMON_DRAWER_PULL_14

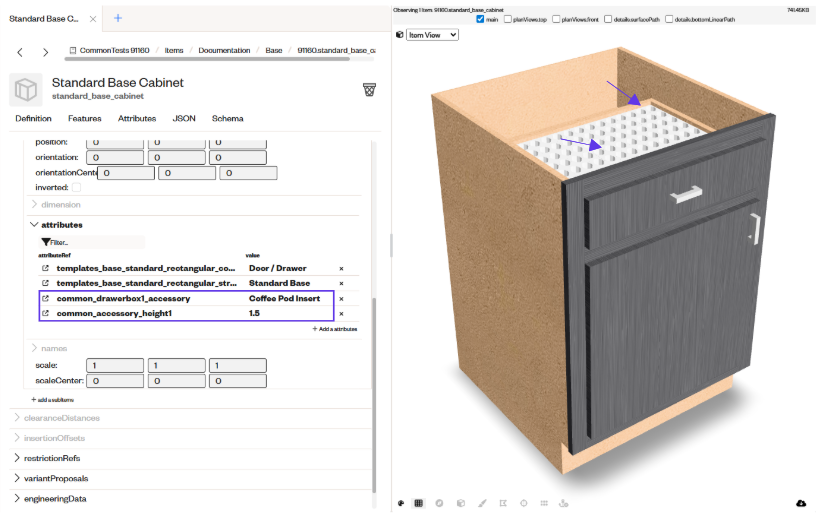

To add the accessories and edit their dimension and positioning, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 and Attributes: Item Configuration - Dimensioning.

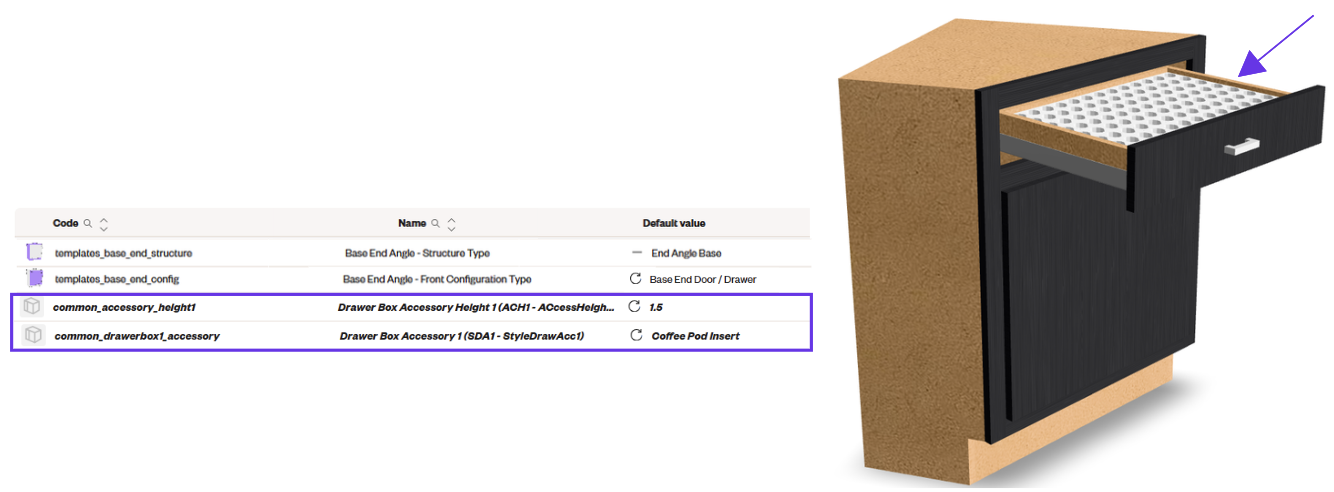

COMMON_DRAWERBOX1_ACCESSORY = Coffee Pod Insert

COMMON_ACCESSORY_HEIGHT1 = 1.5

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWERBOX_ACCESSORY until COMMON_DRAWERBOX9_ACCESSORY

COMMON_ACCESSORY_HEIGHT1 until COMMON_ACCESSORY_HEIGHT14

Example of multiple horizontal drawers:

For cases where there is more than one drawer horizontally, attributes with different numbers are used, use the logic shown in the following example.

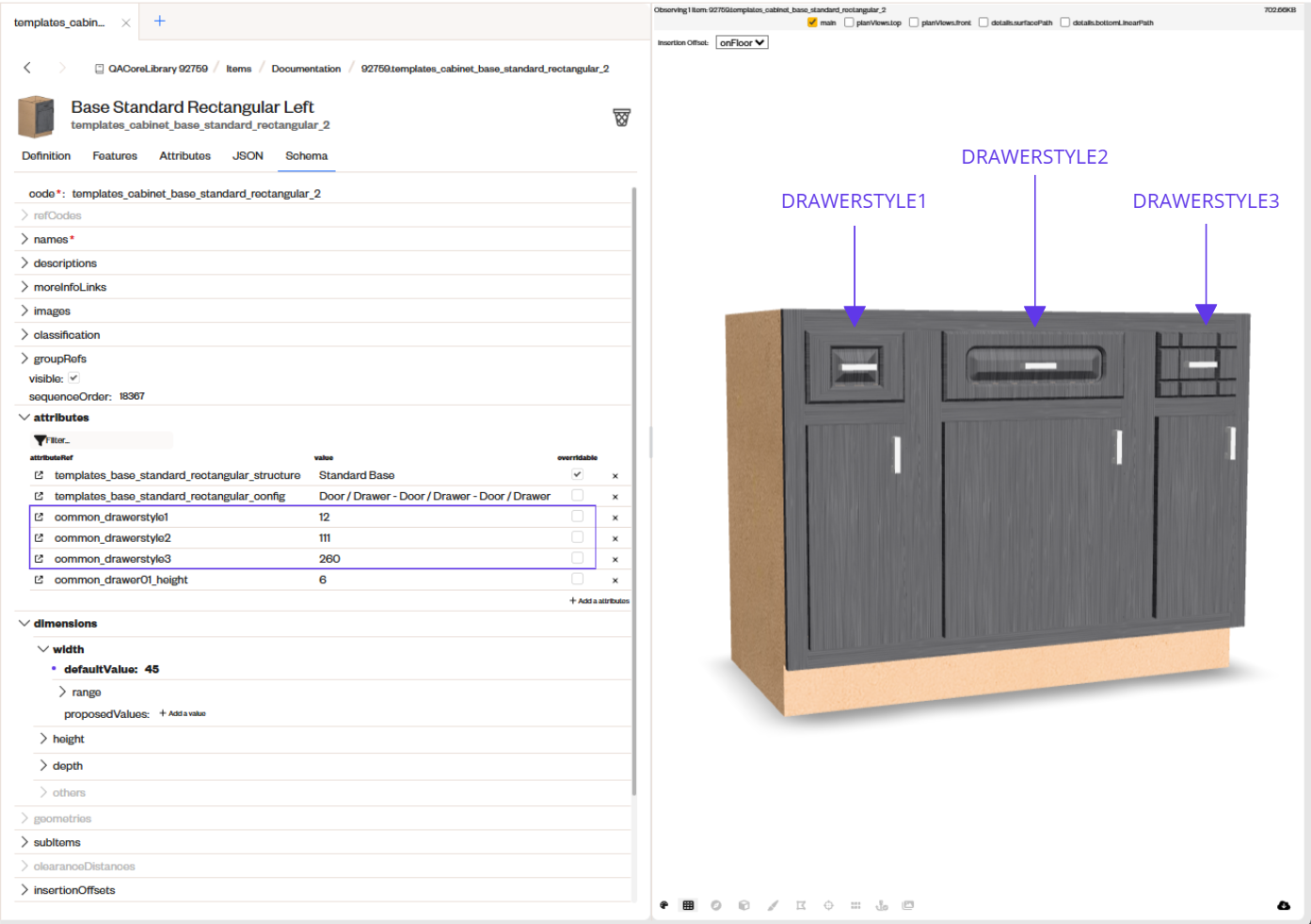

To edit the drawer style of different drawers in the same configuration, use the attributes listed below, you can find them and their respective values in the article: Attributes: Item Configuration - Style 2.

Example:

COMMON_DRAWERSTYLE1 = 12

COMMON_DRAWERSTYLE2 = 111

COMMON_DRAWERSTYLE3 = 260

Base End Angle

To start creating your Base Cabinet, you need to define what type of structure you want to use, for example: Standard, Corner Square, Corner Blind, Corner Diagonal, Peninsula, End Angle, etc. All model attributes related to the chosen structure with their proposed values, can be found at Attributes: Item Construction - Cabinet Base and Mid Base. The tables in this document are divided into categories. So, if you want to build a Standard item, you need to open this category and look for the required attributes as well as their proposed values.

Inserting the structure and configuration into the template:

Example:

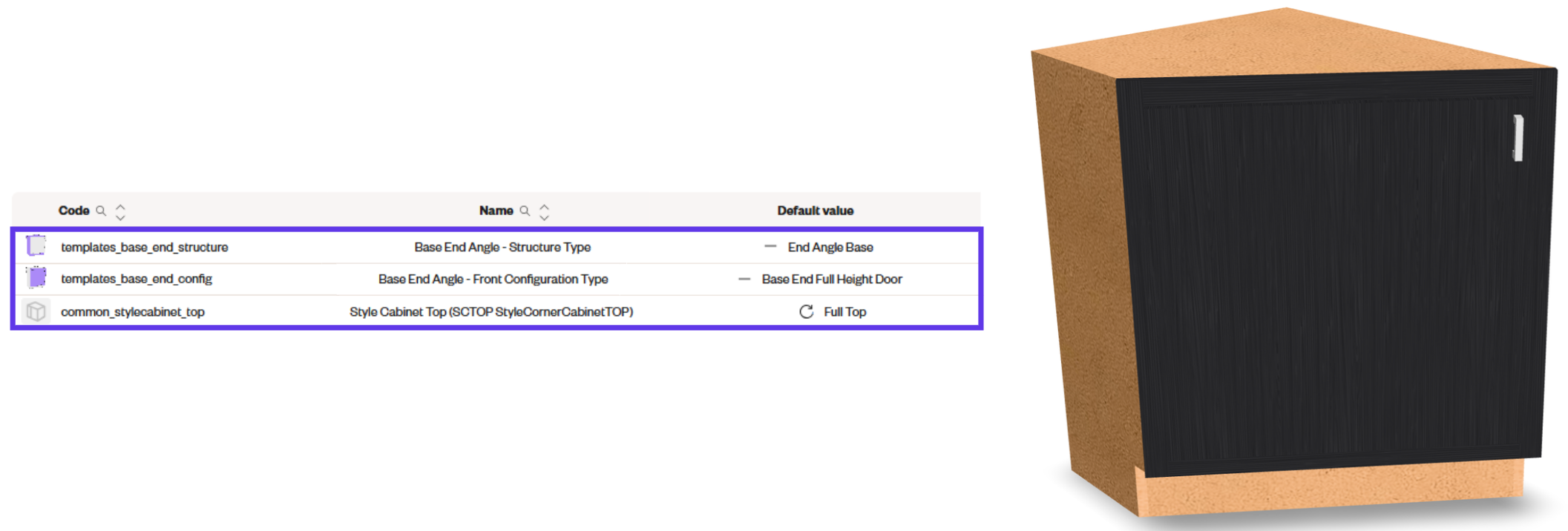

TEMPLATES_BASE_END_STRUCTURE = End Angle Base

TEMPLATES_BASE_END_CONFIG= Base End Full Height Door

COMMON_STYLECABINET_TOP = Full Top

Editing the Structure in more details:

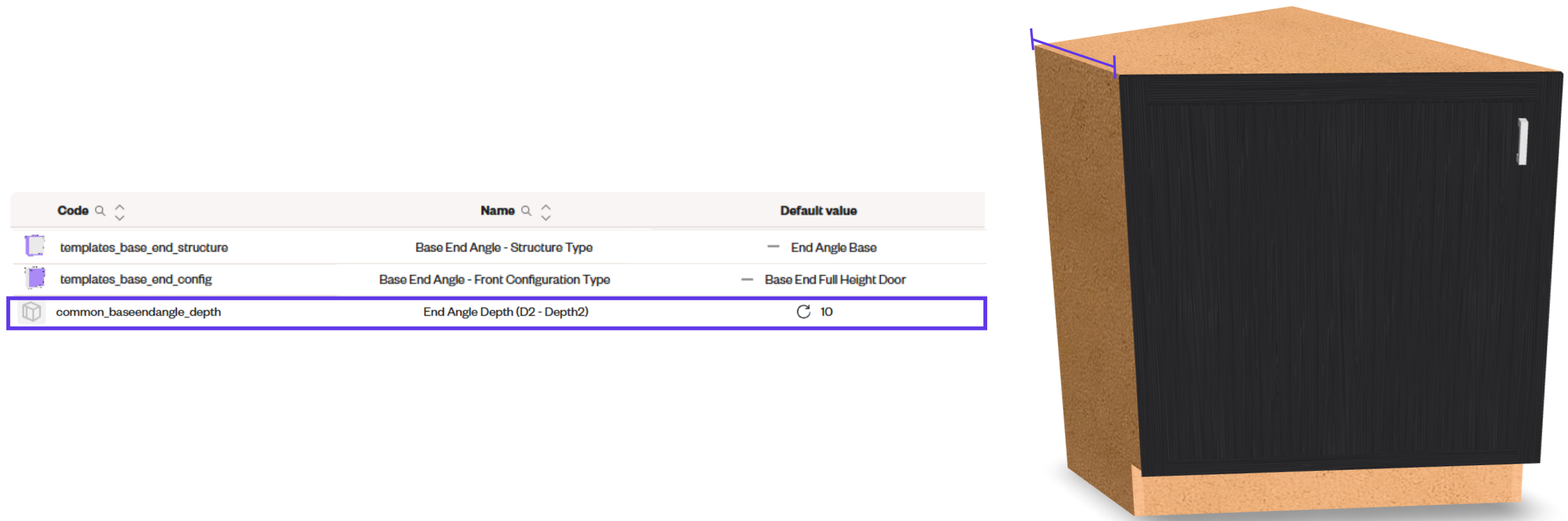

To edit the depths of the corners, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_BASEENDANGLE_DEPTH = 10

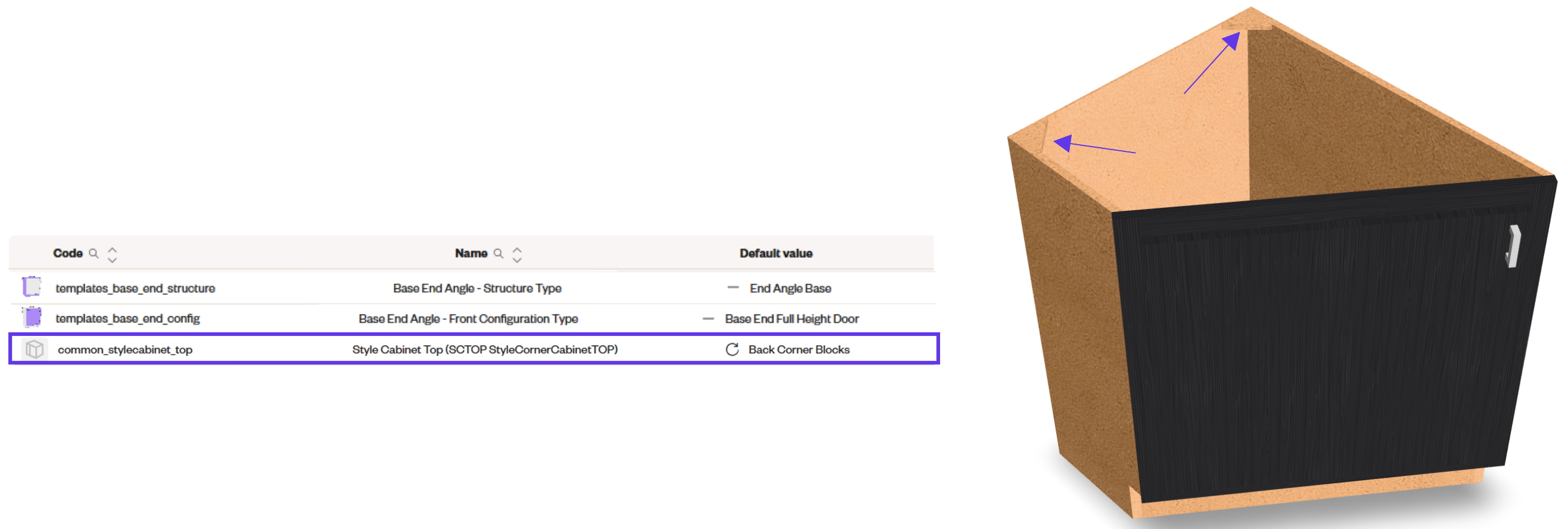

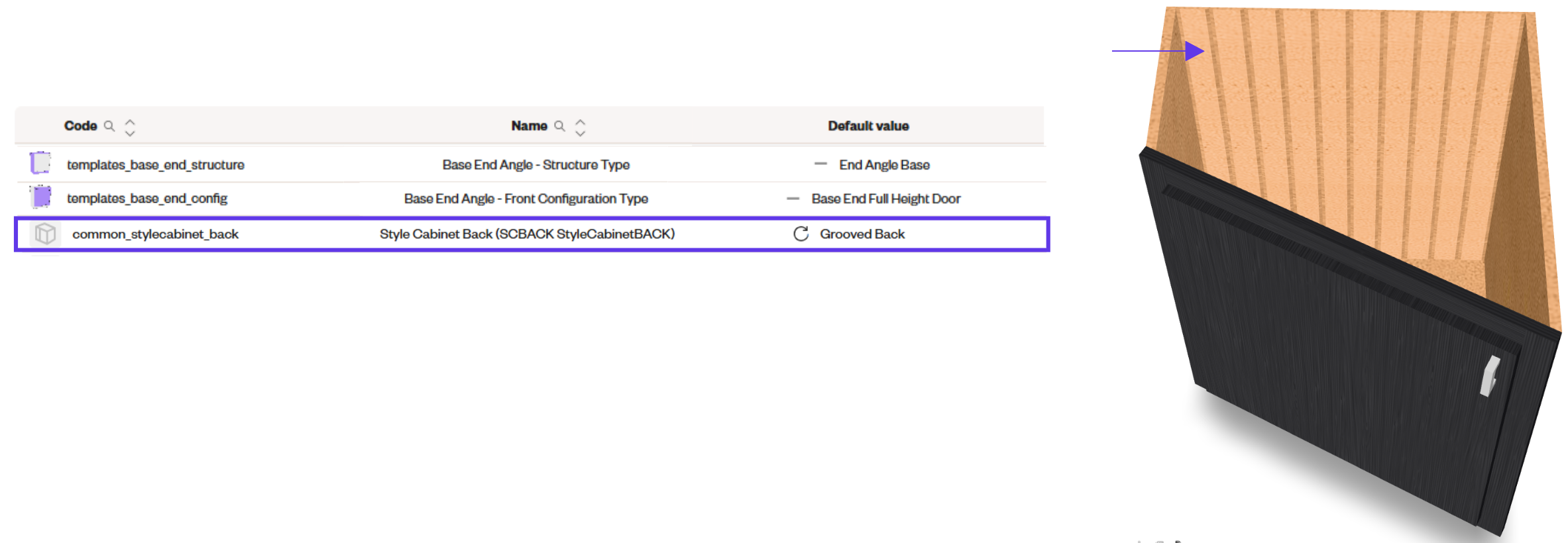

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

Example:

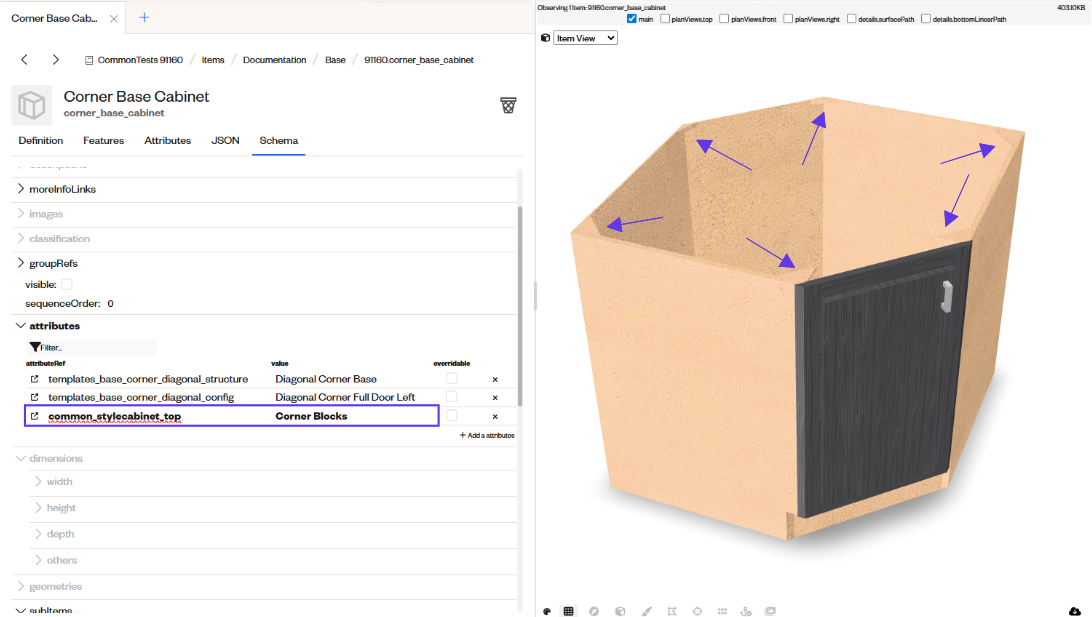

COMMON_STYLECABINET_TOP = Back Corner Blocks

COMMON_STYLECABINET_BACK = Grooved Back

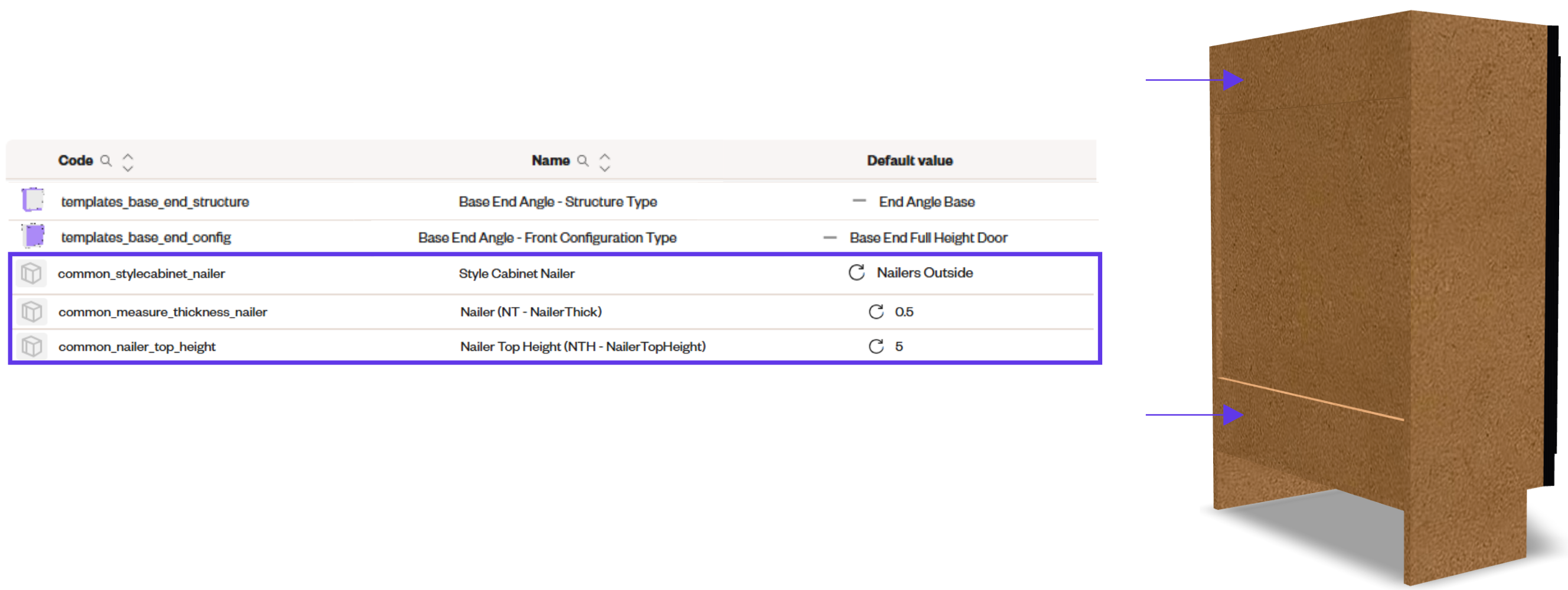

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_STYLECABINET_NAILER = Nailers Outside

COMMON_NAILER_TOP_HEIGHT = 5

COMMON_MEASURE_THICKNESS_NAILER = 0.50

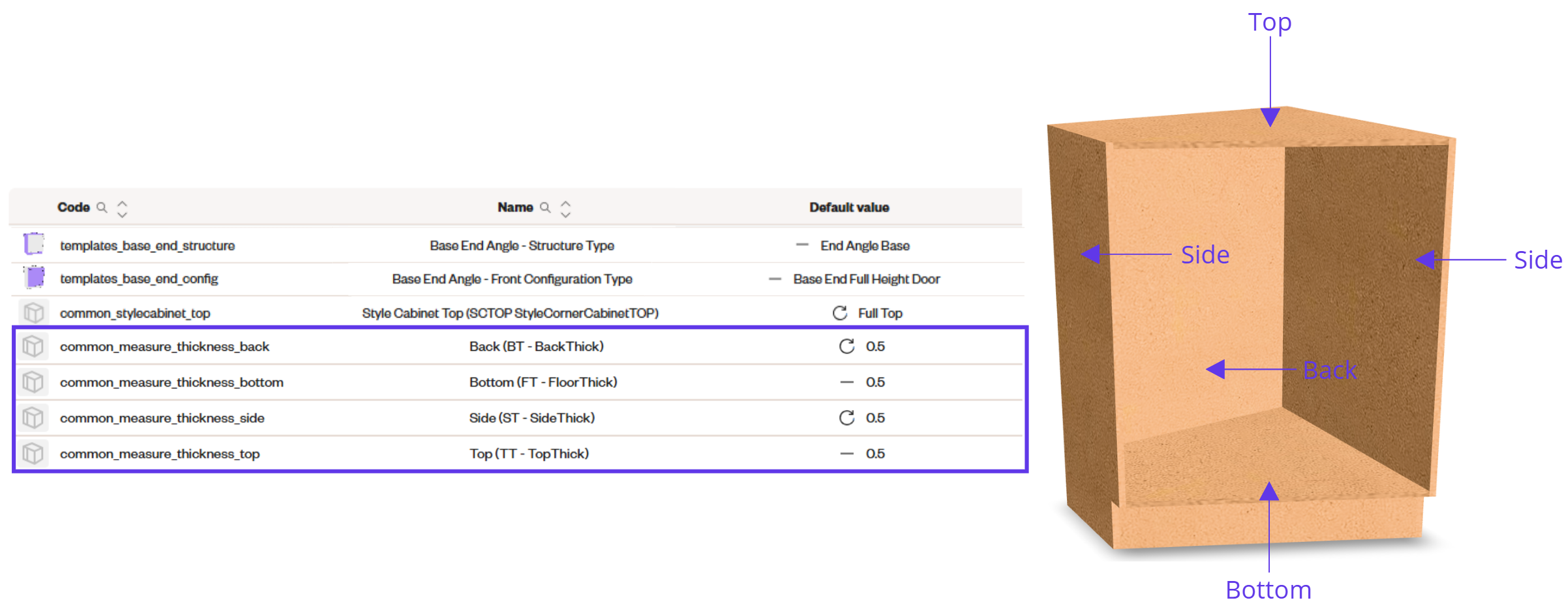

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

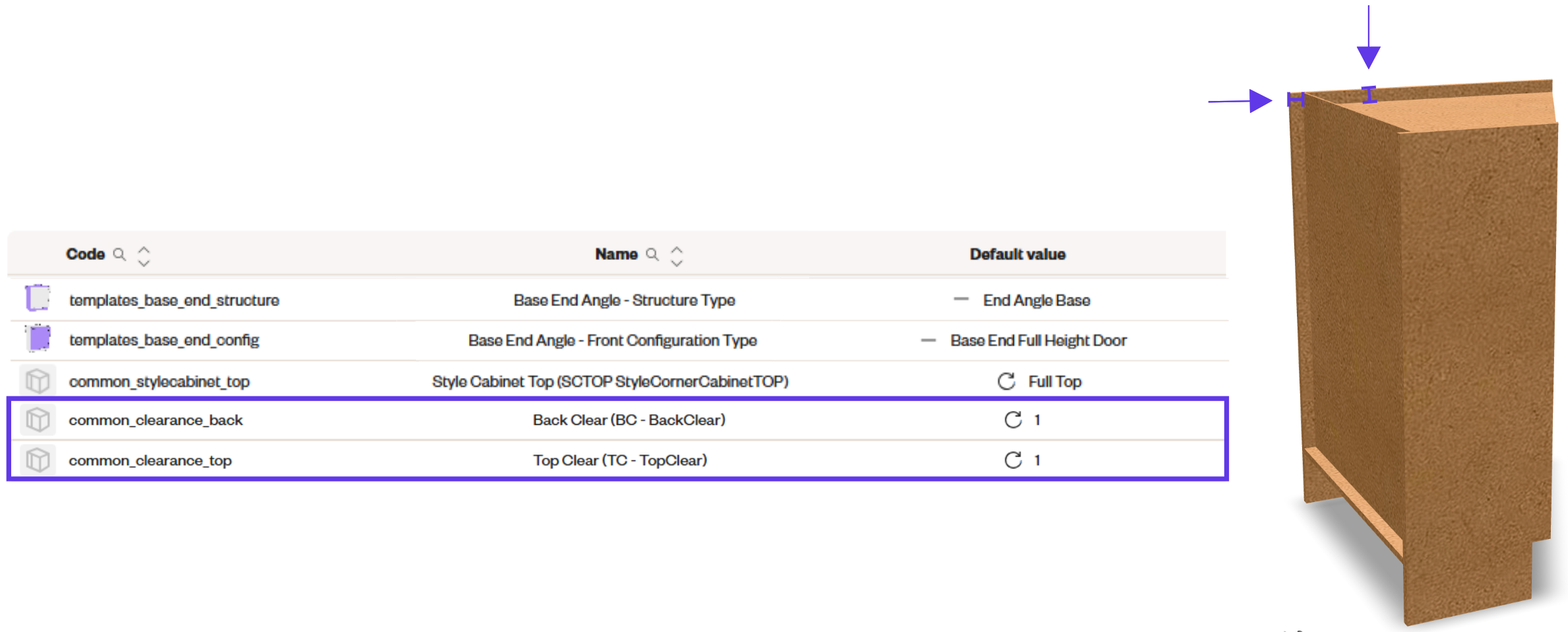

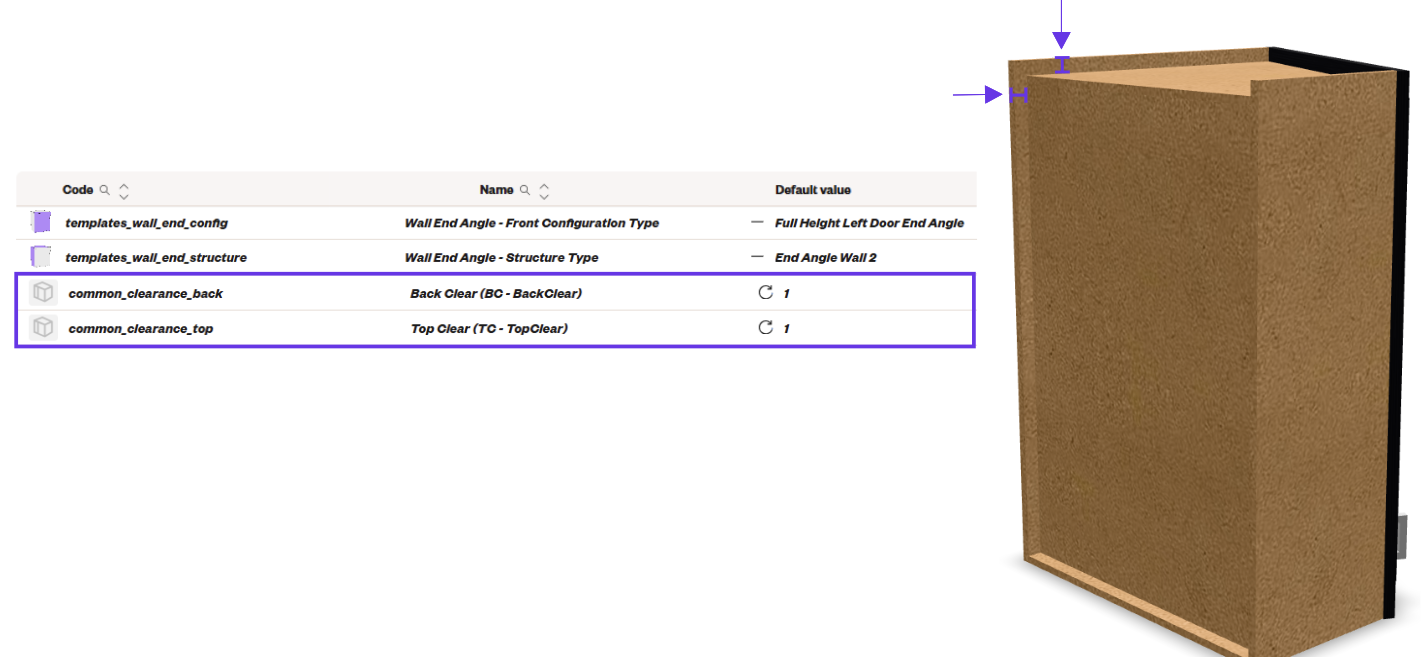

To edit the clearances use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 1

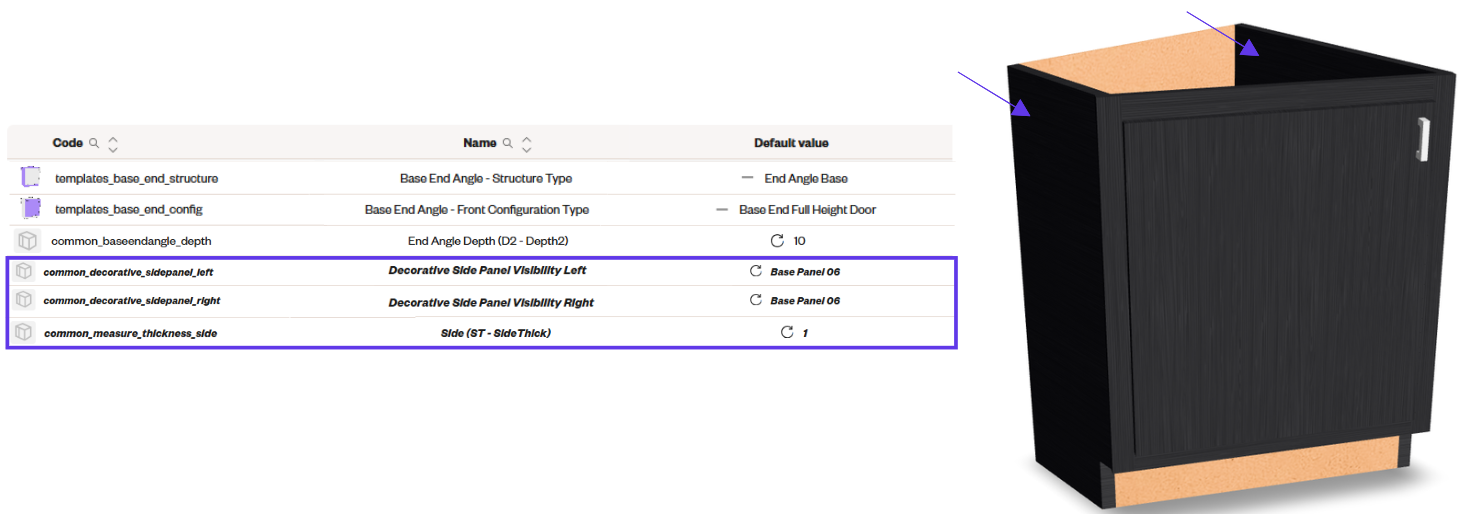

Example:

COMMON_DECORATIVE_SIDEPANEL_LEFT = Base Panel 06

COMMON_DECORATIVE_SIDEPANEL_RIGHT = Base Panel 06

COMMON_MEASURE_THICKNESS_SIDE = 1

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

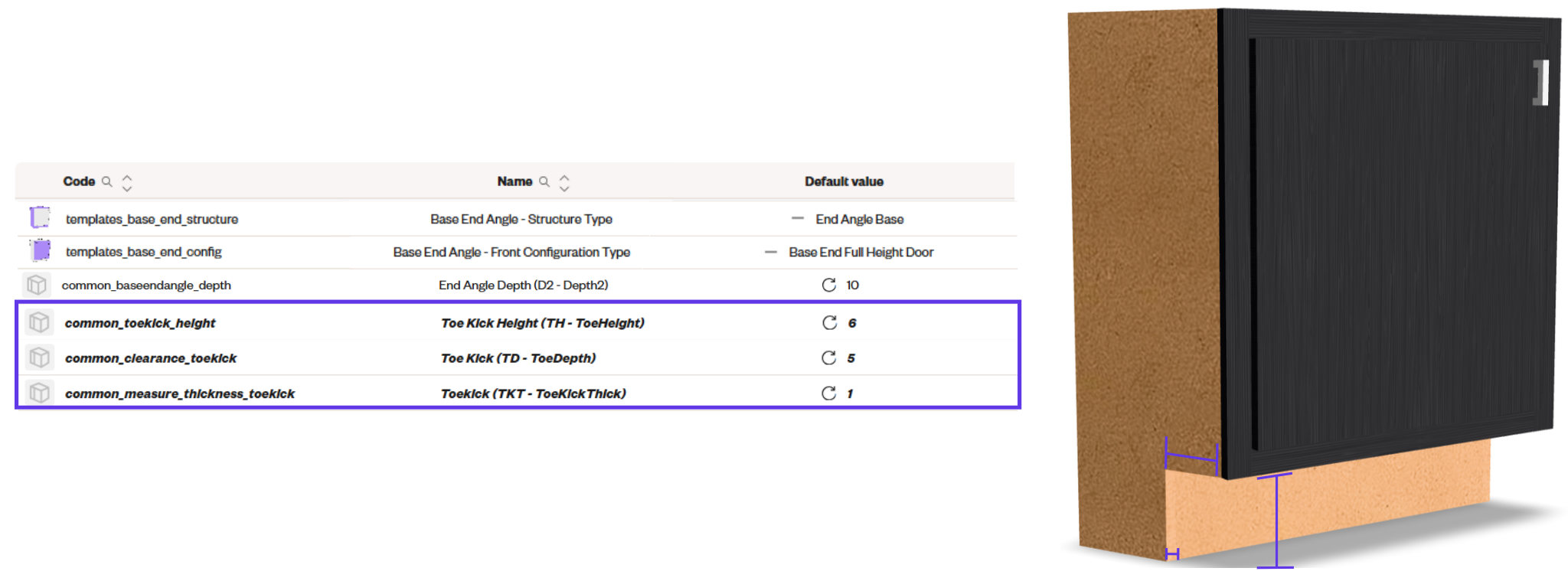

To edit the toekick use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Clearances.

Example:

COMMON_MEASURE_THICKNESS_TOEKICK = 1

COMMON_TOEKICK_HEIGHT = 6

COMMON_CLEARANCE_TOEKICK = 5

To edit the style toekick use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

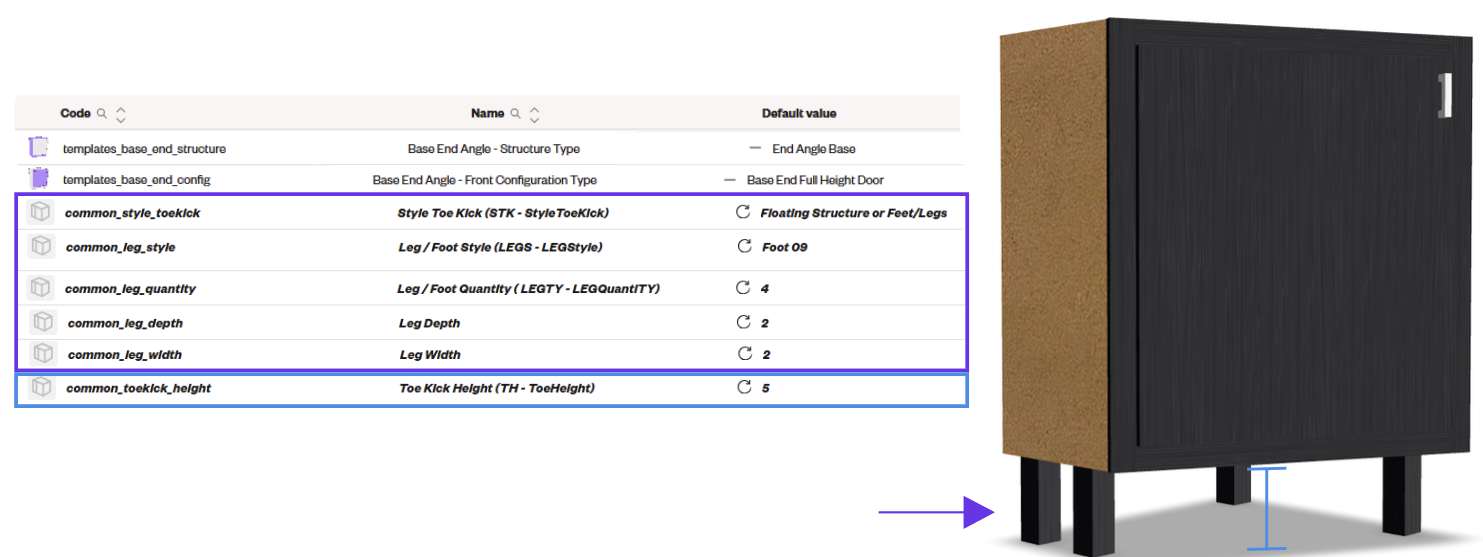

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

COMMON_LEG_STYLE = Foot 09

COMMON_LEG_WIDTH = 2

COMMON_LEG_DEPTH = 2

COMMON_LEG_QUANTITY = 4

COMMON_TOEKICK_HEIGHT = 5

Editing the Configuration in more details:

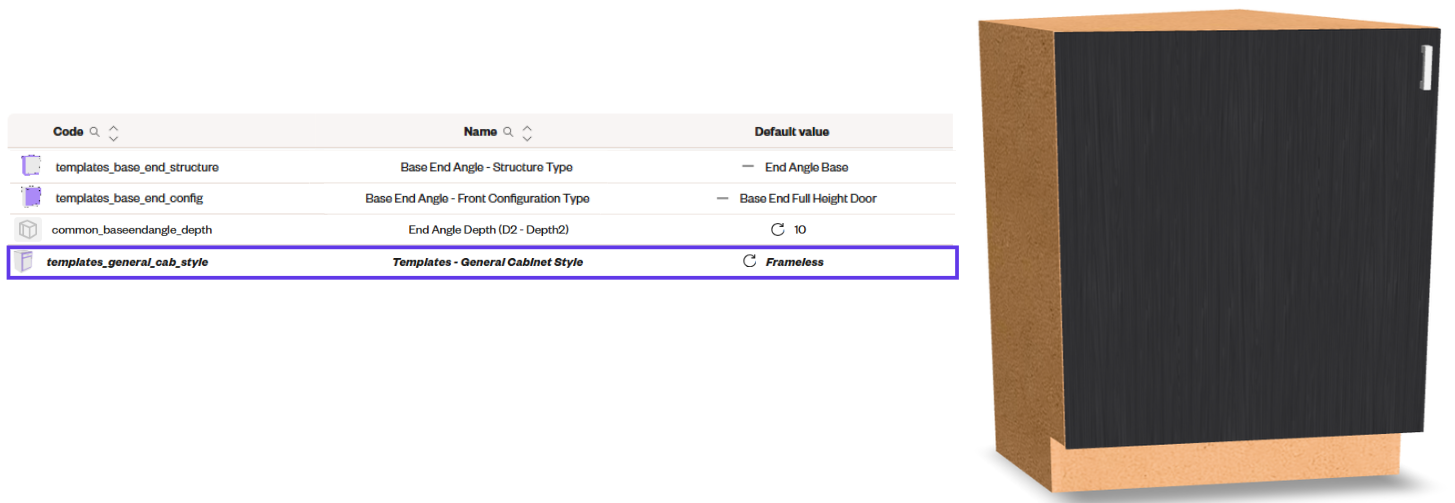

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

TEMPLATES_GENERAL_CAB_STYLE = Frameless

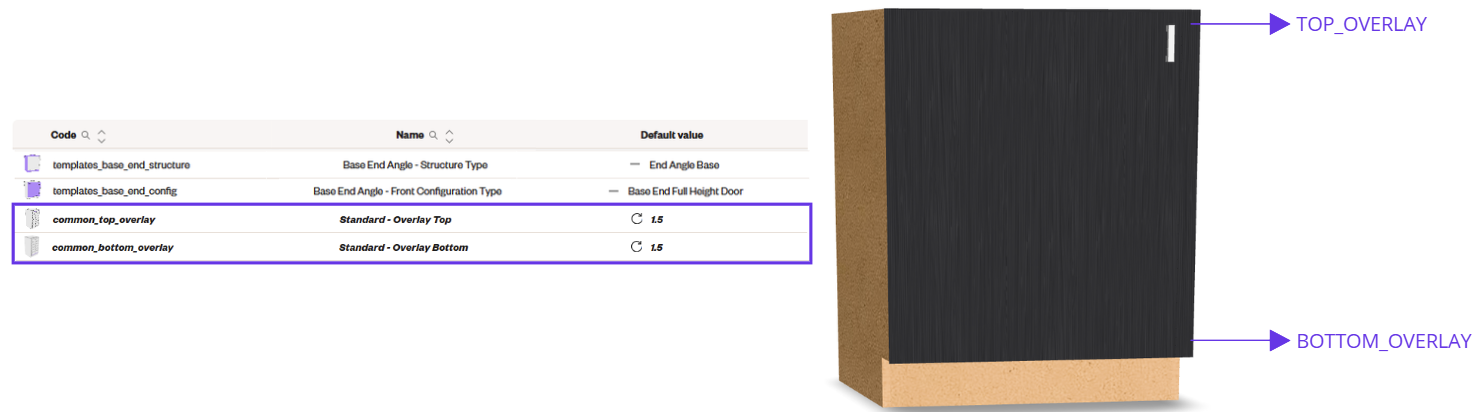

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example:

COMMON_TOP_OVERLAY = 1.5

COMMON_BOTTOM_OVERLAY = 1.5

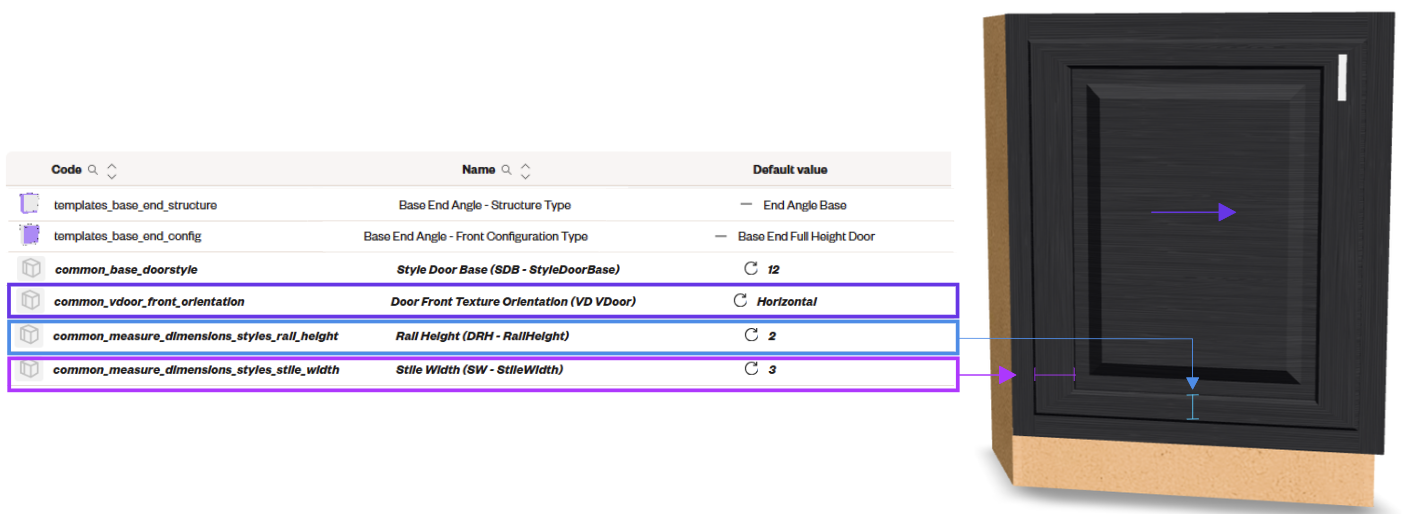

Example of Doors:

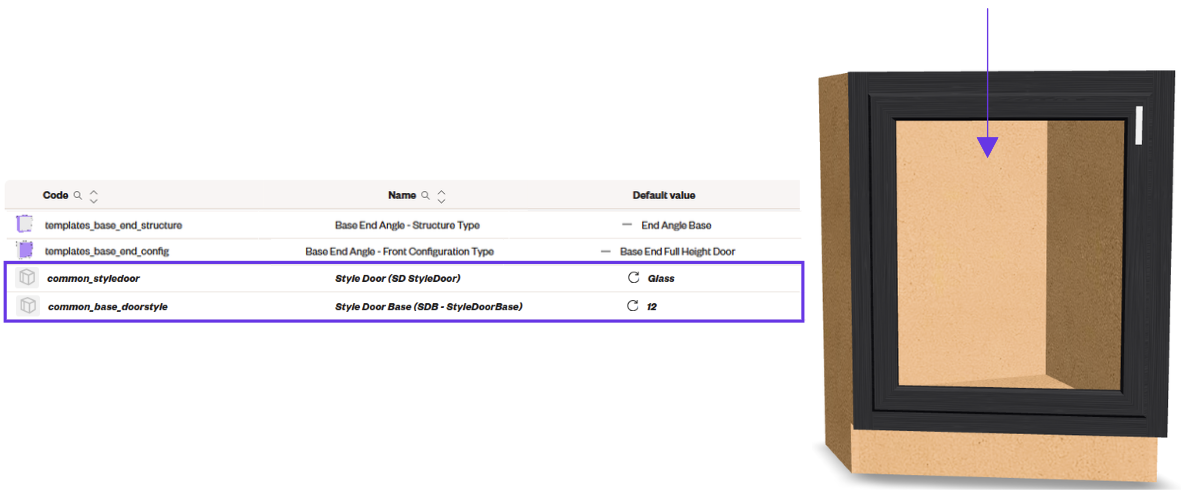

Example:

COMMON_BASE_DOORSTYLE = 12

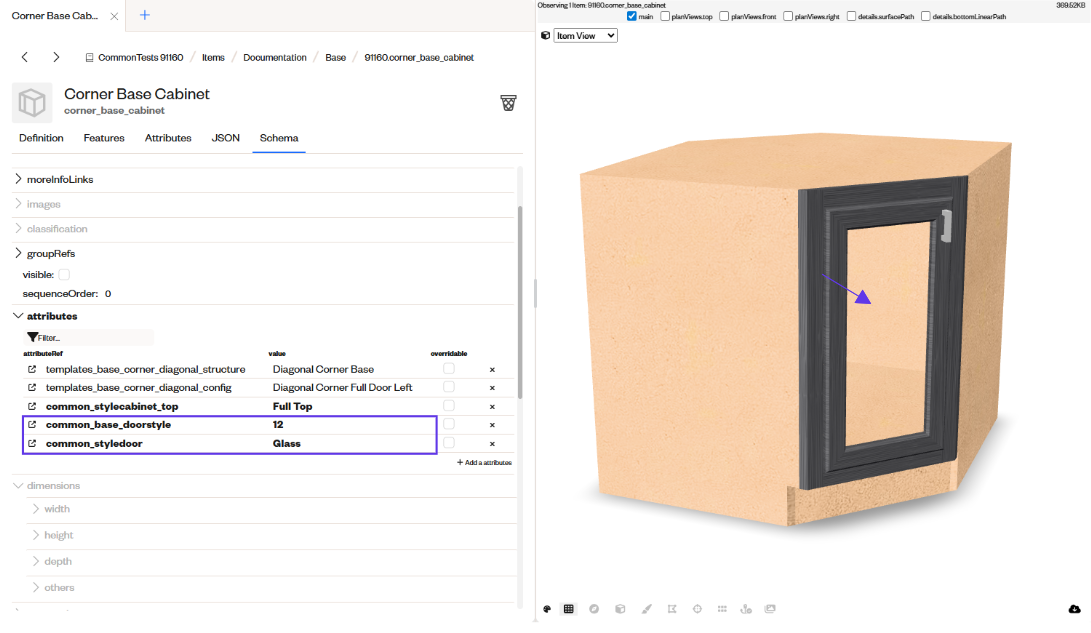

COMMON_STYLEDOOR = Glass

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 2

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 3

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

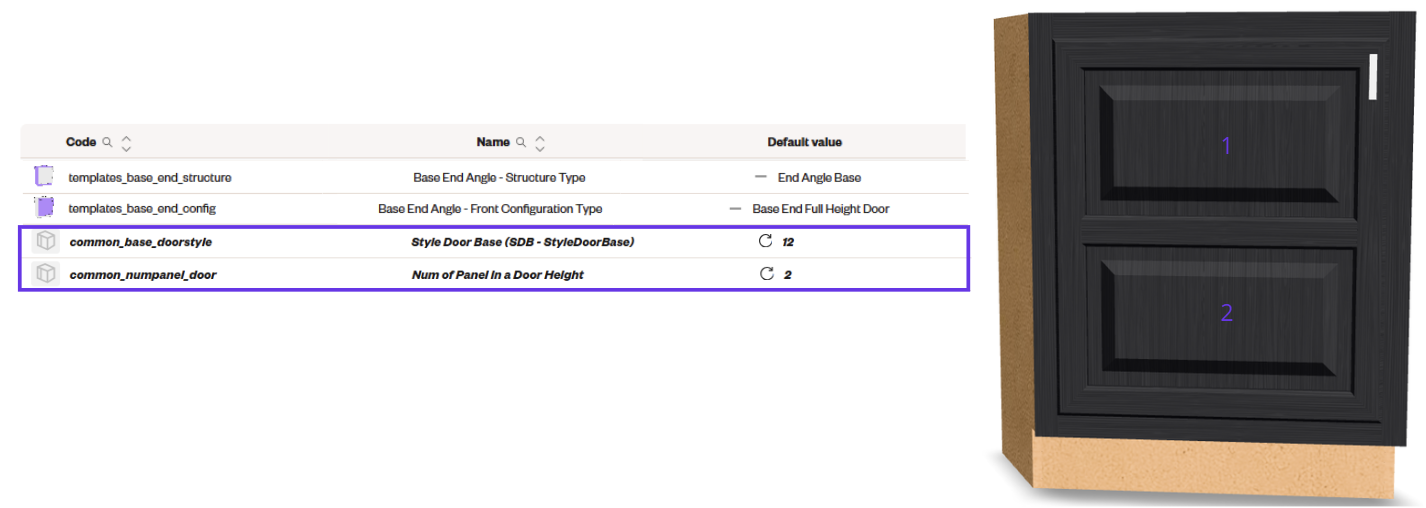

To edit the number of panels, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Quantity, Attributes: Item Configuration - Style 2.

Example:

COMMON_BASE_DOORSTYLE = 12

COMMON_NUMPANEL_DOOR = 2

To edit the handle style, door inset and dimensions, use the attribute listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 and Attributes: Item Configuration - Dimensioning .

Example:

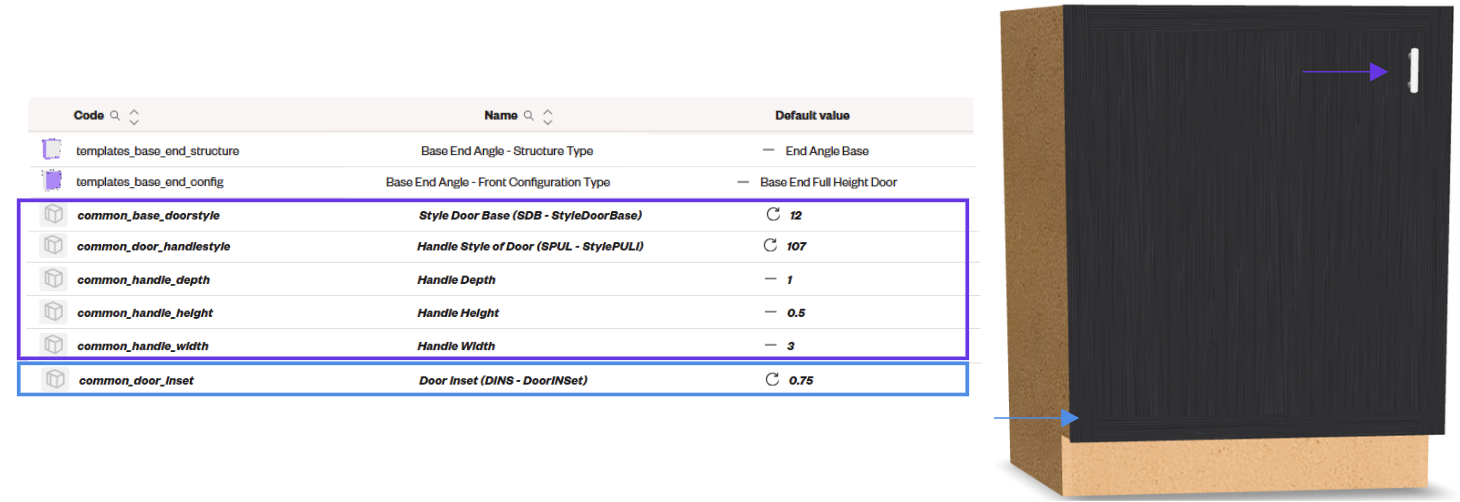

COMMON_DOOR_HANDLESTYLE = 107

COMMON_HANDLE_WIDTH = 3

COMMON_HANDLE_HEIGHT =0.5

COMMON_HANDLE_DEPTH = 1

COMMON_DOOR_INSET = 0.75

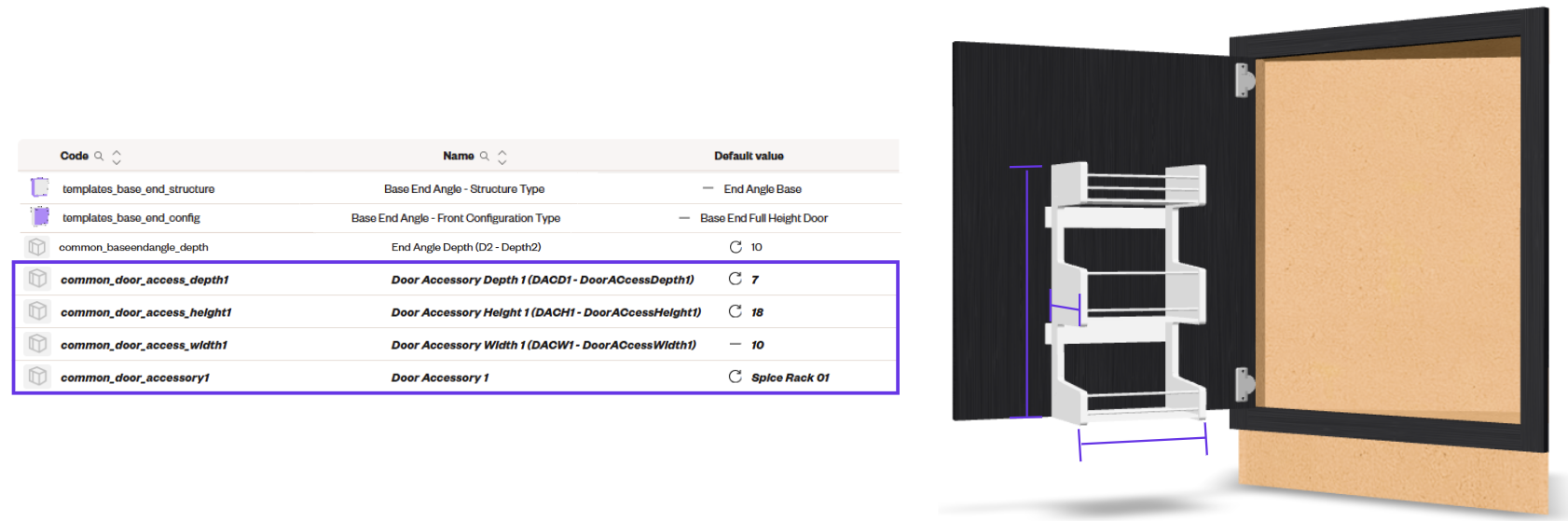

To add the accessories and edit their dimension and positioning, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1, Attributes: Item Configuration - Positioning and Attributes: Item Configuration - Dimensioning.

Example:

COMMON_DOOR_ACCESSORY1 = Spice Rack 01

COMMON_DOOR_ACCESS_HEIGHT1 = 18

COMMON_DOOR_ACCESS_DEPTH1 = 7

COMMON_DOOR_ACCESS_WIDTH1 = 10

Note 1: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESSORY1 until COMMON_DOOR_ACCESSORY14

COMMON_DOOR_ACCESS_HEIGHT1 until COMMON_DOOR_ACCESS_HEIGHT8

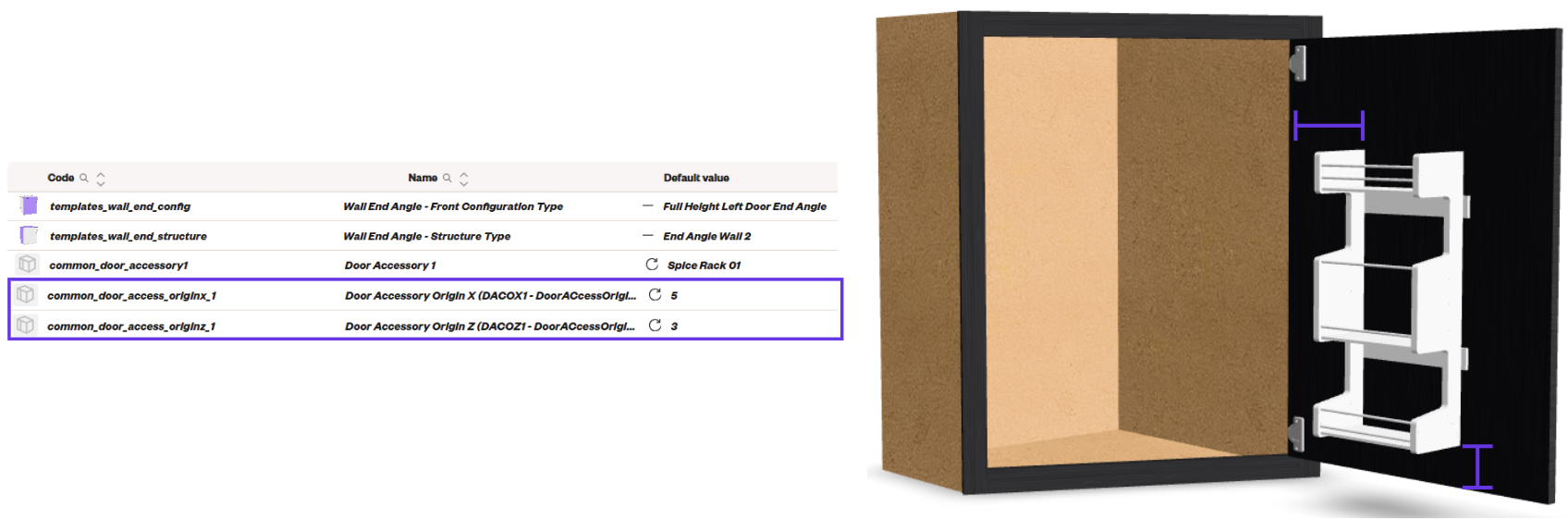

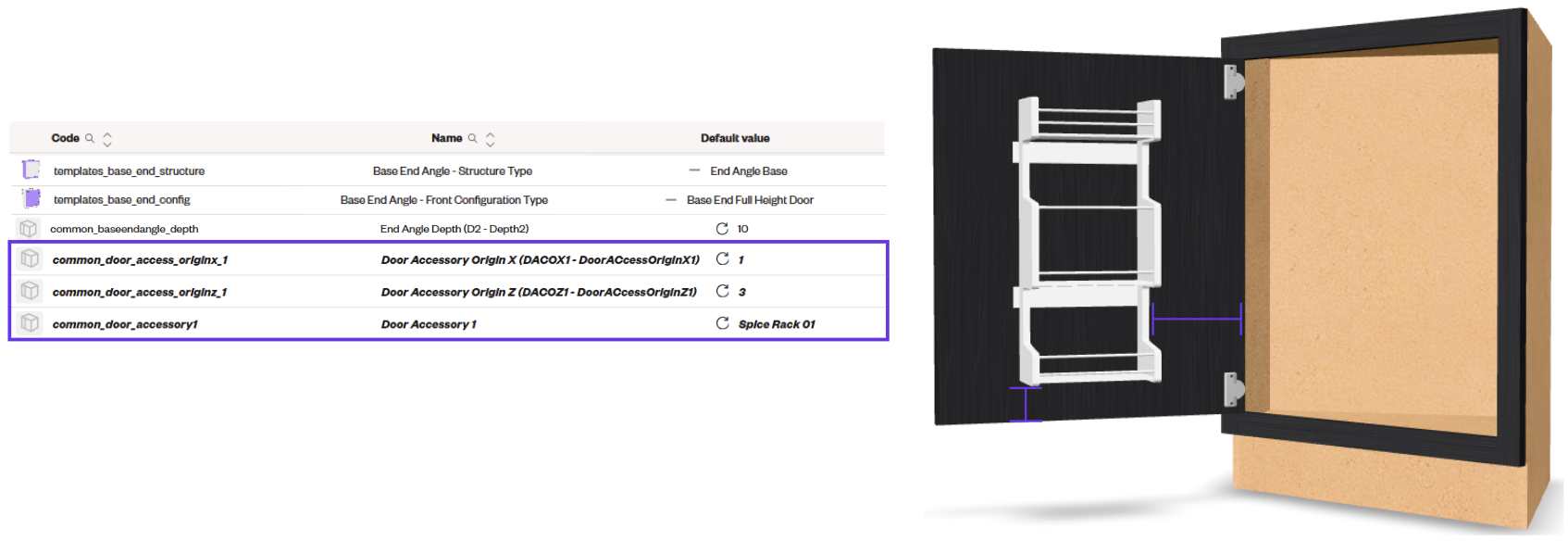

To edit the position of accessories, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_DOOR_ACCESS_ORIGINX_1 = 1

COMMON_DOOR_ACCESS_ORIGINZ_1 = 3

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESS_ORIGINX_1 until COMMON_DOOR_ACCESS_ORIGINX_8uuuuu

Example:

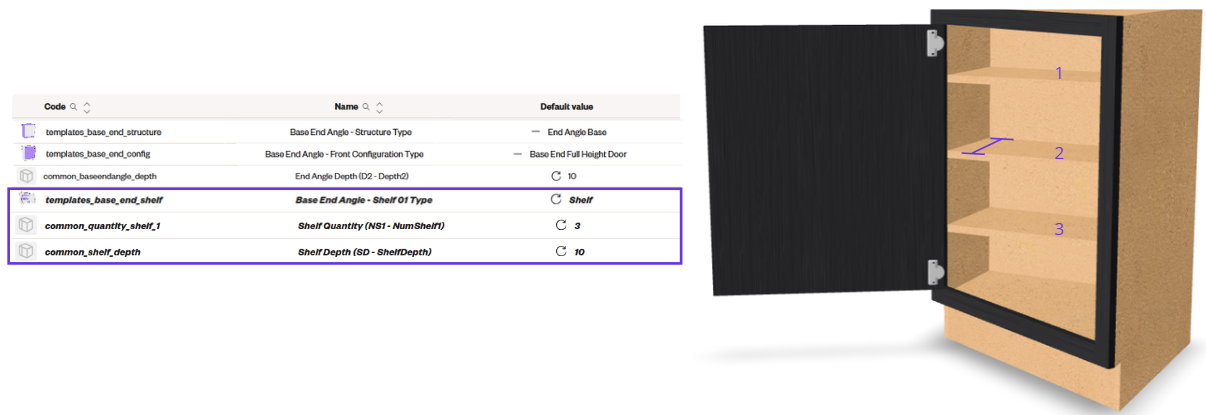

TEMPLATES_BASE_END_SHELF = Shelf

COMMON_QUANTITY_SHELF_1 = 3

COMMON_SHELF_DEPTH = 10

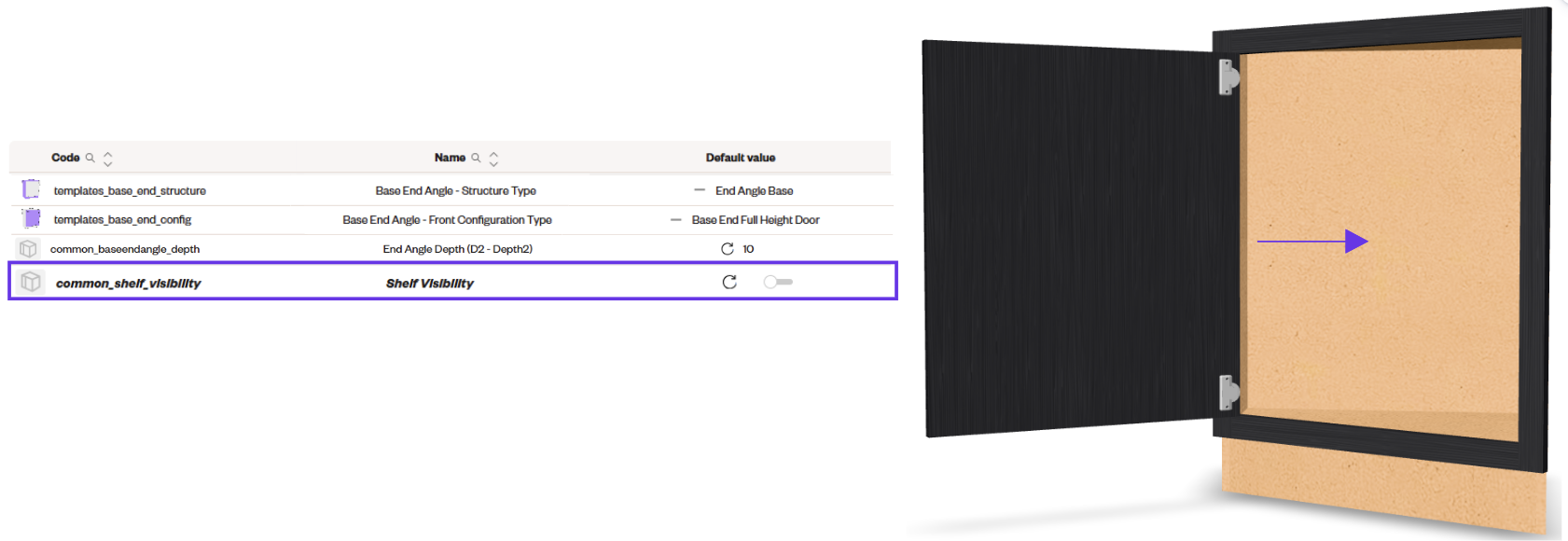

To edit the shelves visibility, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Configuration - Visibility

COMMON_SHELF_VISIBILITY = False

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, for example:

COMMON_SHELF_VISIBILITY until COMMON_SHELF_VISIBILITY_5

Example of Drawers:

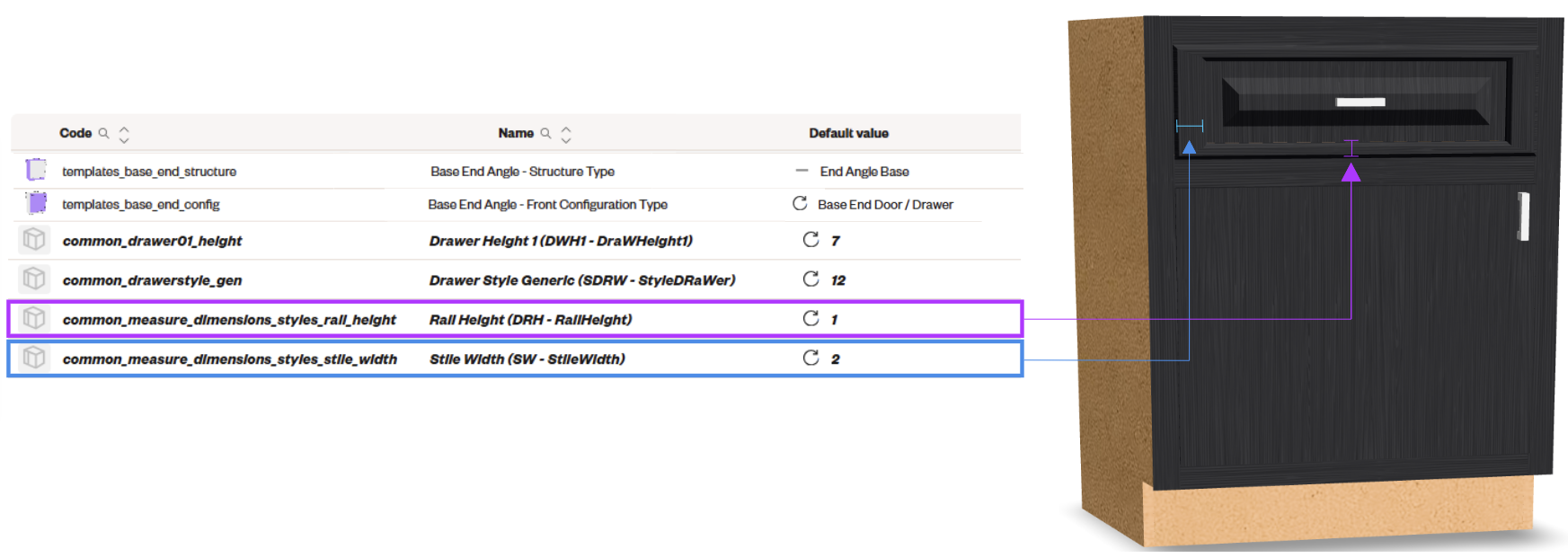

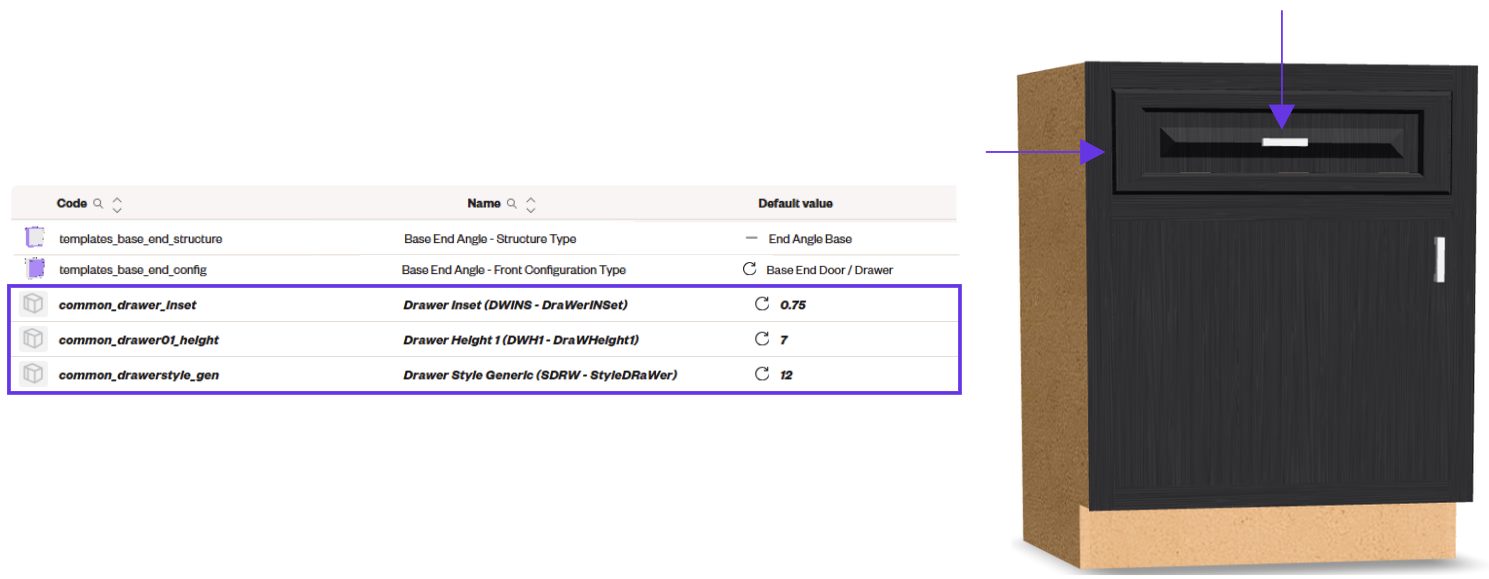

Example:

COMMON_DRAWERSTYLE_GEN = 12

COMMON_DRAWER_INSET = 0.75

COMMON_DRAWER01_HEIGHT = 7

COMMON_DRAWERSTYLE_GEN = 12

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 1

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 2

COMMON_DRAWER01_HEIGHT = 7

Note: Not all drawer styles have rails and styles.

To edit the drawer front and drawer box height, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

COMMON_MEASURE_DRAWERBOX_HEIGHT = 4

COMMON_DRAWER01_HEIGHT = 6

COMMON_DRAWER01_HEIGHT until COMMON_DRAWER14_HEIGHT

COMMON_MEASURE_DRAWERBOX_HEIGHT until COMMON_MEASURE_DRAWERBOX14_HEIGHT

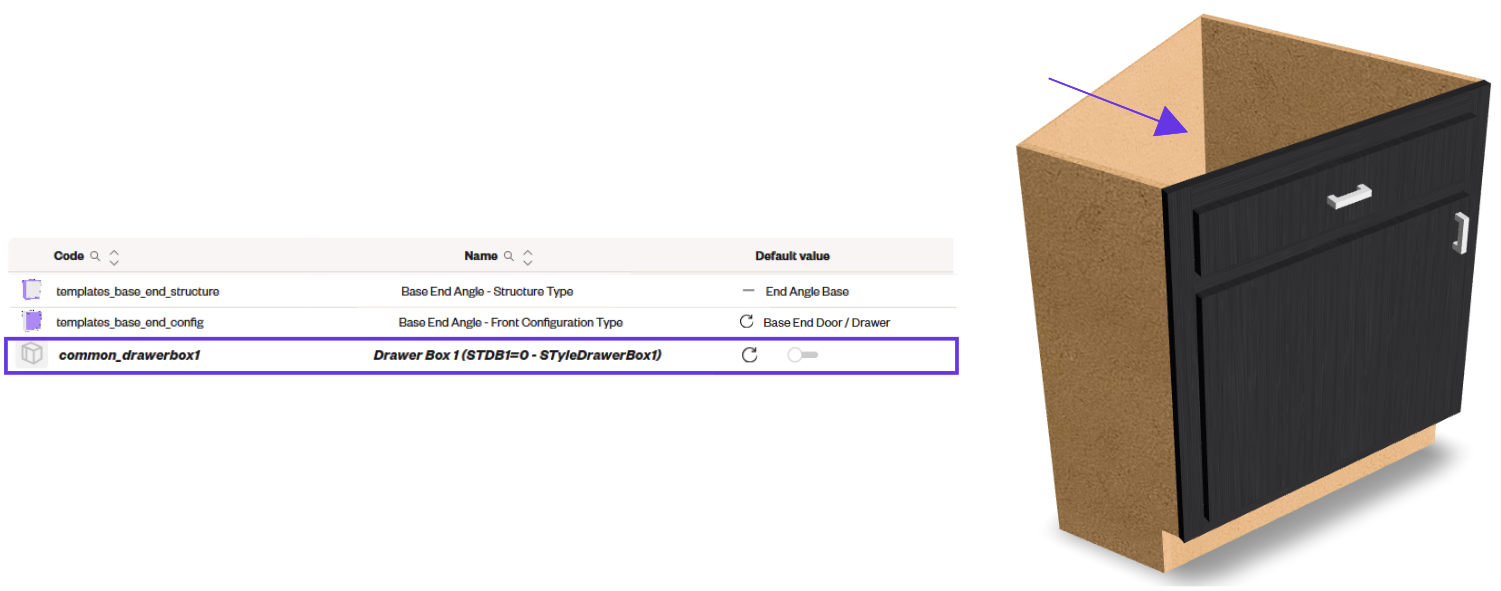

To disable the drawer box, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Visibility.

COMMON_DRAWERBOX1 = False

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWERBOX1 until COMMON_DRAWERBOX14

COMMON_DRAWER_HANDLESTYLE = 107

COMMON_DRAWERHANDLE_HEIGHT = 0.5

COMMON_DRAWERHANDLE_DEPTH = 1

COMMON_DRAWERHANDLE_WIDTH = 4

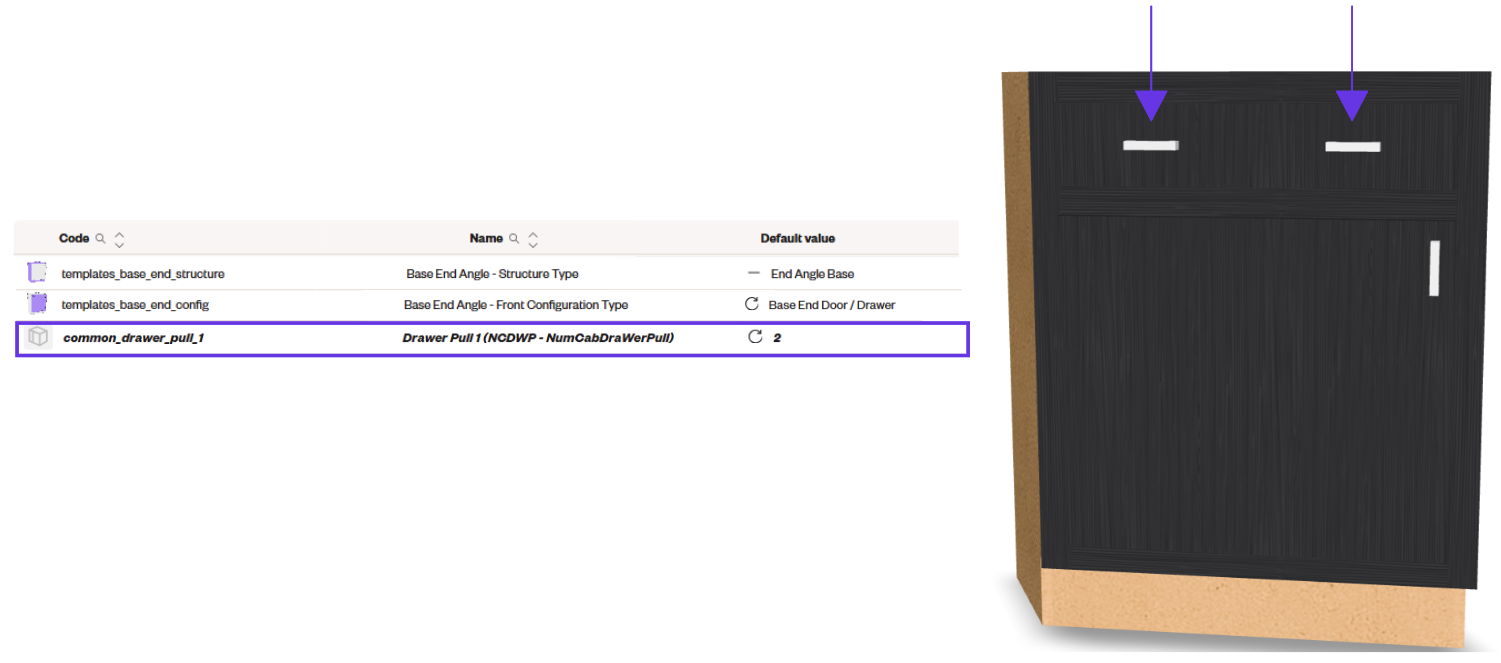

To edit the handle quantity, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Quantity.

COMMON_DRAWER_PULL_1 = 2

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWER_PULL_1 until COMMON_DRAWER_PULL_14

COMMON_DRAWERBOX1_ACCESSORY = Coffee Pod Insert

COMMON_ACCESSORY_HEIGHT1 = 1.5

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWERBOX_ACCESSORY until COMMON_DRAWERBOX9_ACCESSORY

COMMON_ACCESSORY_HEIGHT1 until COMMON_ACCESSORY_HEIGHT14

Base Corner Diagonal

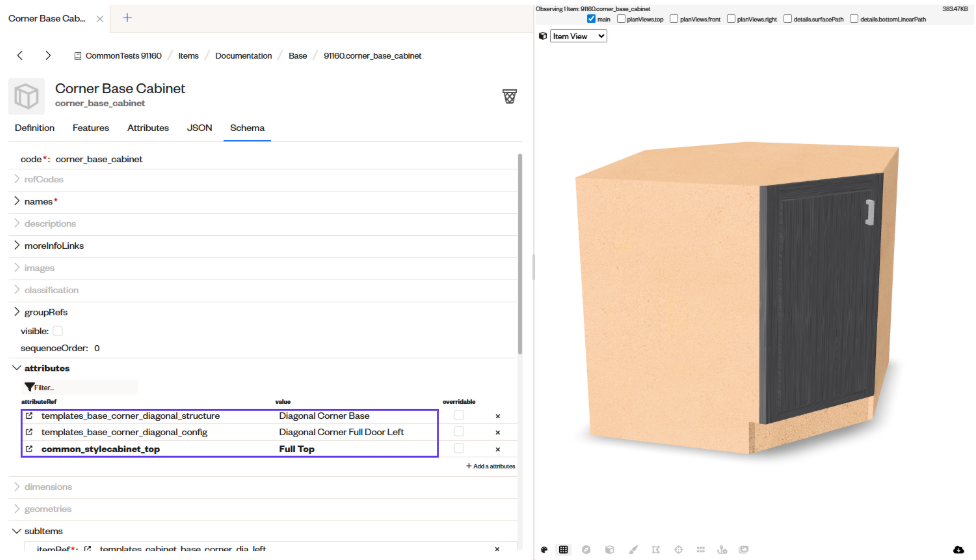

Inserting the structure and configuration into the template:

Example:

TEMPLATES_BASE_CORNER_DIAGONAL_STRUCTURE = Corner Diagonal Base

TEMPLATES_BASE_CORNER_DIAGONAL_CONFIG = Corner Diagonal Full Door Left

COMMON_STYLECABINET_TOP = Full Top

Editing the Structure in more details:

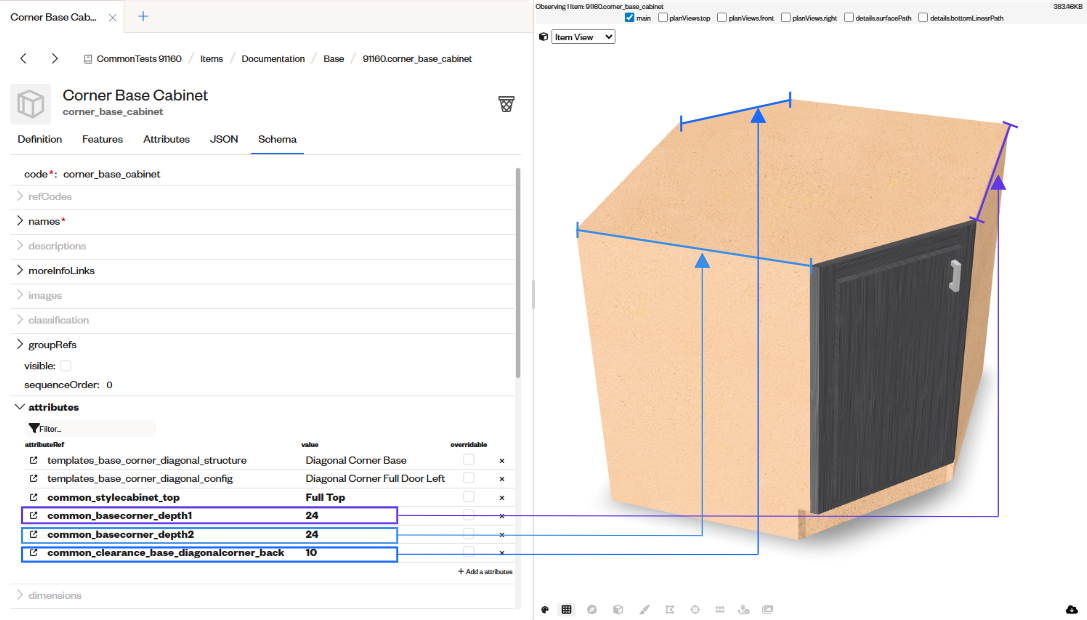

To edit the depths of the corners, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_BASECORNER_DEPTH1 = 24

COMMON_BASECORNER_DEPTH2 = 24

COMMON_CLEARANCE_BASE_DIAGONALCORNER_BACK = 10

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

Example:

COMMON_STYLECABINET_TOP = Corner Blocks

COMMON_STYLECABINET_BACK = Grooved Back Left and Right

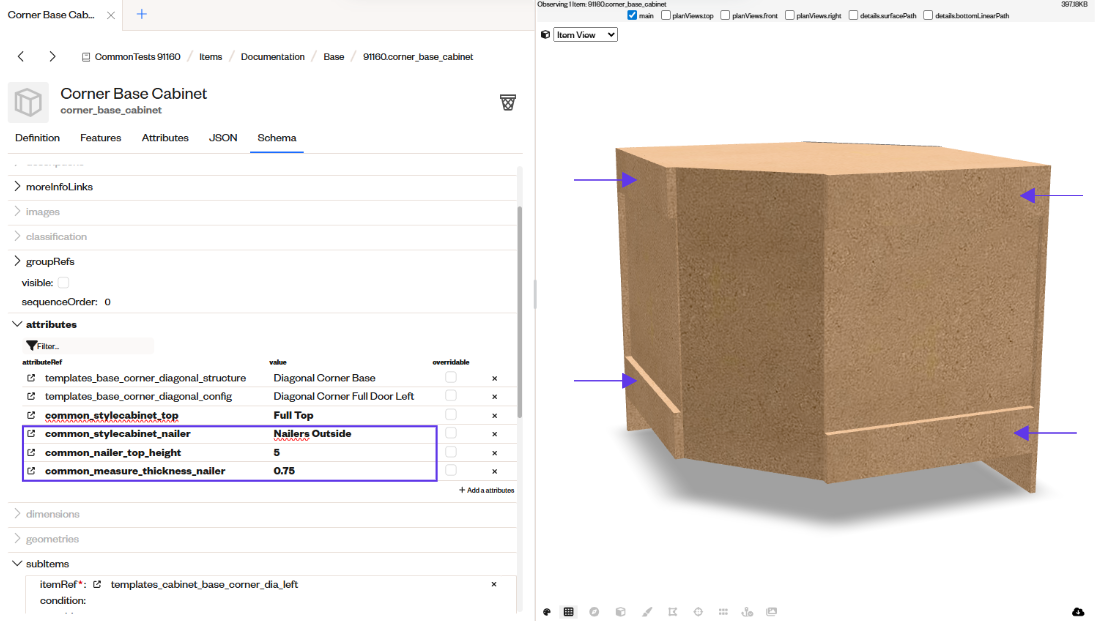

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_STYLECABINET_NAILER = Nailers Outside

COMMON_NAILER_TOP_HEIGHT = 5

COMMON_MEASURE_THICKNESS_NAILER = 0.75

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_DIAGONAL_BACK = 0.3

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

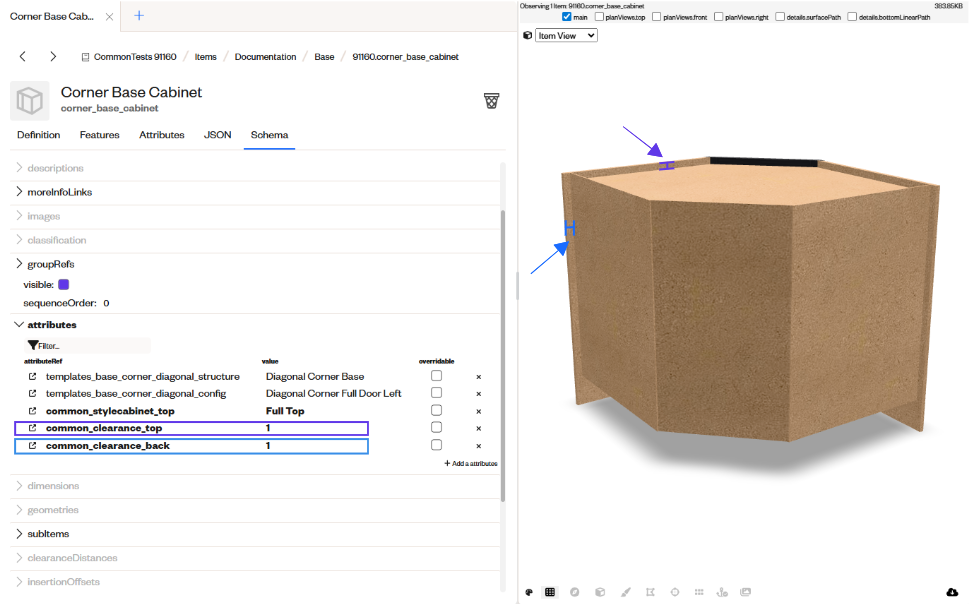

To edit the clearances use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 1

Example:

COMMON_DECORATIVE_SIDEPANEL_LEFT = Base Panel 05

COMMON_DECORATIVE_SIDEPANEL_RIGHT = Base Panel 05

COMMON_MEASURE_THICKNESS_SIDE = 1

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

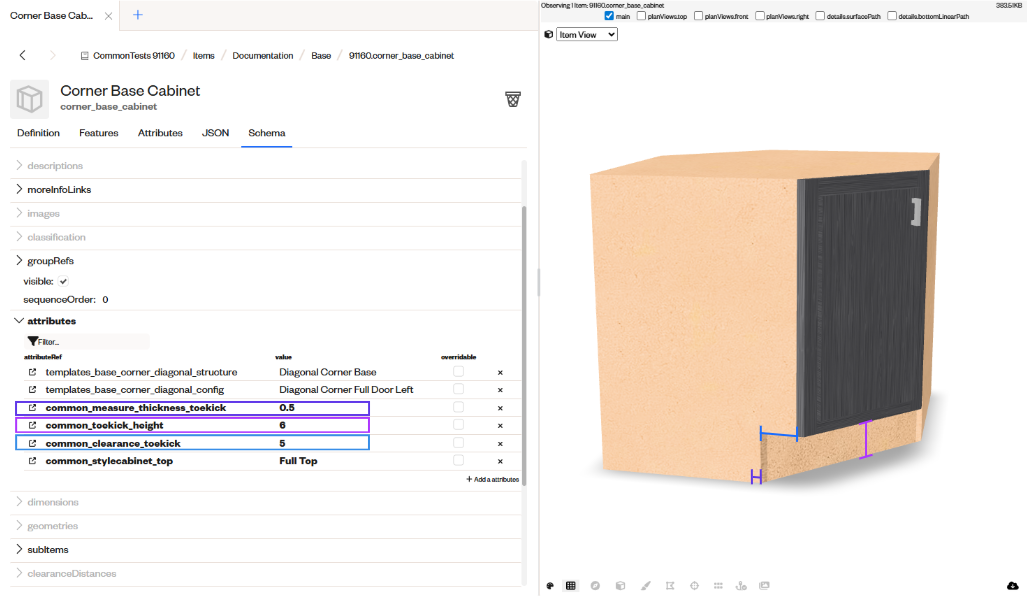

To edit the toekick use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Clearances.

Example:

COMMON_MEASURE_THICKNESS_TOEKICK = 0.5

COMMON_TOEKICK_HEIGHT = 6

COMMON_CLEARANCE_TOEKICK = 5

To edit the style toekick use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

COMMON_LEG_COMPOSITION_TYPE = Corner Diagonal

COMMON_LEG_STYLE = Foot 10

COMMON_LEG_WIDTH = 2

COMMON_LEG_DEPTH = 2

COMMON_TOEKICK_HEIGHT = 4

Editing the Configuration in more details:

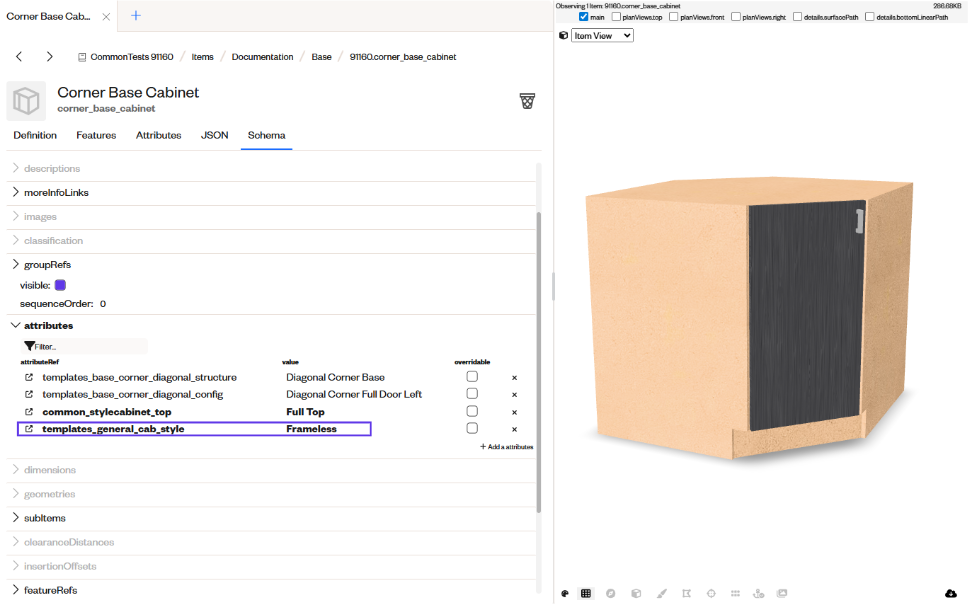

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

TEMPLATES_GENERAL_CAB_STYLE = Frameless

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_FRAME = 1

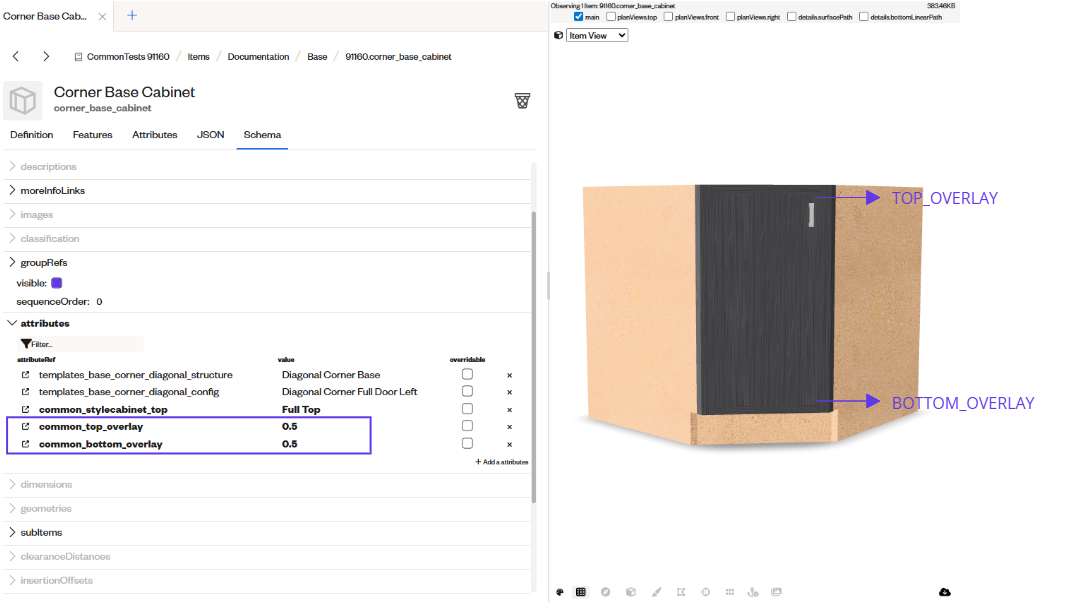

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example:

COMMON_TOP_OVERLAY = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

Example of Doors:

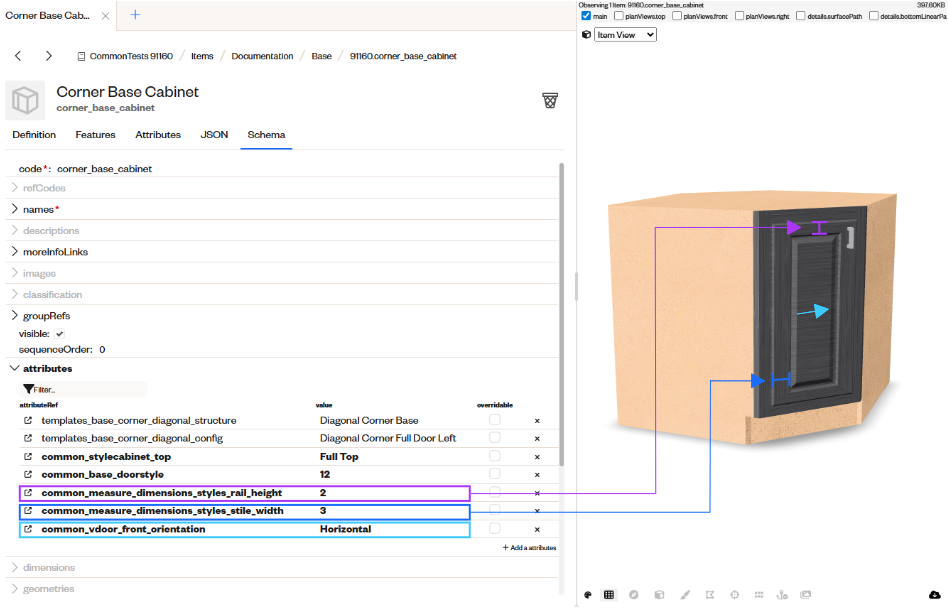

Example:

COMMON_BASE_DOORSTYLE = 12

COMMON_STYLEDOOR = Glass

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 2

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 3

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

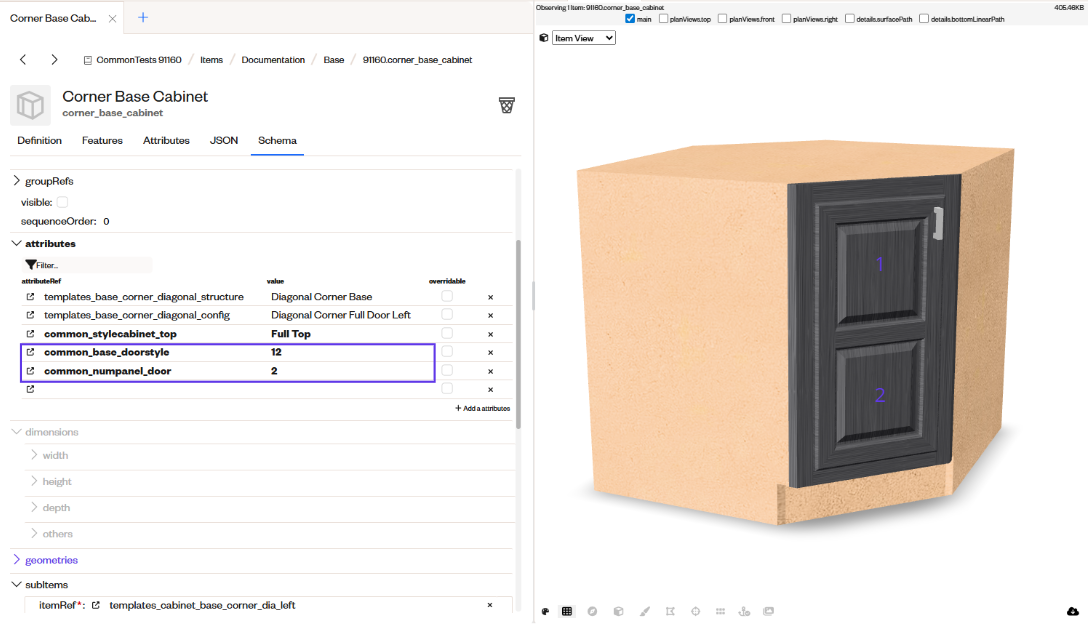

Example:

COMMON_BASE_DOORSTYLE = 12

COMMON_NUMPANEL_DOOR = 2

To edit the handle style, door inset and dimensions, use the attribute listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 and Attributes: Item Configuration - Dimensioning .

Example:

COMMON_DOOR_HANDLESTYLE = 107

COMMON_HANDLE_WIDTH = 3

COMMON_HANDLE_HEIGHT =0.5

COMMON_HANDLE_DEPTH = 1

COMMON_DOOR_INSET = 0.75

To add the accessories and edit their dimension and positioning, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1, Attributes: Item Configuration - Positioning and Attributes: Item Configuration - Dimensioning.

Example:

COMMON_DOOR_ACCESSORY1 = Spice Rack 01

COMMON_DOOR_ACCESS_HEIGHT1 = 18

COMMON_DOOR_ACCESS_DEPTH1 = 7

COMMON_DOOR_ACCESS_WIDTH1 = 10

Note 1: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESSORY1 until COMMON_DOOR_ACCESSORY14

COMMON_DOOR_ACCESS_HEIGHT1 until COMMON_DOOR_ACCESS_HEIGHT8

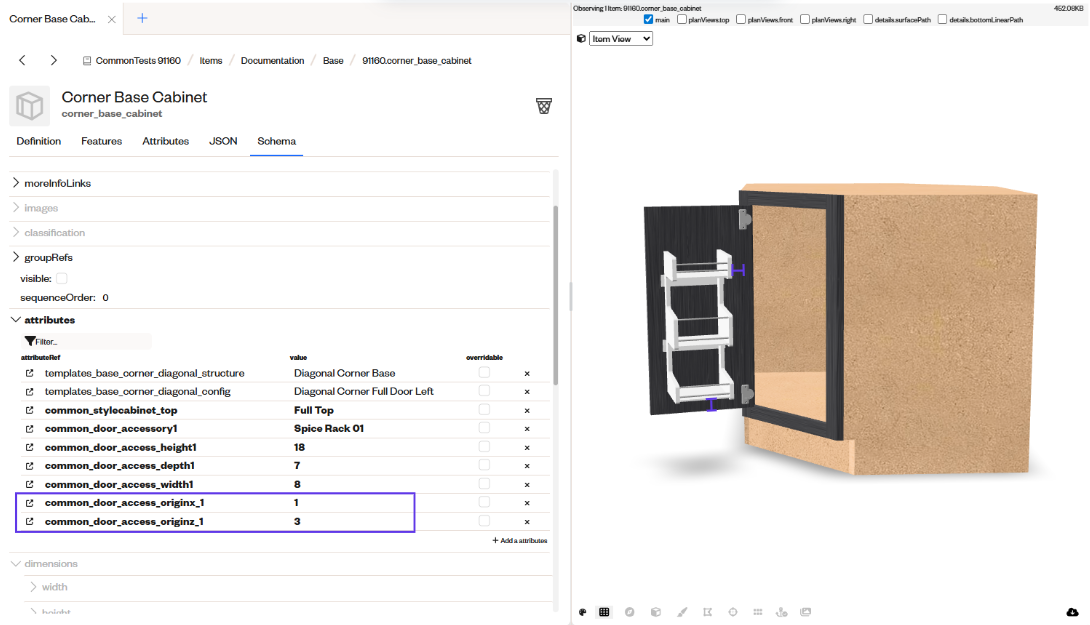

To edit the position of accessories, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_DOOR_ACCESS_ORIGINX_1 = 1

COMMON_DOOR_ACCESS_ORIGINZ_1 = 3

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESS_ORIGINX_1 until COMMON_DOOR_ACCESS_ORIGINX_8

Wall Standard

To start creating your Wall Cabinet, you need to set the template attributes related to the desired structure. In the article Attributes: Item Construction - Cabinet Wall, there are all types of wall structures attributes and their respective proposed values. The tables are separated by categories, such as: corner square, standard, back panel, etc. So if you want to build a Standard item, you must go to this category and look for the desired attribute.

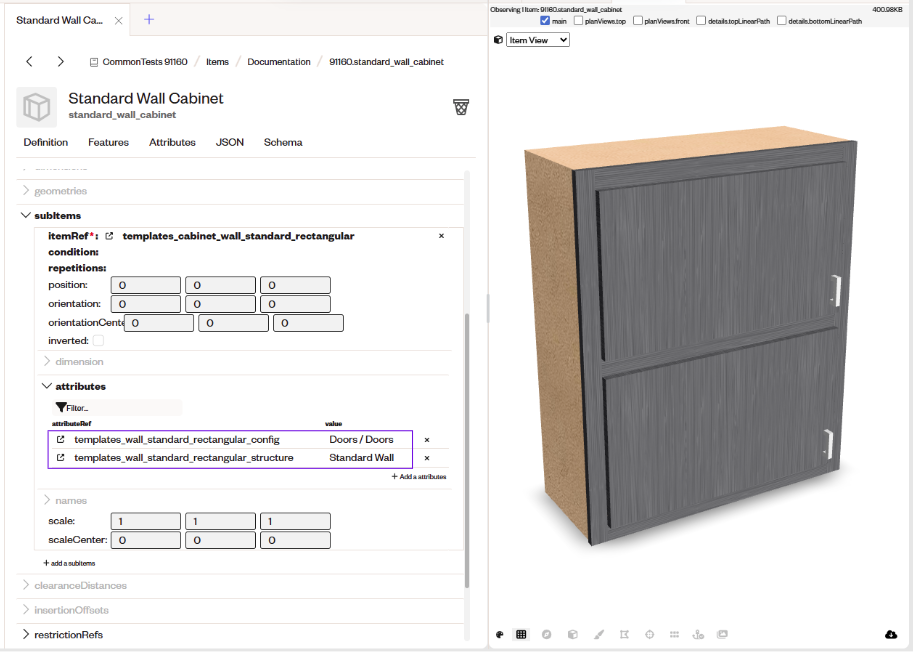

Inserting the structure and configuration into the template:

Example:

TEMPLATES_WALL_STANDARD_RECTANGULAR_CONFIG = Doors / Doors

TEMPLATES_WALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Wall

Editing the Structure in more details:

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

Example:

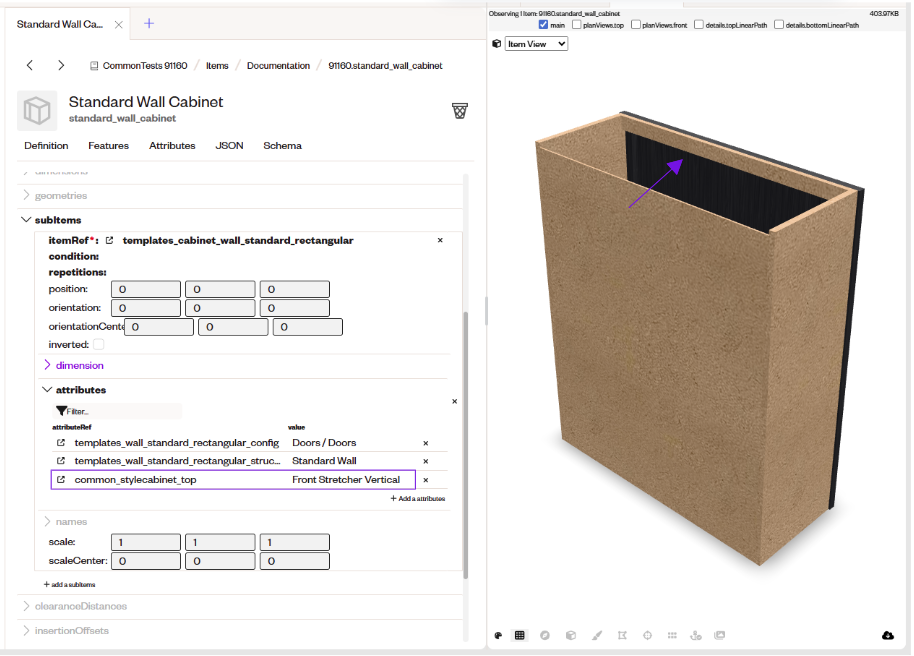

COMMON_STYLECABINET_TOP = Front Stretcher Vertical

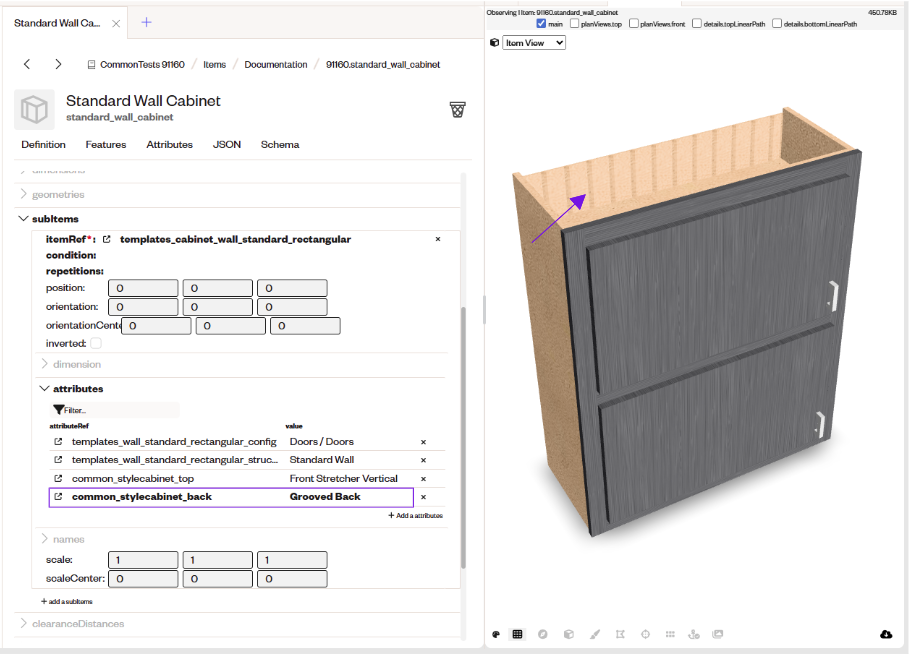

COMMON_STYLECABINET_BACK = Grooved Back

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_STYLECABINET_NAILER = Nailers Outside

COMMON_NAILER_TOP_HEIGHT = 5

COMMON_MEASURE_THICKNESS_NAILER = 0.5

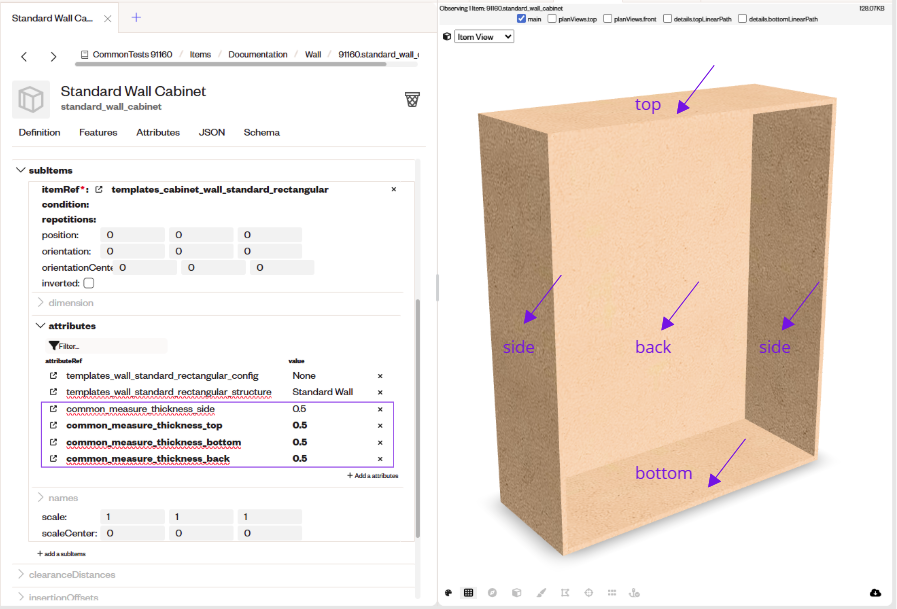

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

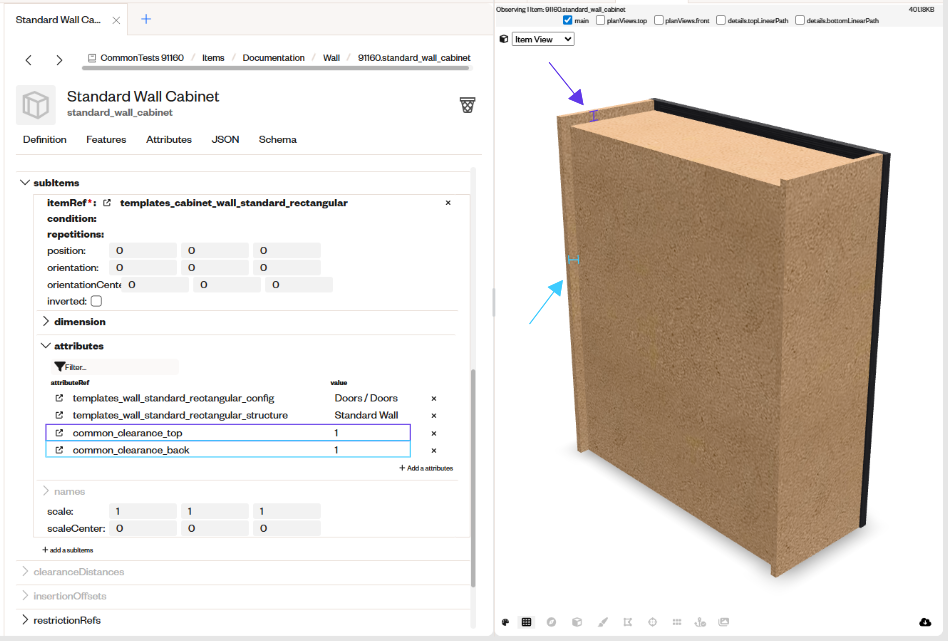

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 1

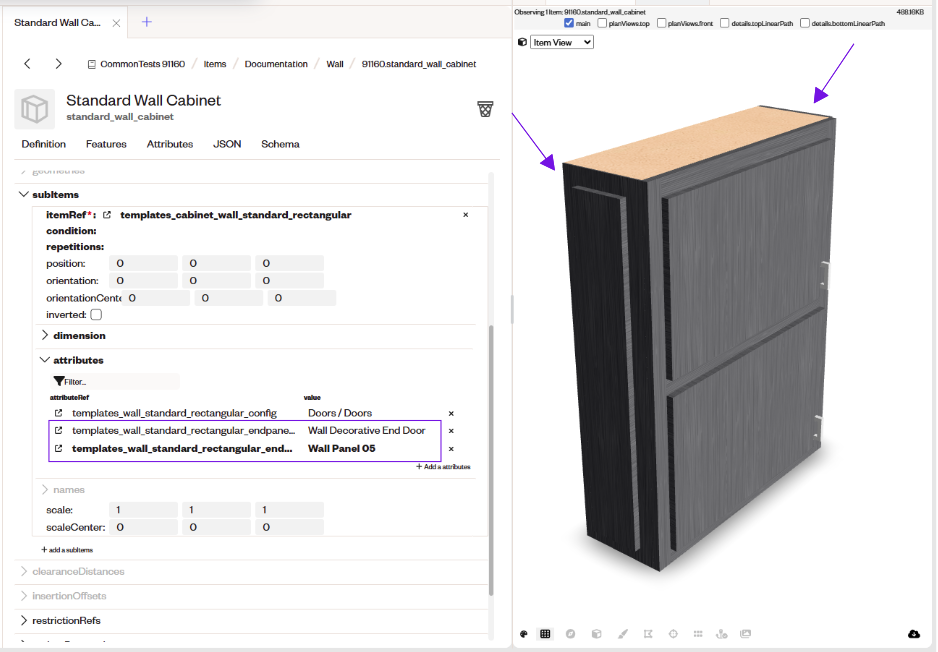

Example:

COMMON_DECORATIVE_SIDEPANEL_LEFT = Base Panel 03

COMMON_DECORATIVE_SIDEPANEL_RIGHT = Base Panel 03

COMMON_MEASURE_THICKNESS_SIDE = 0.5

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

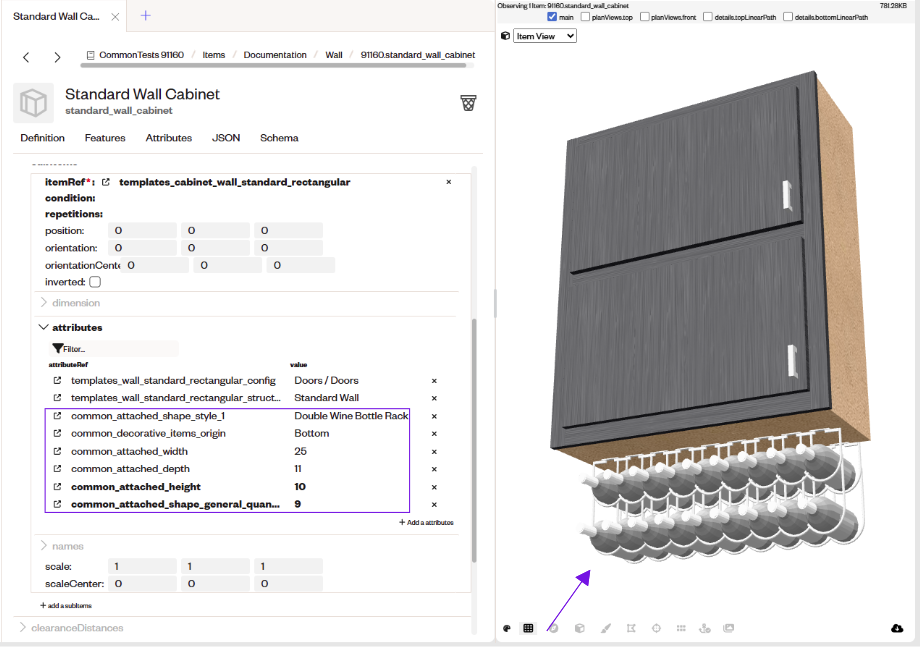

To add and edit the attached shape, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Configuration - Style 1, Attributes: Item Configuration - Positioning, Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Quantity.

Example:

COMMON_ATTACHED_HEIGHT = 10

COMMON_ATTACHED_SHAPE_GENERAL_QUANTITY = 9

Editing the Configuration in more details:

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

TEMPLATES_GENERAL_CAB_STYLE = Frameless

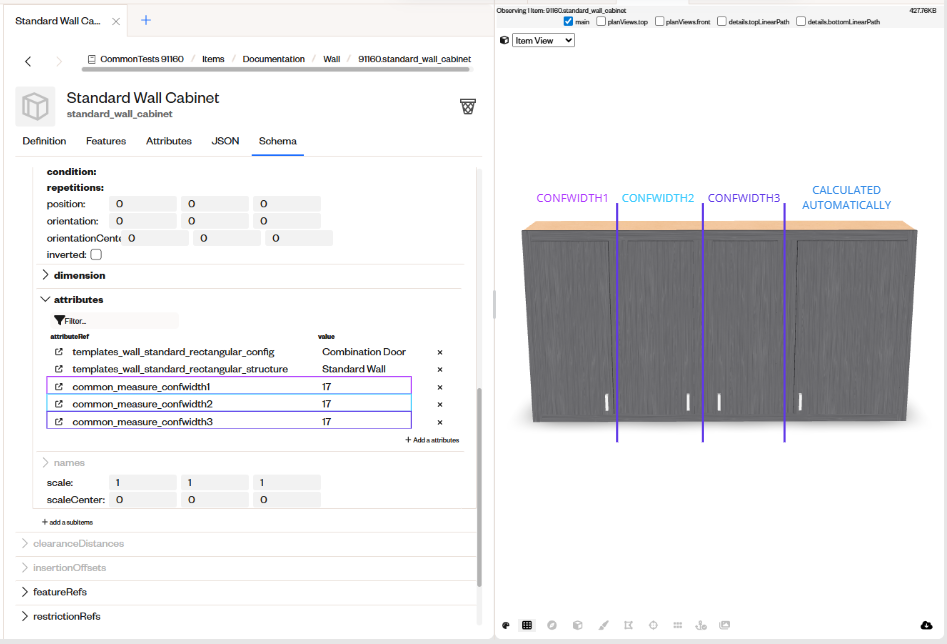

To edit the separation in the configuration, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_MEASURE_CONFWIDTH1 = 17

COMMON_MEASURE_CONFWIDTH2 = 17

COMMON_MEASURE_CONFWIDTH3 =17

Note: this attribute is used in cases where the configuration is separated by dividers.

COMMON_MEASURE_CONFWIDTH1 = 12

COMMON_MEASURE_CONFWIDTH3 =12

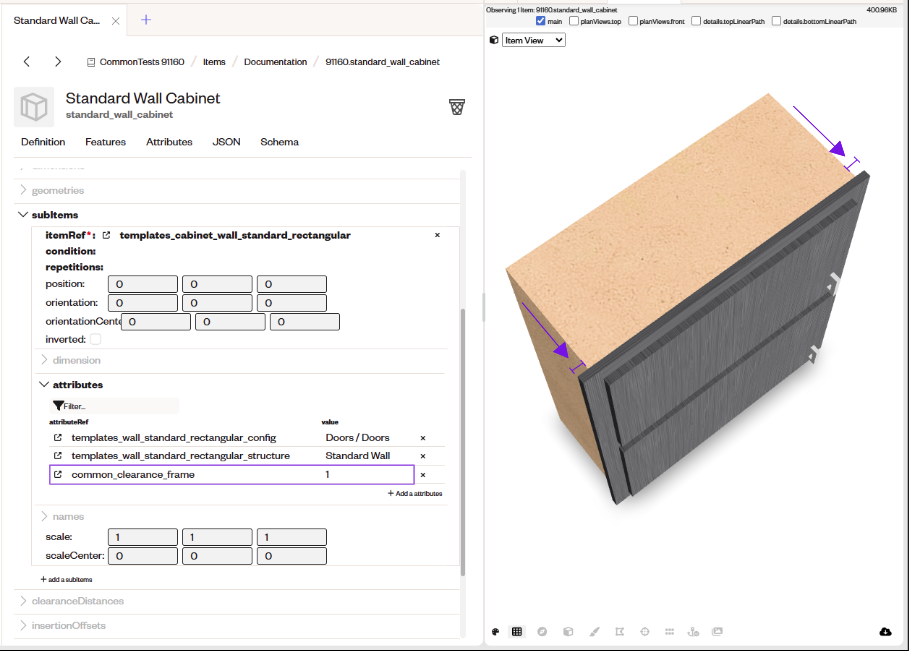

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_FRAME = 1

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example 1:

COMMON_BOTTOM_OVERLAY = 1

COMMON_TOP_OVERLAY = 0.5

COMMON_INTER_OVERLAY_TOP1 = 0.5

COMMON_INTER_OVERLAY_BOTTOM1 = 1

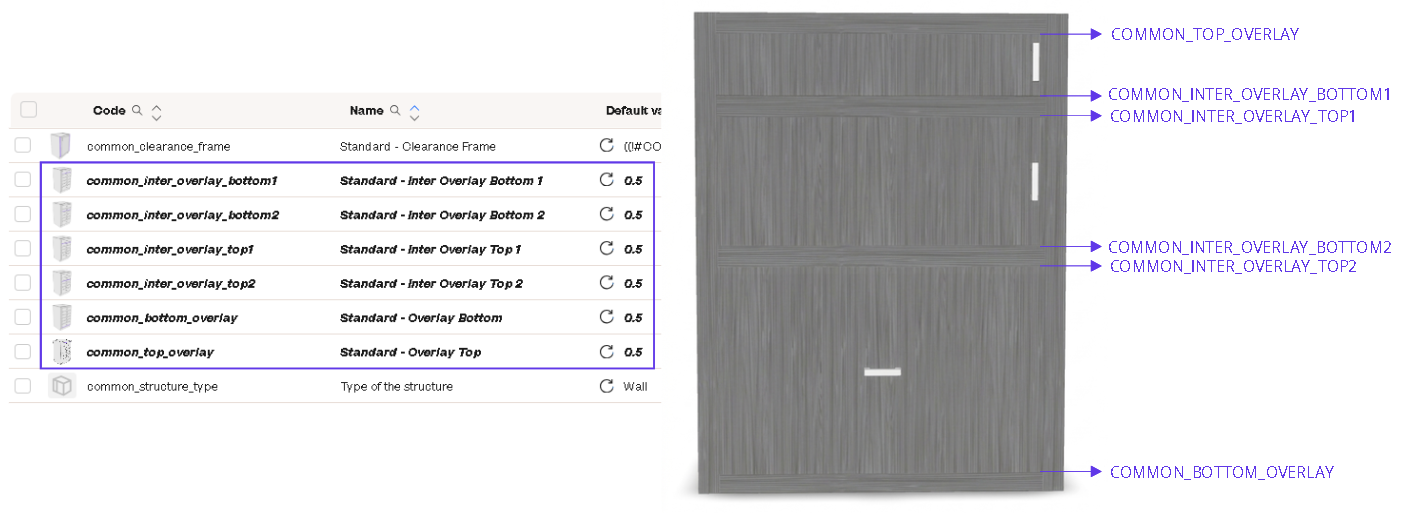

Exemple 2:

COMMON_TOP_OVERLAY = 0.5

COMMON_INTER_OVERLAY_BOTTOM1 = 0.5

COMMON_INTER_OVERLAY_TOP1 = 0.5

COMMON_INTER_OVERLAY_BOTTOM2 = 0.5

COMMON_INTER_OVERLAY_TOP2 = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

Example of Doors:

Example:

COMMON_WALL_DOORSTYLE = 19

COMMON_VDOOR_FRONT_ORIENTATION = HORIZONTAL

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 3

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 2

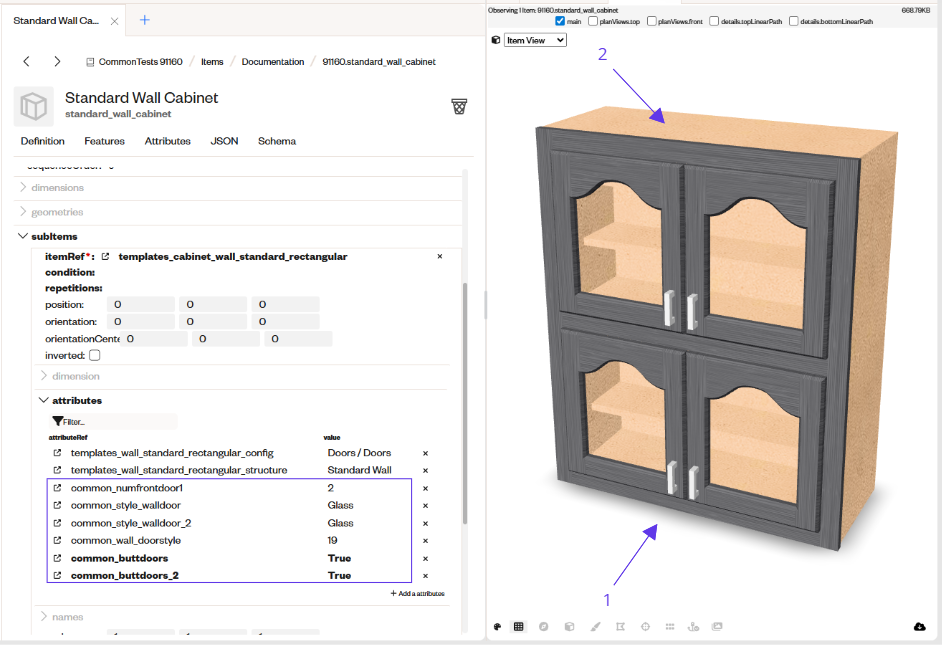

Example:

COMMON_NUMFRONTDOOR1 = 2

COMMON_STYLE_WALLDOOR = Glass

COMMON_STYLE_WALLDOOR_2 = Glass

COMMON_BUTTDOORS = True

COMMON_BUTTDOORS_2 = True

Note: If you have a configuration with more than one door on height, we have an attribute for each of them, used from bottom to top.

Example:

COMMON_NUMFRONTDOOR1 until COMMON_NUMFRONTDOOR4

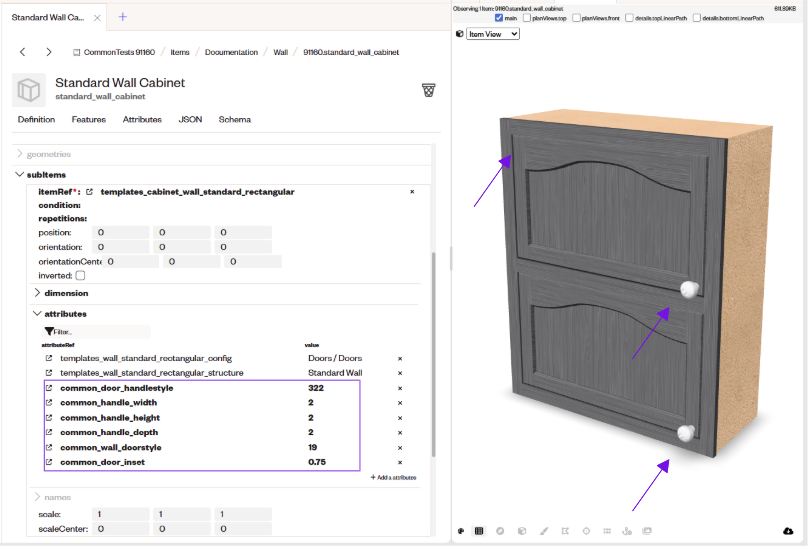

To edit the handle style, the dimensions and door inset, use the attribute listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1, Attributes: Item Configuration - Style 2 and Attributes: Item Configuration - Dimensioning .

Example:

COMMON_DOOR_HANDLESTYLE = 322

COMMON_HANDLE_WIDTH = 2

COMMON_HANDLE_HEIGHT = 2

COMMON_HANDLE_DEPTH = 2

COMMON_DOOR_INSET = 0.75

To add the accessories and edit their dimension and positioning, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1, Attributes: Item Configuration - Positioning and Attributes: Item Configuration - Dimensioning.

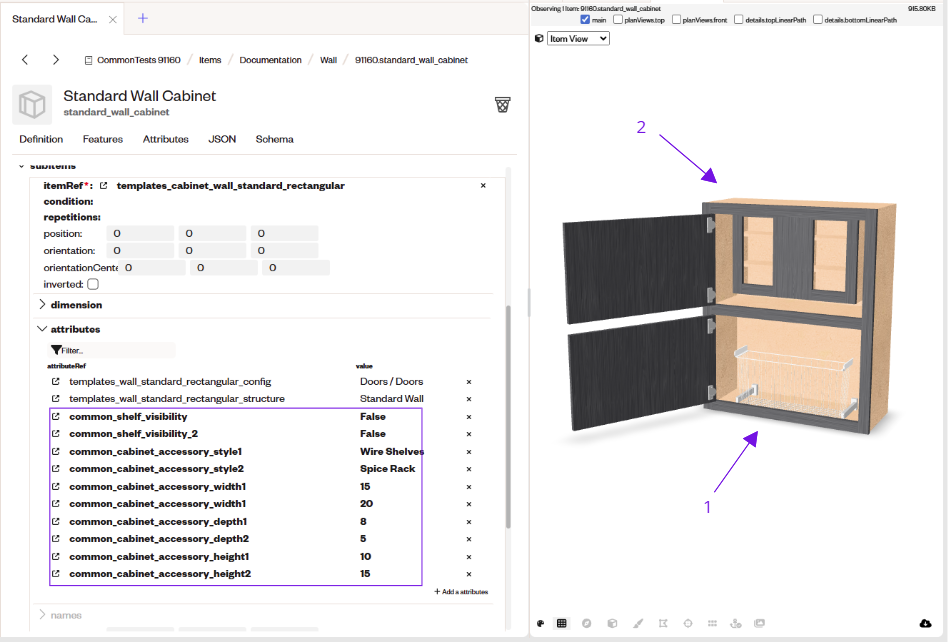

Example:

COMMON_SHELF_VISIBILITY = False

COMMON_SHELF_VISIBILITY_2 = False

COMMON_CABINET_ACCESSORY_STYLE1 = Wire Shelves

COMMON_CABINET_ACCESSORY_STYLE2 = Spice Rack

COMMON_CABINET_ACCESSORY_WIDTH1 = 15

COMMON_CABINET_ACCESSORY_WIDTH2 = 20

COMMON_CABINET_ACCESSORY_DEPTH1 = 8

COMMON_CABINET_ACCESSORY_DEPTH2 = 5

COMMON_CABINET_ACCESSORY_HEIGHT1 = 10

COMMON_CABINET_ACCESSORY_HEIGHT2 = 15

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top.

Example:

COMMON_CABINET_ACCESSORY_STYLE1 until COMMON_CABINET_ACCESSORY_STYLE5

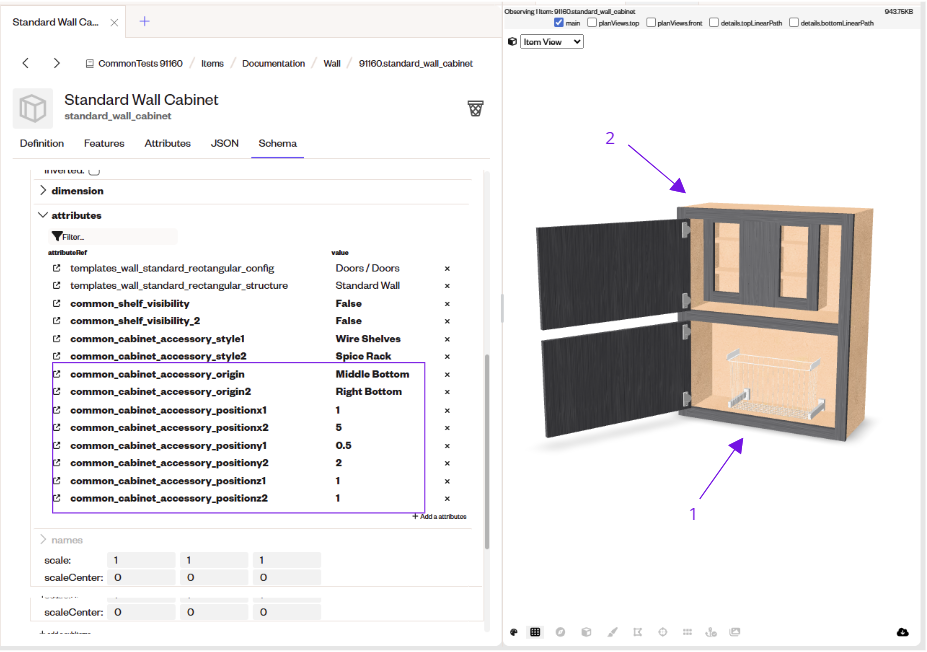

To edit the accessories position, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_CABINET_ACCESSORY_ORIGIN = Middle Bottom

COMMON_CABINET_ACCESSORY_ORIGIN2 = Right Bottom

COMMON_CABINET_ACCESSORY_POSITIONX1 = 1

COMMON_CABINET_ACCESSORY_POSITIONX2 = 5

COMMON_CABINET_ACCESSORY_POSITIONY1 = 0.5

COMMON_CABINET_ACCESSORY_POSITIONY2 = 2

COMMON_CABINET_ACCESSORY_POSITIONZ1 = 1

COMMON_CABINET_ACCESSORY_POSITIONZ1= 1

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top.

Example:

COMMON_CABINET_ACCESSORY_ORIGIN until COMMON_CABINET_ACCESSORY_ORIGIN5

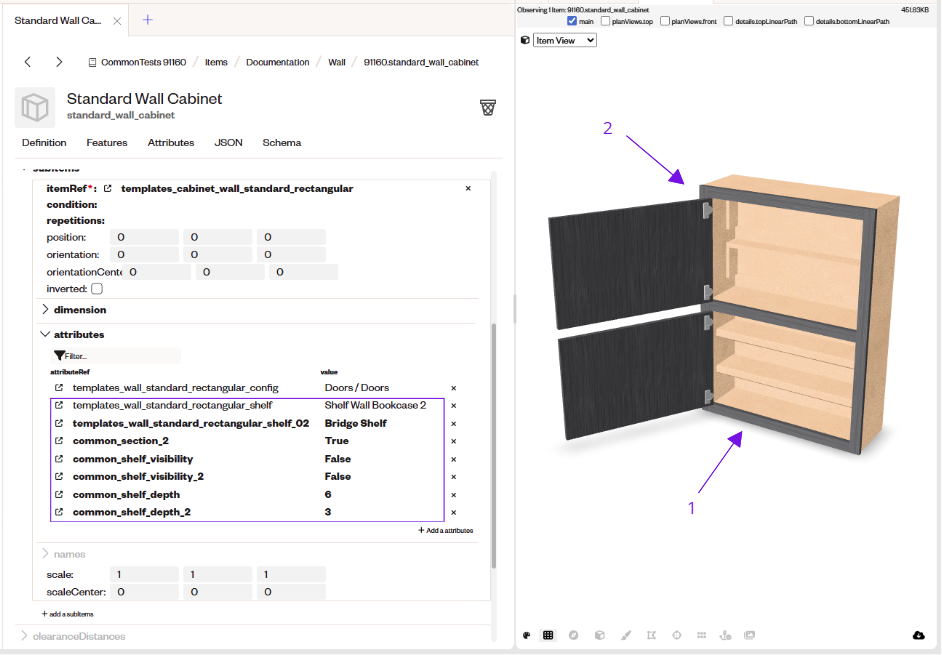

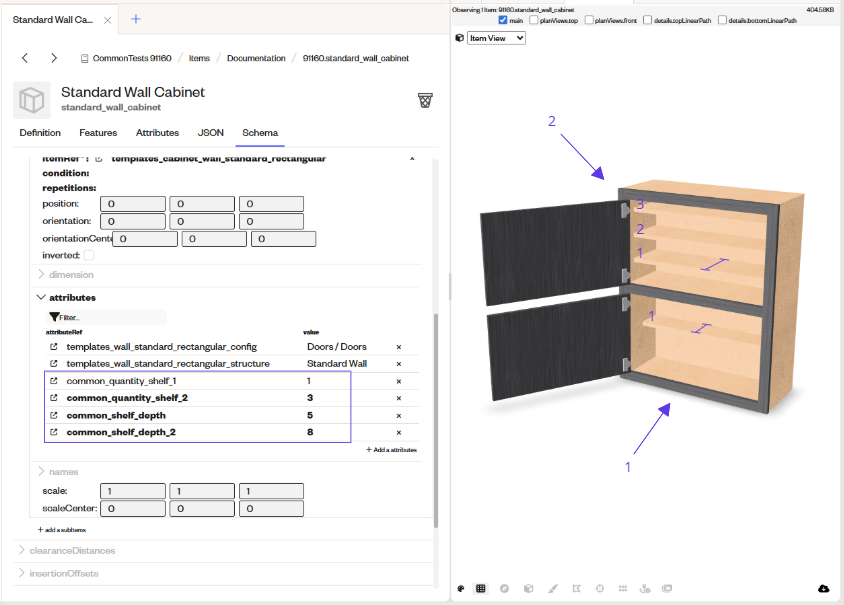

Example:

COMMON_QUANTITY_SHELF_1 = 1

COMMON_QUANTITY_SHELF_2 = 3

COMMON_SHELF_DEPTH = 5

COMMON_SHELF_DEPTH_2 = 8

Note: If you have a configuration with more than one shelf, we have an attribute for each of them, used from left to right, from bottom to top.

COMMON_QUANTITY_SHELF_1 until COMMON_QUANTITY_SHELF_6

Wall End Angle

To start creating your Wall Cabinet, you need to set the template attributes related to the desired structure. In the article Attributes: Item Construction - Cabinet Wall, there are all types of wall structures attributes and their respective proposed values. The tables are separated by categories, such as corner square, end angle, standard, back panel, etc. So if you want to build a Standard item, you must go to this category and look for the desired attribute.

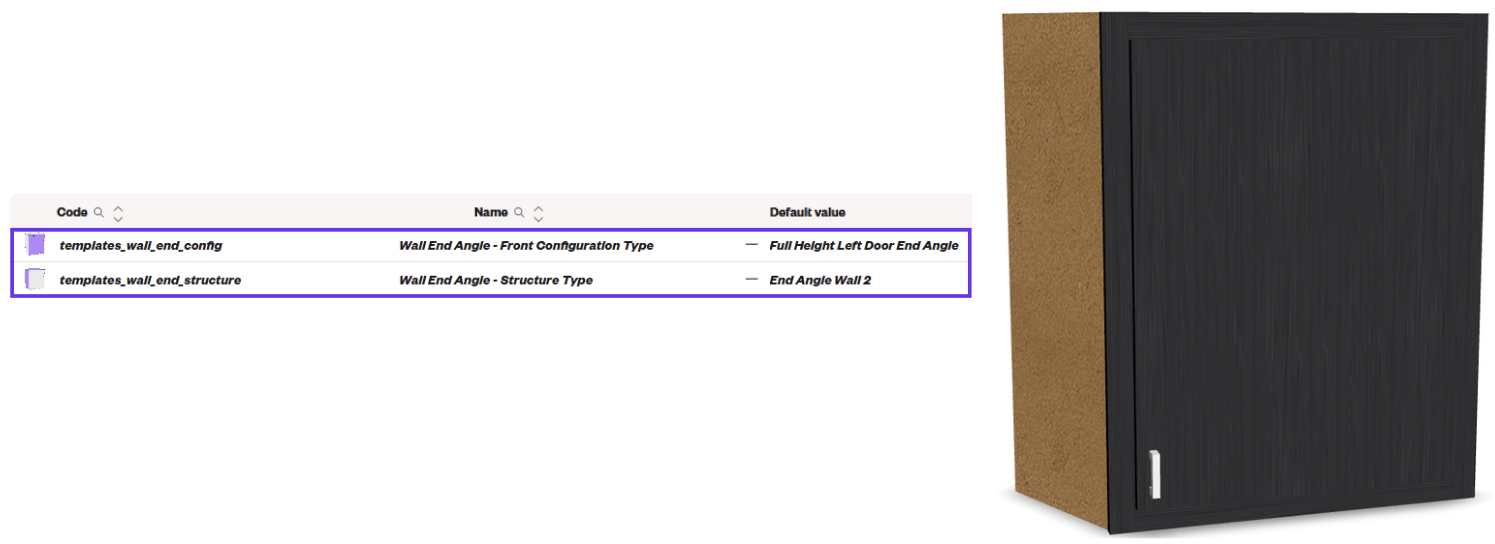

Inserting the structure and configuration into the template:

Example:

TEMPLATES_WALL_END_CONFIG = Full Height Left Door End Angle

TEMPLATES_WALL_END_STRUCTURE = End Angle Wall 2

Editing the Structure in more details:

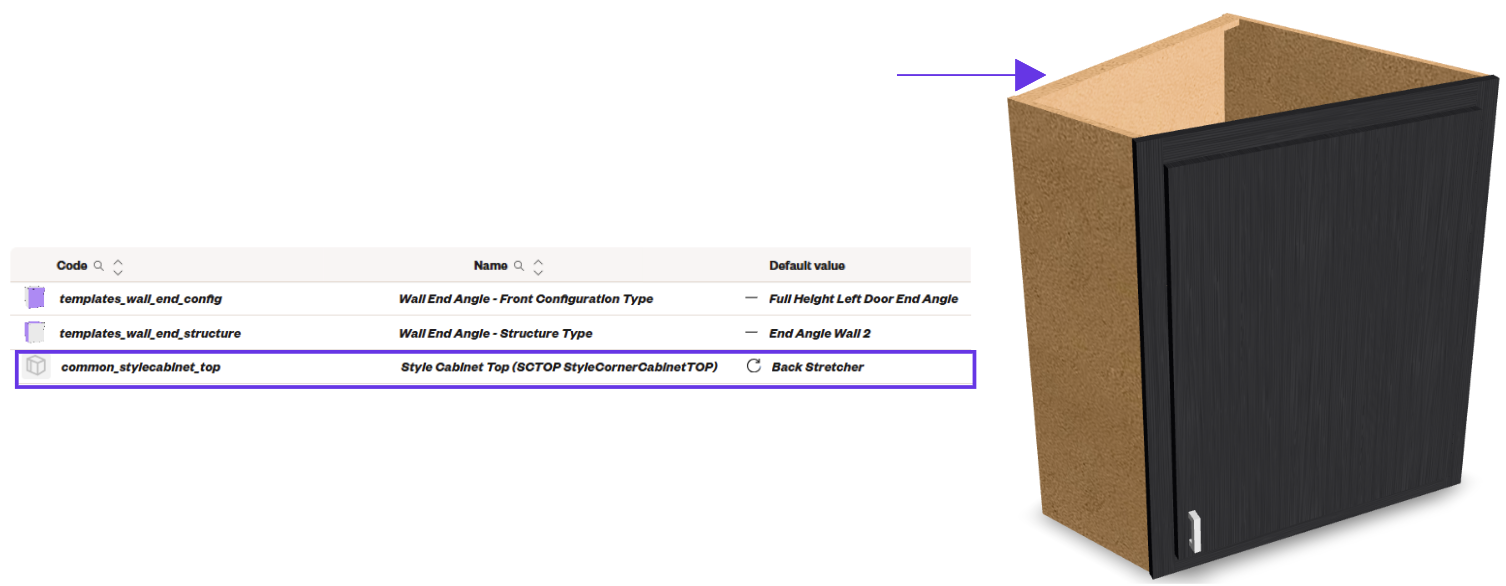

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

Example:

COMMON_STYLECABINET_TOP = Back Stretcher

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_STYLECABINET_NAILER = Nailers Outside

COMMON_NAILER_TOP_HEIGHT = 5

COMMON_MEASURE_THICKNESS_NAILER = 0.5

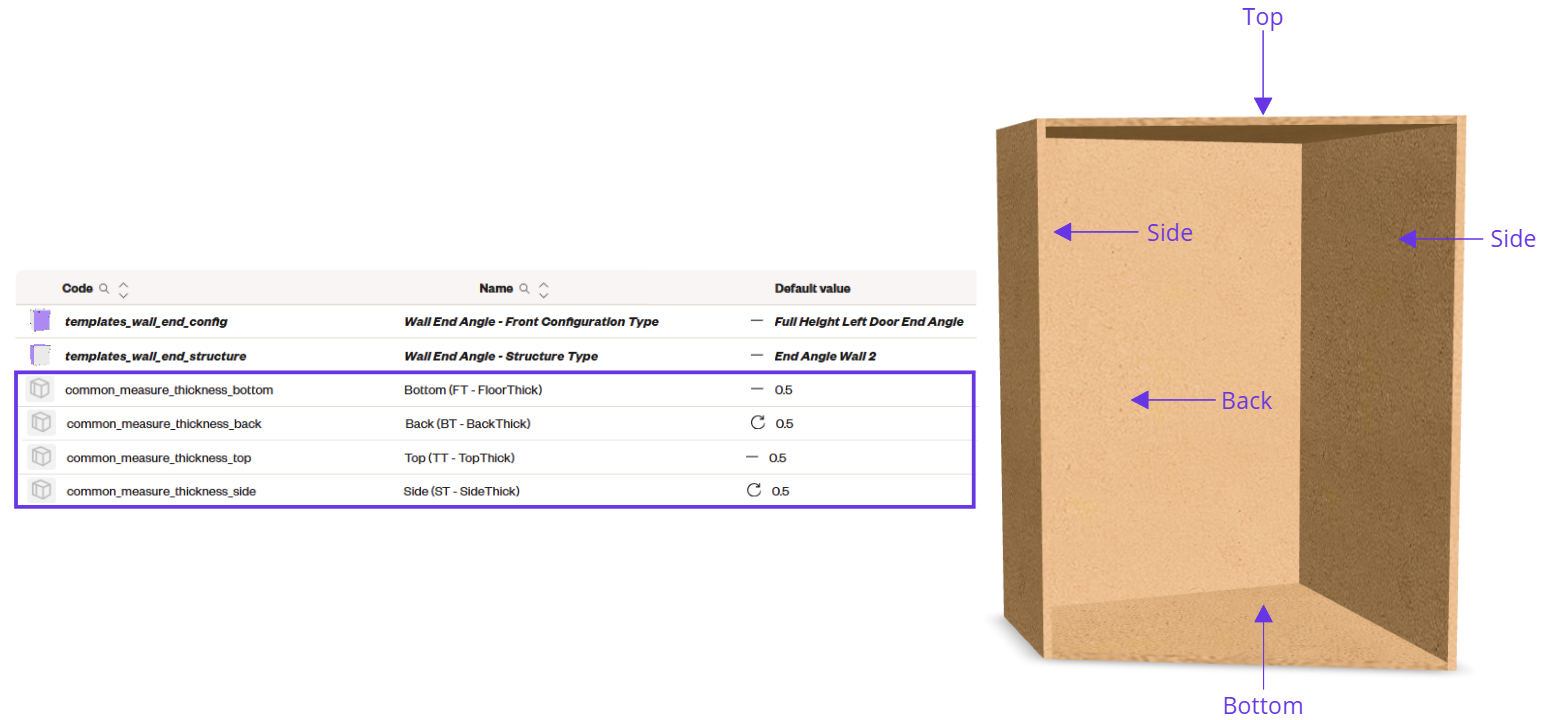

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 1

Example:

TEMPLATES_WALL_END_ENDPANEL_R = Wall Panel

TEMPLATES_WALL_END_ENDPANEL_L = Wall Panel

COMMON_MEASURE_THICKNESS_SIDE = 1

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

Editing the Configuration in more details:

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

TEMPLATES_GENERAL_CAB_STYLE = Frameless

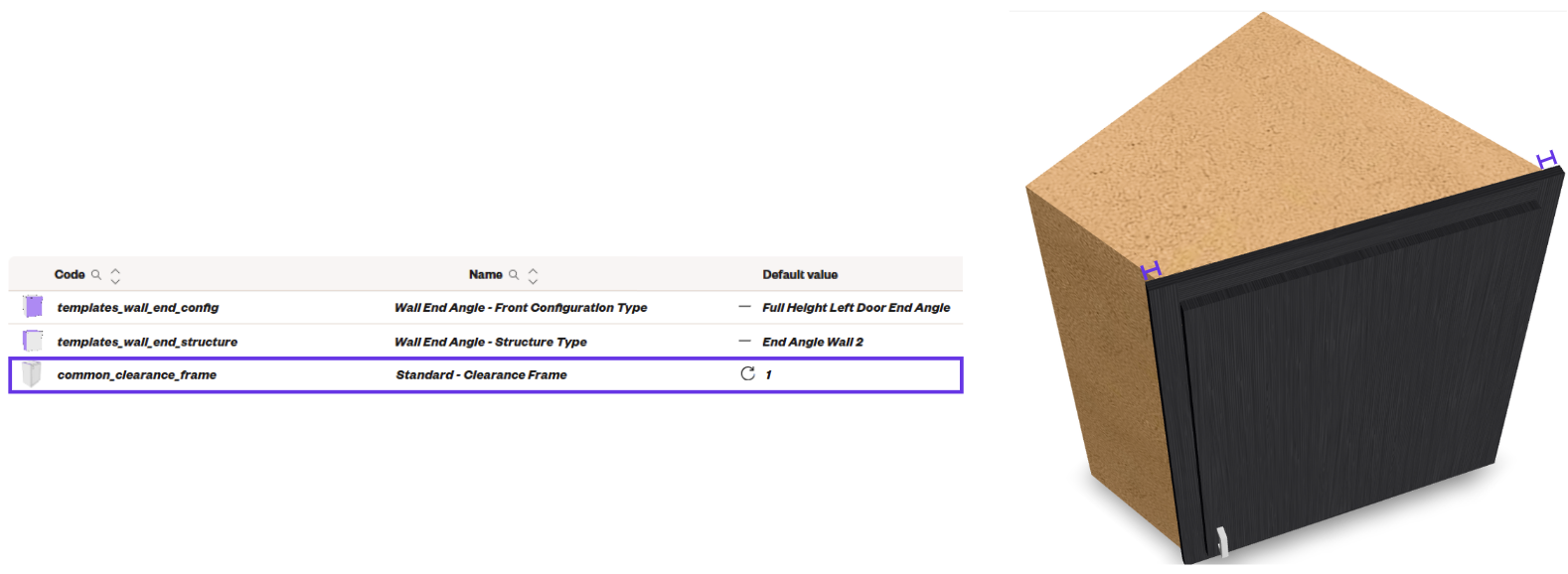

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_FRAME = 1

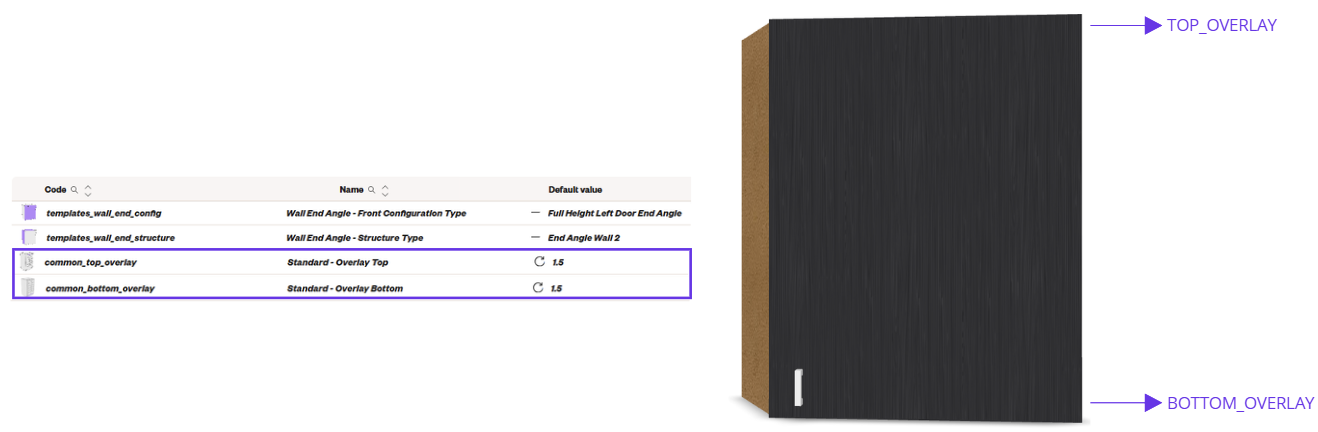

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example:

COMMON_BOTTOM_OVERLAY = 1.5

COMMON_TOP_OVERLAY = 1.5

Example of Doors:

Example:

COMMON_WALL_DOORSTYLE = 12

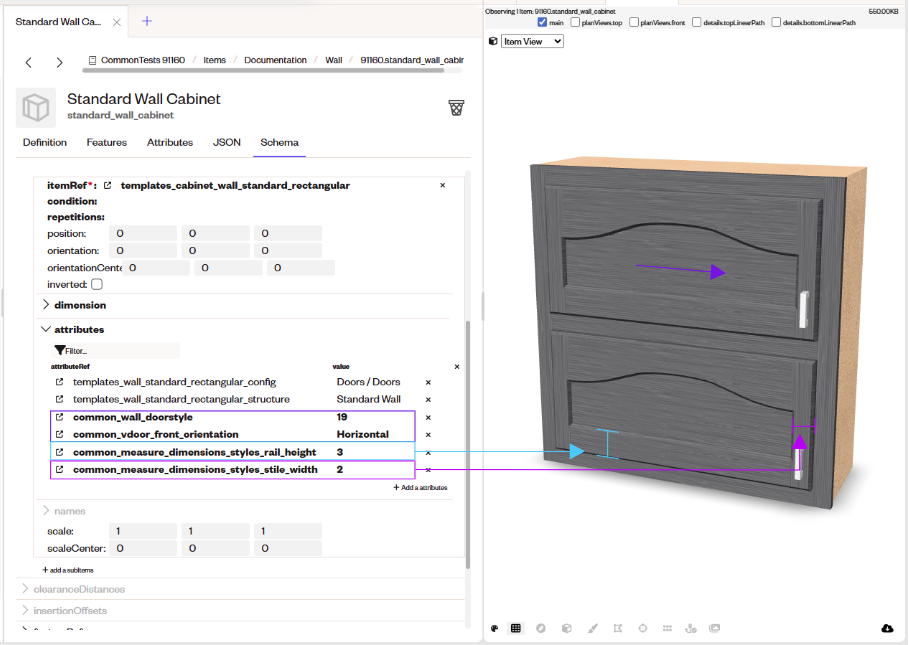

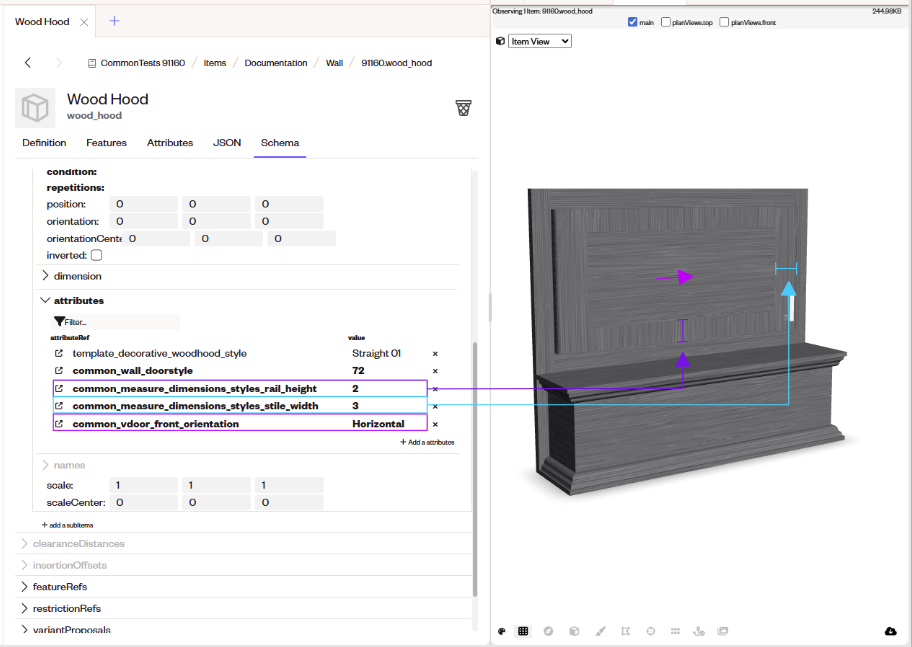

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 3

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 2

Example:

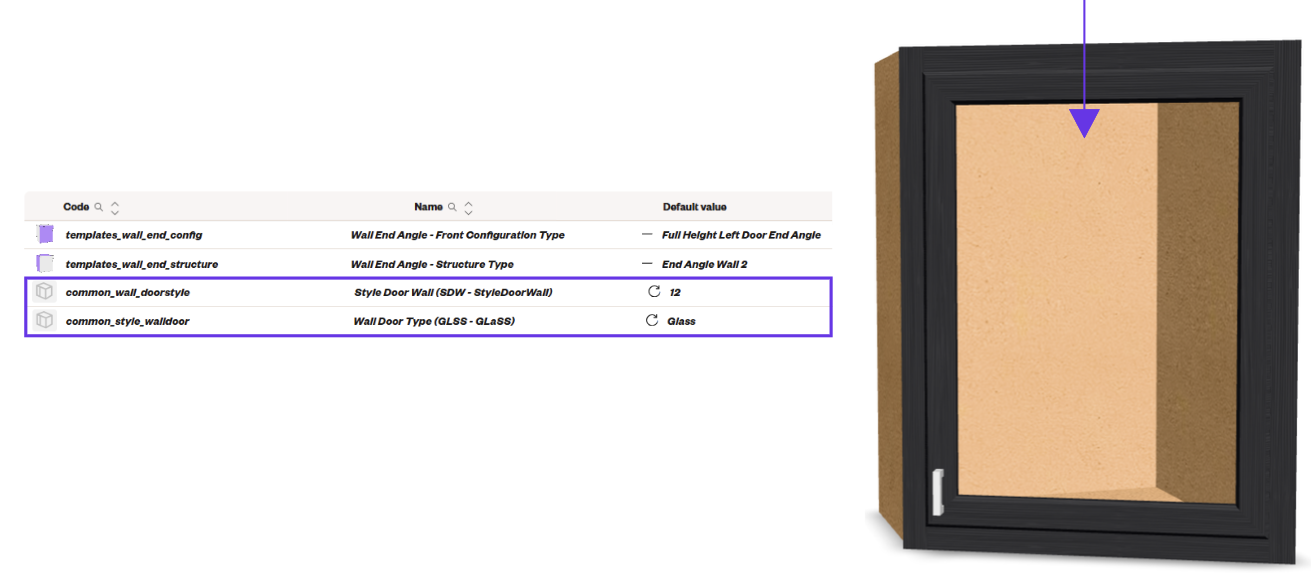

COMMON_WALL_DOORSTYLE = 12

COMMON_STYLE_WALLDOOR = Glass

Example:

COMMON_DOOR_HANDLESTYLE = 322

COMMON_HANDLE_WIDTH = 2

COMMON_HANDLE_HEIGHT = 2

COMMON_HANDLE_DEPTH = 2

COMMON_DOOR_INSET = 0.75

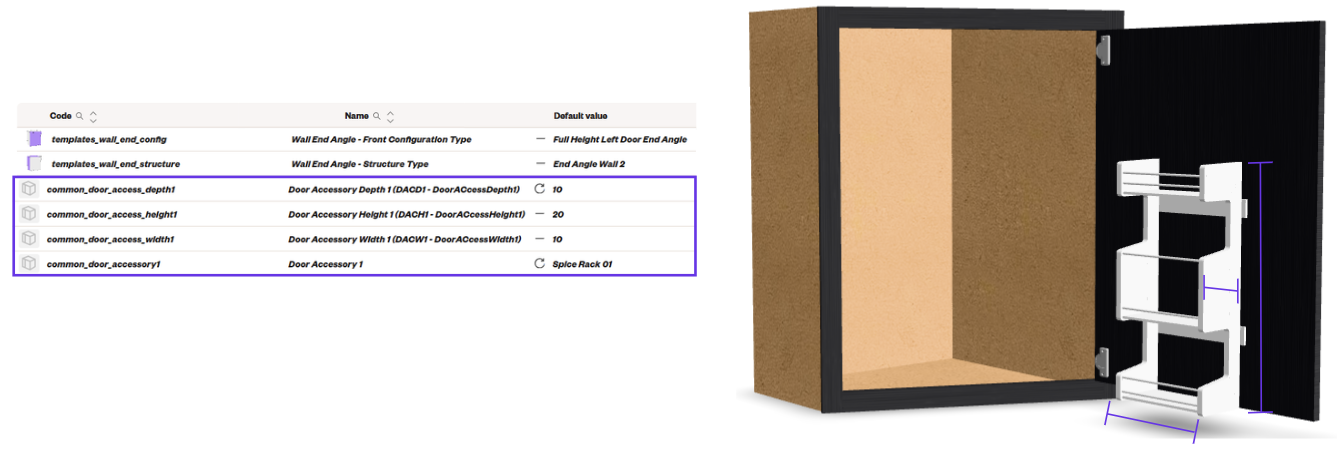

To add the accessories and edit their dimension and positioning, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1, Attributes: Item Configuration - Positioning and Attributes: Item Configuration - Dimensioning.

Example:

COMMON_DOOR_ACCESSORY1 = Spice Rack 01

COMMON_DOOR_ACCESS_HEIGHT1 = 20

COMMON_DOOR_ACCESS_DEPTH1 = 10

COMMON_DOOR_ACCESS_WIDTH1 = 10

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top.

Example:

COMMON_CABINET_ACCESSORY_STYLE1 until COMMON_CABINET_ACCESSORY_STYLE5

To edit the accessories position, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_CABINET_ACCESSORY_POSITIONX1 = 5

COMMON_CABINET_ACCESSORY_POSITIONZ1 = 3

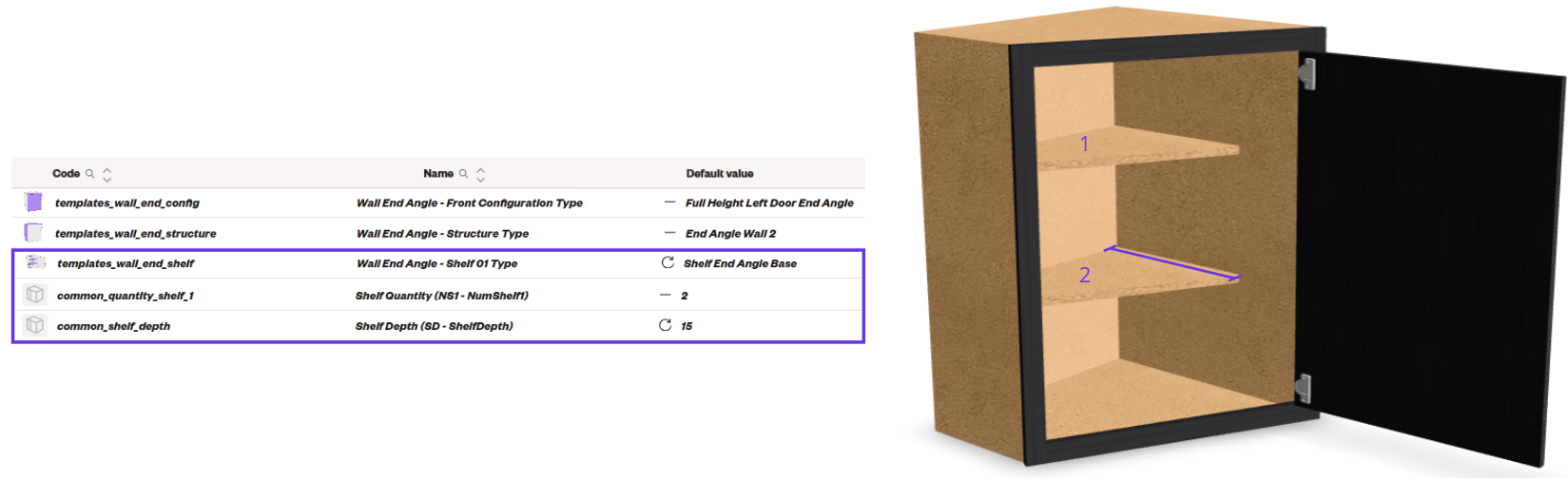

Example:

TEMPLATES_WALL_END_SHELF = Shelf End Angle Base

COMMON_QUANTITY_SHELF_1 = 2

COMMON_SHELF_DEPTH = 15

Note: If you have a configuration with more than one shelf, we have an attribute for each of them, used from left to right, from bottom to top.

COMMON_QUANTITY_SHELF_1 until COMMON_QUANTITY_SHELF_6

Wall Corner Square

To start creating your Wall Corner Cabinet, you need to set the template attributes related to the desired structure. In the article Attributes: Item Construction - Cabinet Wall, there are all types of structure wall attributes and their respective proposed values. The tables are separated by categories, such as: corner square, standard, back panel, etc. So if you want to build a Standard item, you must go to this category and look for the desired attribute.

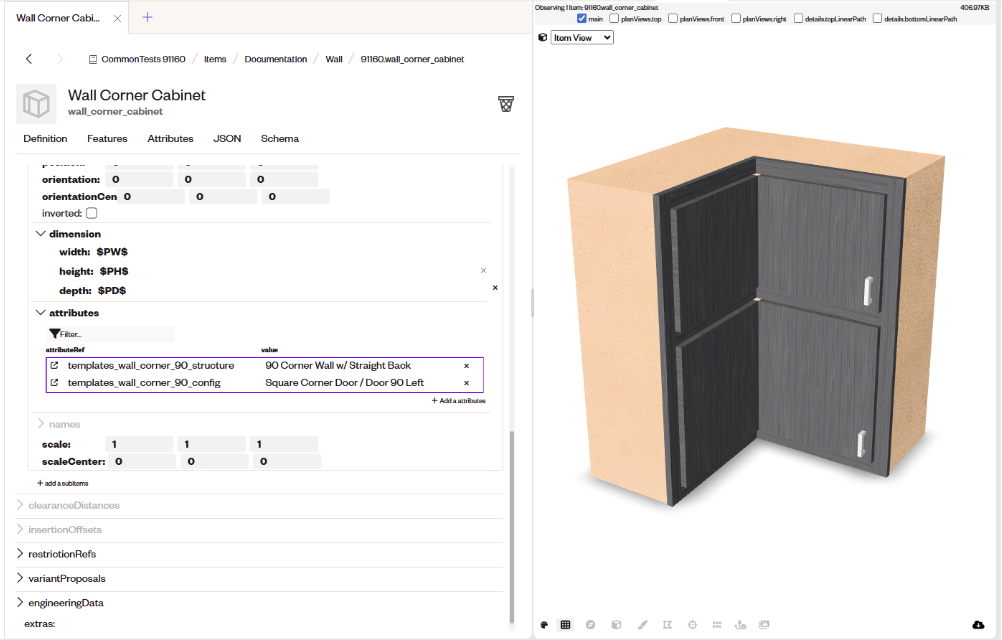

Inserting the structure and configuration into the template:

Example:

TEMPLATES_WALL_CORNER_90_STRUCTURE = 90 Corner Wall w/ Straight Back

TEMPLATES_WALL_CORNER_90_CONFIG = Square Corner Door / Door 90 Left

Editing the Structure in more details:

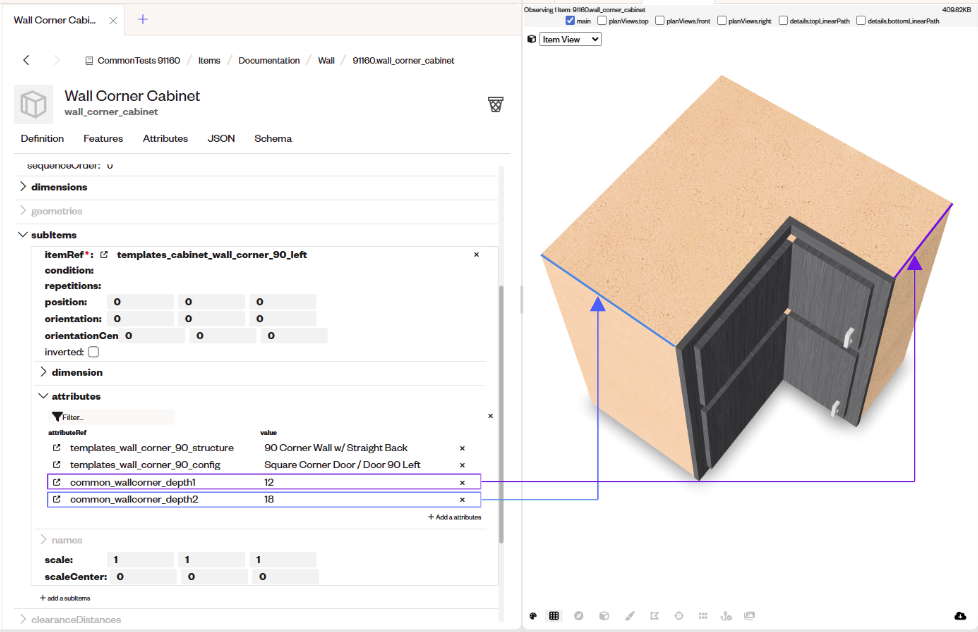

To edit the depths of the corners, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_WALLCORNER_DEPTH1 = 12

COMMON_WALLCORNER_DEPTH2 = 18

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1.

Example:

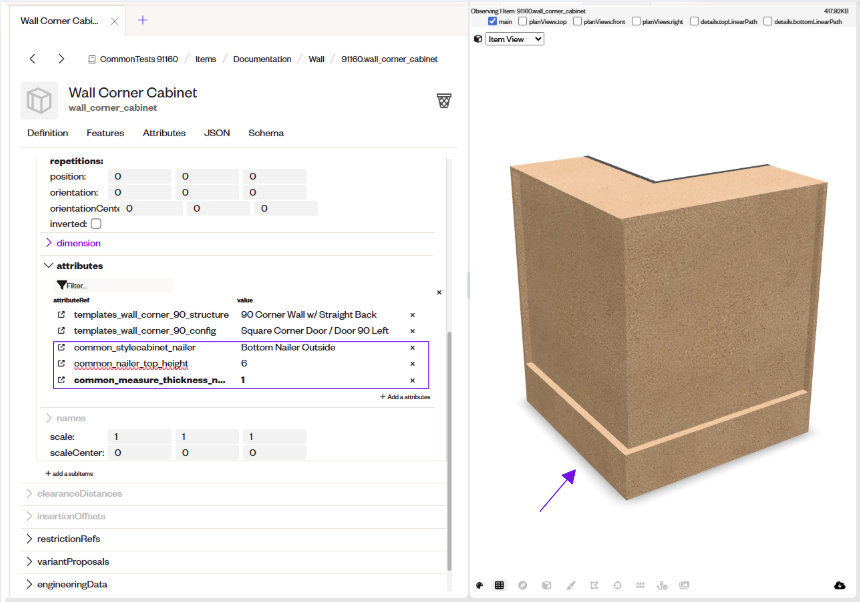

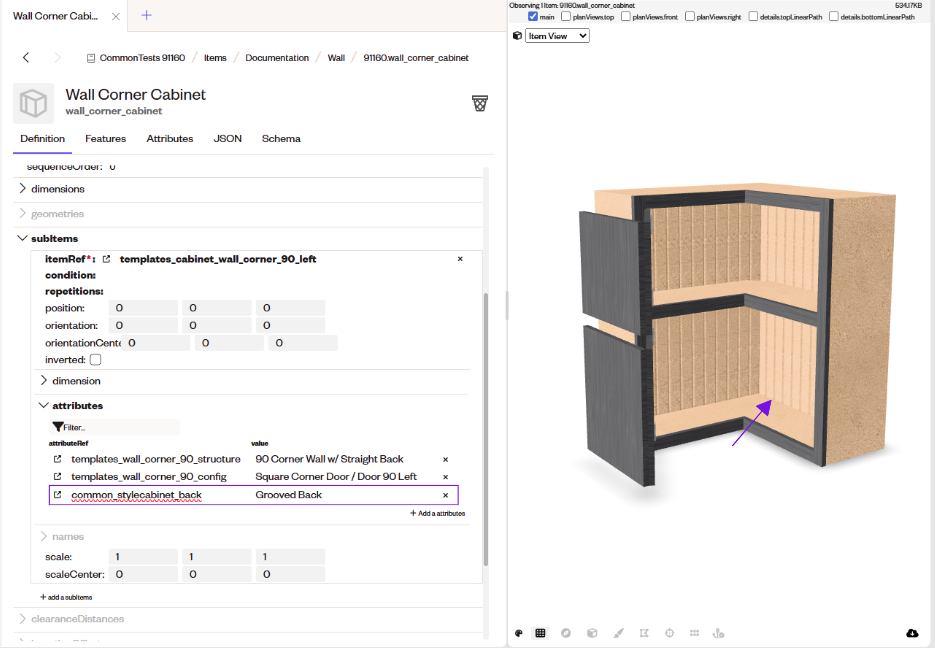

COMMON_STYLECABINET_BACK = Grooved Back

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

COMMON_STYLECABINET_NAILER = Bottom Nailer Outside

COMMON_NAILER_TOP_HEIGHT = 6

COMMON_MEASURE_THICKNESS_NAILER = 1

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning.

Example:

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 1

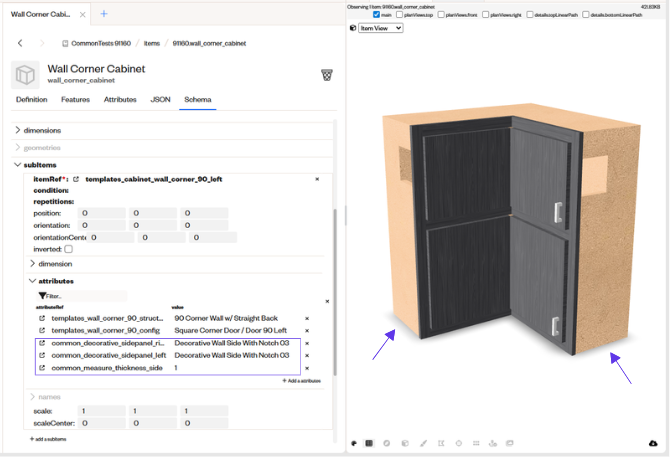

To change the side panels for decorative panels (left and right), you can use the COMMON_DECORATIVE_SIDEPANEL_RIGHT attribute , you can find it and the respective proposed values in the article Attributes: Item Configuration - Visibility .

Example:

COMMON_DECORATIVE_SIDEPANEL_RIGHT = Decorative Wall Side With Notch 03

COMMON_DECORATIVE_SIDEPANEL_LEFT = Decorative Wall Side With Notch 03

COMMON_MEASURE_THICKNESS_SIDE = 1

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

Editing the Configuration in more details:

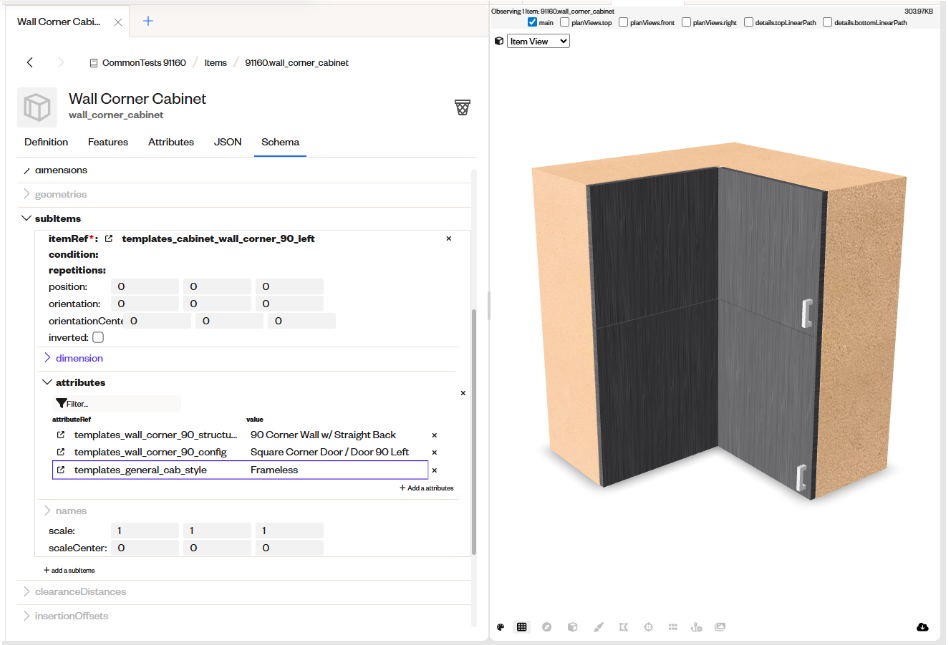

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

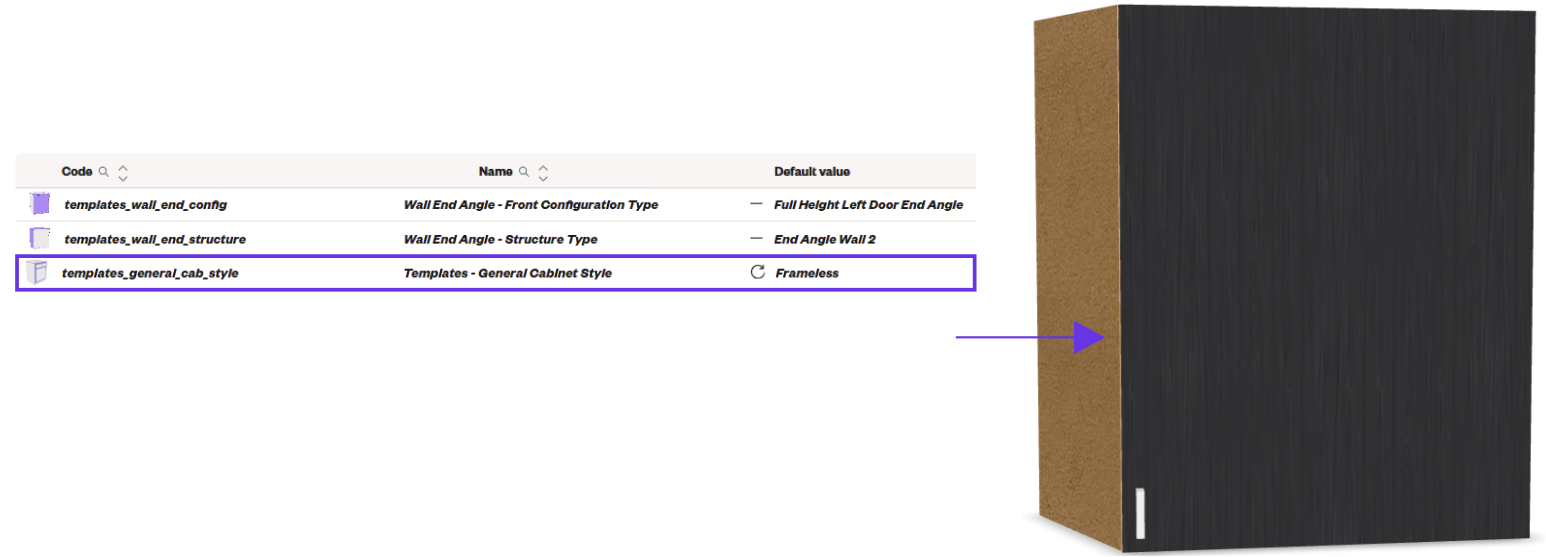

TEMPLATES_GENERAL_CAB_STYLE = Frameless

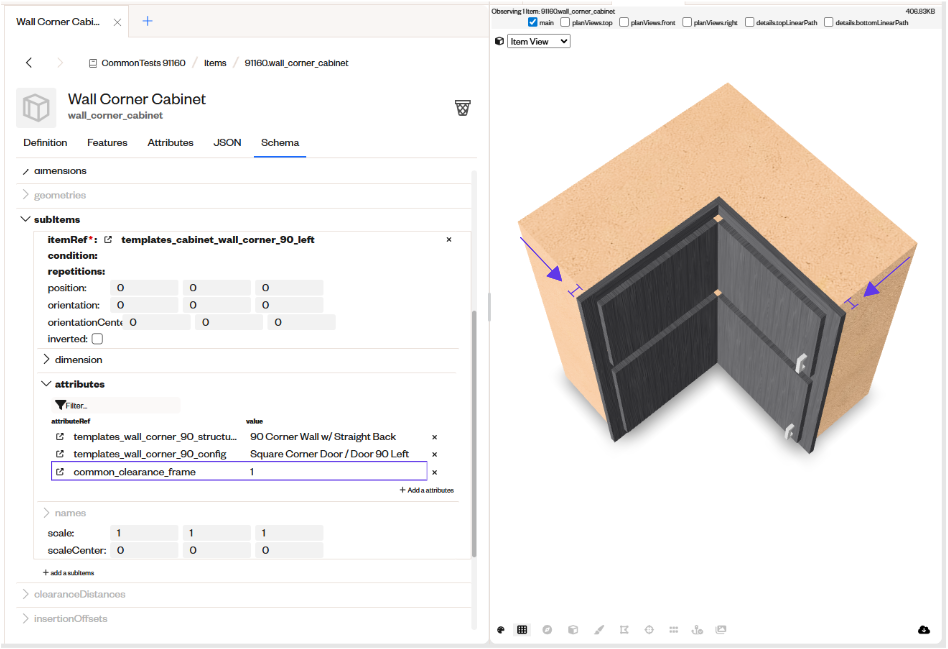

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_FRAME = 1

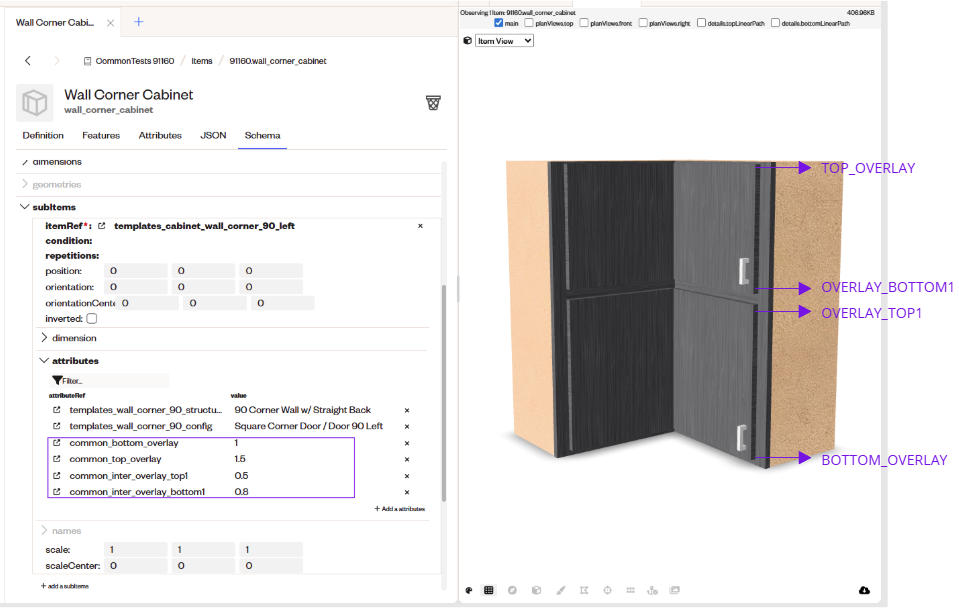

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example:

COMMON_BOTTOM_OVERLAY = 1

COMMON_TOP_OVERLAY = 1.5

COMMON_INTER_OVERLAY_TOP1 = 0.5

COMMON_INTER_OVERLAY_BOTTOM1 = 0.8

Example of Doors:

Example:

COMMON_WALL_DOORSTYLE = 8

COMMON_VDOOR_FRONT_ORIENTATION = HORIZONTAL

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 3

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 2

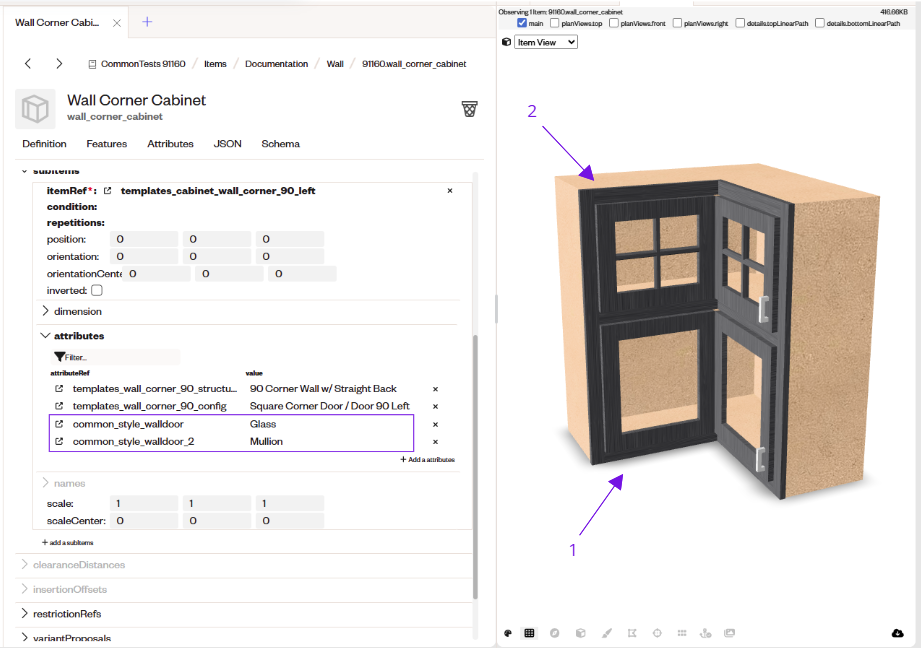

To edit the panel style, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 2.

Example:

COMMON_STYLE_WALLDOOR = Glass

COMMON_STYLE_WALLDOOR_2 = Mullion

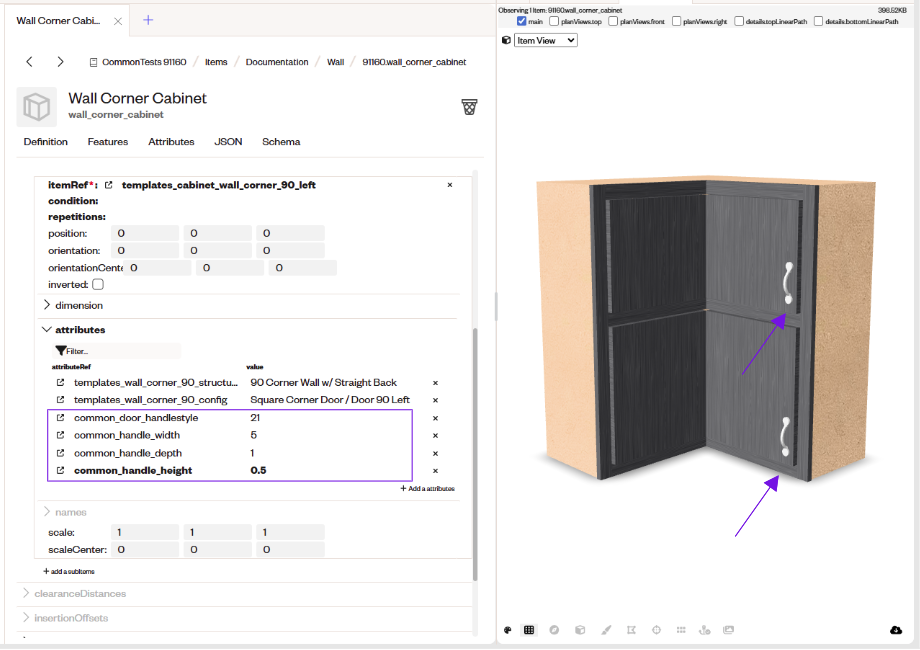

To edit the handle style and the dimensions, use the attribute listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 and Attributes: Item Configuration - Dimensioning .

Example:

COMMON_DOOR_HANDLESTYLE = 21

COMMON_HANDLE_WIDTH = 5

COMMON_HANDLE_HEIGHT = 1

COMMON_HANDLE_DEPTH = 0.5

Tall Standard

To start creating your Tall Cabinet, you need to define what type of structure you want to use, for example: Standard, End Angle, Corner Diagonal, Corner Blind, etc. All model attributes related to the chosen structure with their proposed values, can be found at Attributes: Item Construction - Cabinet Tall. The tables in this document are divided into categories. So, if you want to build a Standard item, you need to open this category and look for the required attributes as well as their proposed values.

Inserting the structure and configuration into the template:

Example:

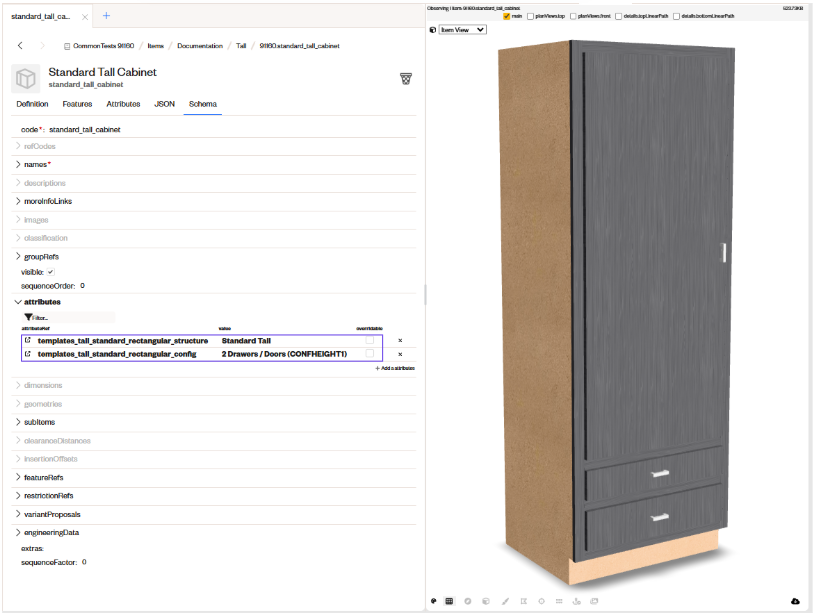

TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall

TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = 2 Drawers / Doors (CONFHEIGHT1)

Editing the Structure in more details:

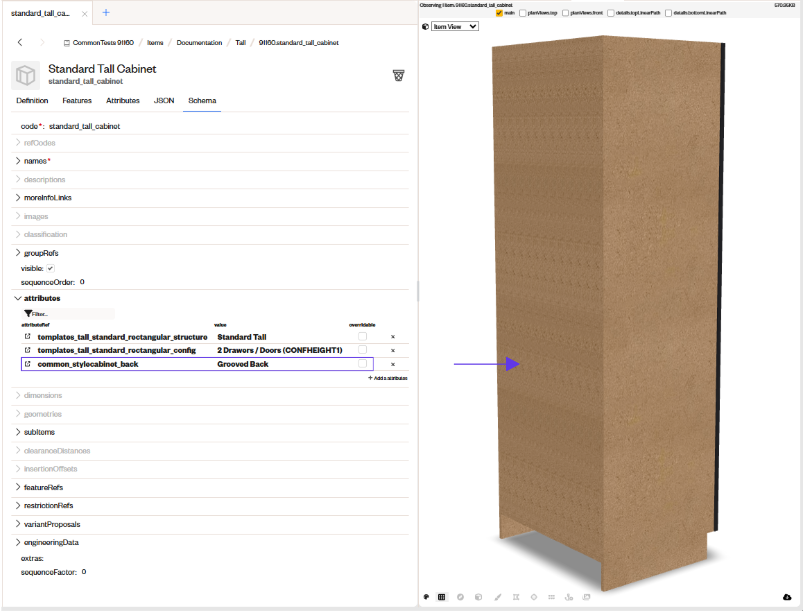

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

Example:

COMMON_STYLECABINET_BACK = Grooved Back

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

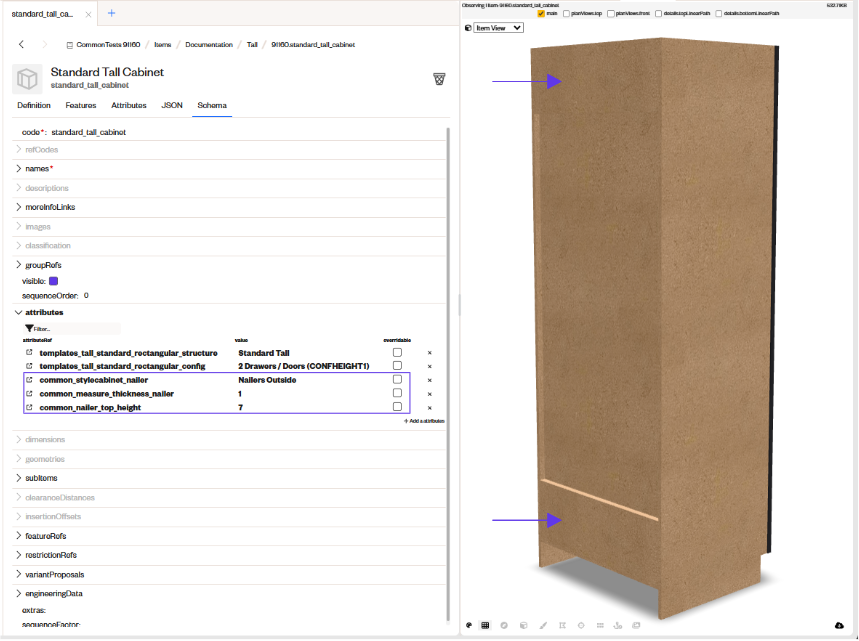

COMMON_STYLECABINET_NAILER = Nailers Outside

COMMON_NAILER_TOP_HEIGHT = 7

COMMON_MEASURE_THICKNESS_NAILER = 1

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Examples:

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

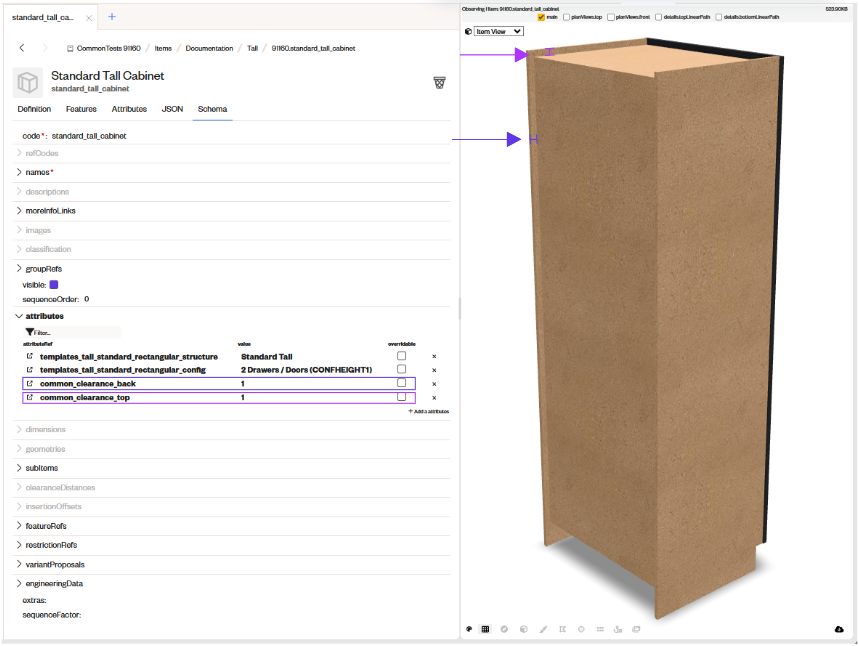

To edit the clearances use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 1

Example:

COMMON_DECORATIVE_SIDEPANEL_LEFT = Base Panel 05

COMMON_DECORATIVE_SIDEPANEL_RIGHT = Base Panel 05

COMMON_MEASURE_THICKNESS_SIDE = 1

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

To edit the toekick use the attributes listed below, you can find them in the articles Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Clearances.

Example:

COMMON_MEASURE_THICKNESS_TOEKICK = 1

COMMON_TOEKICK_HEIGHT = 7

COMMON_CLEARANCE_TOEKICK = 5

To edit the style toekick use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

COMMON_DECORATIVE_LEG_STYLE = Foot 30

COMMON_DECORATIVE_LEG_LEFT_BACK = True

COMMON_DECORATIVE_LEG_LEFT_FRONT = True

COMMON_DECORATIVE_LEG_RIGHT_BACK = True

COMMON_DECORATIVE_LEG_RIGHT_FRONT = True

COMMON_LEG_WIDTH = 5

COMMON_LEG_DEPTH = 5

COMMON_TOEKICK_HEIGHT = 6

To edit the style toekick and use the decorative style, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

COMMON_DECORATIVE_TOEKICK_STYLE = Decorative Toekick 27

Example:

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

Editing the Configuration in more details:

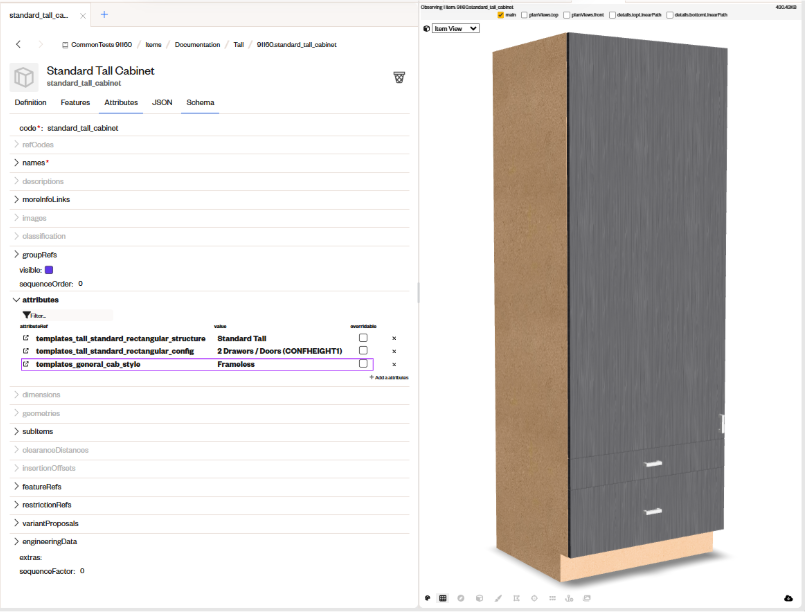

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

TEMPLATES_GENERAL_CAB_STYLE = Frameless

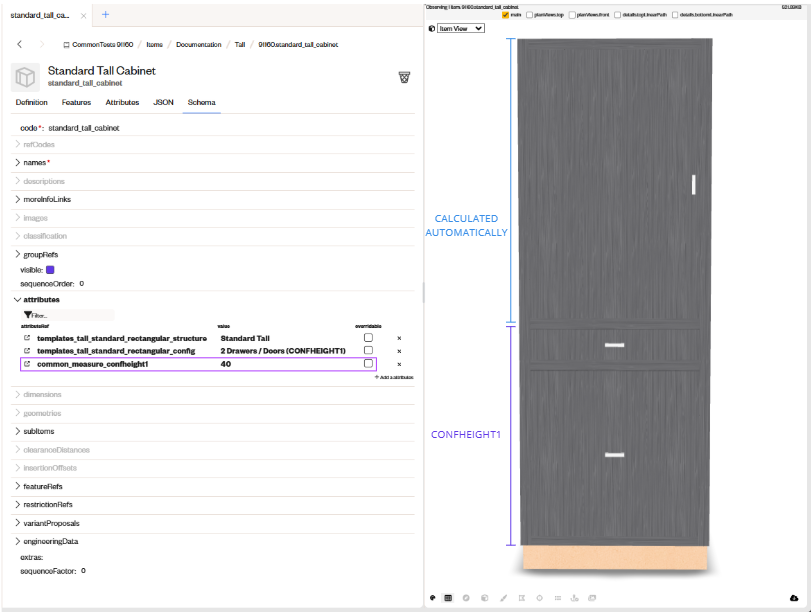

To edit the separation in the configuration, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

Example:

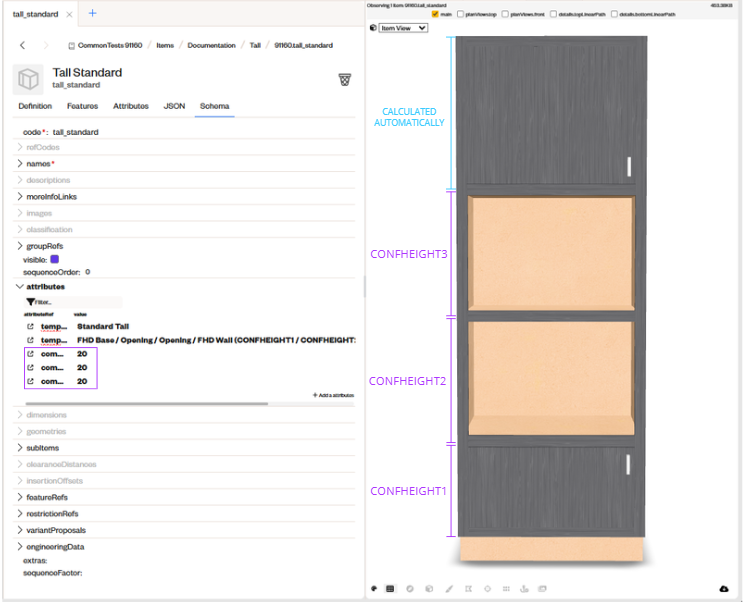

COMMON_MEASURE_CONFHEIGHT1 = 40

Note: this attribute is used in cases where the configuration is separated by shelves.

COMMON_MEASURE_CONFHEIGHT1 = 20

COMMON_MEASURE_CONFHEIGHT2 = 20

COMMON_MEASURE_CONFHEIGHT3 = 20

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_FRAME = 2

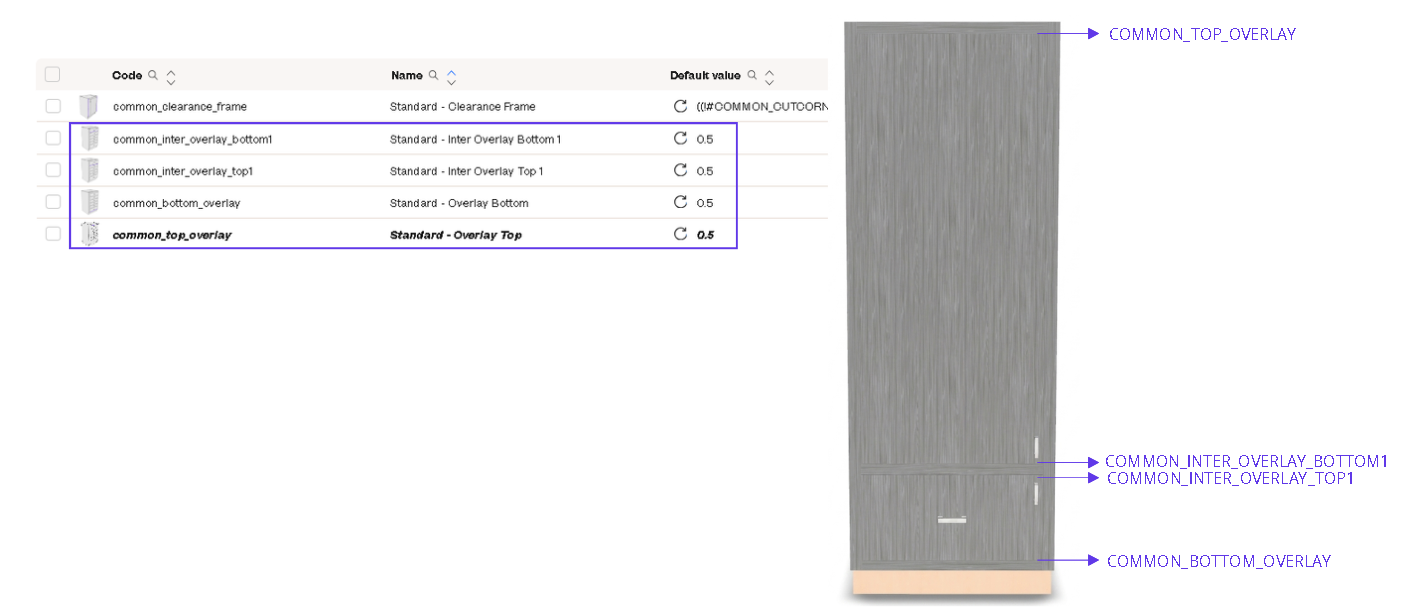

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example 1:

COMMON_TOP_OVERLAY = 0.5

COMMON_CONFIG_OVERLAY_BOTTOM1 = 0.5

COMMON_CONFIG_OVERLAY_TOP1 = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

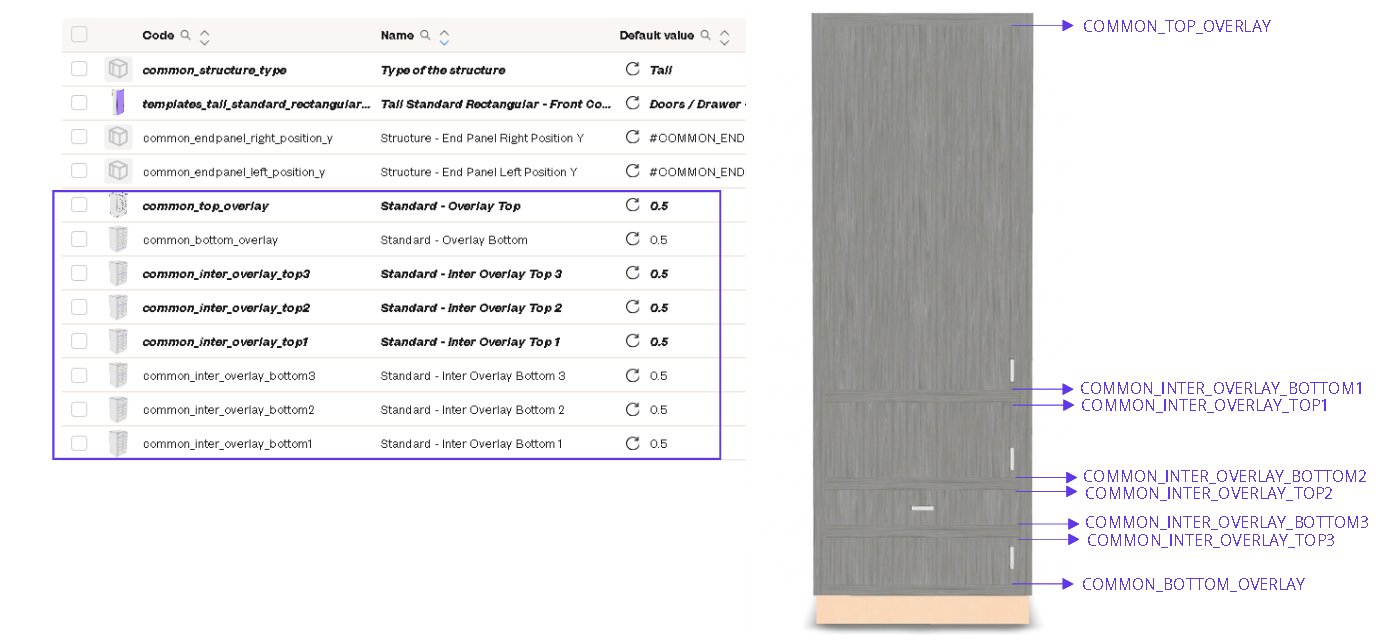

Example 2:

COMMON_TOP_OVERLAY = 0.5

COMMON_INTER_OVERLAY_BOTTOM1 = 0.5

COMMON_INTER_OVERLAY_TOP1 = 0.5

COMMON_INTER_OVERLAY_BOTTOM2 = 0.5

COMMON_INTER_OVERLAY_TOP2 = 0.5

COMMON_INTER_OVERLAY_BOTTOM3 = 0.5

COMMON_INTER_OVERLAY_TOP3 = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

Examples of Doors:

Example:

COMMON_TALL_DOORSTYLE = 12

COMMON_STYLEDOOR = Glass

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 3

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 3

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

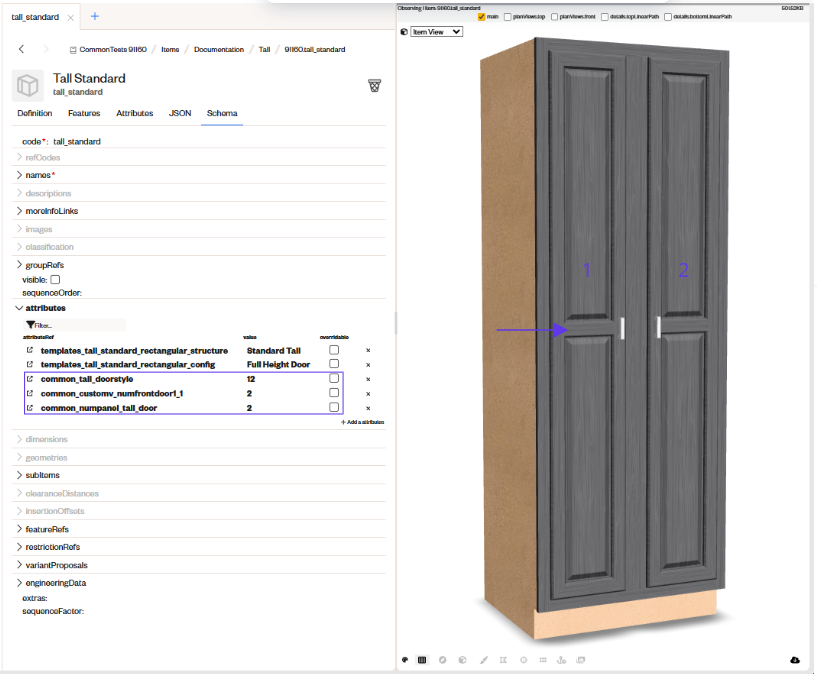

Example:

COMMON_CUSTOMV_NUMFRONTDOOR1_1 = 2

COMMON_NUMPANEL_TALL_DOOR = 2

COMMON_TALL_DOORSTYLE = 12

COMMON_DOOR_HANDLESTYLE = 322

COMMON_HANDLE_WIDTH = 2

COMMON_HANDLE_HEIGHT = 2

COMMON_HANDLE_DEPTH = 2

COMMON_DOOR_INSET = 0.75

Example:

COMMON_CUSTOMV_DOOR_ACCESSORY1_1 = Laundry Chrome Wire

COMMON_CUSTOMV_DOOR_ACCESSORY1_2 = Waste Bin

COMMON_CUSTOMV_DOOR_ACCESS_WIDTH1_1 = 10

COMMON_CUSTOMV_DOOR_ACCESS_HEIGHT1_1 = 15

COMMON_CUSTOMV_DOOR_ACCESS_DEPTH1_1 = 5

COMMON_CUSTOMV_DOOR_ACCESS_WIDTH1_2 = 10

COMMON_CUSTOMV_DOOR_ACCESS_HEIGHT1_2 = 15

COMMON_CUSTOMV_DOOR_ACCESS_DEPTH1_2 = 5

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_CUSTOMV_DOOR_ACCESSORY1_1 until COMMON_CUSTOMV_DOOR_ACCESSORY4_5

COMMON_CUSTOMV_DOOR_ACCESS_WIDTH1_1 until COMMON_CUSTOMV_DOOR_ACCESS_WIDTH4_5

To edit the accessories position, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINX1_1 = 1

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINZ1_1 = 3

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINX1_2 = 8

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINZ1_2 = 5

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINX1_1 until COMMON_CUSTOMV_DOOR_ACCESS_ORIGINX4_5

Example:

COMMON_QUANTITY_SHELF_1 = 5

COMMON_QUANTITY_SHELF_2 = 3

COMMON_SHELF_DEPTH_1 = 15

COMMON_SHELF_DEPTH_2 = 20

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from top to bottom, for example:

To edit the shelves visibility, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Configuration - Visibility

COMMON_SHELF_VISIBILITY_1 = False

COMMON_SHELF_VISIBILITY_2 = False

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from top to bottom, for example:

COMMON_SHELF_VISIBILITY_1 until COMMON_SHELF_VISIBILITY_5

Example of Drawers:

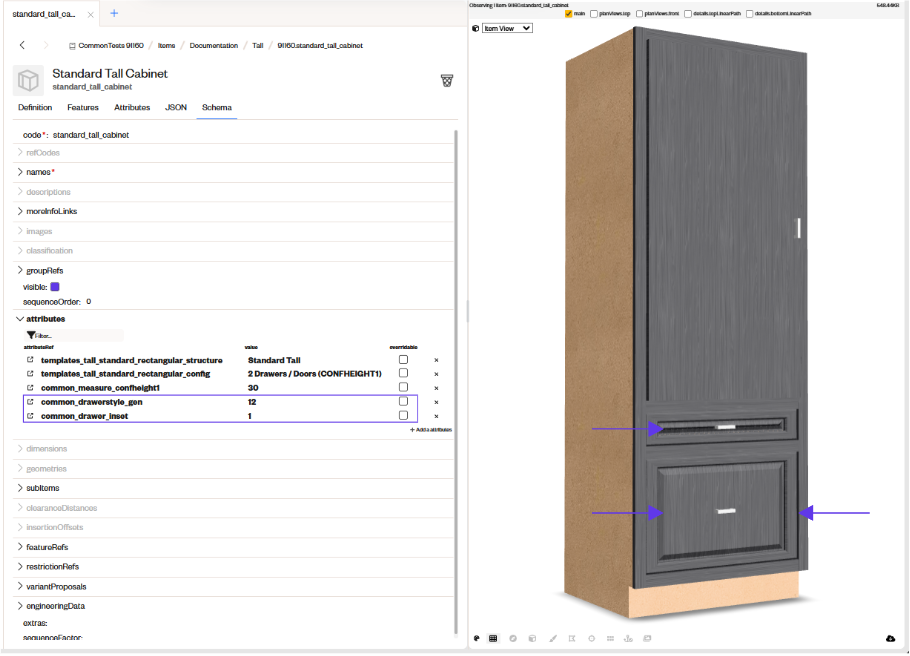

Example:

COMMON_DRAWERSTYLE_GEN = 12

COMMON_DRAWER_INSET = 1

COMMON_DRAWERSTYLE_GEN = 12

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 1

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 1

Note: Not all drawer styles have rails and styles.

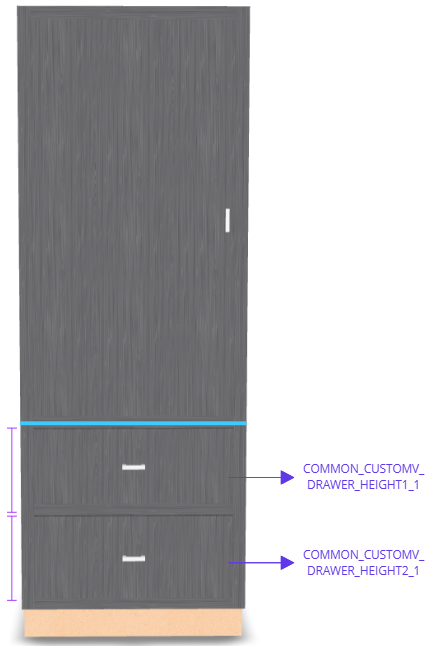

To edit the drawer front and drawer box height, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning

Example:

COMMON_CUSTOMV_DRAWER_HEIGHT1_1 = 10

COMMON_CUSTOMV_MEASURE_DRAWERBOX_HEIGHT1_1 = 5

COMMON_CUSTOMV_MEASURE_DRAWERBOX_HEIGHT2_1 = 10

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom and the last drawer (from bottom to top) is calculated automatically, for example:

COMMON_CUSTOMV_DRAWER_HEIGHT1_1 until COMMON_CUSTOMV_DRAWER_HEIGHT6_5

Example:

TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = 2 Drawers / Doors (CONFHEIGHT1)

COMMON_CUSTOMV_DRAWER_HEIGHT1_1 until COMMON_CUSTOMV_DRAWER_HEIGHT1_5

To edit the drawer box depth, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

COMMON_CUSTOMV_DRAWERBOX_DEPTH1_1 = 15

COMMON_CUSTOMV_DRAWERBOX_DEPTH1_1 until COMMON_CUSTOMV_DRAWERBOX_DEPTH6_1

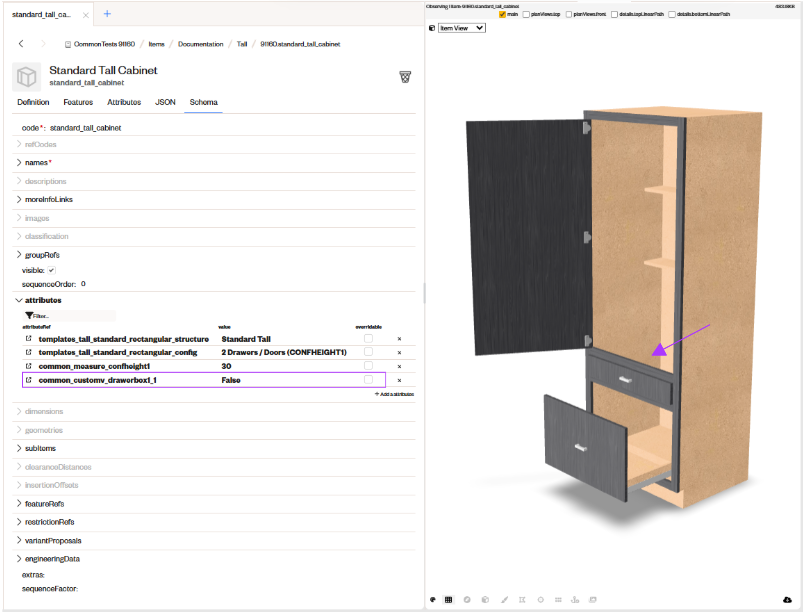

To disable the drawer box, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Visibility

COMMON_CUSTOMV_DRAWERBOX1_1 = False

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_CUSTOMV_DRAWERBOX1_1 until COMMON_CUSTOMV_DRAWERBOX6_5

Example:

COMMON_DRAWER_HANDLESTYLE = 107

COMMON_DRAWERHANDLE_WIDTH = 2

COMMON_DRAWERHANDLE_DEPTH = 2

COMMON_DRAWERHANDLE_HEIGHT = 1

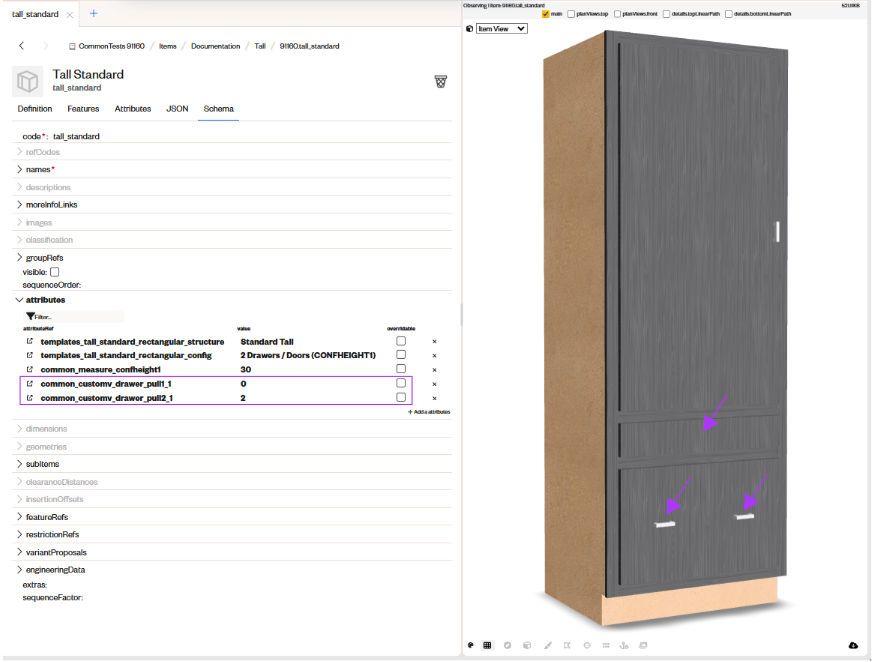

To edit the quantity handles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Quantity.

COMMON_CUSTOMV_DRAWER_PULL1_1 = 0

COMMON_CUSTOMV_DRAWER_PULL2_1 = 2

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_CUSTOMV_DRAWER_PULL1_1 until COMMON_CUSTOMV_DRAWER_PULL6_5

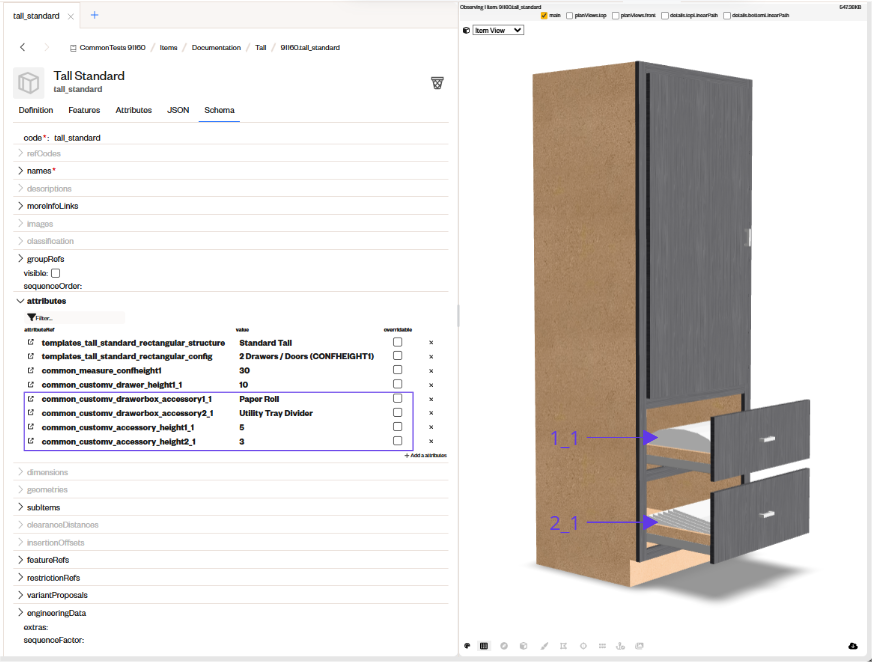

COMMON_CUSTOMV_DRAWERBOX_ACCESSORY1_1 = Paper Roll

COMMON_CUSTOMV_DRAWERBOX_ACCESSORY2_1 = Utility Tray Divider

COMMON_CUSTOMV_ACCESSORY_HEIGHT1_1 = 3

COMMON_CUSTOMV_ACCESSORY_HEIGHT2_1 = 5

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_CUSTOMV_DRAWERBOX_ACCESSORY1_1 until COMMON_CUSTOMV_DRAWERBOX_ACCESSORY6_5

COMMON_CUSTOMV_ACCESSORY_HEIGHT1_1 until COMMON_CUSTOMV_ACCESSORY_HEIGHT6_5

Tall End Angle

Inserting the structure and configuration into the template:

Example:

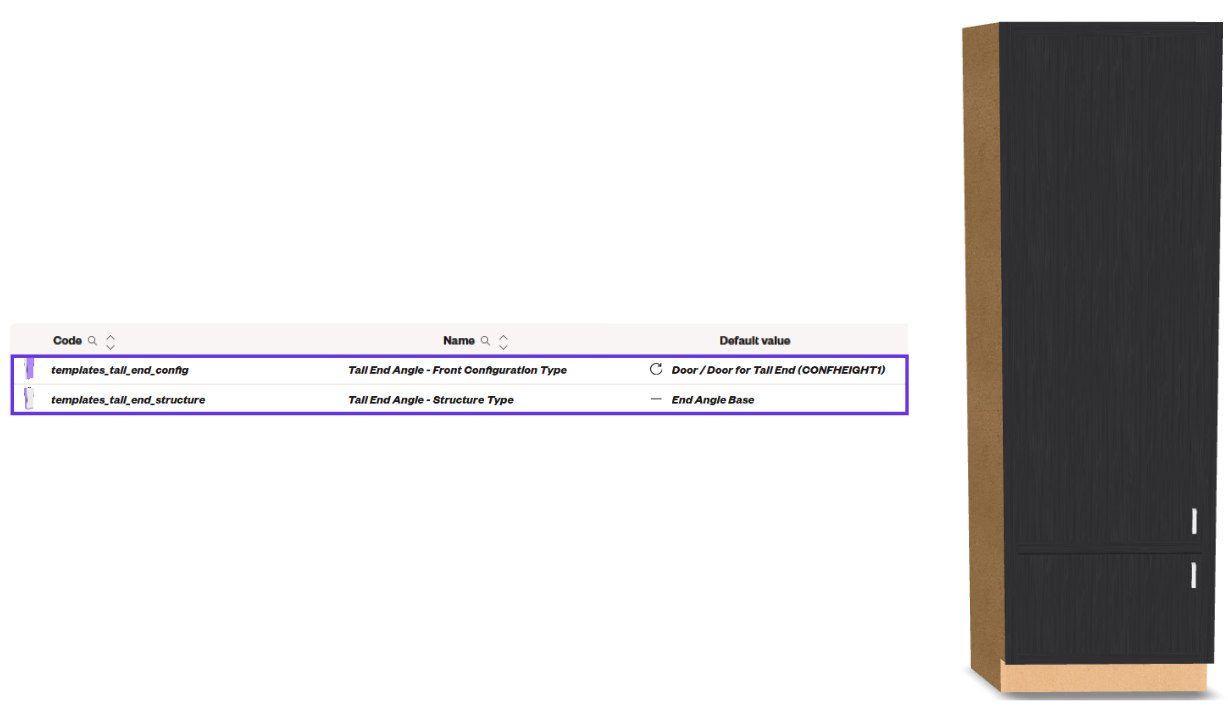

TEMPLATES_TALL_END_STRUCTURE = End Angle Base

TEMPLATES_TALL_END_CONFIG = Door / Door for Tall End (CONFHEIGHT1)

Editing the Structure in more details:

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

Example:

COMMON_STYLECABINET_BACK = Grooved Back

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

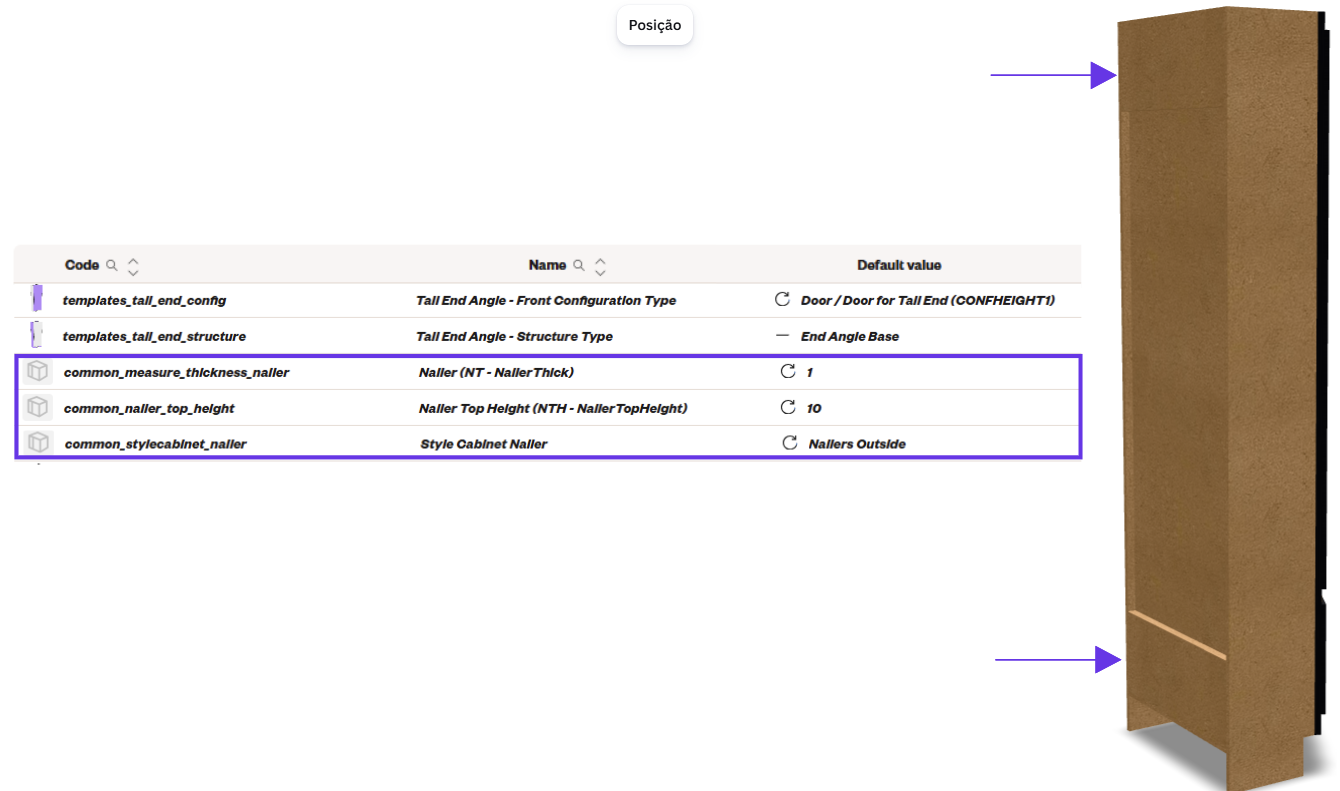

COMMON_STYLECABINET_NAILER = Nailers Outside

COMMON_NAILER_TOP_HEIGHT = 10

COMMON_MEASURE_THICKNESS_NAILER = 1

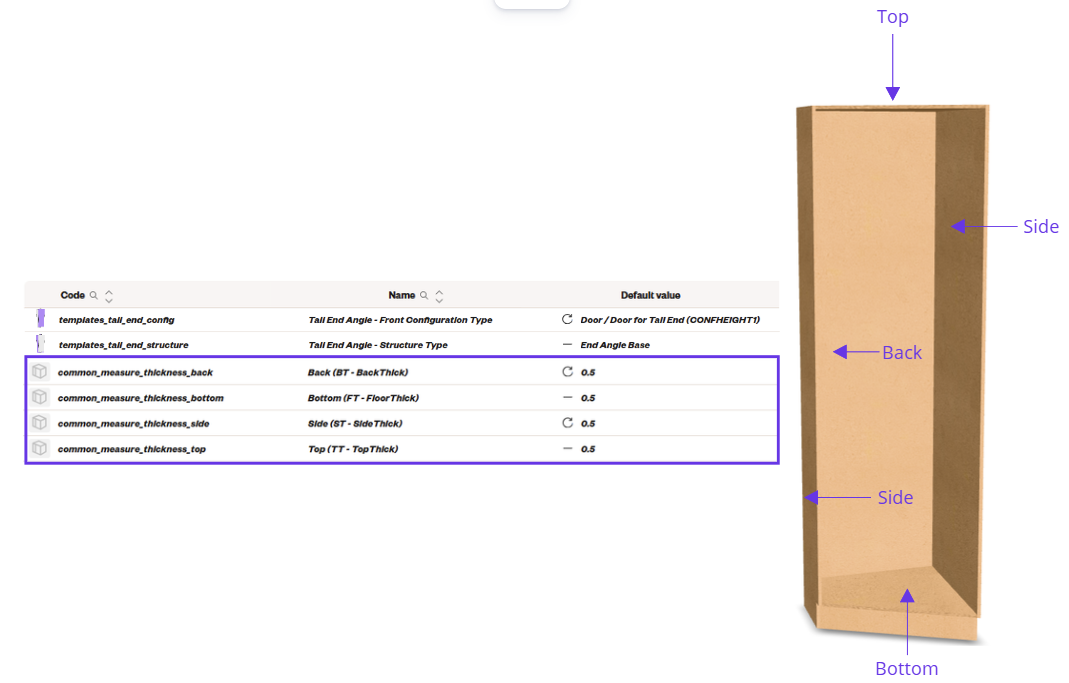

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Examples:

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

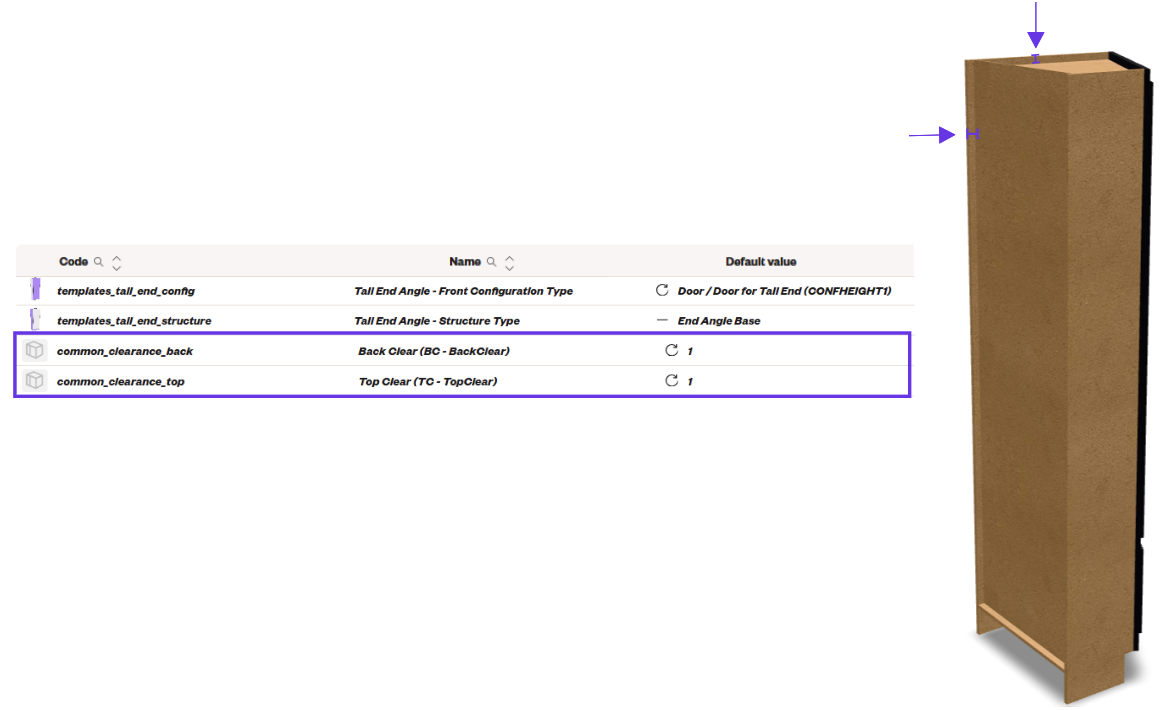

To edit the clearances use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 1

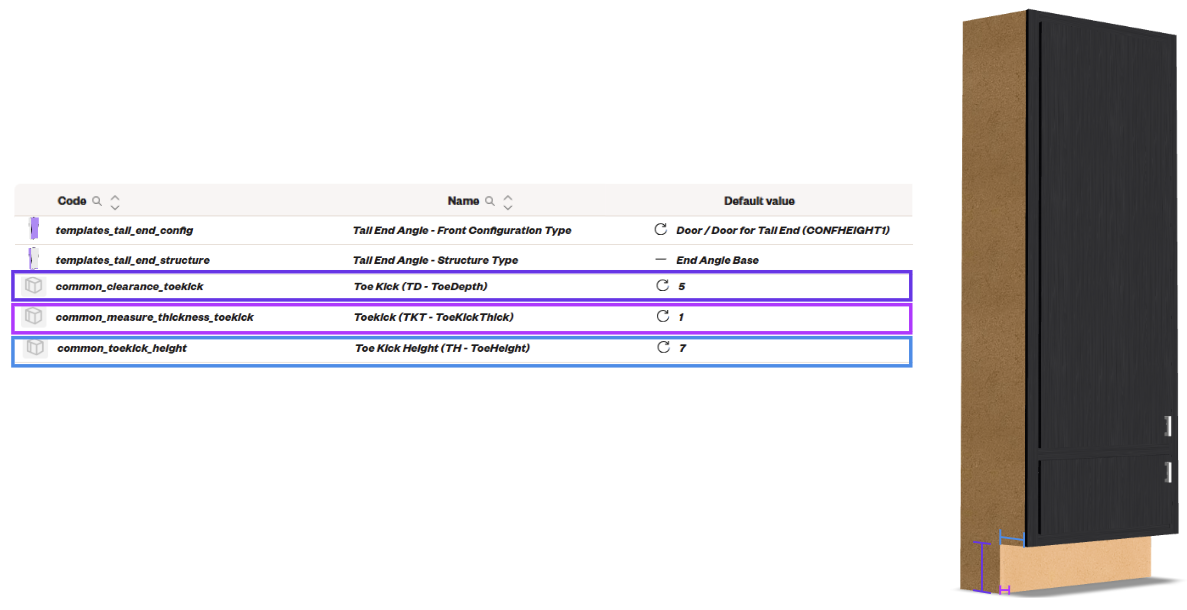

To edit the toekick use the attributes listed below, you can find them in the articles Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Clearances.

Example:

COMMON_MEASURE_THICKNESS_TOEKICK = 1

COMMON_TOEKICK_HEIGHT = 7

COMMON_CLEARANCE_TOEKICK = 5

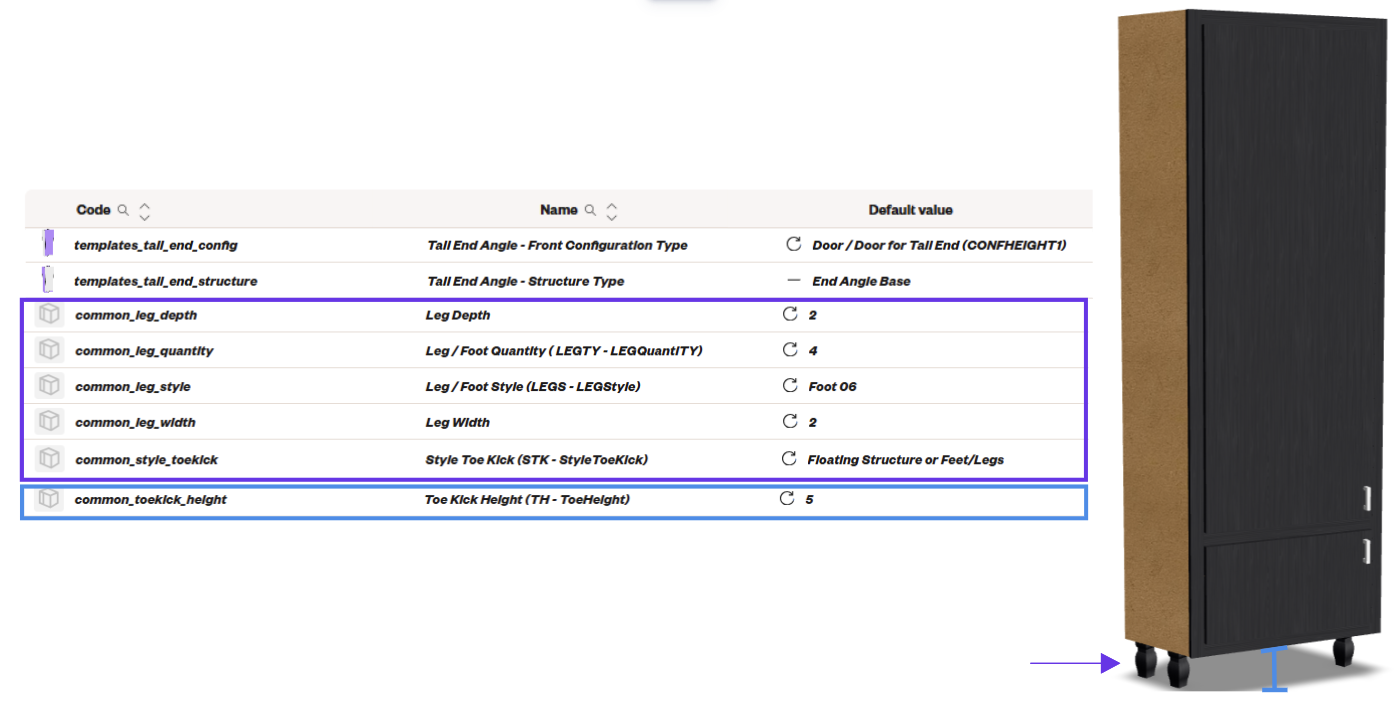

To edit the style toekick use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

COMMON_DECORATIVE_LEG_STYLE = Foot 06

COMMON_DECORATIVE_LEG_LEFT_BACK = True

COMMON_DECORATIVE_LEG_LEFT_FRONT = True

COMMON_DECORATIVE_LEG_RIGHT_BACK = True

COMMON_DECORATIVE_LEG_RIGHT_FRONT = True

COMMON_LEG_WIDTH = 5

COMMON_LEG_DEPTH = 5

COMMON_TOEKICK_HEIGHT = 6

Editing the Configuration in more details:

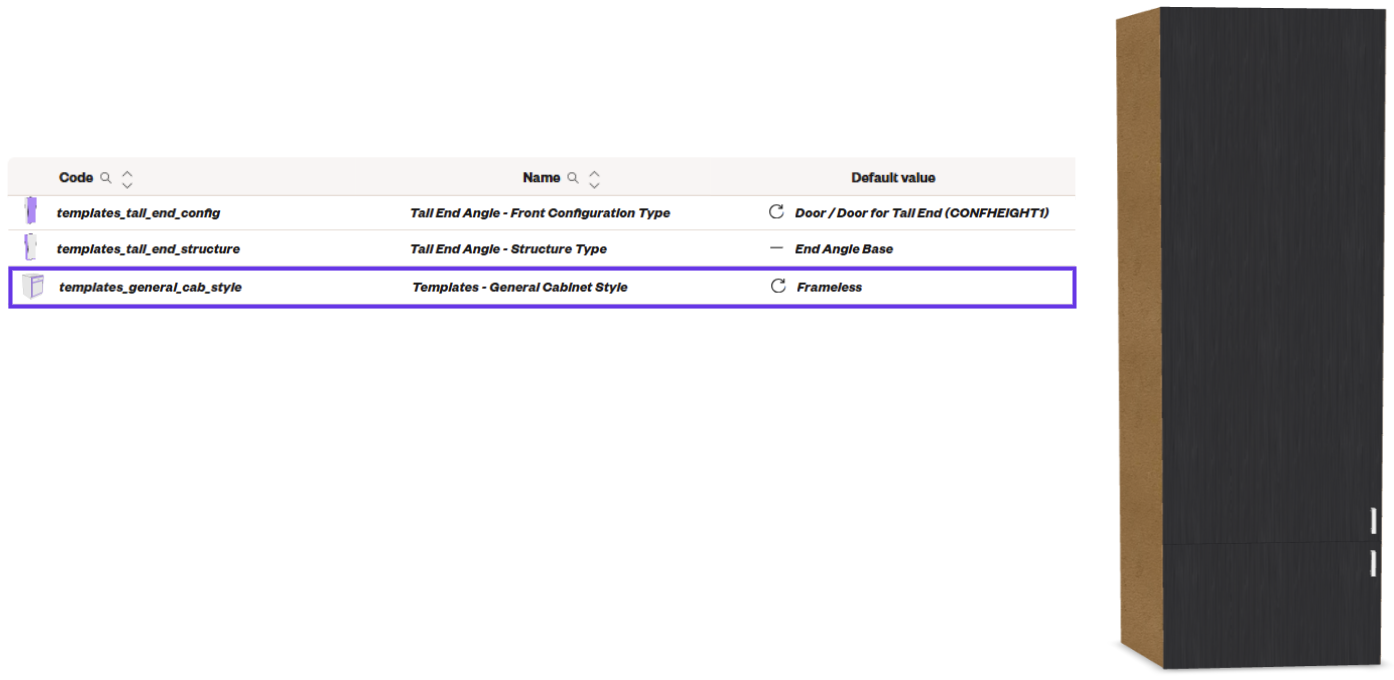

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

TEMPLATES_GENERAL_CAB_STYLE = Frameless

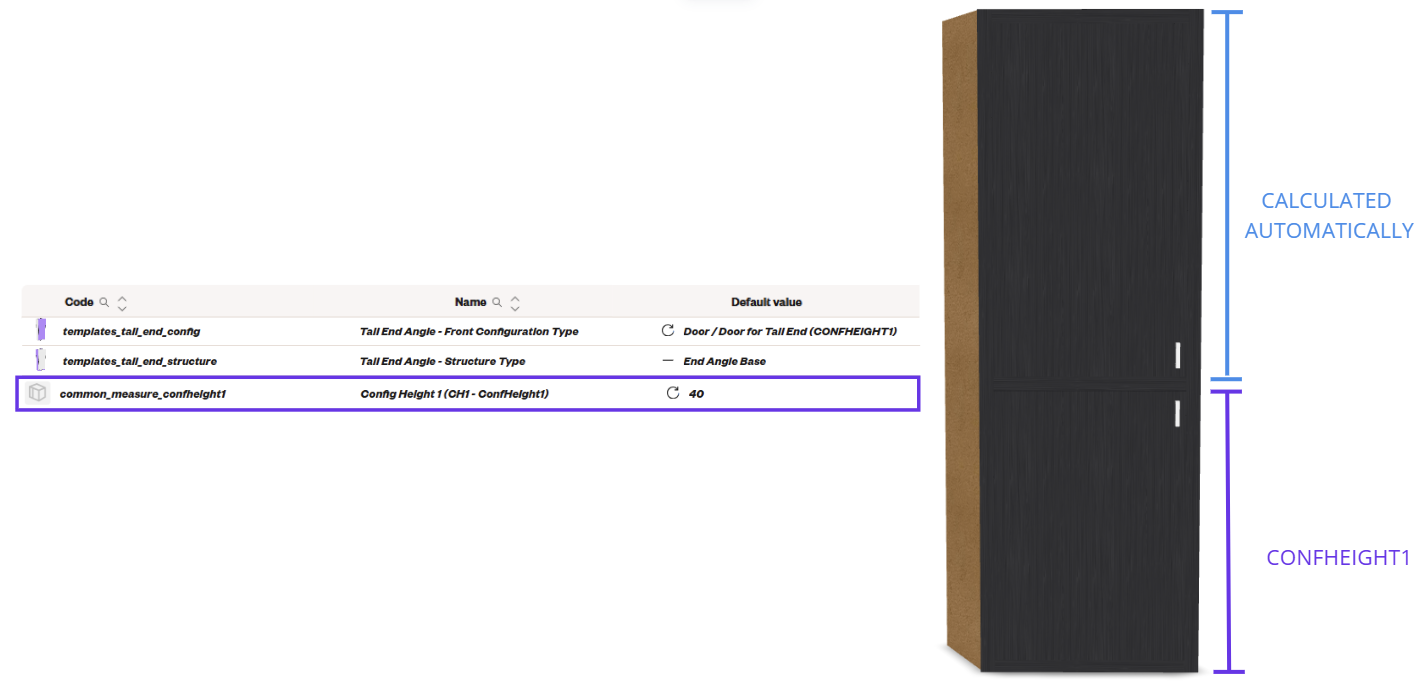

To edit the separation in the configuration, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

Example:

COMMON_MEASURE_CONFHEIGHT1 = 40

Note: this attribute is used in cases where the configuration is separated by shelves.

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example 1:

COMMON_TOP_OVERLAY = 0.5

COMMON_CONFIG_OVERLAY_BOTTOM1 = 0.5

COMMON_CONFIG_OVERLAY_TOP1 = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

Example 2:

COMMON_TOP_OVERLAY = 0.5

COMMON_INTER_OVERLAY_BOTTOM1 = 0.5

COMMON_INTER_OVERLAY_TOP1 = 0.5

COMMON_INTER_OVERLAY_BOTTOM2 = 0.5

COMMON_INTER_OVERLAY_TOP2 = 0.5

COMMON_INTER_OVERLAY_BOTTOM3 = 0.5

COMMON_INTER_OVERLAY_TOP3 = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

Examples of Doors:

Example:

COMMON_WALL_DOORSTYLE = 12

COMMON_BASE_DOORSTYLE = 12

COMMON_STYLEDOOR = Glass

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 3

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 3

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

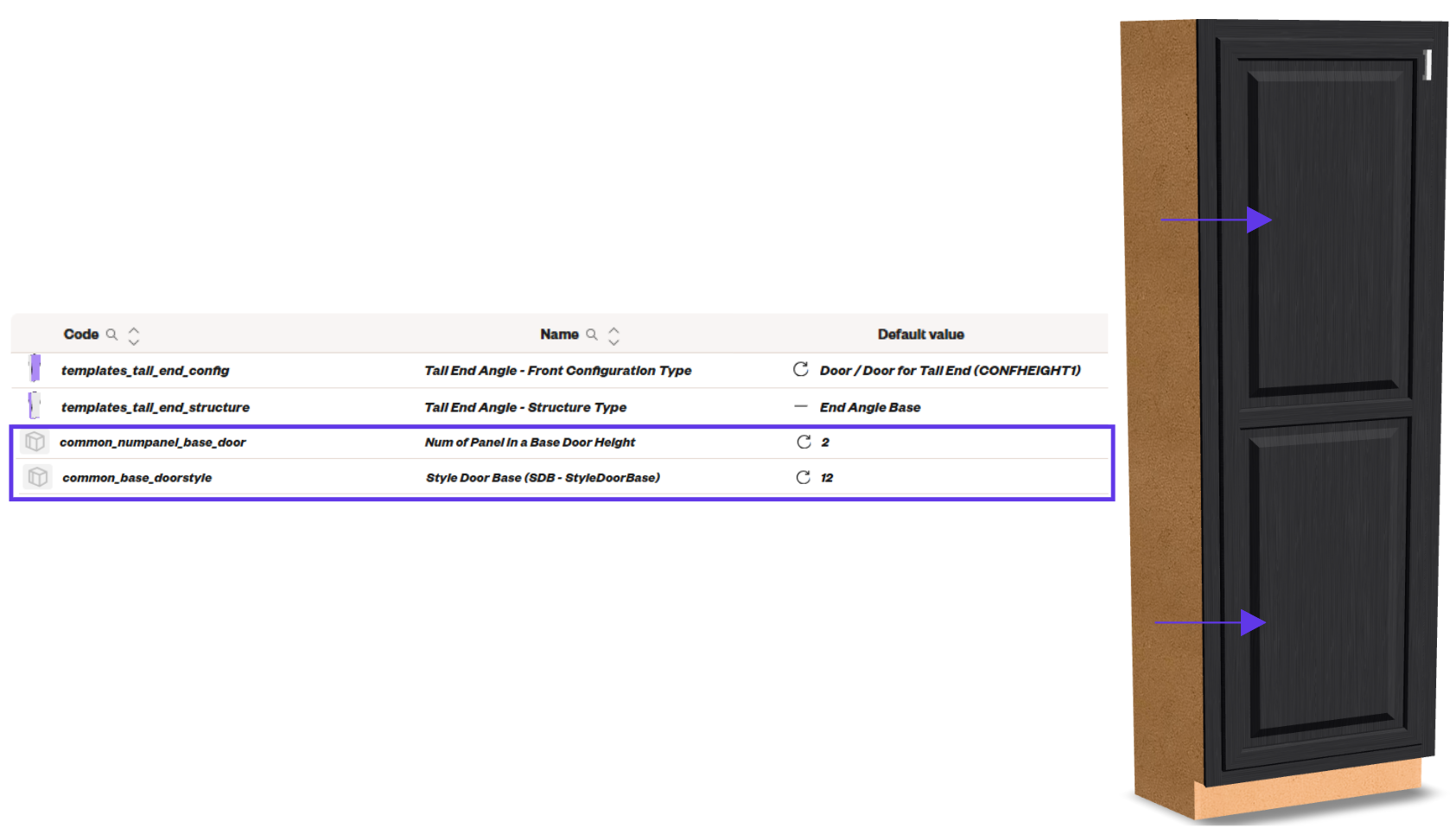

Example:

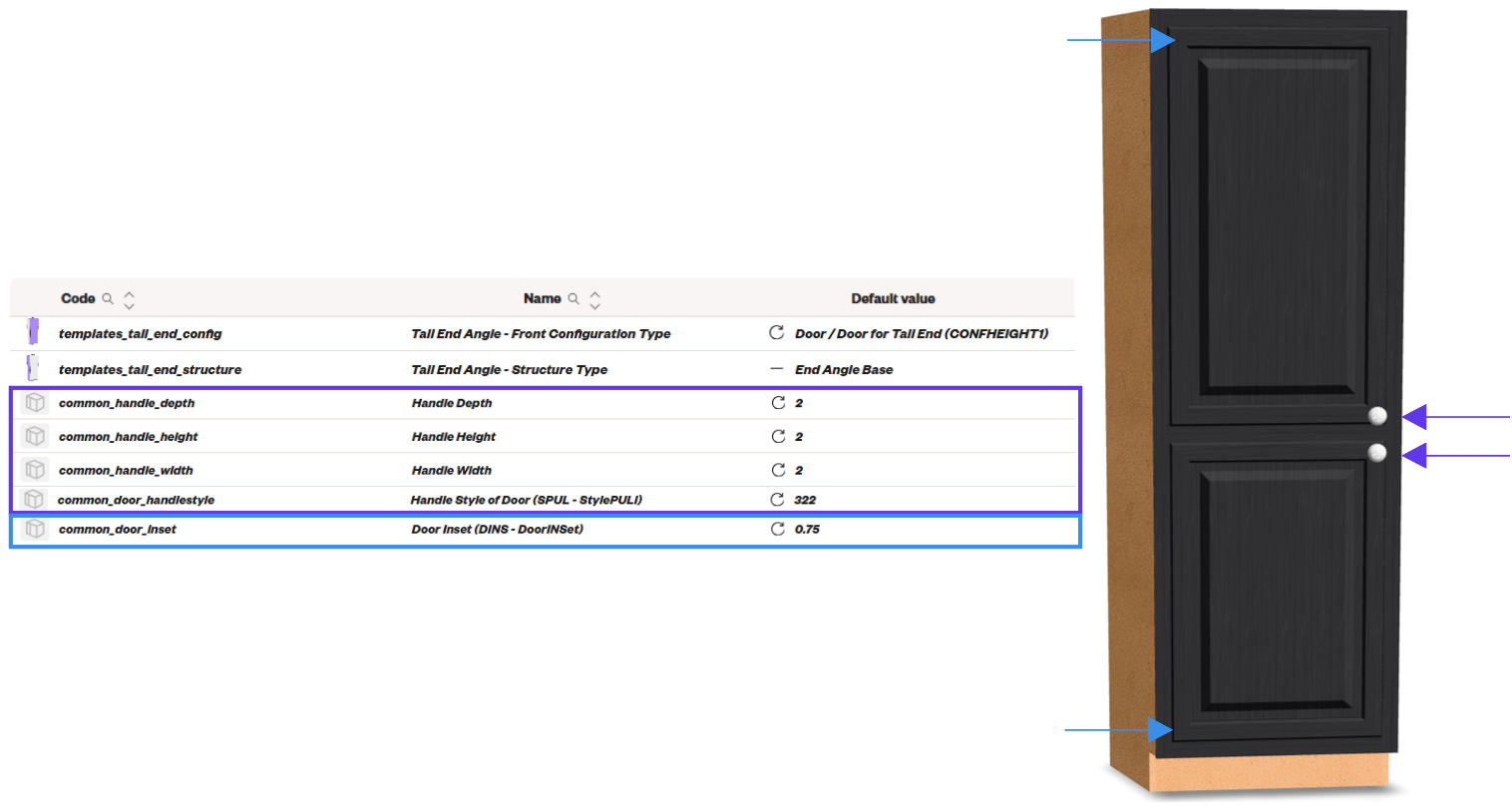

COMMON_NUMPANEL_TALL_DOOR = 2

COMMON_TALL_DOORSTYLE = 12

COMMON_DOOR_HANDLESTYLE = 322

COMMON_HANDLE_WIDTH = 2

COMMON_HANDLE_HEIGHT = 2

COMMON_HANDLE_DEPTH = 2

COMMON_DOOR_INSET = 0.75

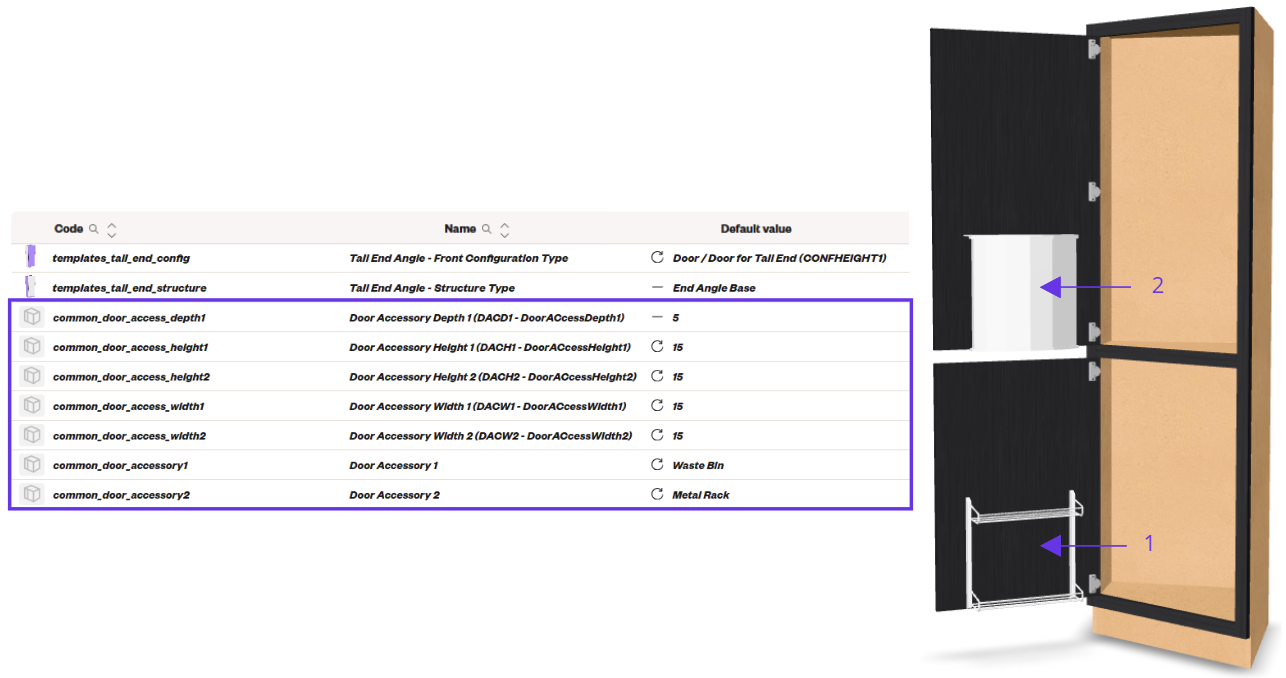

Example:

COMMON_CUSTOMV_DOOR_ACCESSORY1 = Waste Bin

COMMON_CUSTOMV_DOOR_ACCESSORY1 = Metal Rack

COMMON_CUSTOMV_DOOR_ACCESS_WIDTH1 = 10

COMMON_CUSTOMV_DOOR_ACCESS_HEIGHT1 = 15

COMMON_CUSTOMV_DOOR_ACCESS_DEPTH1 = 5

COMMON_CUSTOMV_DOOR_ACCESS_WIDTH2 = 10

COMMON_CUSTOMV_DOOR_ACCESS_HEIGHT2 = 15

COMMON_CUSTOMV_DOOR_ACCESS_DEPTH2 = 5

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_CUSTOMV_DOOR_ACCESSORY1 until COMMON_CUSTOMV_DOOR_ACCESSORY5

COMMON_CUSTOMV_DOOR_ACCESS_WIDTH1 until COMMON_CUSTOMV_DOOR_ACCESS_WIDTH5

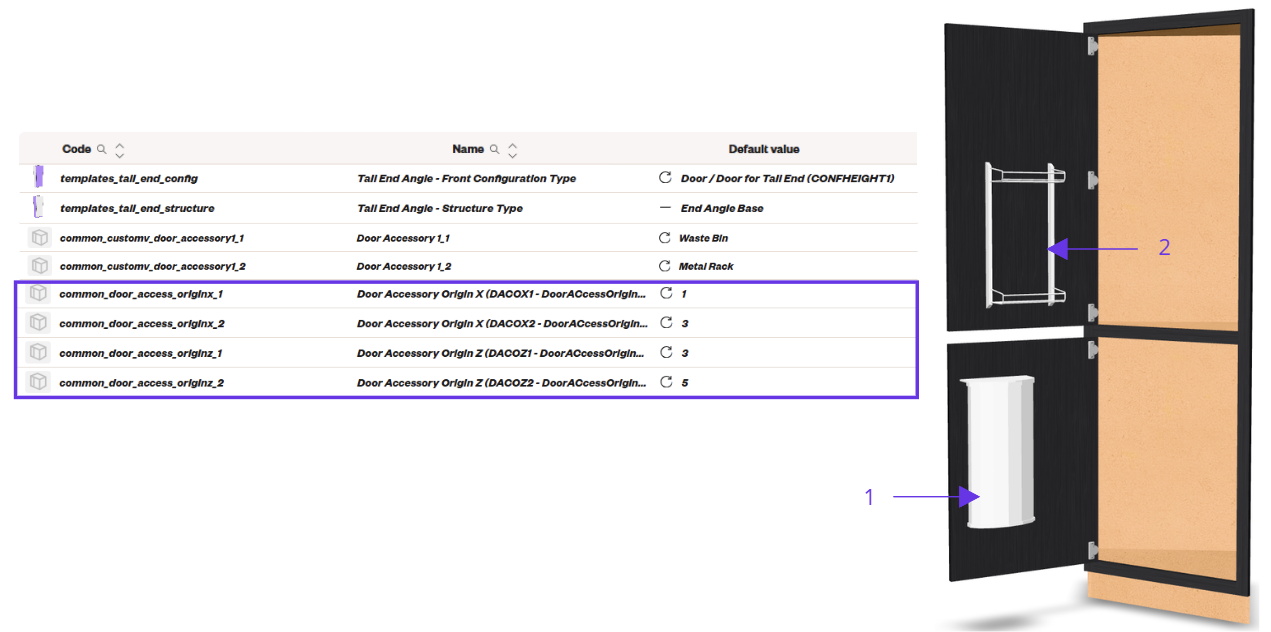

To edit the accessories position, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINX1_1 = 1

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINZ1_1 = 3

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINX1_2 = 8

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINZ1_2 = 5

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_CUSTOMV_DOOR_ACCESS_ORIGINX1_1 until COMMON_CUSTOMV_DOOR_ACCESS_ORIGINX4_5

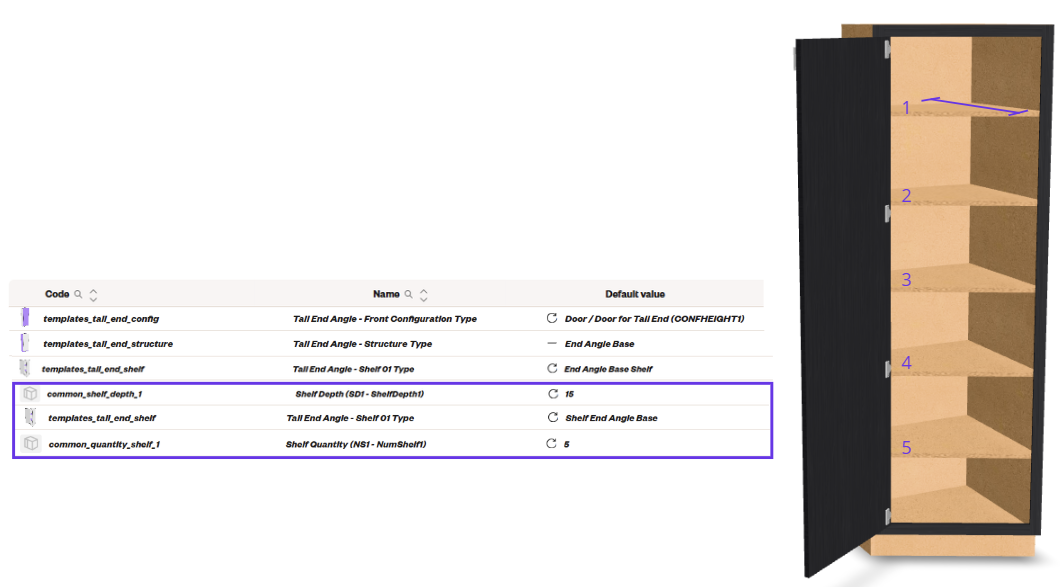

Example:

COMMON_QUANTITY_SHELF_1 = 5

COMMON_SHELF_DEPTH_1 = 15

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from top to bottom, for example:

Tall Corner Blind

To start creating your Tall Corner Blind Cabinet, you need to define what type of structure you want to use, for example: Standard, Corner Square, Corner Blind, Corner Diagonal, Peninsula, etc. All model attributes related to the chosen structure with their proposed values, can be found at Attributes: Item Construction - Cabinet Tall. The tables in this document are divided into categories. So, if you want to build a Standard item, you need to open this category and look for the required attributes as well as their proposed values.

Inserting the structure and configuration into the template:

Example:

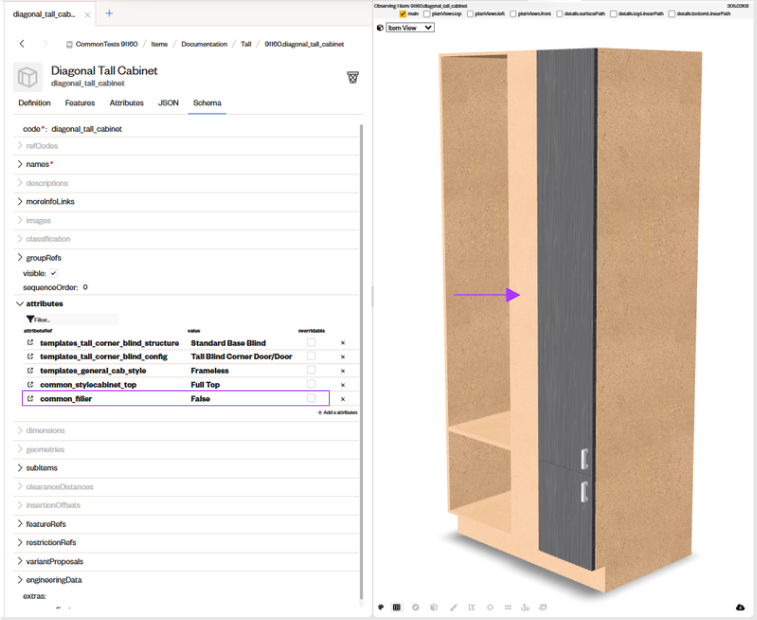

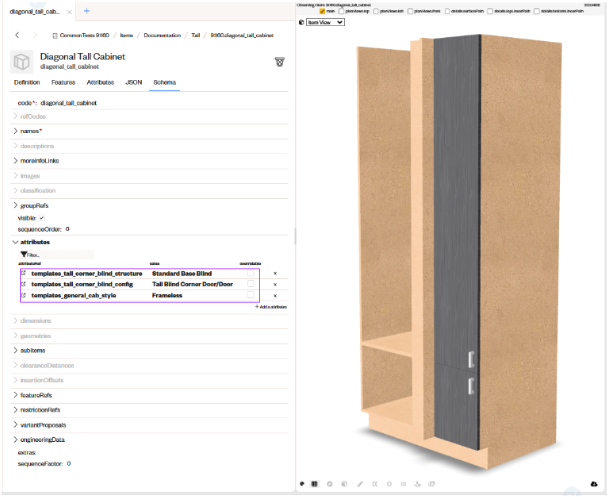

TEMPLATES_TALL_CORNER_BLIND_STRUCTURE = Standard Base Blind

TEMPLATES_TALL_CORNER_BLIND_CONFIG = Tall Corner Blind Door/Door

TEMPLATES_GENERAL_CAB_STYLE = Frameless

Note: In the case of the Tall Corner Blind cabinets, the configurations specific for them will only work alongside the attribute TEMPLATES_GENERAL_CAB_STYLE = Frameless.

Editing the Structure in more details:

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

COMMON_STYLECABINET_TOP = Front Valance Vertical & Back Stretcher

Example:

COMMON_STYLECABINET_BACK = Grooved Back

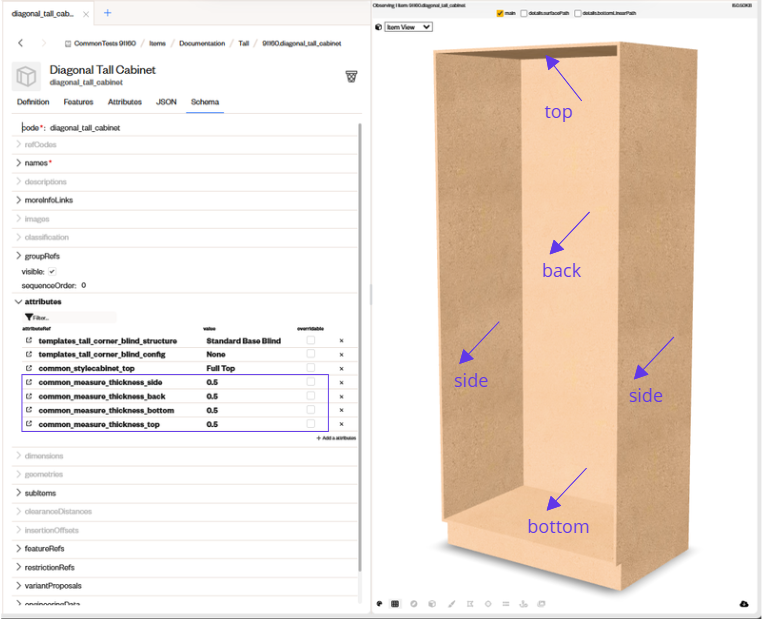

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning.

Examples:

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

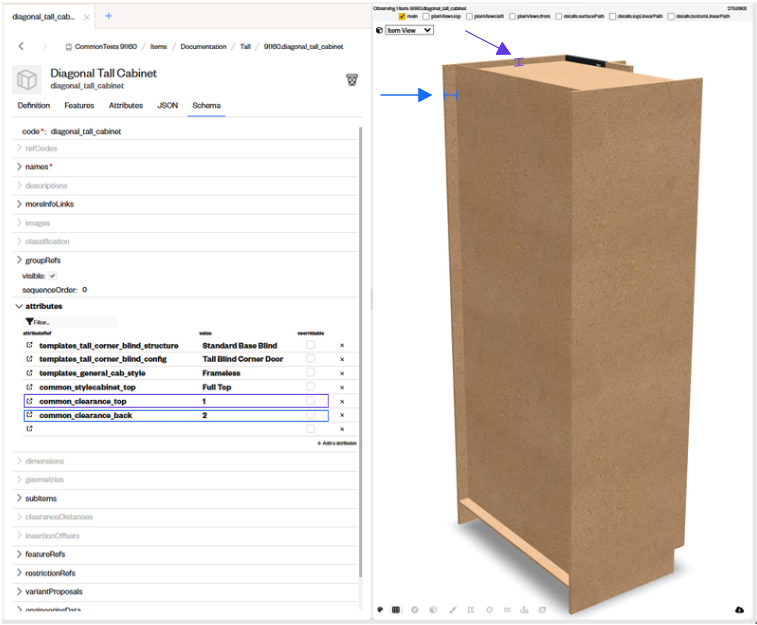

To edit the clearances use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 1

COMMON_CLEARANCE_BACK = 2

Example:

COMMON_DECORATIVE_SIDEPANEL_LEFT = Base Panel 05

COMMON_DECORATIVE_SIDEPANEL_RIGHT = Base Panel 05

COMMON_MEASURE_THICKNESS_SIDE = 1

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

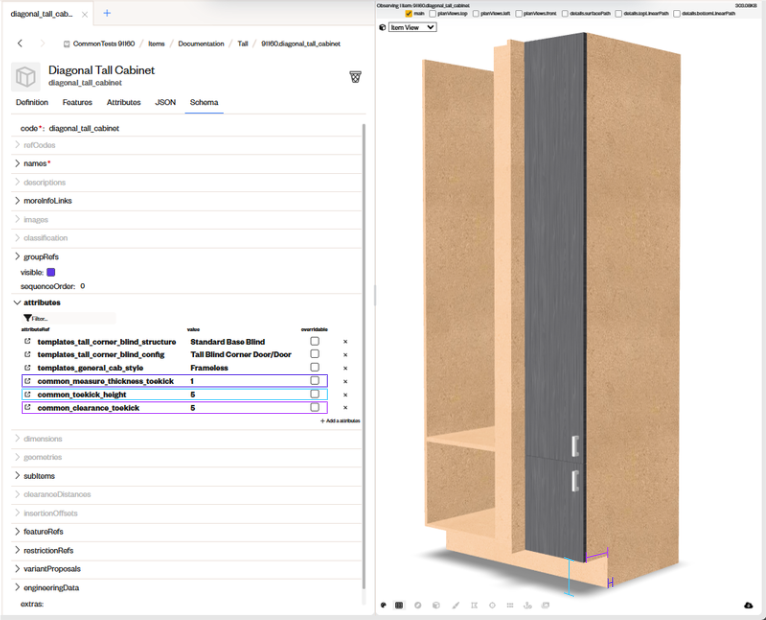

To edit the toekick use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Clearances.

Example:

COMMON_MEASURE_THICKNESS_TOEKICK = 1

COMMON_TOEKICK_HEIGHT = 5

COMMON_CLEARANCE_TOEKICK = 5

Editing the Configuration in more details:

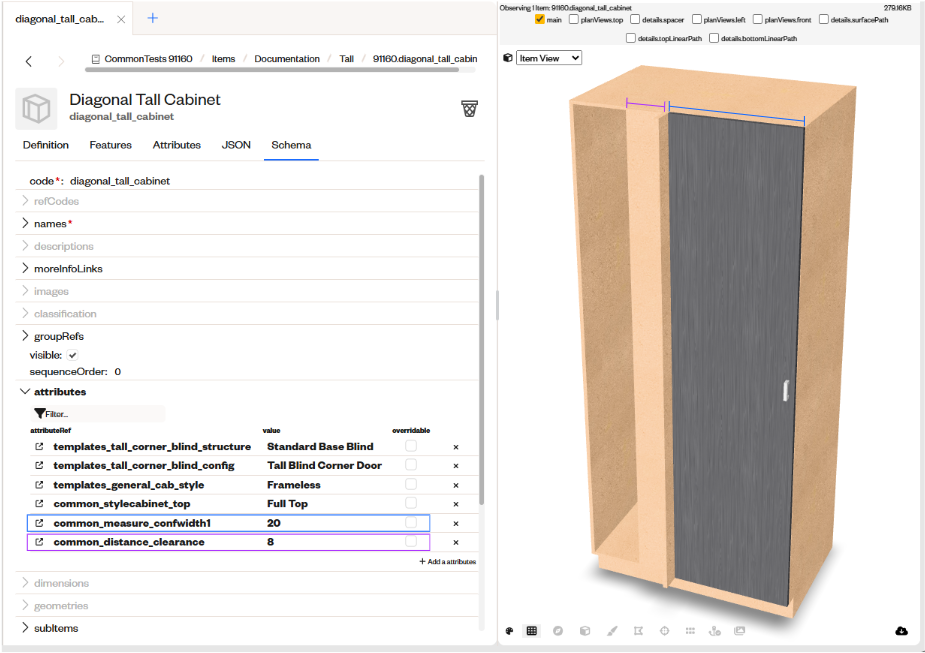

To edit the dimensions and the filler positioning in the configuration, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Clearances.

Example:
COMMON_MEASURE_CONFWIDTH1 = 20

COMMON_DISTANCE_CLEARANCE = 8

COMMON_FILLER = False

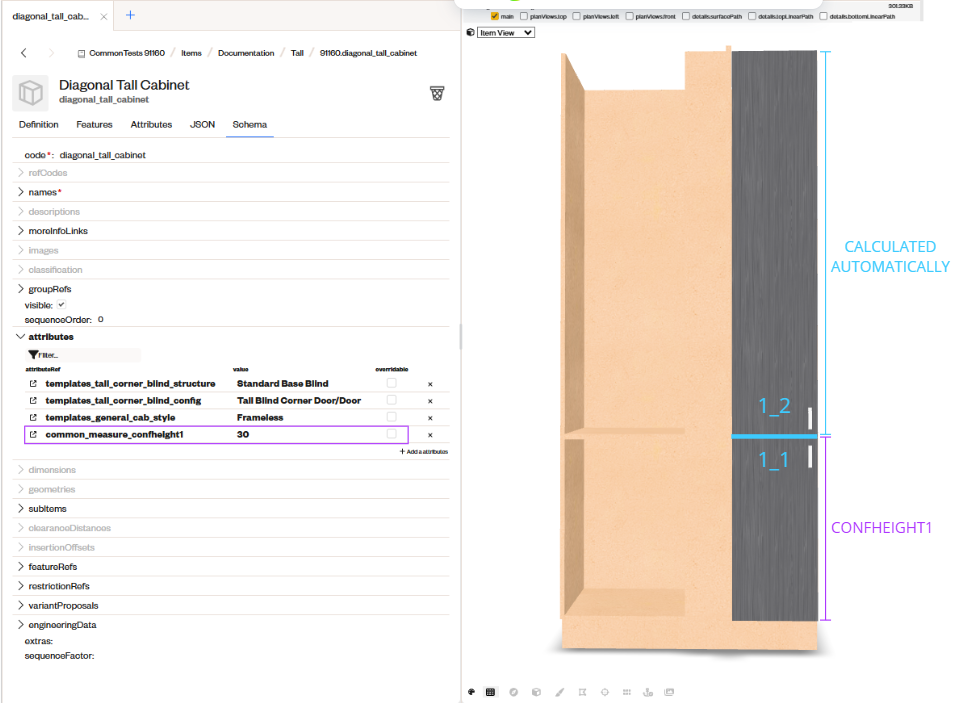

The tall configurations are created following a logic in which the first number will define which drawer/door will be edited, and de second number refer to which section of the item it is set. The item below has two different sections, marked by the blue line.

Example:

COMMON_MEASURE_CONFHEIGHT1 = 30

Note: this attribute is used in cases where the configuration is separated by shelves.

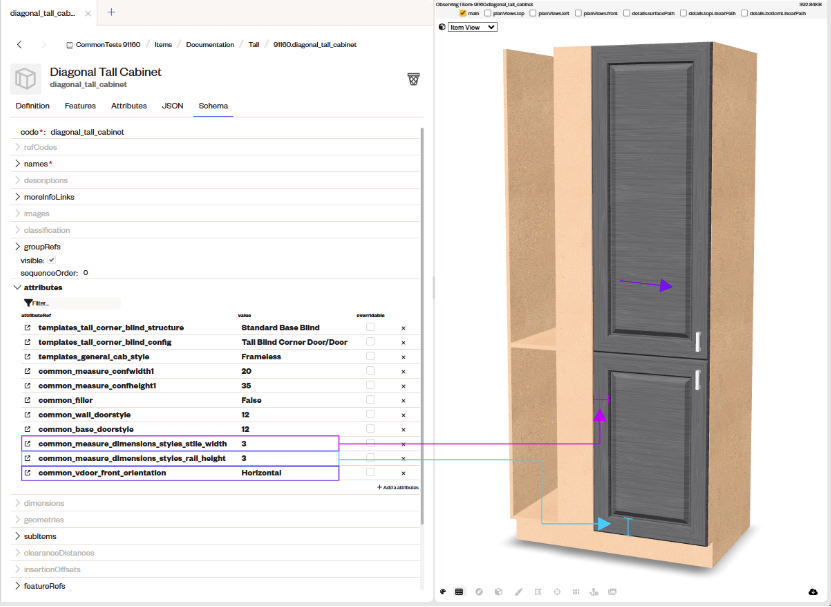

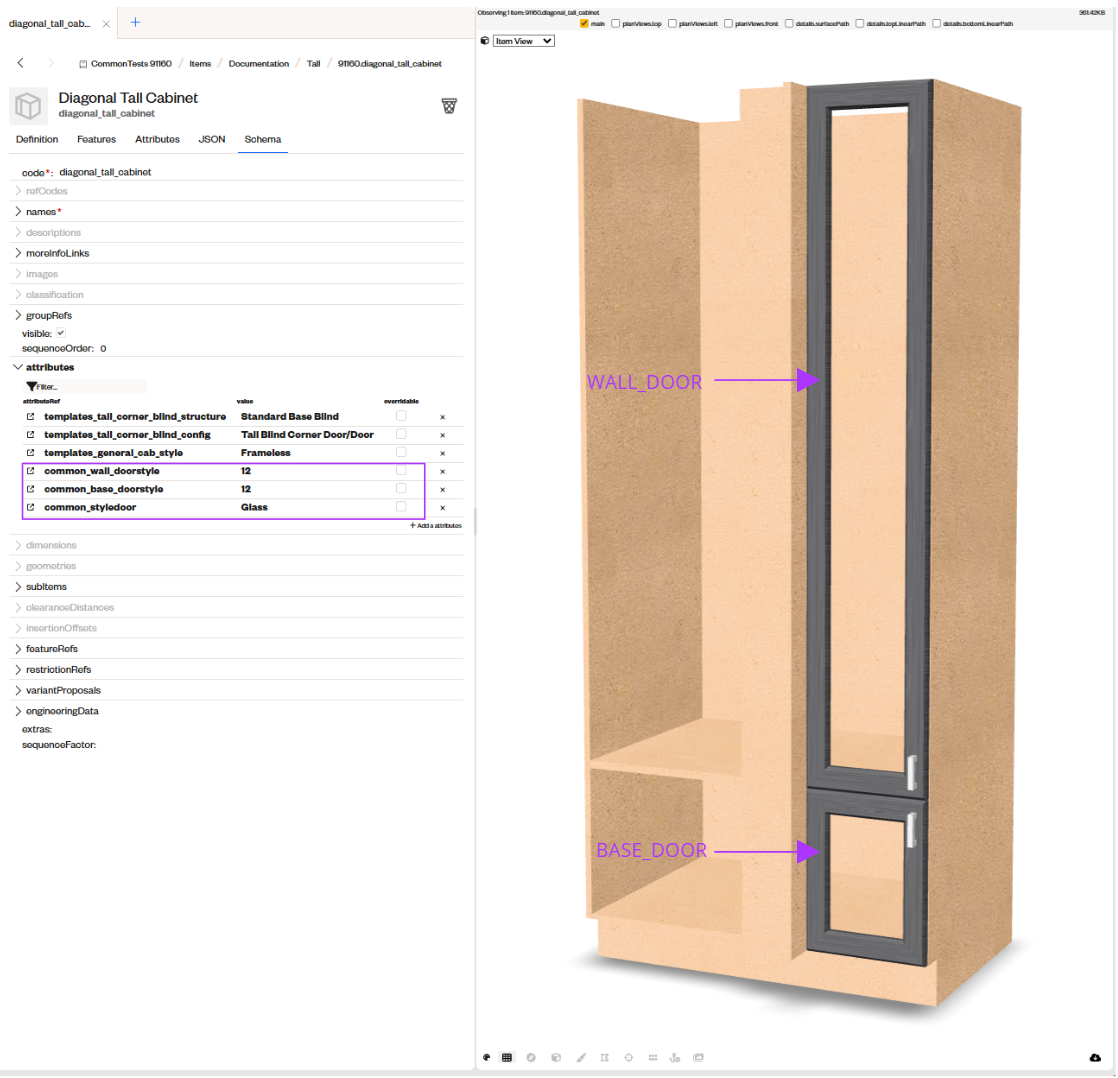

Examples of Doors:

Example:

COMMON_WALL_DOORSTYLE = 12

COMMON_BASE_DOORSTYLE = 12

COMMON_STYLEDOOR = Glass

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 3

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 3

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

To edit the number of panels, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Quantity and Attributes: Item Configuration - Style 2.

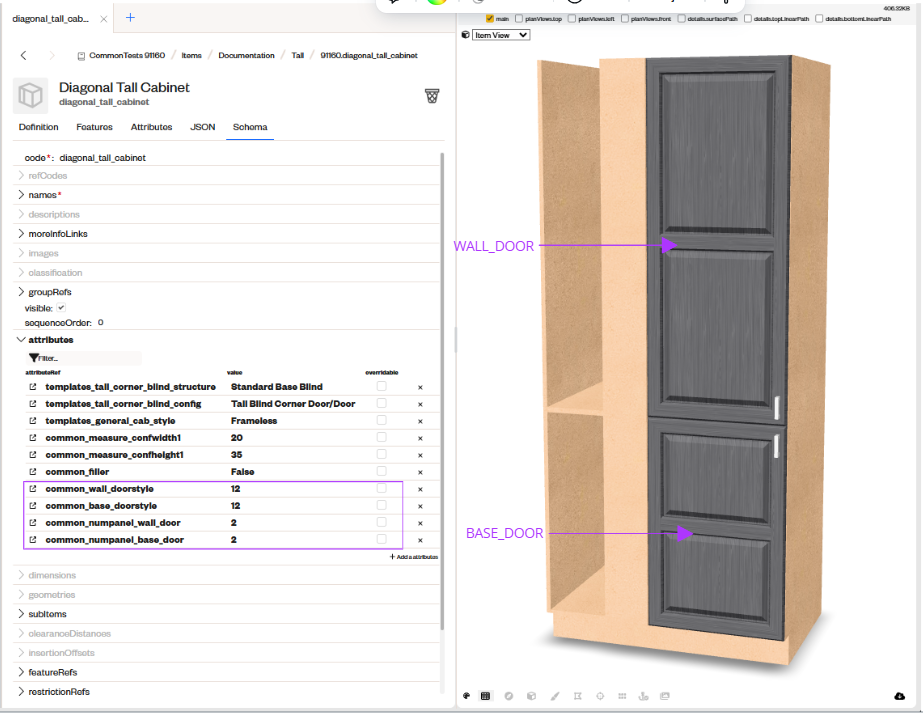

Example:

COMMON_BASE_DOORSTYLE = 12

COMMON_WALL_DOORSTYLE = 12

COMMON_NUMPANEL_DOOR = 2

COMMON_NUMPANEL_WALL_DOOR = 2

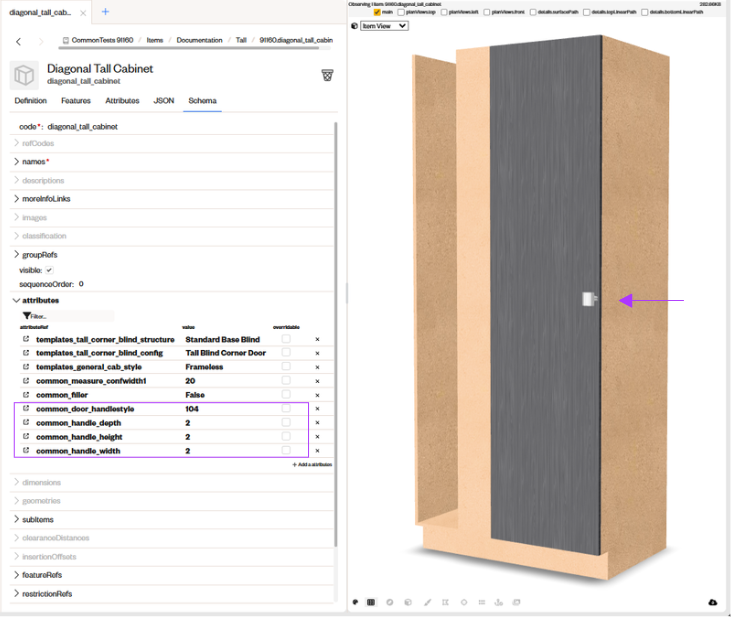

COMMON_DOOR_HANDLESTYLE = 104

COMMON_HANDLE_WIDTH = 2

COMMON_HANDLE_HEIGHT = 2

COMMON_HANDLE_DEPTH = 2

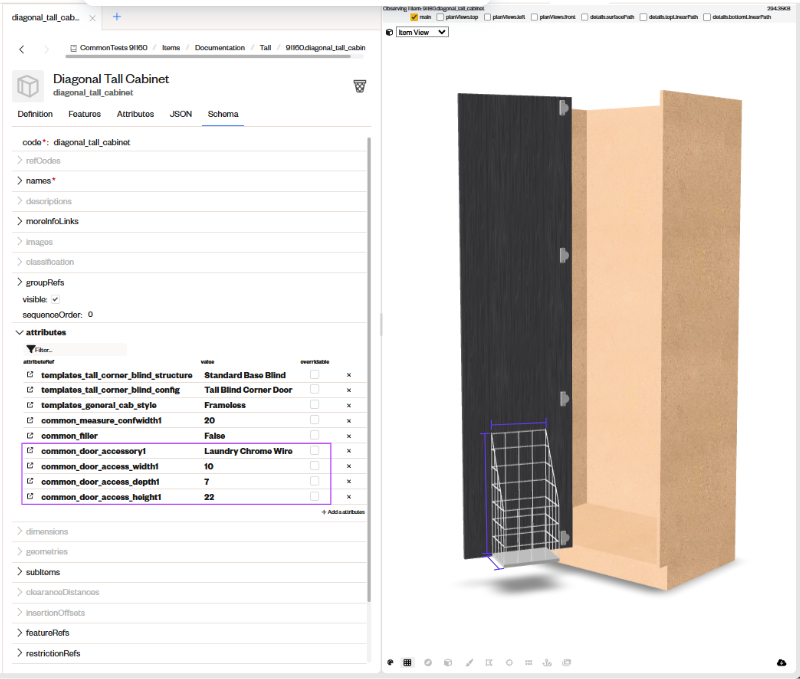

Example:

COMMON_DOOR_ACCESSORY1 = Laundry Chrome Wire

COMMON_DOOR_ACCESS_DEPTH1 = 10

COMMON_DOOR_ACCESS_WIDTH1 = 7

COMMON_DOOR_ACCESS_HEIGHT1 = 22

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESS_HEIGHT1 until COMMON_DOOR_ACCESS_HEIGHT8

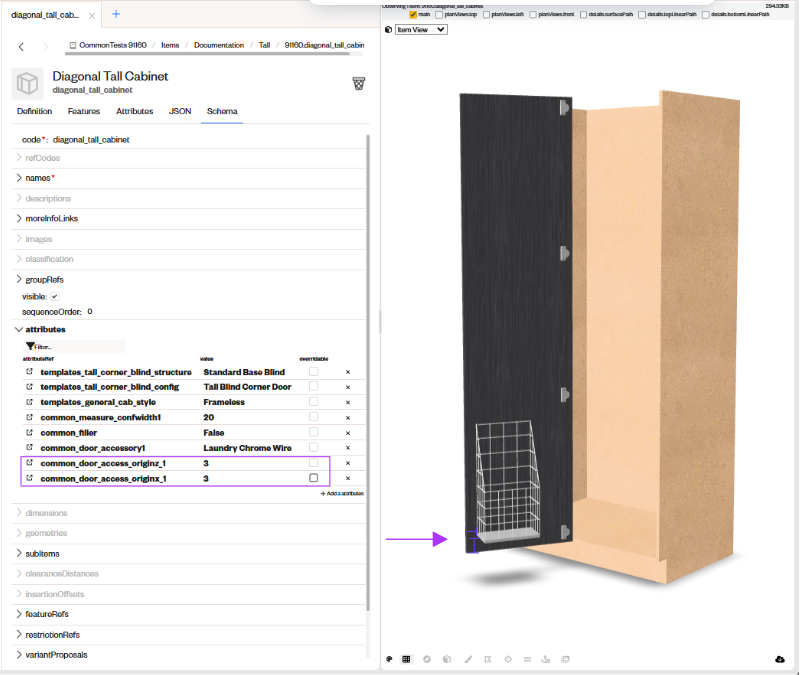

To edit the accessories position, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_DOOR_ACCESS_ORIGINX_1 = 3

COMMON_DOOR_ACCESS_ORIGINZ_1 = 3

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESS_ORIGINX_1 until COMMON_DOOR_ACCESS_ORIGINX_8

Vanity Standard

To start creating your Vanity Cabinet, you need to define what type of structure you want to use, for example: Base, Combo, Peninsula, Full Legs, etc. All model attributes related to the chosen structure with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Vanity. The tables in this document are divided into categories. So, if you want to build a Standard item, you need to open this category and look for the required attributes as well as their proposed values.

Inserting the structure and configuration into the template:

Example:

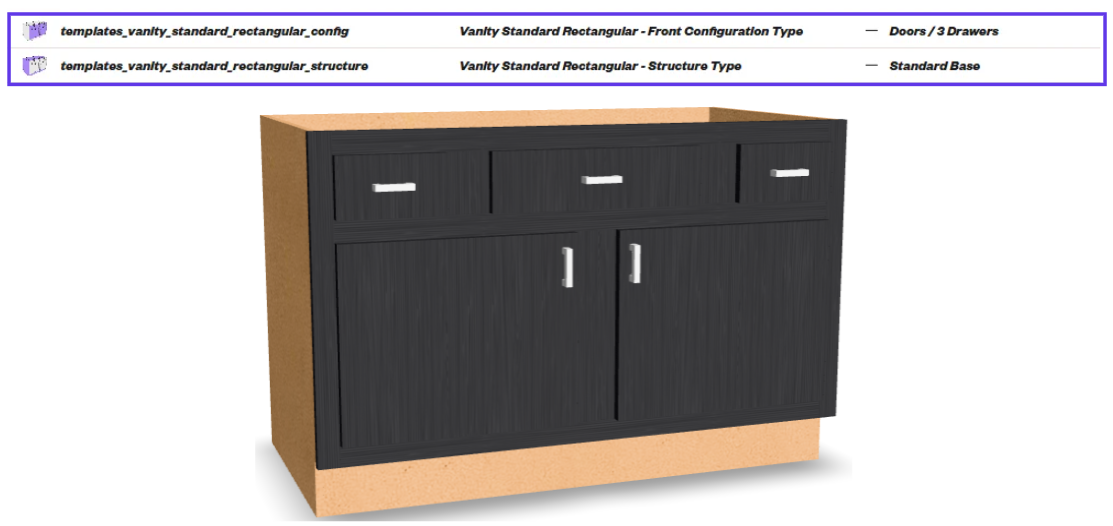

TEMPLATES_VANITY_STANDARD_RECTANGULAR_STRUCTURE = Standard Base

TEMPLATES_VANITY_STANDARD_RECTANGULAR_CONFIG = Doors / 3 Drawers

Editing the Structure in more details:

To edit some styles, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Style 1 .

Example:

COMMON_STYLECABINET_TOP = Corner Blocks

COMMON_STYLECABINET_BACK = Grooved Back Outside

Beyond the style, to edit the nailer measurements, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

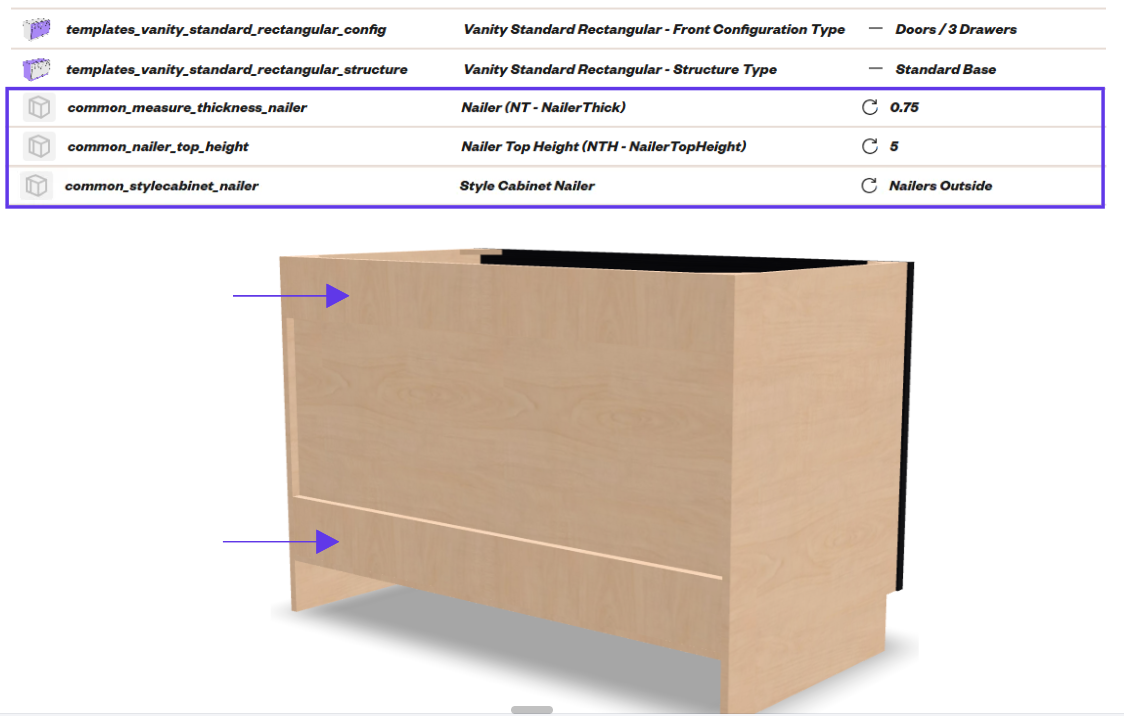

COMMON_STYLECABINET_NAILER = Nailers Outside

COMMON_NAILER_TOP_HEIGHT = 5

COMMON_MEASURE_THICKNESS_NAILER = 0.75

To edit the thicknesses, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Dimensioning .

Example:

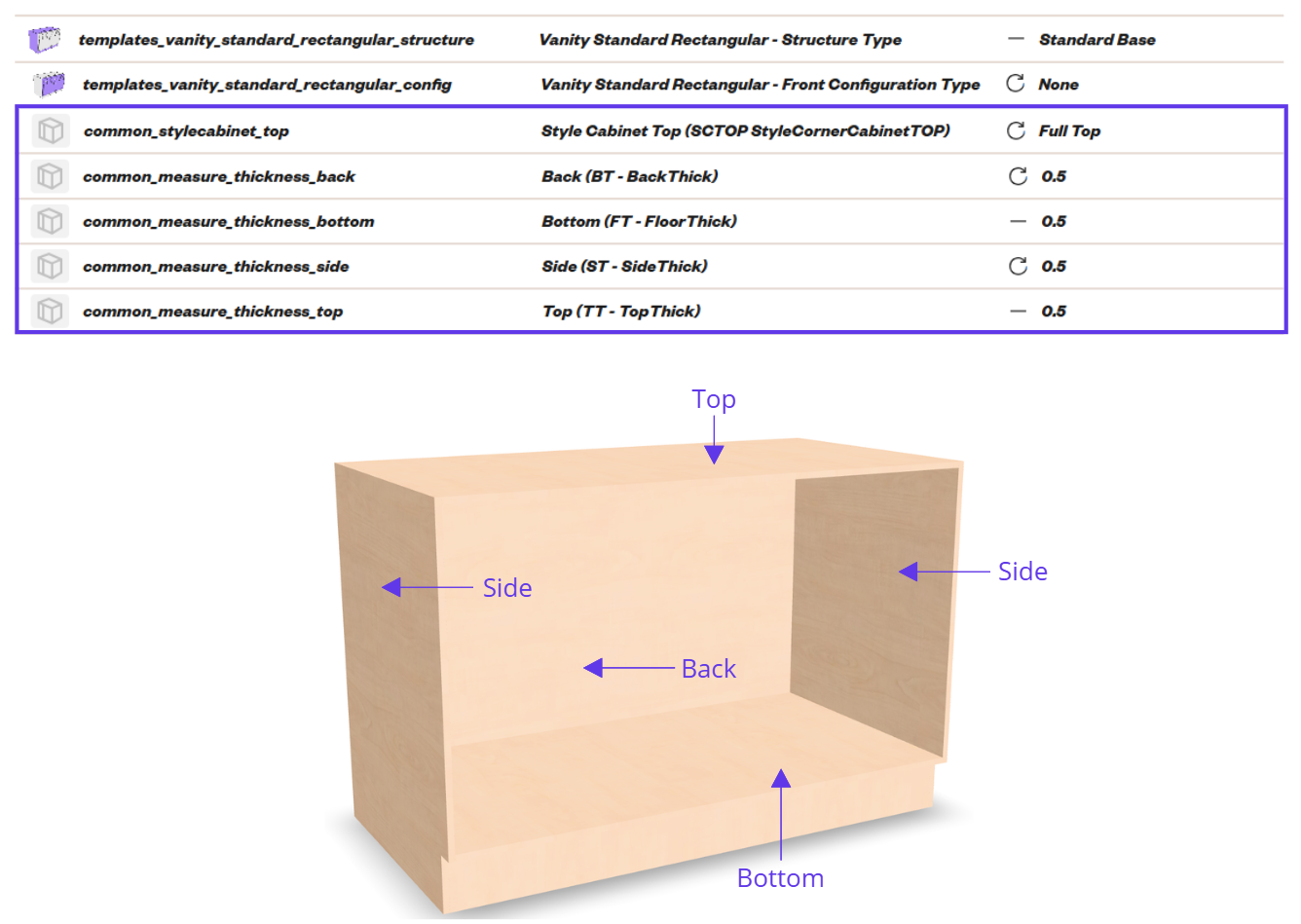

COMMON_MEASURE_THICKNESS_SIDE = 0.5

COMMON_MEASURE_THICKNESS_TOP = 0.5

COMMON_MEASURE_THICKNESS_BACK = 0.5

COMMON_MEASURE_THICKNESS_BOTTOM = 0.5

COMMON_STYLECABINET_TOP = Full Top

To edit the clearances use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_TOP = 2

COMMON_CLEARANCE_BACK = 2

Example:

COMMON_DECORATIVE_SIDEPANEL_LEFT = Base Panel 06

COMMON_DECORATIVE_SIDEPANEL_RIGHT = Base Panel 06

COMMON_MEASURE_THICKNESS_SIDE = 1

Note: This decorative panel will replace the standard side panel, so the thickness attribute remains the same.

To edit the toekick use the attributes listed below, you can find them in the articles Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Clearances.

Example:

COMMON_MEASURE_THICKNESS_TOEKICK = 0.5

COMMON_TOEKICK_HEIGHT = 7

COMMON_CLEARANCE_TOEKICK = 5

To edit the style toekick, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

COMMON_DECORATIVE_LEG_STYLE = Foot 01

COMMON_DECORATIVE_LEG_LEFT_BACK = True

COMMON_DECORATIVE_LEG_LEFT_FRONT = True

COMMON_DECORATIVE_LEG_RIGHT_BACK = True

COMMON_DECORATIVE_LEG_RIGHT_FRONT = True

COMMON_LEG_WIDTH = 3

COMMON_LEG_DEPTH = 3

To edit the style toekick and use the decorative style, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Style 1.

Example:

COMMON_DECORATIVE_TOEKICK_STYLE = Decorative Toekick 27

To edit the style toekick and use the floating style, use the attributes listed below, you can find them in the article Core Library - Structures – Content Studio. With this option, the item seems to be floating and there is no visual structure between it and the floor.

Example:

COMMON_STYLE_TOEKICK = Floating Structure or Feet/Legs

Editing the Configuration in more details:

To edit the option of framed or frameless configuration, use the attribute listed below, you can find it in the article Attributes: Catalog.

Example:

TEMPLATES_GENERAL_CAB_STYLE = Frameless

To edit the separation in the configuration, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

Example:

TEMPLATES_VANITY_STANDARD_RECTANGULAR_CONFIG = 3 Doors Drawer

COMMON_MEASURE_CONFWIDTH1 = 15

COMMON_MEASURE_CONFWIDTH3 =15

Note: this attribute is used in cases where the configuration is separated by dividers.

To edit the clearances, use the attributes listed below, you can find them in the article Attributes: Item Configuration - Clearances .

Example:

COMMON_CLEARANCE_FRAME = 2

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example:

TEMPLATES_VANITY_STANDARD_RECTANGULAR_CONFIG = 2 Doors Drawer

COMMON_TOP_OVERLAY = 1.5

COMMON_INTER_OVERLAY_BOTTOM1 = 0.75

COMMON_INTER_OVERLAY_TOP1 = 0.75

COMMON_BOTTOM_OVERLAY = 1.5

COMMON_MIDDLE_HORIZONTAL_OVERLAY = 1.5

TEMPLATES_VANITY_STANDARD_RECTANGULAR_CONFIG = 4 Vertical Drawers - Double Top Drawers

COMMON_TOP_OVERLAY = 1.5

COMMON_INTER_OVERLAY_BOTTOM1 = 1.5

COMMON_INTER_OVERLAY_TOP1 = 1.5

COMMON_INTER_OVERLAY_BOTTOM2 = 1.5

COMMON_INTER_OVERLAY_TOP2 = 1.5

COMMON_INTER_OVERLAY_BOTTOM3 = 1.5

COMMON_INTER_OVERLAY_TOP3 = 1.5

COMMON_BOTTOM_OVERLAY = 1.5

Example of Doors:

Example:

COMMON_BASE_DOORSTYLE = 12

COMMON_STYLEDOOR = Glass

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 2

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 3

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

Example:

COMMON_BASE_DOORSTYLE = 12

COMMON_NUMFRONTDOOR1 = 2

COMMON_NUMPANEL_DOOR = 2

COMMON_BUTTDOORS = True

Example:

COMMON_DOOR_HANDLESTYLE = 104

COMMON_HANDLE_WIDTH = 4

COMMON_HANDLE_HEIGHT = 0.5

COMMON_HANDLE_DEPTH = 1

COMMON_DOOR_INSET = 0.75

Example:

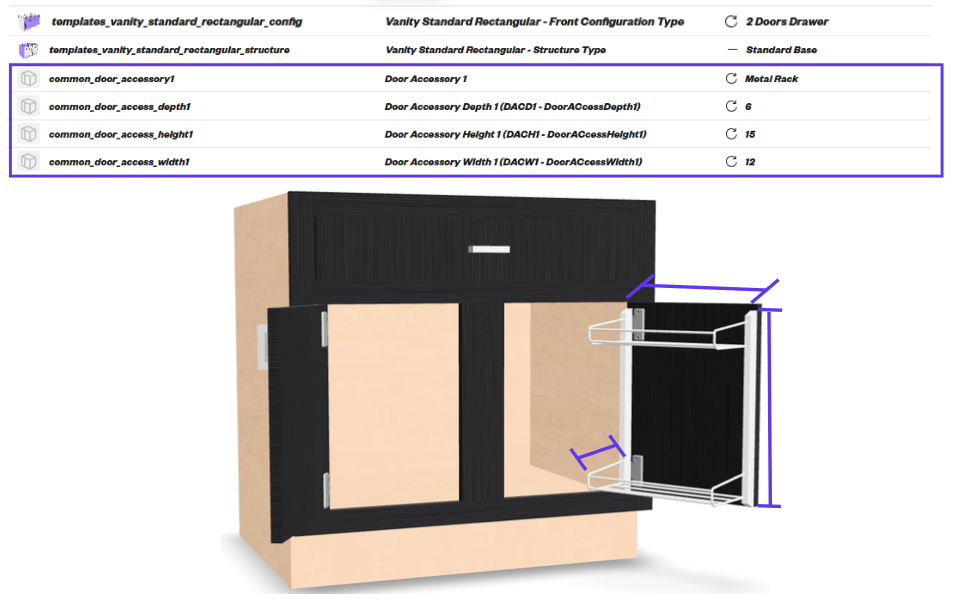

COMMON_DOOR_ACCESSORY1 = Metal Rack

COMMON_DOOR_ACCESS_HEIGHT1 = 15

COMMON_DOOR_ACCESS_DEPTH1 = 6

COMMON_DOOR_ACCESS_WIDTH1 = 12

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESSORY1 until COMMON_DOOR_ACCESSORY14

COMMON_DOOR_ACCESS_HEIGHT1 until COMMON_DOOR_ACCESS_HEIGHT8

To edit the accessories position, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning.

COMMON_DOOR_ACCESS_ORIGINX_1 = 2

COMMON_DOOR_ACCESS_ORIGINZ_1 = 3

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_DOOR_ACCESS_ORIGINX_1 until COMMON_DOOR_ACCESS_ORIGINX_8

Example:

COMMON_SHELF_VISIBILITY = True

TEMPLATES_VANITY_STANDARD_RECTANGULAR_SHELF = Shelf

COMMON_QUANTITY_SHELF = 1

COMMON_SHELF_DEPTH = 20

Example of Drawers:

Example:

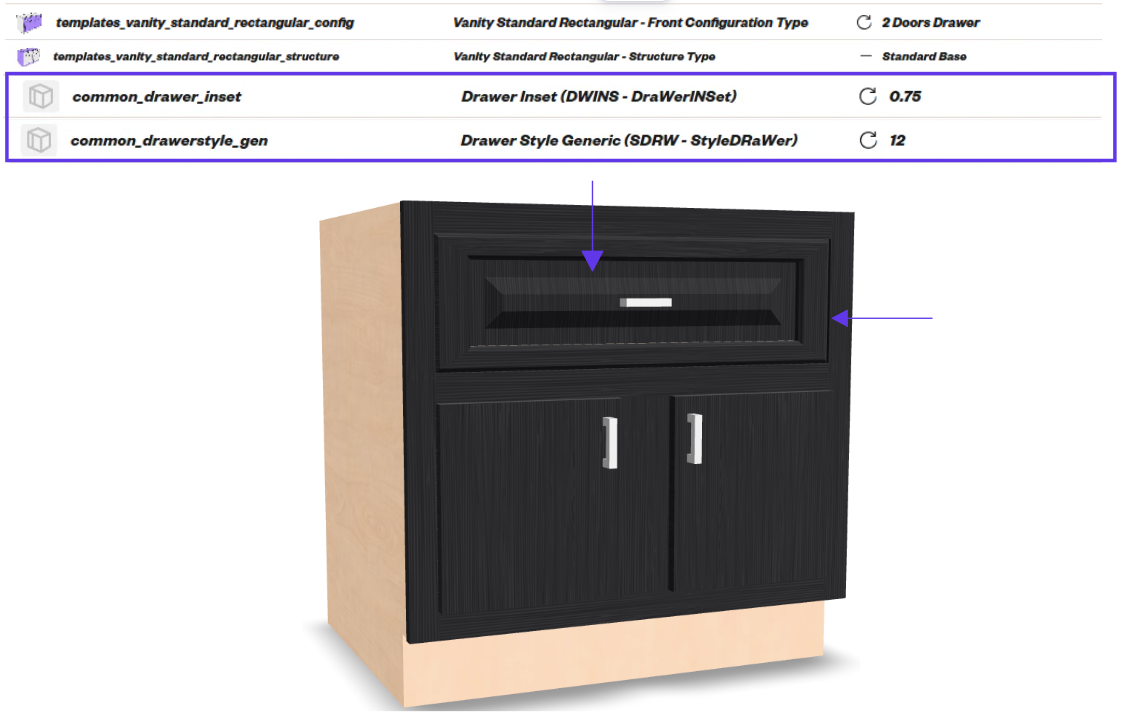

COMMON_DRAWERSTYLE_GEN = 12

COMMON_DRAWER_INSET = 0.75

COMMON_DRAWERSTYLE_GEN = 12

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 1

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 2

COMMON_VDRAWER_FRONT_ORIENTATION = Horizontal

Note: Not all drawer styles have rails and styles.

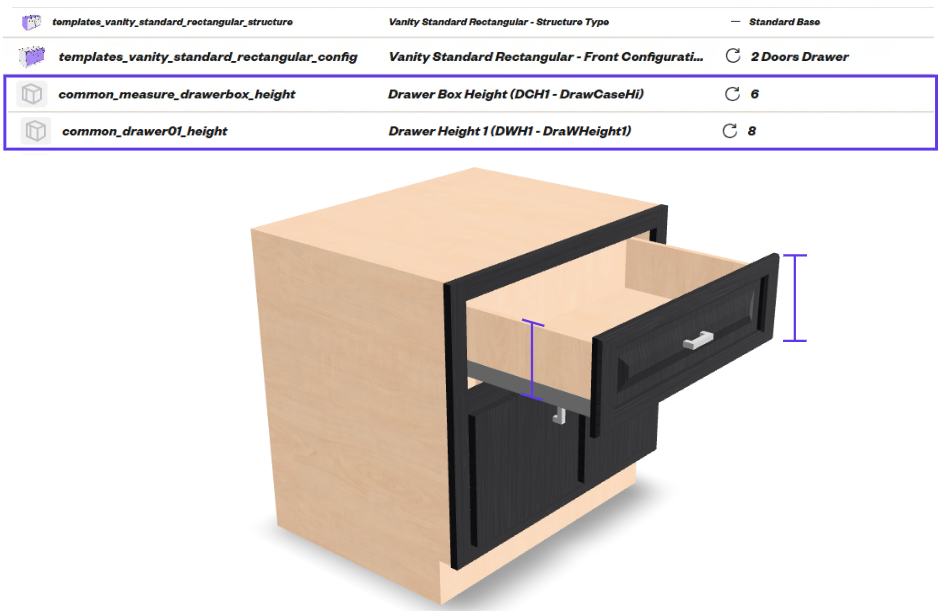

To edit the drawer front and drawer box height, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

COMMON_MEASURE_DRAWERBOX_HEIGHT = 6

COMMON_DRAWER01_HEIGHT = 8

COMMON_DRAWER01_HEIGHT until COMMON_DRAWER14_HEIGHT

COMMON_MEASURE_DRAWERBOX_HEIGHT until COMMON_MEASURE_DRAWERBOX14_HEIGHT

To edit the drawer box depth, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning.

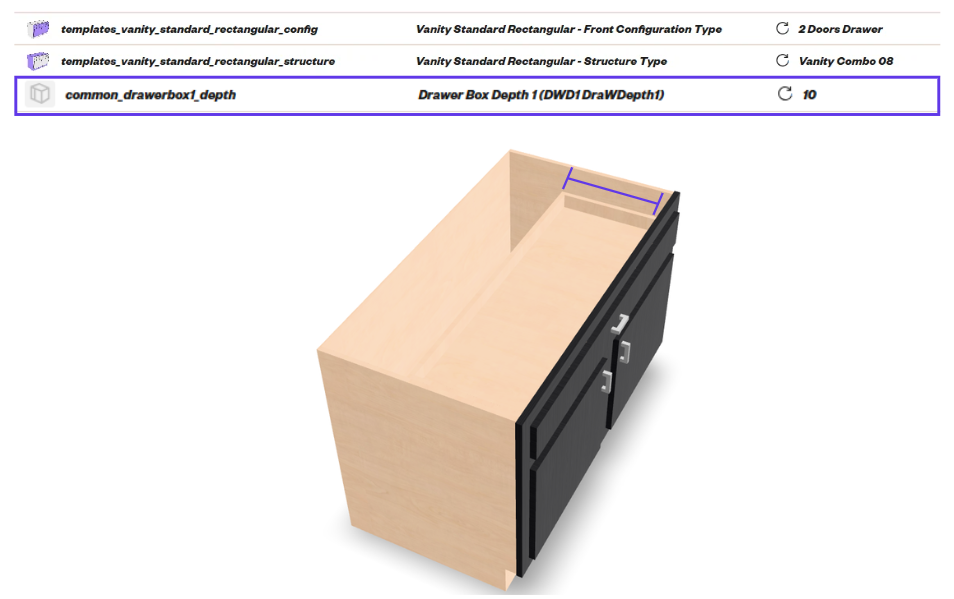

COMMON_DRAWERBOX1_DEPTH = 10

COMMON_DRAWERBOX1_DEPTH until COMMON_DRAWERBOX6_DEPTH

To disable the drawer box, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Visibility.

COMMON_DRAWERBOX1 = False

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWERBOX1 until COMMON_DRAWERBOX14

COMMON_DRAWER_HANDLESTYLE = 107

COMMON_DRAWERHANDLE_HEIGHT = 0.6

COMMON_DRAWERHANDLE_DEPTH = 1

COMMON_DRAWERHANDLE_WIDTH = 4

To edit the handle quantity, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Quantity.

COMMON_DRAWER_PULL_1 = 2

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWER_PULL_1 until COMMON_DRAWER_PULL_14

COMMON_DRAWERBOX1_ACCESSORY = Coffee Pod Insert

COMMON_ACCESSORY_HEIGHT1 = 1.5

Note: If you have a configuration with more than one drawer, we have an attribute for each of them, used from left to right, from top to bottom, for example:

COMMON_DRAWERBOX_ACCESSORY until COMMON_DRAWERBOX9_ACCESSORY

COMMON_ACCESSORY_HEIGHT1 until COMMON_ACCESSORY_HEIGHT14

On Vanities structures, there is a family of options called Vanity Combo. These structures usually have some differences as standard, such as the legs, bottom shelf and opening in the back.

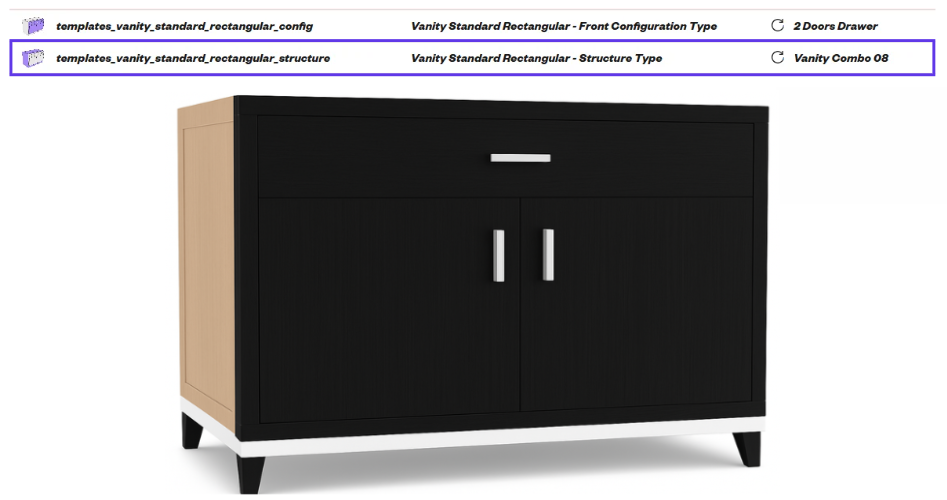

TEMPLATES_VANITY_STANDARD_RECTANGULAR_STRUCTURE = Vanity Combo 08

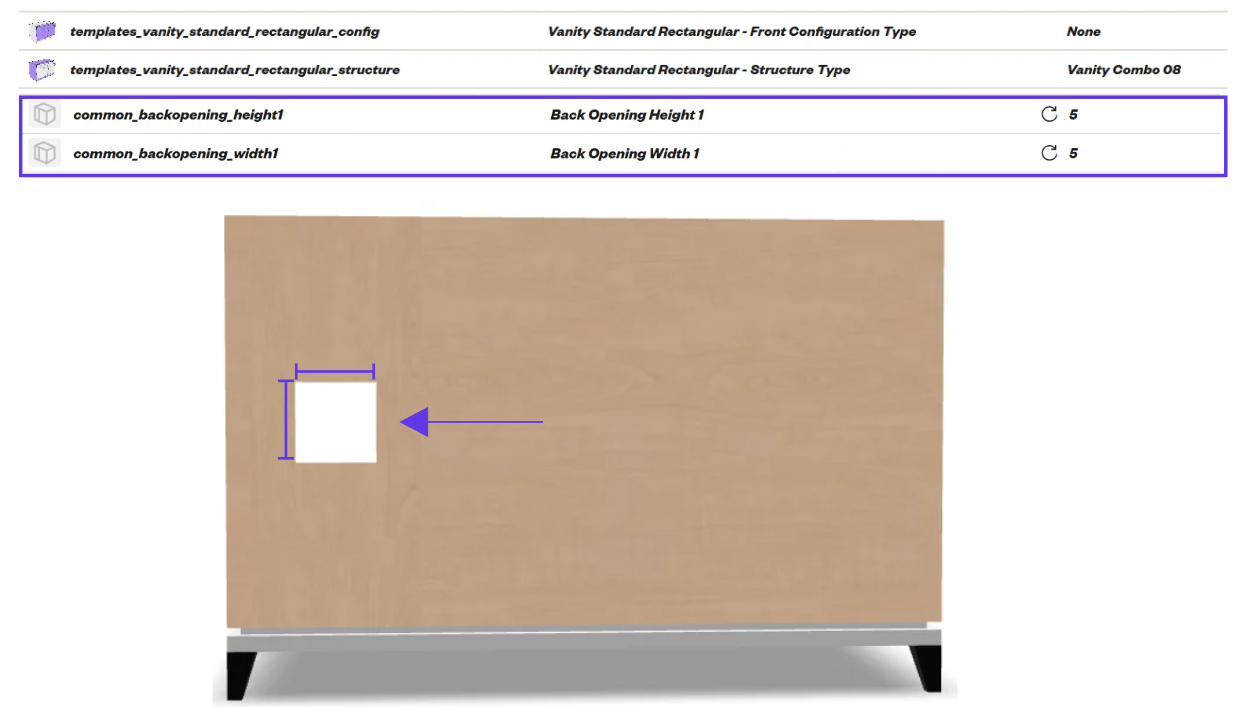

To edit the size of the back opening, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Dimensioning .

COMMON_BACKOPENING_HEIGHT1 = 5

COMMON_BACKOPENING_WIDTH1= 5

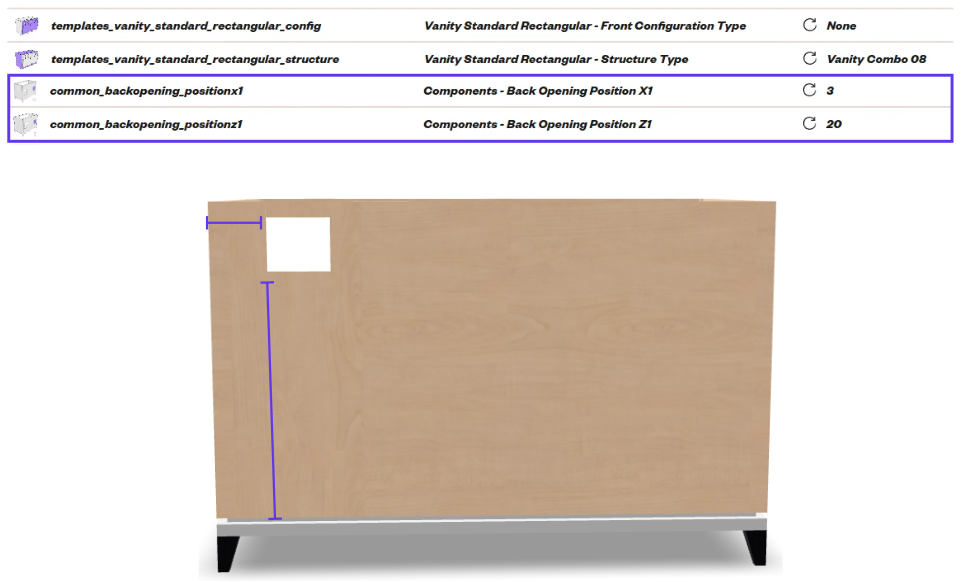

To edit the opening position, use the attributes listed below, you can find them and their respective values in the article Attributes: Item Configuration - Positioning .

COMMON_BACKOPENING_POSITIONX1 = 3

COMMON_BACKOPENING_POSITIONZ1 = 20

Note: If you have a configuration with more than one door, we have an attribute for each of them, used from left to right, from bottom to top, for example:

COMMON_BACKOPENING_POSITIONX1 until COMMON_BACKOPENING_POSITIONX2 and COMMON_BACKOPENING_POSITIONZ1 until COMMON_BACKOPENING_POSITIONZ2

Wood Hoods

Straight Wood Hood

To start creating your Wood Hood, you need to set the template attributes related to the desired structure. All model attributes related to the chosen structure with their proposed values, can be found at Attributes: Item Configuration - Style 3.

Inserting the structure and configuration into the template:

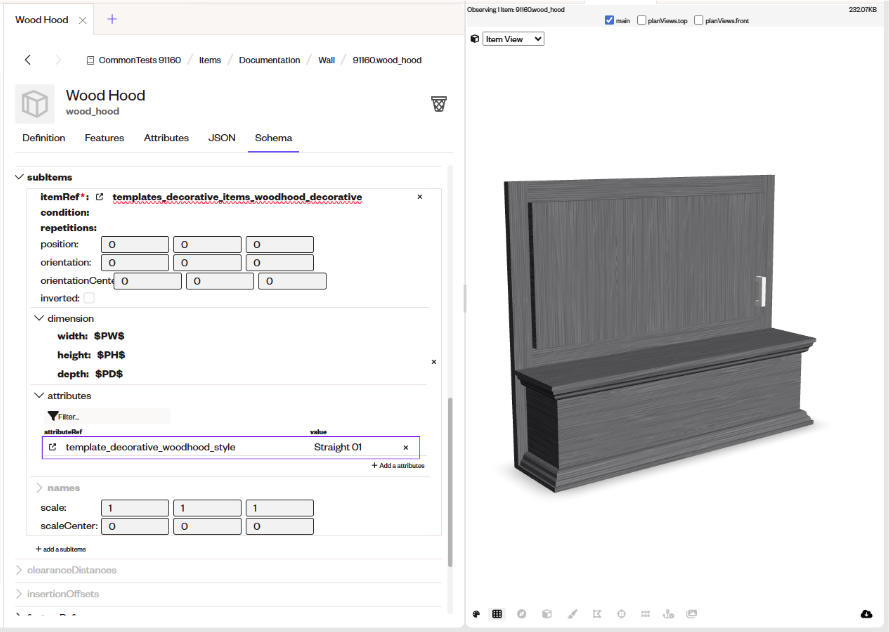

Example:

TEMPLATE_DECORATIVE_WOODHOOD_STYLE = Straight 01

Editing the Structure in more details:

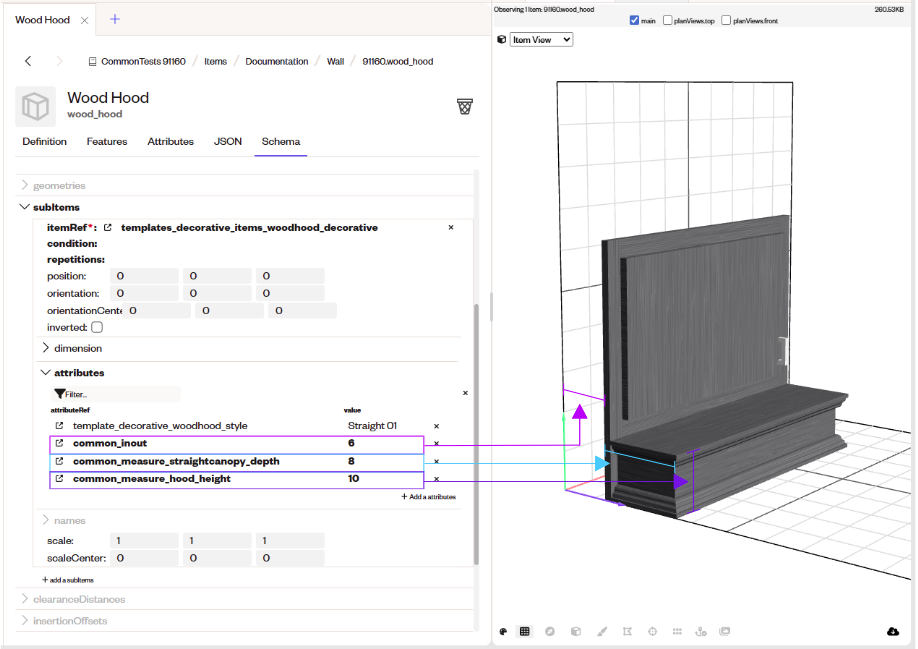

To edit the dimension, use the attributes listed below, you can find it in the article Attributes: Item Configuration - Dimensioning.

Example:

COMMON_MEASURE_HOOD_HEIGHT = 10

COMMON_MEASURE_STRAIGHTCANOPY_DEPTH = 8

COMMON_INPUT = 6

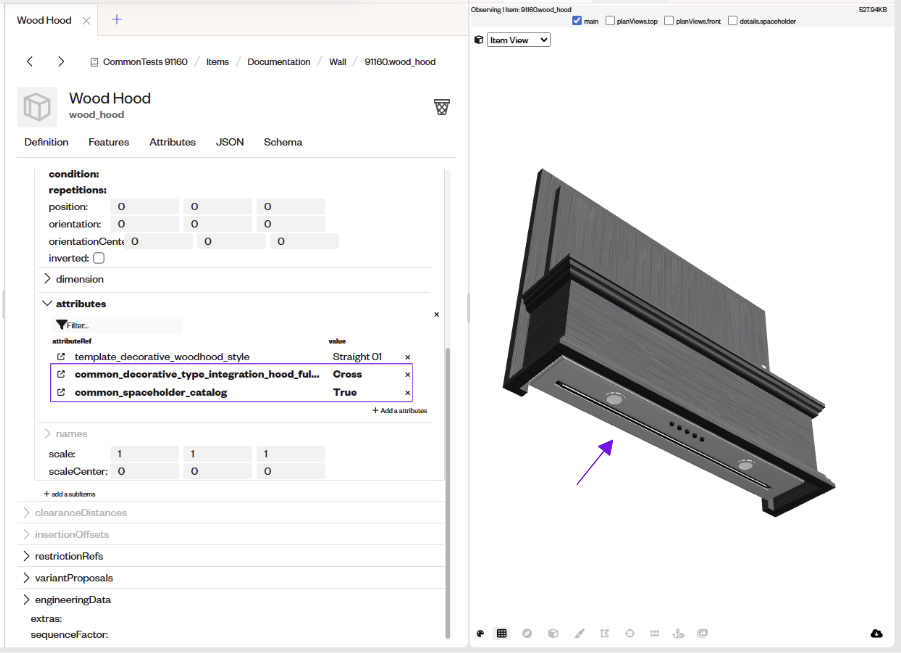

To add an appliance, use the attributes listed below, you can find them in the articles Attributes: Item Configuration - Cross Catalog and Attributes: System and General.

COMMON_DECORATIVE_TYPE_INTEGRATION_HOOD_FULLY_INTEGRATED = Cross

COMMON_SPACEHOLDER_CATALOG = True

Editing the Configuration in more details:

To edit the overlays, use the attributes listed below, you can find them in the article Attributes: Catalog.

Example:

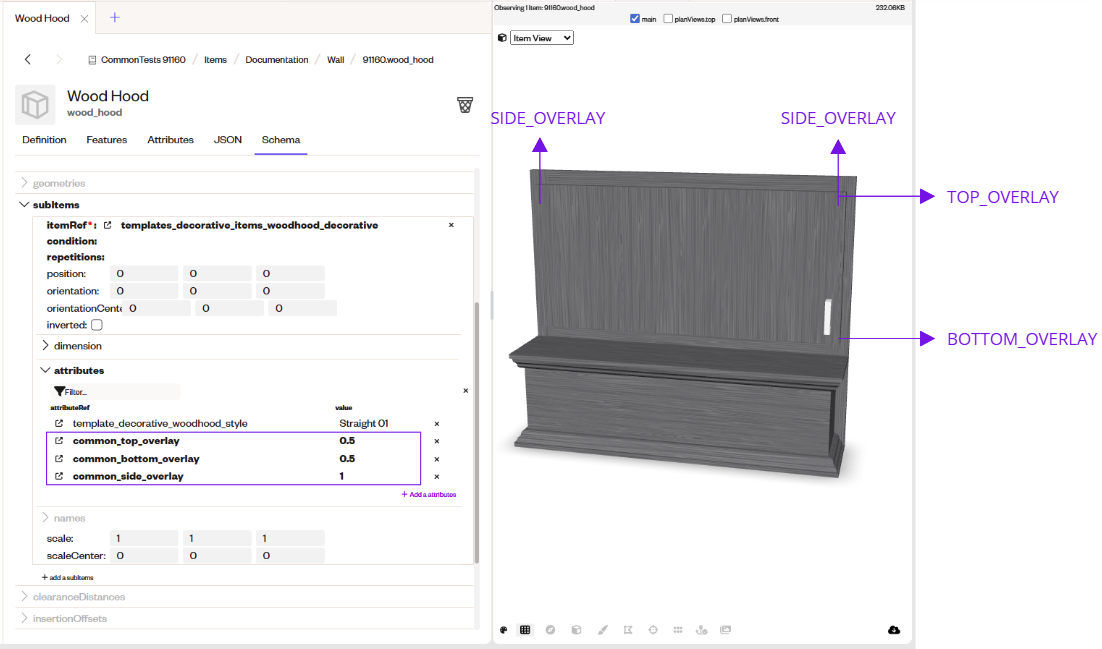

COMMON_TOP_OVERLAY = 0.5

COMMON_BOTTOM_OVERLAY = 0.5

COMMON_SIDE_OVERLAY = 1

Example of Doors:

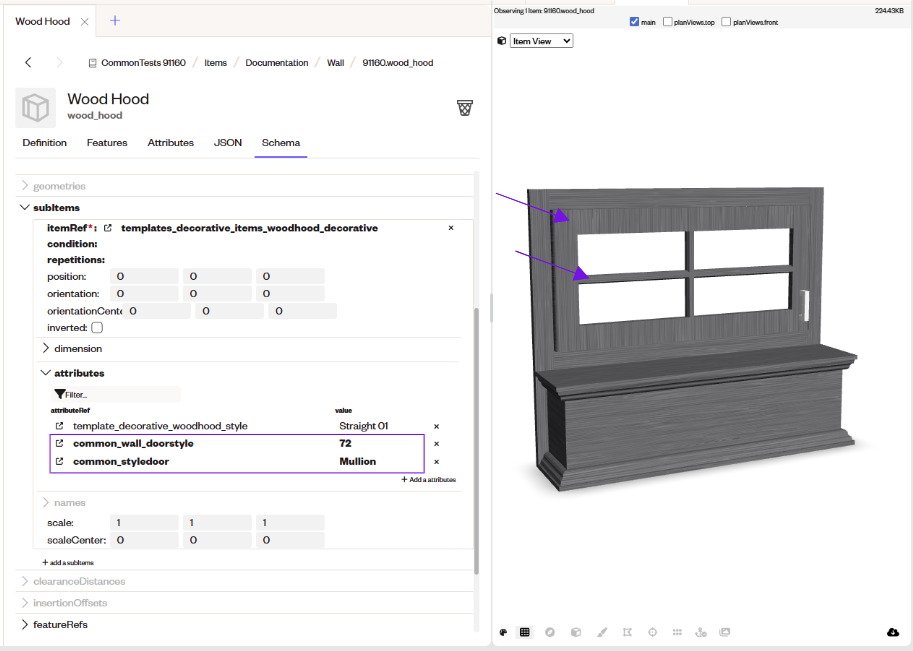

Example:

COMMON_WALL_DOORSTYLE = 72

COMMON_STYLEDOOR = Mulliom

COMMON_MEASURE_DIMENSIONS_STYLES_RAIL_HEIGHT = 2

COMMON_MEASURE_DIMENSIONS_STYLES_STILE_WIDTH = 3

COMMON_VDOOR_FRONT_ORIENTATION = Horizontal

Example:

COMMON_NUMFRONTDOOR1 = 2

COMMON_BUTTDOORS = True

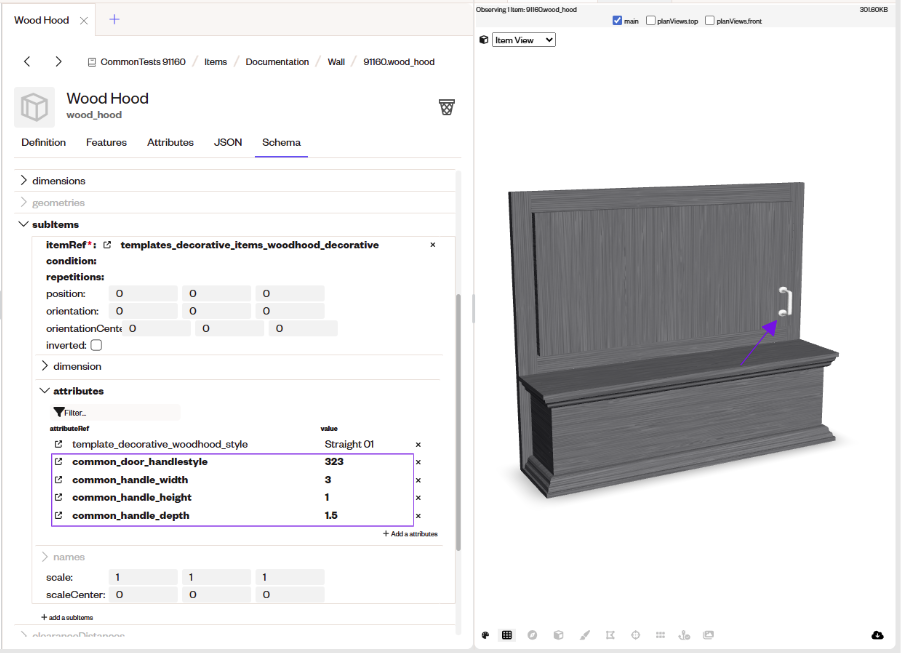

Example:

COMMON_DOOR_HANDLESTYLE = 323

COMMON_HANDLE_WIDTH = 3

COMMON_HANDLE_HEIGHT = 1

COMMON_HANDLE_DEPTH = 1.5

Range Wood Hood

Inserting the structure and configuration into the template:

Example:

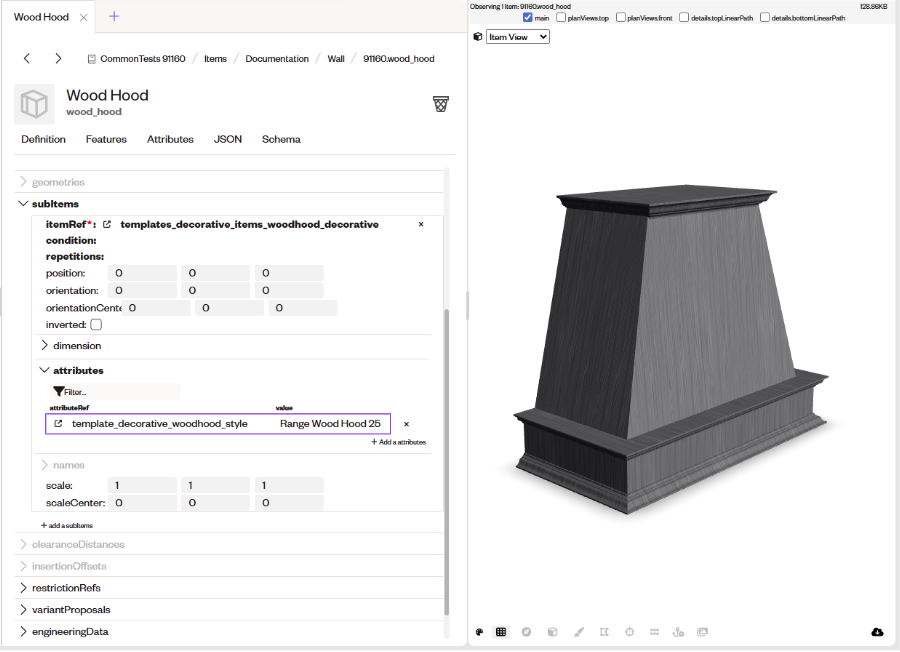

TEMPLATE_DECORATIVE_WOODHOOD_STYLE = Range Wood Hood 25

Editing the Structure in more details:

To edit the dimension, use the attributes listed below, you can find it in the article Attributes: Item Configuration - Dimensioning.

Example:

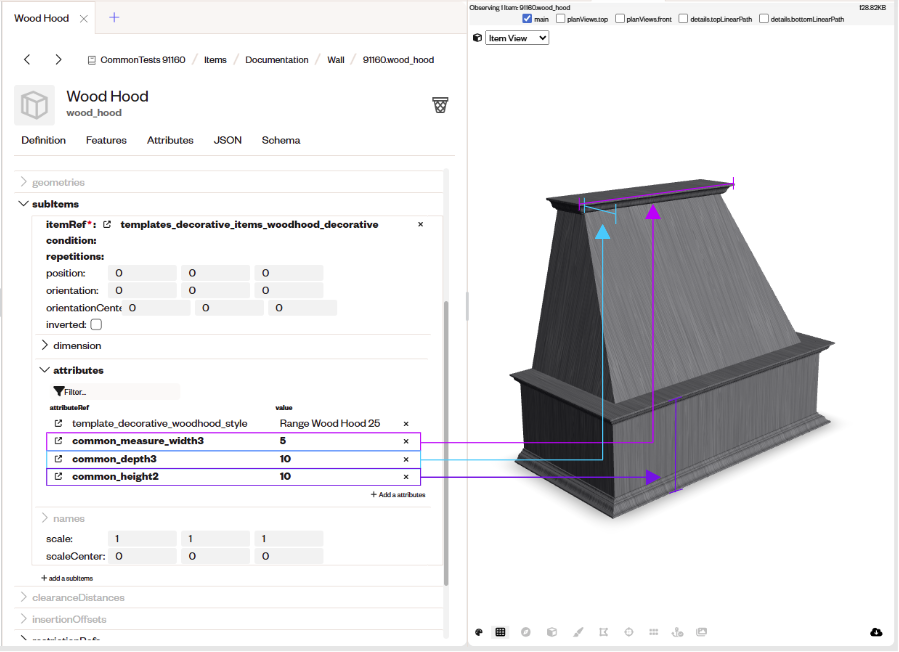

COMMON_MEASURE_WIDTH3 = 5

COMMON_DEPTH3 = 10

COMMON_HEIGHT2 =10

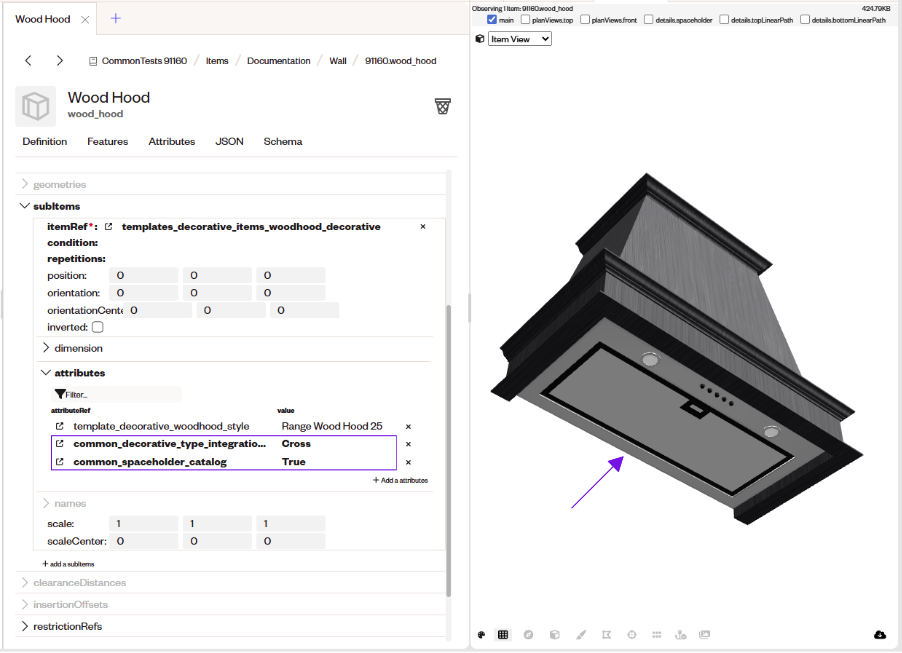

To add an appliance, use the attributes listed below, you can find them in the articles Attributes: Item Configuration - Cross Catalog and Attributes: System and General.

COMMON_DECORATIVE_TYPE_INTEGRATION_HOOD_FULLY_INTEGRATED = Cross

COMMON_SPACEHOLDER_CATALOG = True

Additional Items

In the library, you can add additional items to modules. Examples of available attachments are shown below. They are divided into Base, Wall, and Tall. These same features are available for the corner modules, they follow the same logic.

Base Standard

Adding Shelves into the template:

To add and edit the shelf template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Base and Mid Base, Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Visibility.

Example:

TEMPLATES_BASE_STANDARD_RECTANGULAR_SHELF = Apron Shelf

COMMON_SHELF_VISIBILITY = False

COMMON_SHELF_DEPTH = 10

Adding End Panel into the template:

To add and edit the end panel left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Base and Mid Base and Attributes: Item Configuration - Dimensioning.

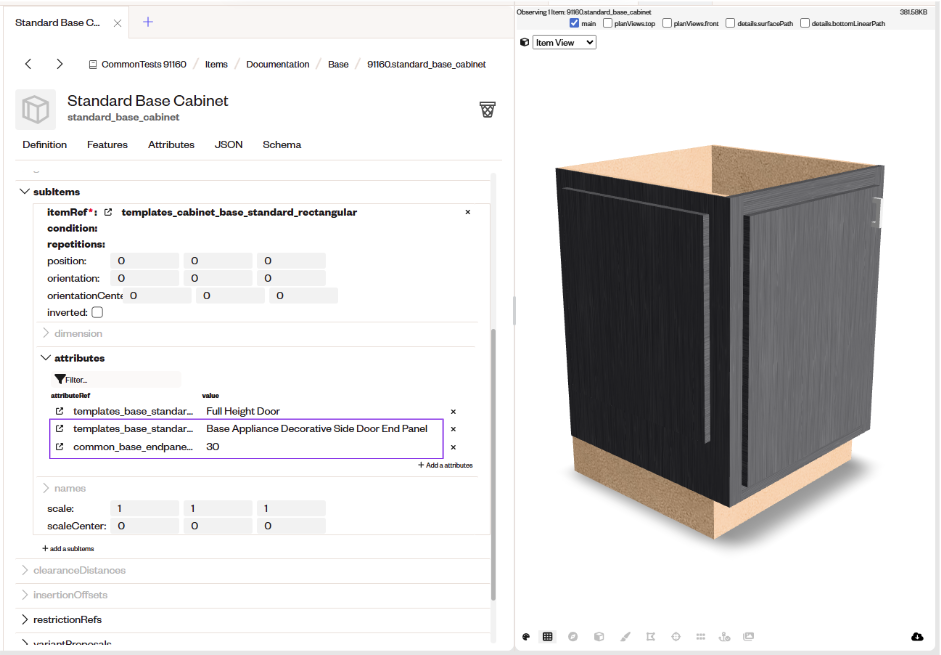

Example Left:

TEMPLATES_BASE_STANDARD_RECTANGULAR_ENDPANEL_L = Base Appliance Decorative Side Door End Panel

COMMON_BASE_ENDPANEL_HEIGHT_LEFT = 30

Example Right:

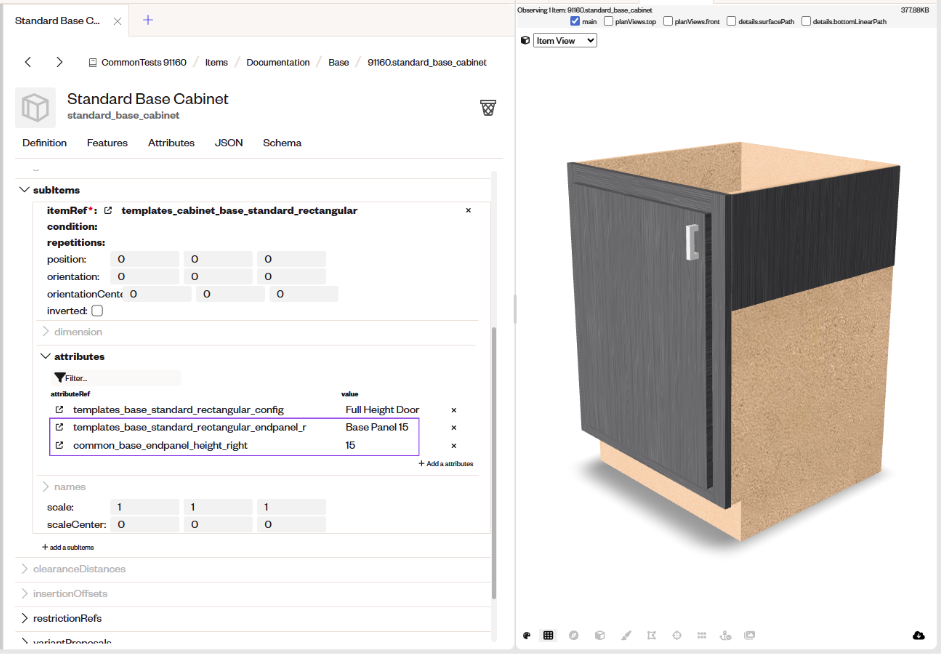

TEMPLATES_BASE_STANDARD_RECTANGULAR_ENDPANEL_R = Base Panel 15

COMMON_BASE_ENDPANEL_HEIGHT_RIGHT = 15

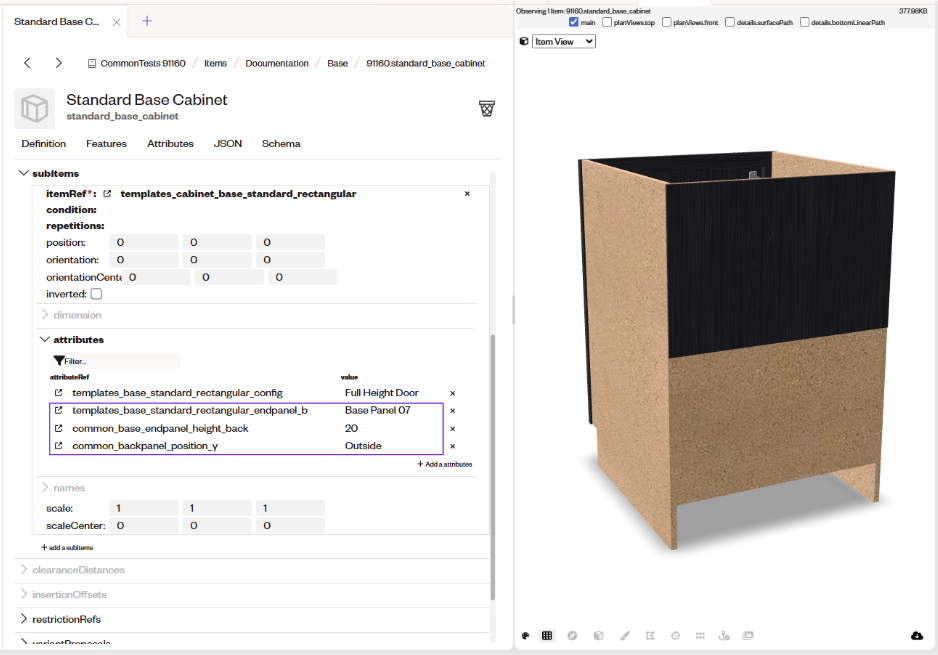

To add and edit the back end panel template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Base and Mid Base, Attributes: Item Configuration - Positioning and Attributes: Item Configuration - Dimensioning.

Example:

TEMPLATES_BASE_STANDARD_RECTANGULAR_ENDPANEL_B = Base Panel 07

COMMON_BASE_ENDPANEL_HEIGHT_BACK = 20

COMMON_BACKPANEL_POSITION_Y = Outside

Adding End Filler into the template:

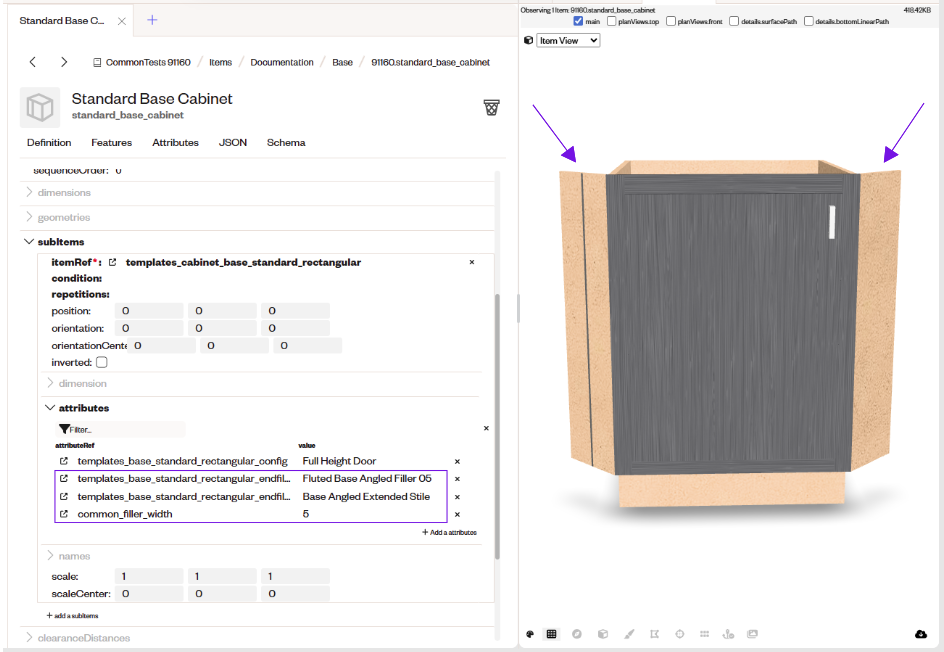

To add and edit the end filler left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Base and Mid Base and Attributes: Item Configuration - Dimensioning.

TEMPLATES_BASE_STANDARD_RECTANGULAR_ENDFILLER_L = Fluted Base Angled Filler 05

TEMPLATES_BASE_STANDARD_RECTANGULAR_ENDFILLER_R = Base Angled Extended Stile

COMMON_FILLER_WIDTH = 5

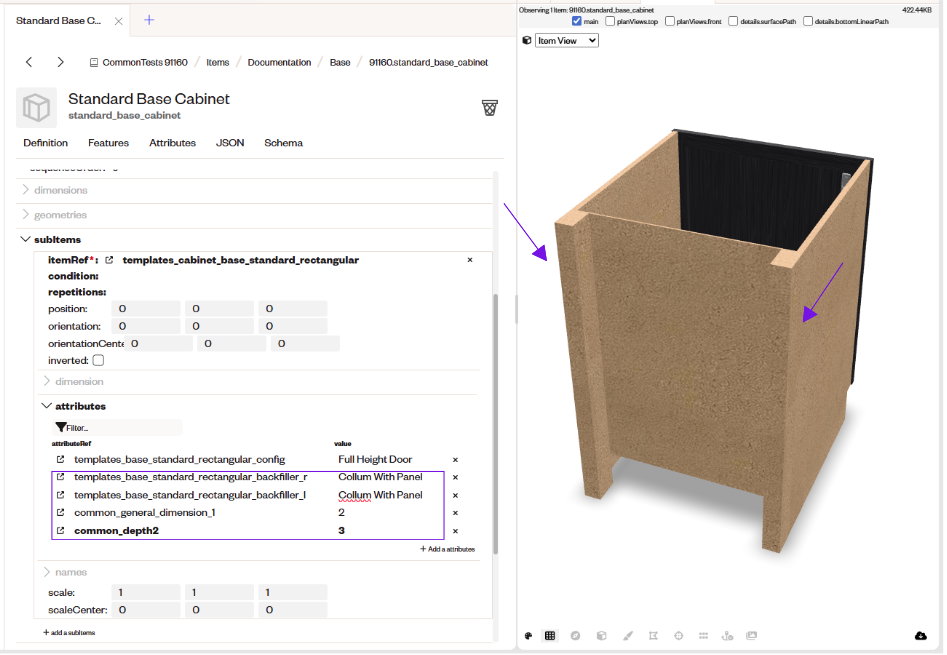

To add and edit the back end filler left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Base and Mid Base and Attributes: Item Configuration - Dimensioning.

TEMPLATES_BASE_STANDARD_RECTANGULAR_BACKFILLER_R = Collum With Panel

TEMPLATES_BASE_STANDARD_RECTANGULAR_BACKFILLER_L = Collum With Panel

COMMON_GENERAL_DIMENSION_1 = 2

COMMON_DEPTH2 = 3

Wall Standard

Adding Shelves into the template:

To add and edit the shelf template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Wall, Attributes: Item Configuration - Visibility and Attributes: Item Configuration - Dimensioning.

TEMPLATES_WALL_STANDARD_RECTANGULAR_SHELF = Shelf Wall Bookcase 2

TEMPLATES_WALL_STANDARD_RECTANGULAR_SHELF_02 = Bridge Shelf

COMMON_SECTION_2 = True

COMMON_SHELF_VISIBILITY = False

COMMON_SHELF_VISIBILITY_2 = False

COMMON_SHELF_DEPTH = 6

COMMON_SHELF_DEPTH_2 = 3

Adding End Panel into the template:

To add and edit the end panel left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Wall.

Example:

TEMPLATES_WALL_STANDARD_RECTANGULAR_ENDPANEL_L = Wall Decorative End Door

TEMPLATES_WALL_STANDARD_RECTANGULAR_ENDPANEL_R = Wall Panel 05

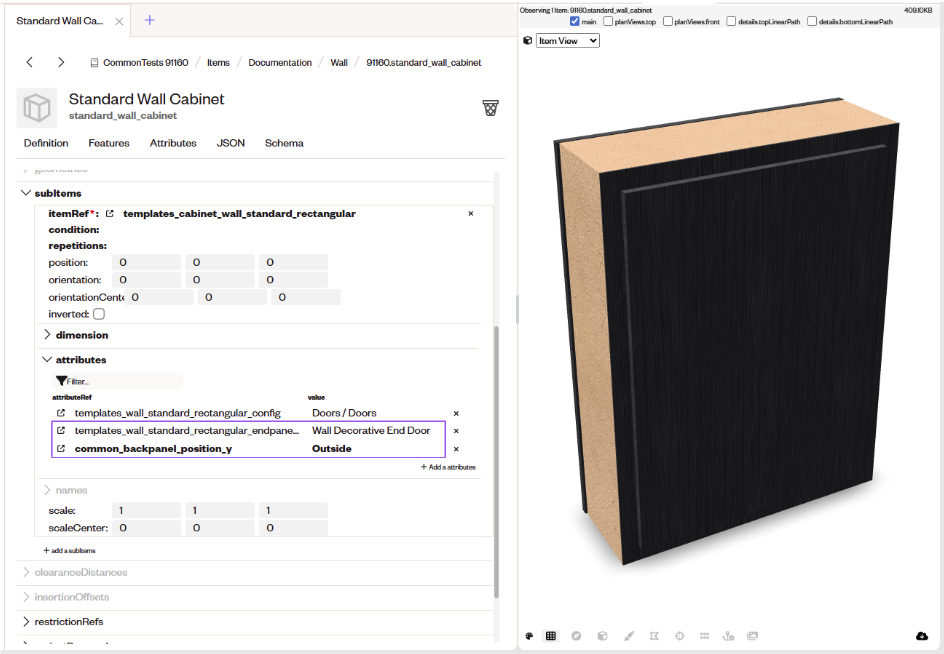

To add and edit the back end panel template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Wall and Attributes: Item Configuration - Positioning.

Example:

TEMPLATES_WALL_STANDARD_RECTANGULAR_ENDPANEL_B = Wall Decorative End Door

COMMON_BACKPANEL_POSITION_Y = Outside

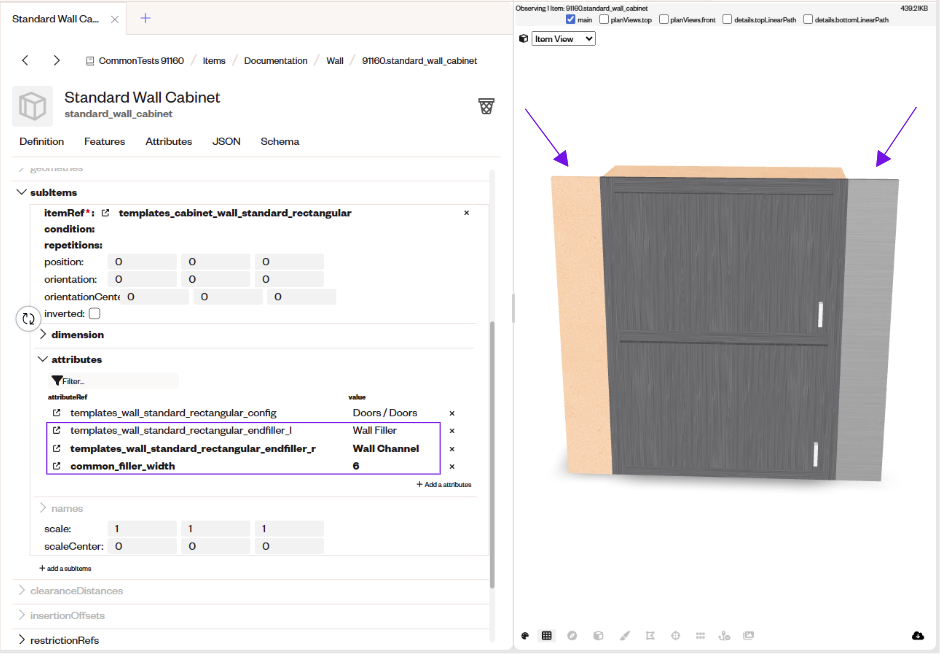

Adding End Filler into the template:

To add and edit the end filler left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Wall and Attributes: Item Configuration - Dimensioning.

TEMPLATES_BASE_STANDARD_RECTANGULAR_ENDFILLER_L = Fluted Base Angled Filler 05

TEMPLATES_BASE_STANDARD_RECTANGULAR_ENDFILLER_R = Base Angled Extended Stile

COMMON_FILLER_WIDTH = 5

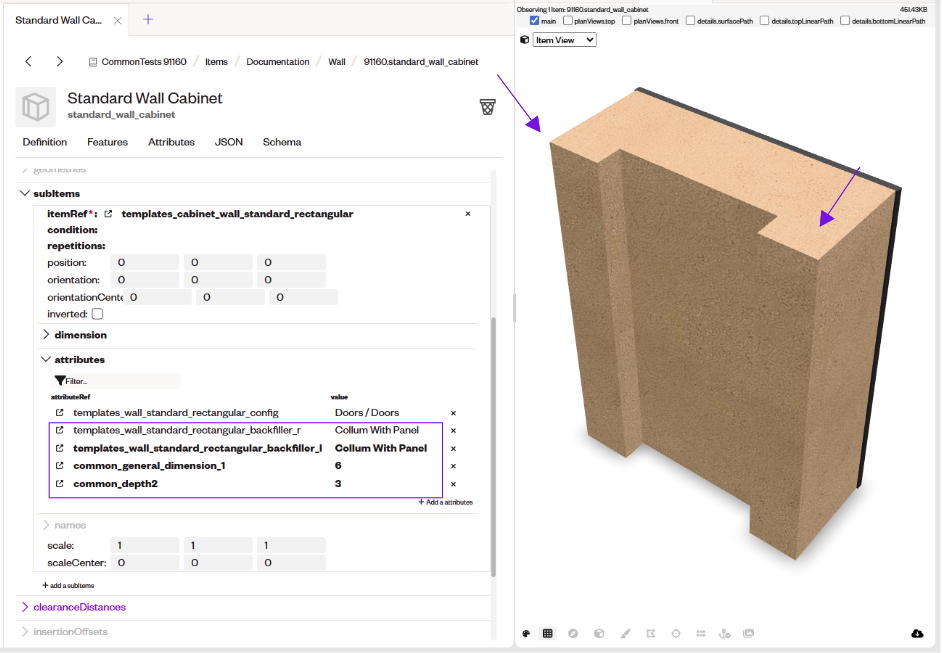

To add and edit the back end filler left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Wall and Attributes: Item Configuration - Dimensioning.

TEMPLATES_WALL_STANDARD_RECTANGULAR_BACKFILLER_R = Collum With Panel

TEMPLATES_WALL_STANDARD_RECTANGULAR_BACKFILLER_L = Collum With Panel

COMMON_GENERAL_DIMENSION_1 = 6

COMMON_DEPTH2 = 3

Tall Standard

Adding Shelves into the template:

To add and edit the shelf template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Tall, Attributes: Item Configuration - Dimensioning and Attributes: Item Configuration - Visibility.

Example:

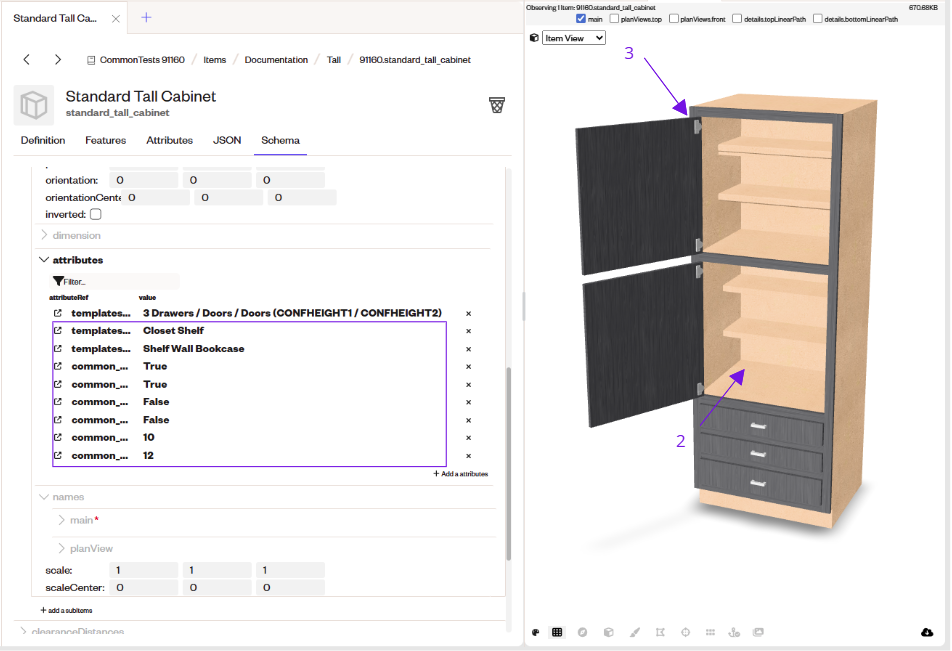

TEMPLATES_TALL_STANDARD_RECTANGULAR_SHELF_02 = Closet Shelf

TEMPLATES_TALL_STANDARD_RECTANGULAR_SHELF_03 = Shelf Wall Bookcase

COMMON_SECTION_2 = True

COMMON_SECTION_3 = True

COMMON_SHELF_VISIBILITY_2 = False

COMMON_SHELF_VISIBILITY_3 = False

COMMON_SHELF_DEPTH_2 = 10

COMMON_SHELF_DEPTH_2 = 12

Adding End Panel into the template:

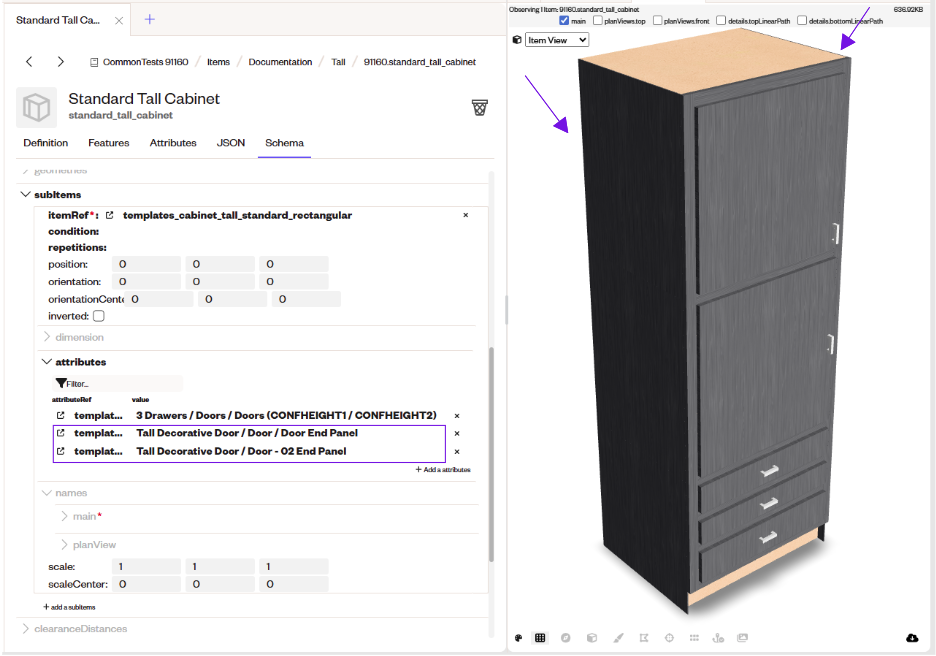

To add and edit the end panel left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Tall.

Example:

TEMPLATES_TALL_STANDARD_RECTANGULAR_ENDPANEL_L = Tall Decorative Door / Door / Door End Panel

TEMPLATES_TALL_STANDARD_RECTANGULAR_ENDPANEL_R = Tall Decorative Door / Door - 02 End Panel

To add and edit the back end panel template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Tall and Attributes: Item Configuration - Positioning.

Example:

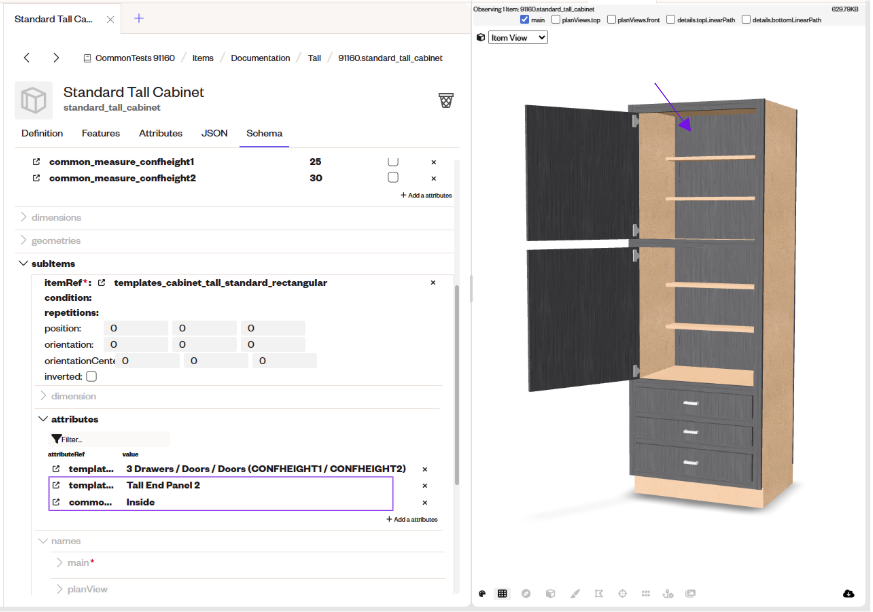

TEMPLATES_TALL_STANDARD_RECTANGULAR_ENDPANEL_B = Tall End Panel 2

COMMON_BACKPANEL_POSITION_Y = Inside

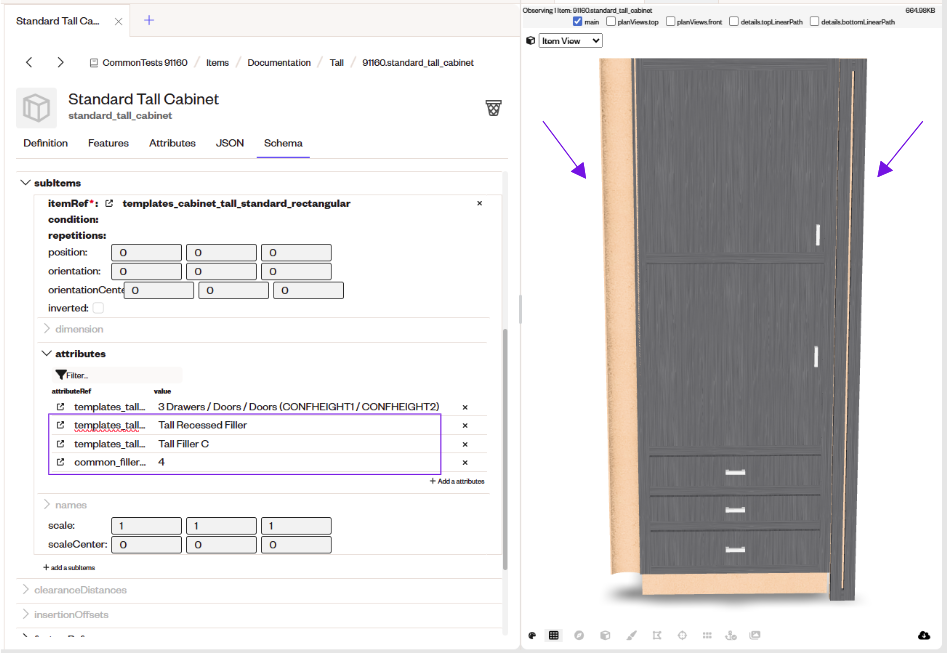

Adding End Filler into the template:

To add and edit the end filler left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Tall and Attributes: Item Configuration - Dimensioning.

TEMPLATES_TALL_STANDARD_RECTANGULAR_ENDFILLER_R= Tall Recessed Filler

TEMPLATES_TALL_STANDARD_RECTANGULAR_ENDFILLER_L = Tall Filler C

COMMON_FILLER_WIDTH = 4

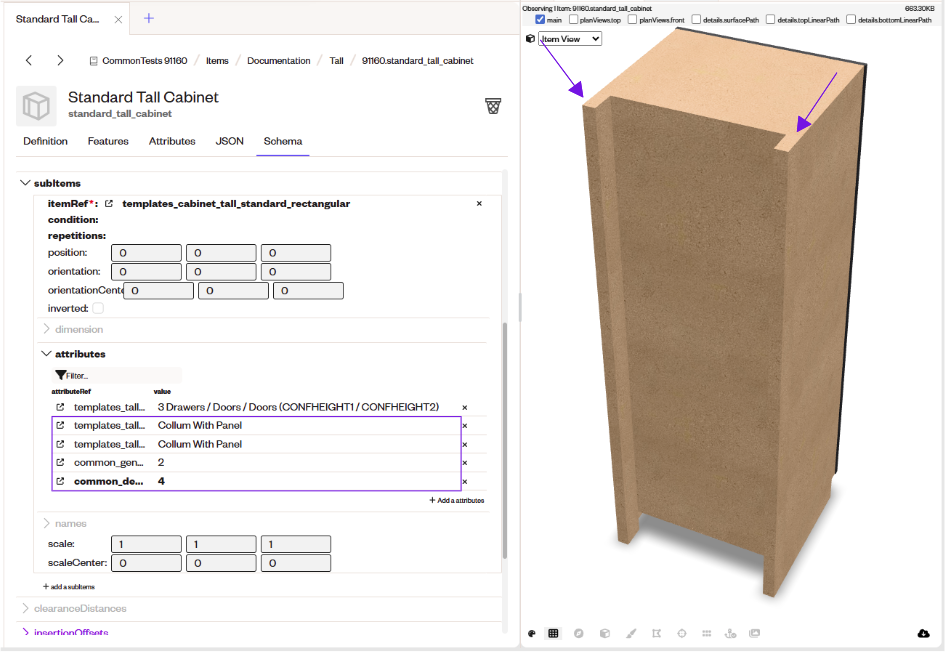

To add and edit the back end filler left and right template, use the attributes listed below, you can find them and their respective values in the articles Attributes: Item Construction - Cabinet Tall and Attributes: Item Configuration - Dimensioning.

TEMPLATES_TALL_STANDARD_RECTANGULAR_BACKFILLER_R = Collum With Panel

TEMPLATES_TALL_STANDARD_RECTANGULAR_BACKFILLER_L = Collum With Panel

COMMON_GENERAL_DIMENSION_1 = 2

COMMON_DEPTH2 = 4

General Finishes

In the library, you can edit layer finishes in a more generalized and also more specific way, that said, there are standard material attributes for items, which group several parts of a module, but there are also specific layers that can be used when necessary.

Layers and Finishes

To edit the layers, use the attribute listed below, you can find it and the respective values in the article Attributes: Item Layers .

Example:

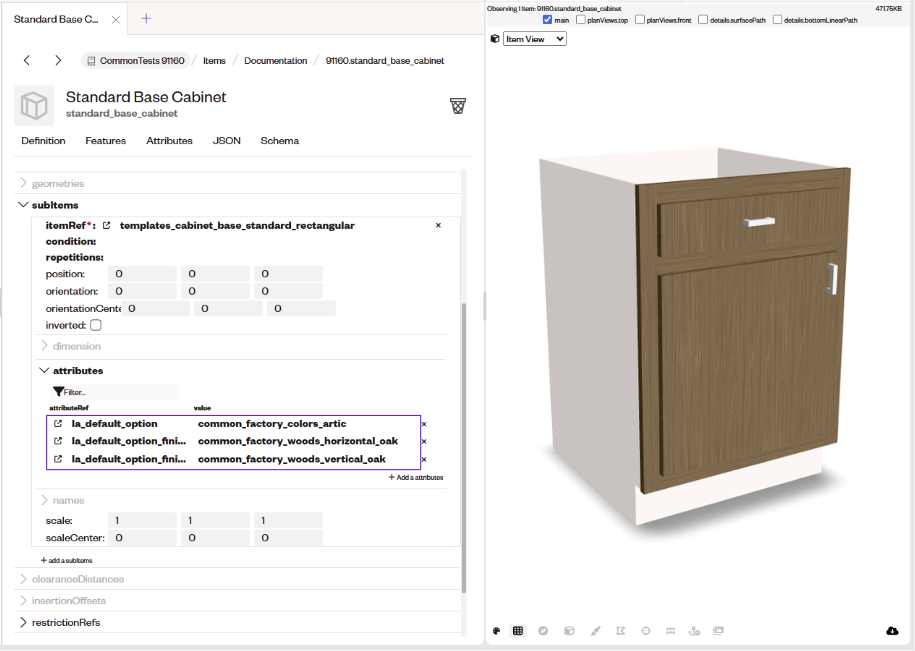

LA_DEFAULT_OPTION = common_factory_colors_artic

LA_DEFAULT_OPTION_FINISH = common_factory_woods_horizontal_oak

LA_DEFAULT_OPTION_FINISH_VERTICAL = common_factory_woods_vertical_oak

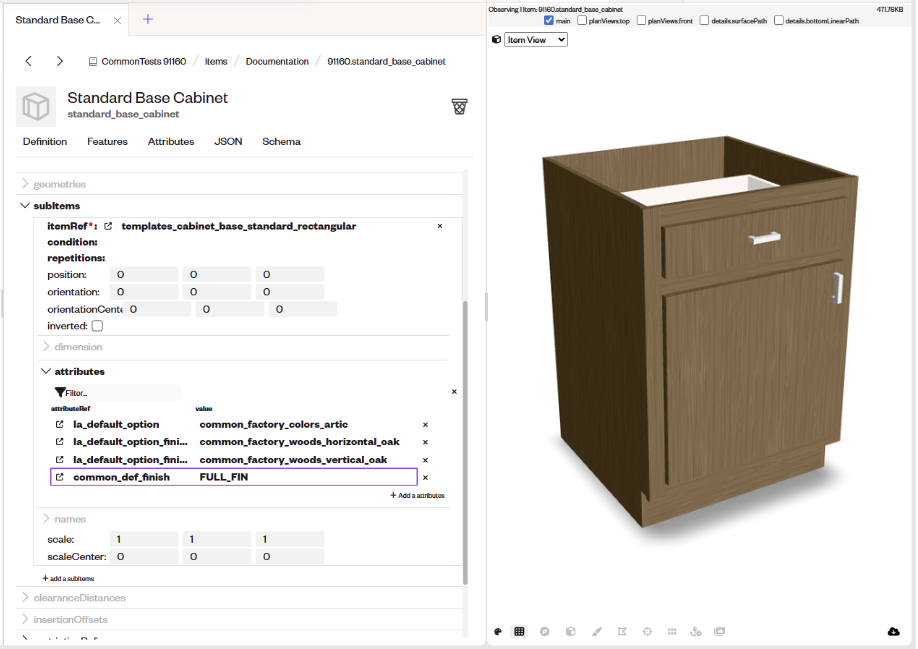

To edit the finish, use the attribute listed below, you can find it and the respective values in the article Attributes: Item Layers .

COMMON_DEF_FINISH = FULL_FIN

If you want to edit some specific parts besides the default layer, you must define these layers, as in the example below, the attributes are also available in the article Attributes: Item Layers .

Example:

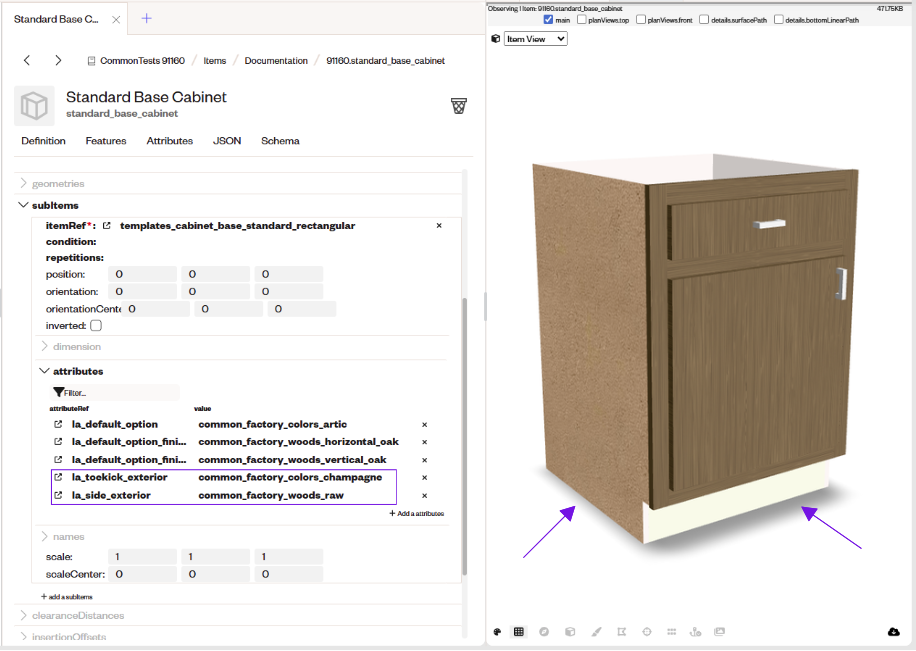

LA_TOEKICK_EXTERIOR = common_factory_colors_champagne

LA_SIDE_EXTERIOR = common_factory_woods_raw

Construction - Structures and configurations

Straight Wood Hood

Range Wood Hood

Additional Items

General Finishes

Related articles
