This article presents detailed examples illustrating the utilization of attributes when working with Blind Corners, both about Configurations and Structures, offering a comprehensive guide on how to effectively apply them.
Blind Corners

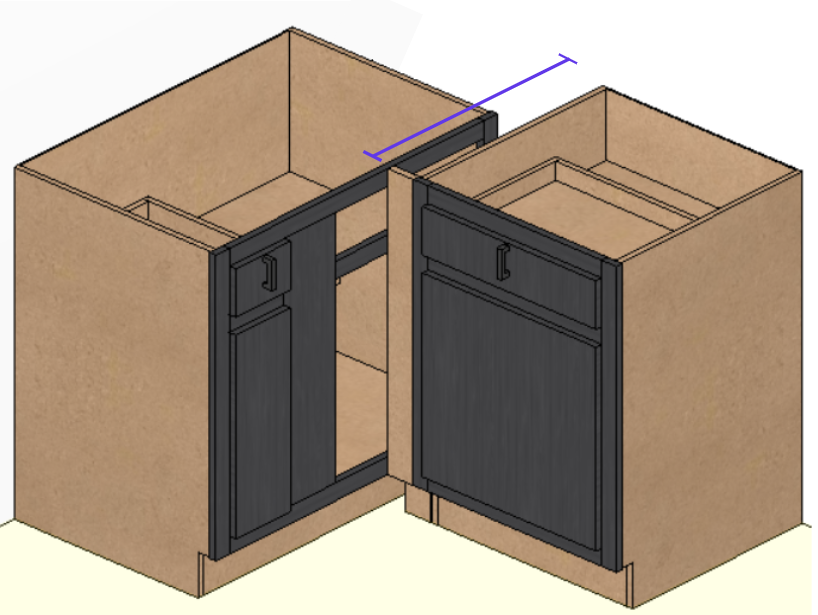

Configuration ID: common_configurations_framed_basecorner_blindcorner_doordrawer
| Attribute | Utility | Value |
|---|---|---|

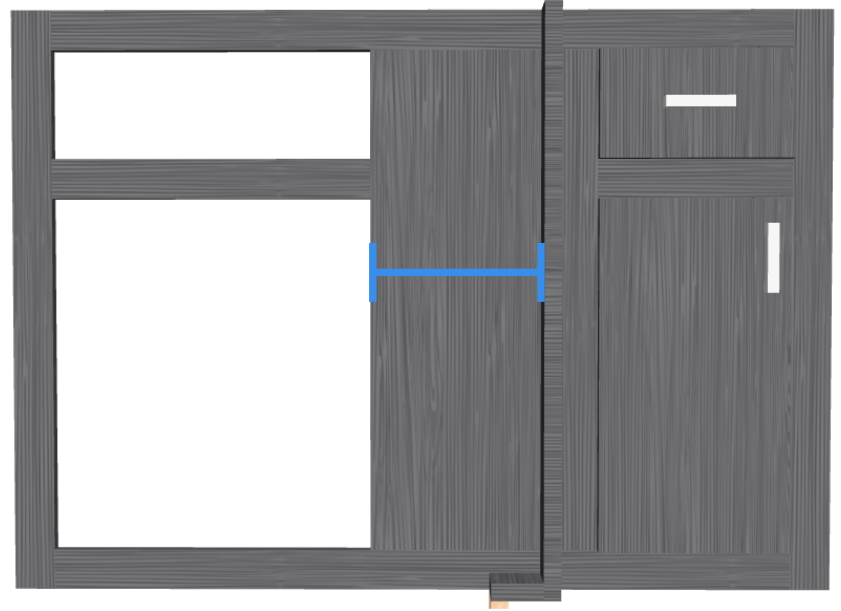

| COMMON_BLINDCORNER_STILE_WIDTH | Change the size of the blind panel | Numeric |
Configuration ID: common_configurations_framed_basecorner_blindcorner_doordrawer
| Attribute | Utility | Value |
|---|---|---|
| COMMON_FILLER | Change the visibility of the filler | True/False |
Configuration ID: common_configurations_framed_basecorner_blindcorner_doordrawer
| Attribute | Utility | Value |
|---|---|---|

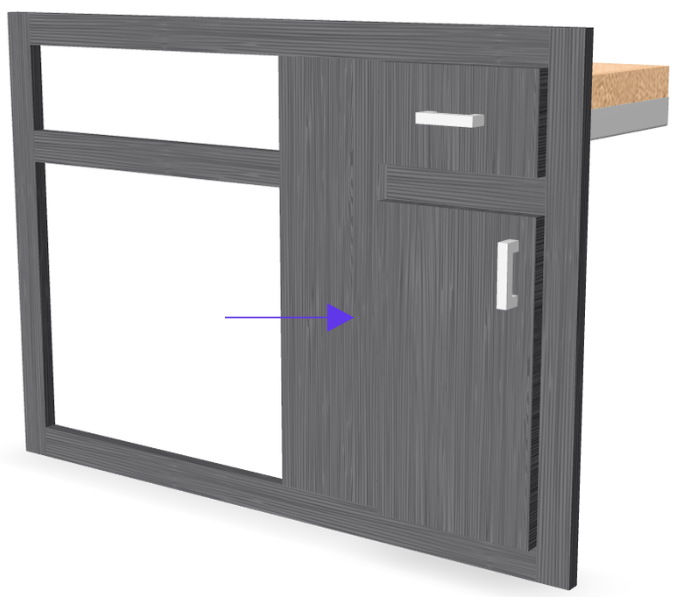

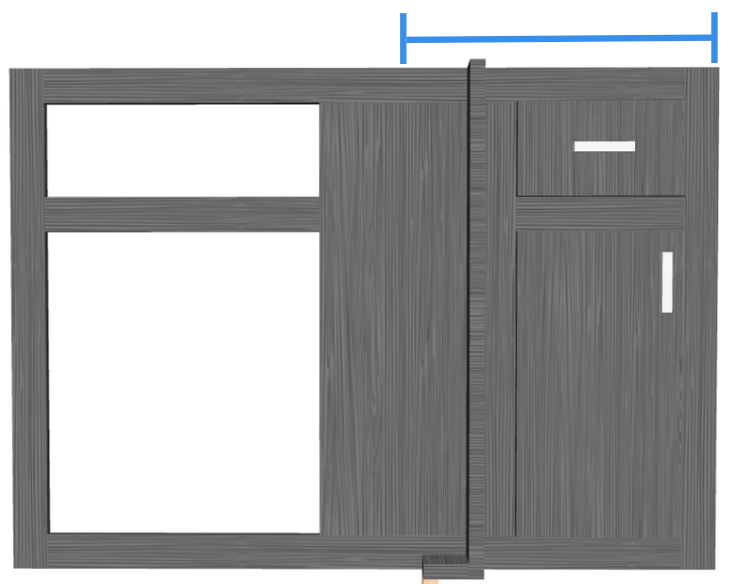

| COMMON_MEASURE_CONFWIDTH1 | Sets the size of the opening on which the door will be positioned + Left/Right Stile Width + Middle of Center Stile. | Numeric |
| Attribute | Utility | Value |
|---|---|---|

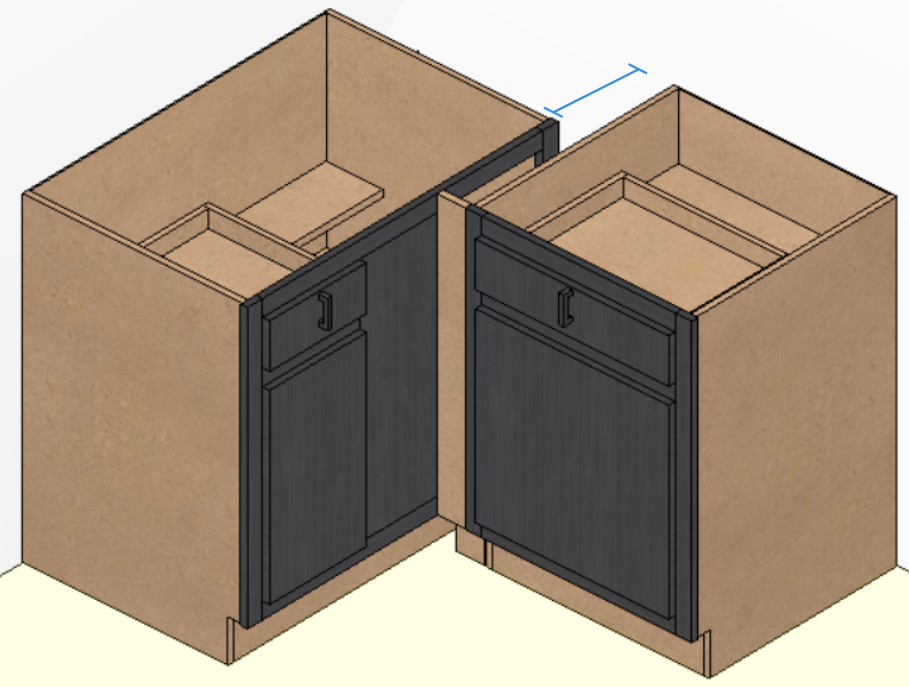

| COMMON_DIMENSION_DEPTH_ADJACENT | Distance between the wall and filler position. Usually, will be the depth of the adjacent cabinet. It doesn't consider the COMMON_DISTANCE_CLEARANCE or COMMON_DISTANCE_OFFSET on the value to be defined. | Numeric |
Note: Note that the front filler stays in the original position.
| Attribute | Utility | Value |
|---|---|---|

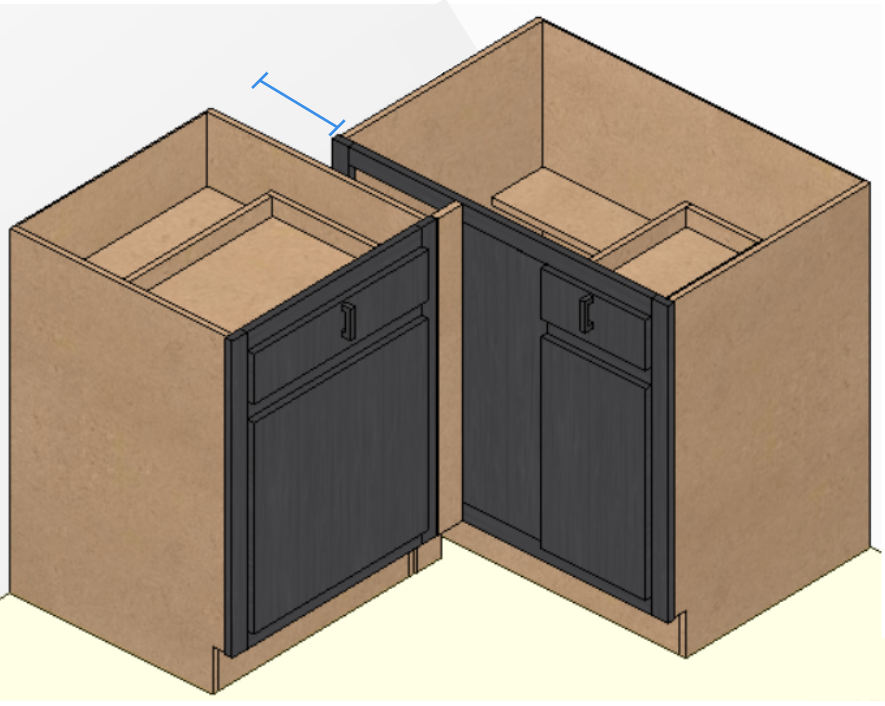

| COMMON_DISTANCE_CLEARANCE | Offset dimension from wall. This attribute won't change the size and filler position. | Numeric |
Note: This attribute is manly used by the "Pull" feature on 2020Design.
| Attribute | Utility | Value |
|---|---|---|
| COMMON_MINIMUM_BLINDPULL_BASE | Offset dimension from wall. This attribute change the item’s size but doesn't change the position of the filler. | Numeric |
Note: Note that the front filler stays in the original position and dimension.
| Attribute | Utility | Value |
|---|---|---|
| COMMON_DISTANCE_OFFSET | Offset dimension from wall. This attribute change the item’s size but doesn't change the position of the filler. | Numeric |
Note: Note that the front filler stays in the original position and dimension.
Additional Notes:
Blind corner configurations have three categories of attributes, listed below in this order:
- Resizing/activating items on configuration itself
- Offsetting the configuration from the sides
- Resizing the whole item
