Front Configuration
Standard
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

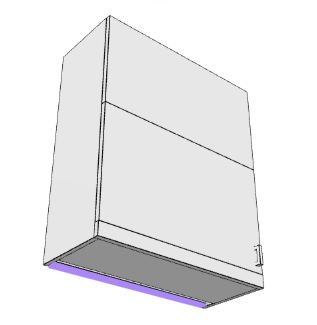

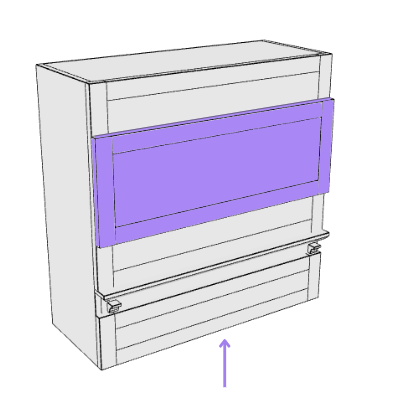

COMMON_BOTTOM_DOOR_CLEAR |
Standard - Clearance Bottom | Defines the bottom clearance of the door or drawer. | 0.0625 |
|

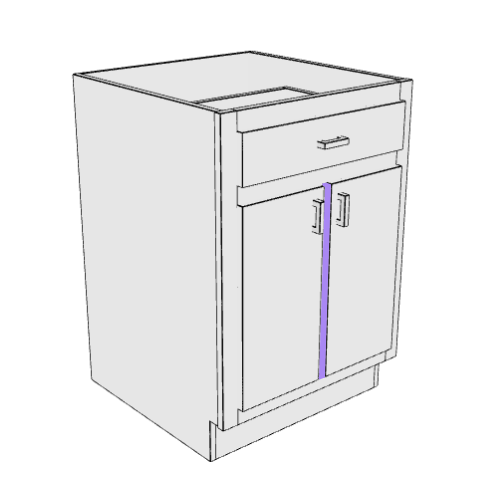

COMMON_CLEARANCE_BUTTDOOR |
Standard - Clearance Butt Door | Define the clearance between but doors. | 0.0625 |
|

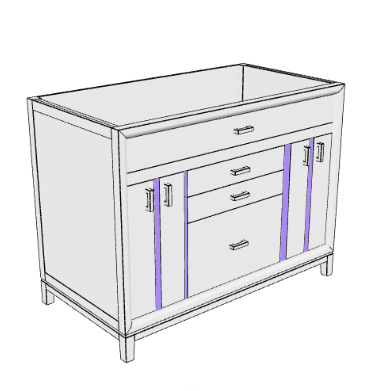

COMMON_CLEARANCE_FRAME |
Standard - Clearance Frame | Define the side clearance of frame. | 0.1875 |
|

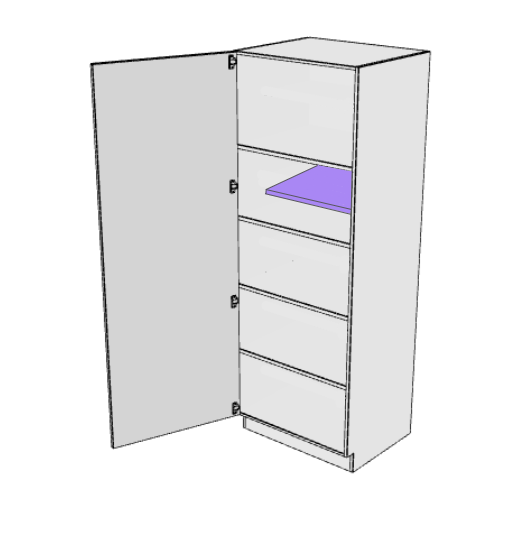

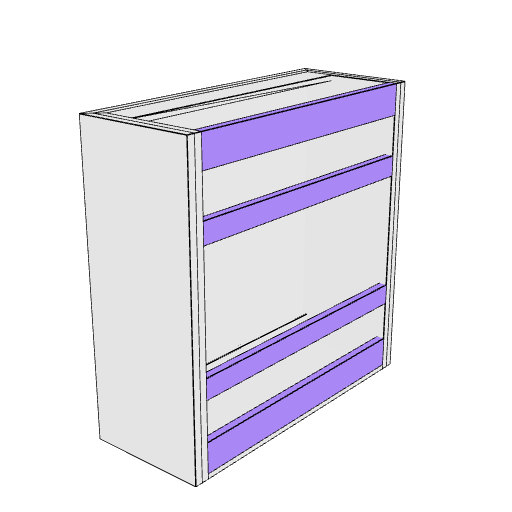

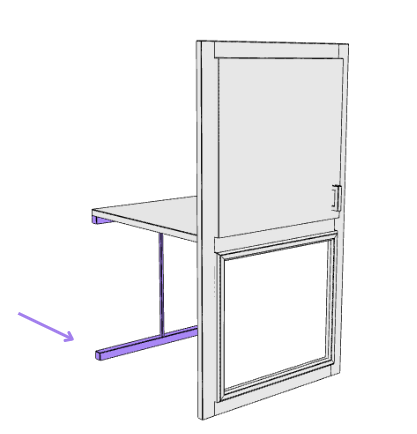

COMMON_CLEARANCE_FRONT_STRETCHER |
Standard - Clearance Front Stretcher | Define the clearance of front streatcher. | 0 |
|

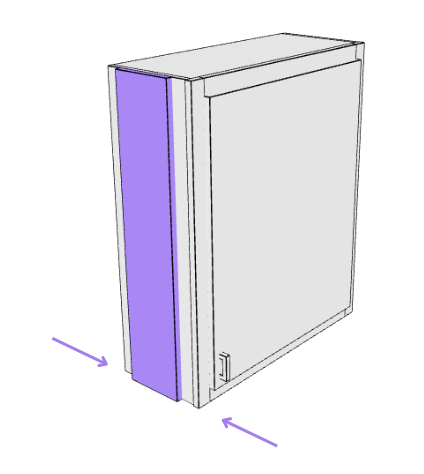

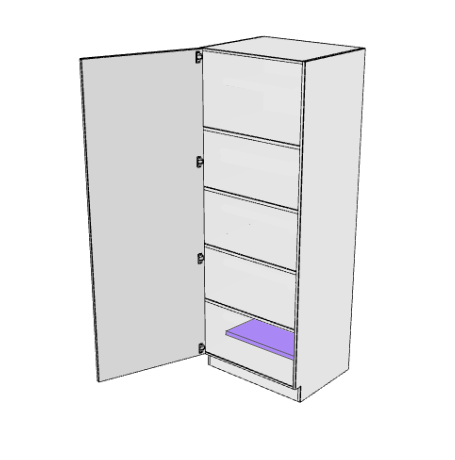

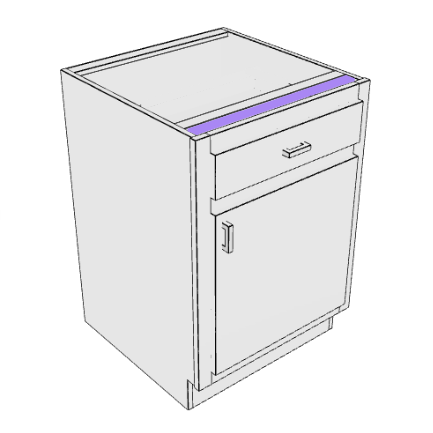

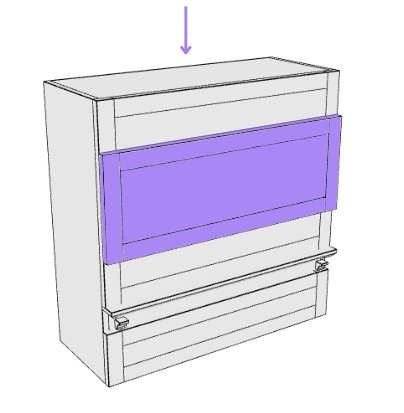

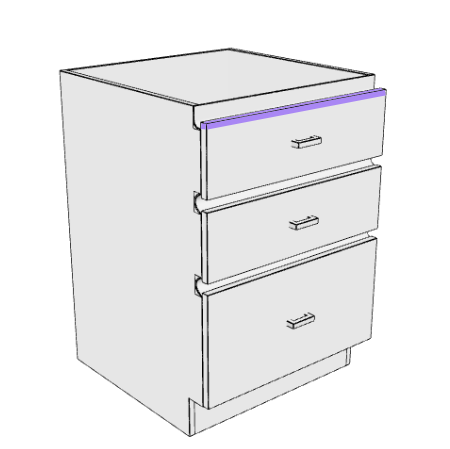

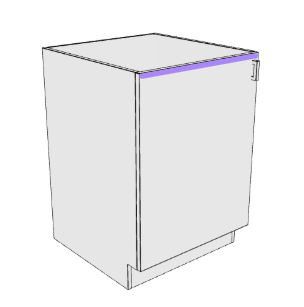

COMMON_TOP_DOOR_CLEAR |
Standard - Clearance Top | Defines the top clearance of the door or drawer. | 0.0625 |
|

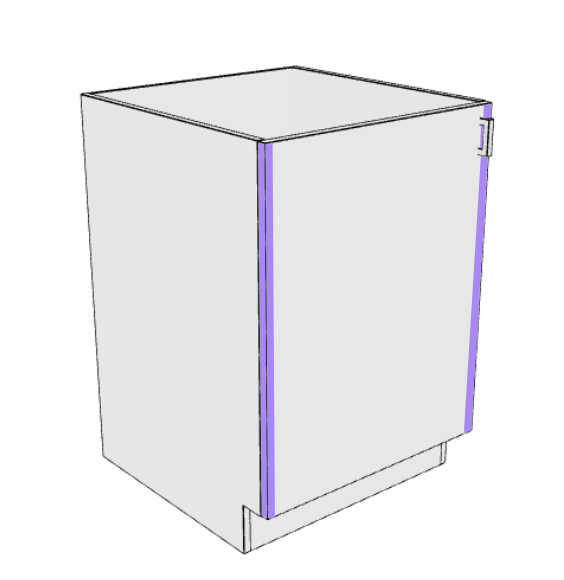

COMMON_SIDE_DOOR_CLEAR |
Standard - Clearance Side | Define the clearance side of door. | 0.0625 |
|

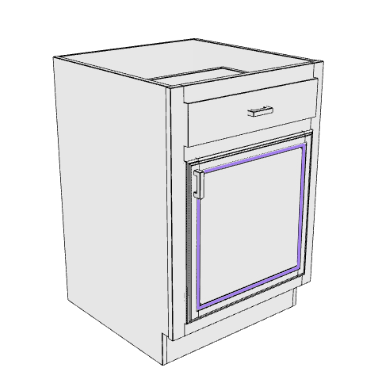

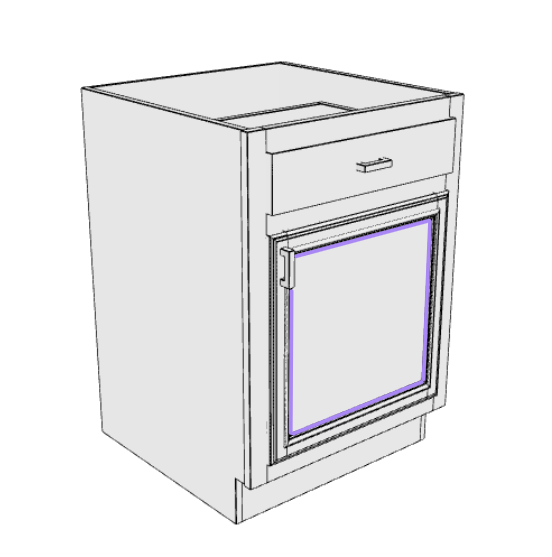

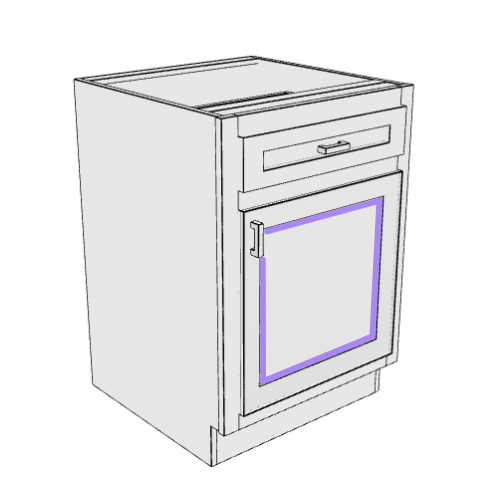

COMMON_CLEARANCE_BETWEEN_GLASS_EDGE |
Standard - Clearance Glass | Define the clearance between glass to edge. | 0.03 |
|

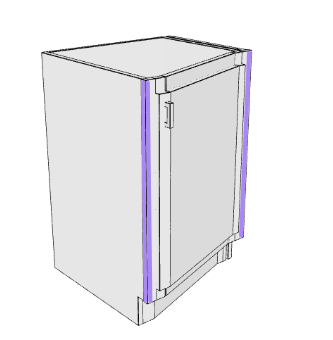

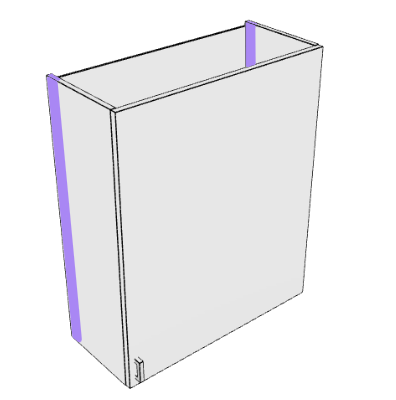

COMMON_CLEARANCE_FRAME_LEFT |
Standard - Clearance Frame Left | Define the clearance of frame left. | 0.1875 |
|

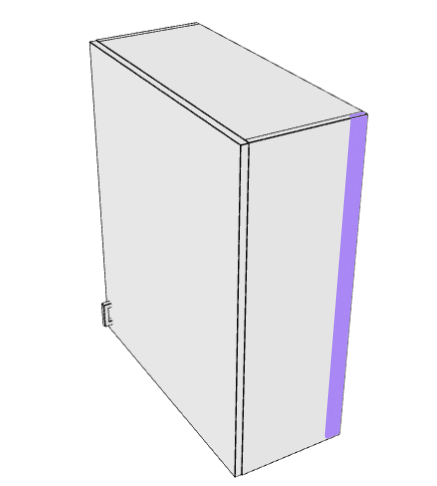

COMMON_CLEARANCE_FRAME_RIGHT |
Standard - Clearance Frame Right | Define the clearance of frame right. | 0.1875 |
|

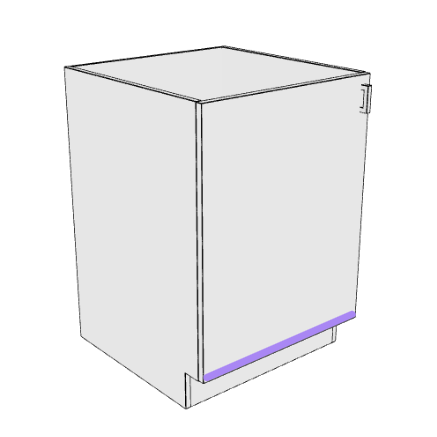

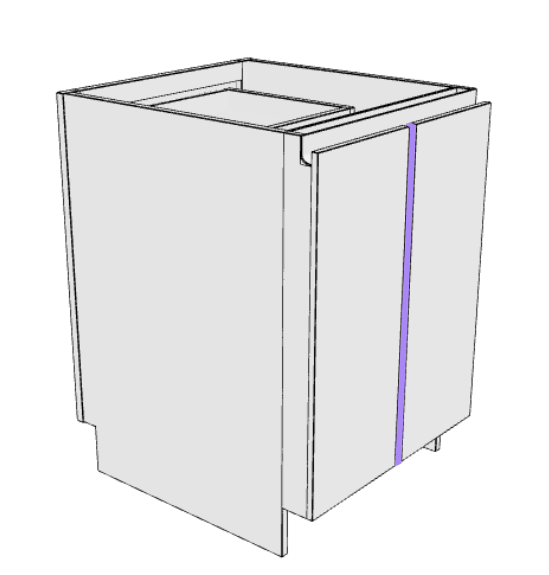

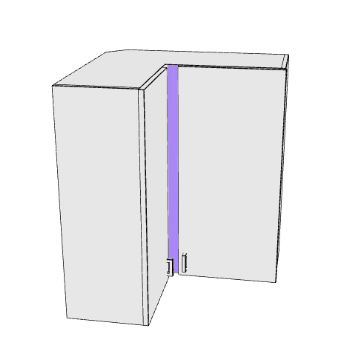

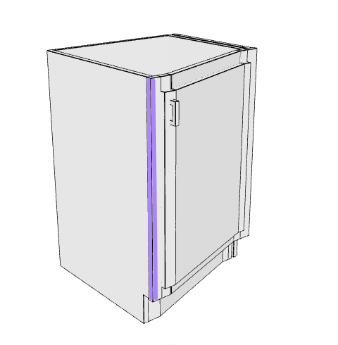

COMMON_CLEARANCE_SQUARECORNER_BETWEENDOORS |
Standard - Clearance Doors Square Corner | Define the clearance between doors of square corner. | 0.1 |
|

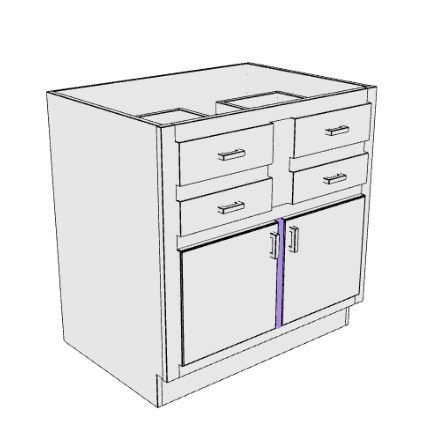

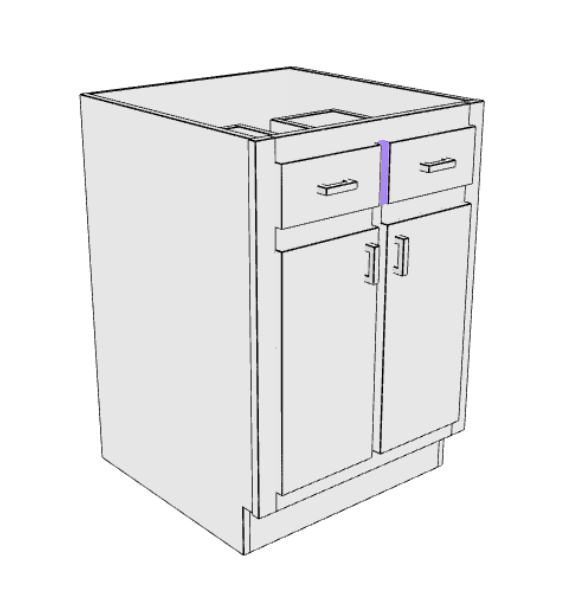

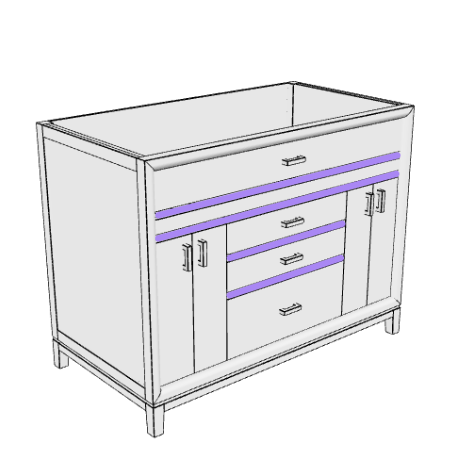

COMMON_MIDDLE_HORIZ_DOOR_CLEAR |
Standard - Clearance Middle Horizontal Door | Define the clearance between doors. | 0.0625 |
|

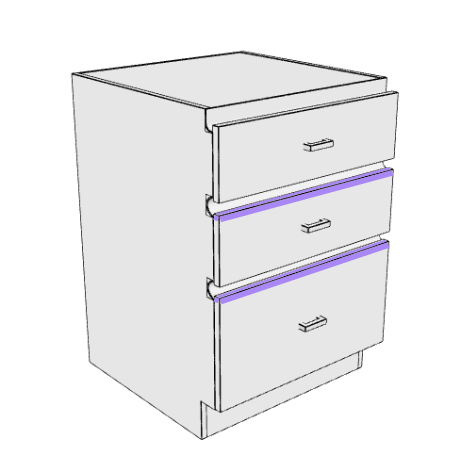

COMMON_MIDDLE_HORIZ_DRAWER_CLEAR |
Standard - Clearance Middle Horizontal Drawer | Define the clearance between horizontal drawers. | 0.0625 |
|

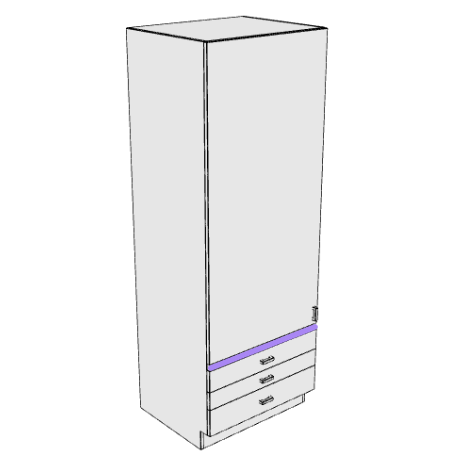

COMMON_MIDDLE_HORIZONTAL_DOOR_CLEAR |
Standard - Clearance Config Middle Horizontal | Define the clearance horizontal between the doors and drawers in all width of the configuration. | 0.0625 |
|
COMMON_MIDDLE_VERTICAL_DOOR_CLEAR |
Standard - Clearance Config Middle Vertical | Define the clearance vertical between the doors and drawers in all height of the configuration. | 0.0625 |
Doors 500
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_STYLE1 |
Doors 500 - Clearance Moulding Style 1 | Define the clearance of moulding style. | 0.2819 |
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_STYLE2 |
Doors 500 - Clearance Moulding Style 2 | Define the clearance of moulding style. | 0.2132 |
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_STYLE3 |
Doors 500 - Clearance Moulding Style 3 | Define the clearance of moulding style. | 0.0498 |
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_STYLE4 |
Doors 500 - Clearance Moulding Style 4 | Define the clearance of moulding style. | 0.0668 |
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_STYLE5 |
Doors 500 - Clearance Moulding Style 5 | Define the clearance of moulding style. | 0 |
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_STYLE6 |
Doors 500 - Clearance Moulding Style 6 | Define the clearance of moulding style. | 0.1437 |
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_SUP_ANGLE_STYLE7 |
Doors 500 - Clearance Moulding Sup Style 7 | Define the clearance of superior moulding style. | 0.1368 |
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_SUP_ANGLE_STYLE8 |
Doors 500 - Clearance Moulding Sup Style 8 | Define the clearance of superior moulding style. | 0.1368 |
|
COMMON_CLEARANCE_PARTS_DOORS500_MOULDING_SUP_ANGLE_STYLE9 |
Doors 500 - Clearance Moulding Sup Style 9 | Define the clearance of superior moulding style. | 0.1368 |
Custom Config
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|
COMMON_MIDDLE_VERTICAL_CONFIG_CLEAR |
Standard - Clearance Custom Config Middle Vertical | Define the clearance between the styles of custom configuration on vertical. | 0.0625 |
J/C
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|
COMMON_J_MOLDING_CLEAR |
J/C - Clearance J Molding 01 | Define the overlap size on handle J. | 1.25 |
|
COMMON_C_MOLDING_CLEAR |
J/C - Clearance C Molding | Define the overlap size on handle C. | 1.25 |
Structure
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

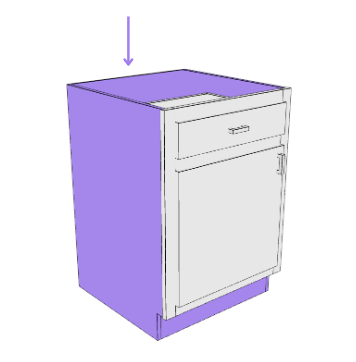

COMMON_STRUCTURE_CLEARANCE_ABOVE |
Structure - Clearance Above | Defines the top clearance of the structure on Z axis. | 0 |
|

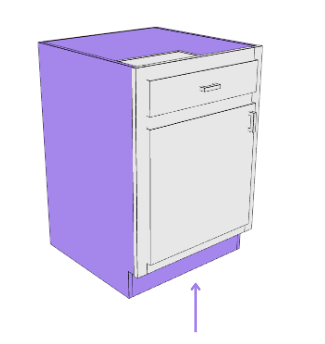

COMMON_STRUCTURE_CLEARANCE_BELOW |
Structure - Clearance Below | Defines the bottom clearance of the structure on Z axis. | 0 |
|

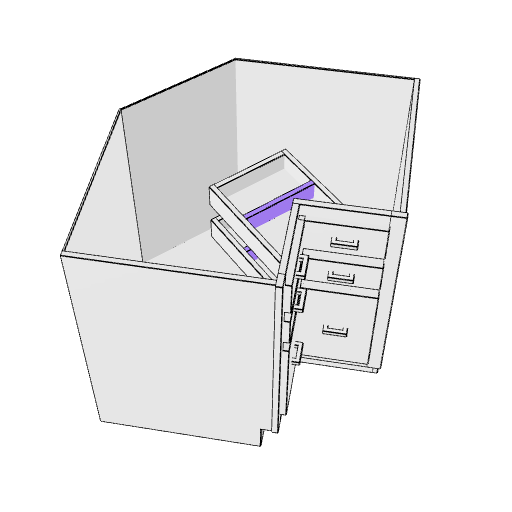

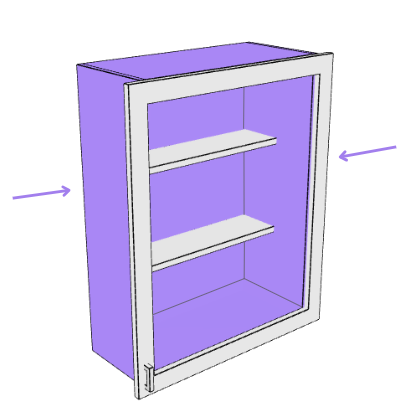

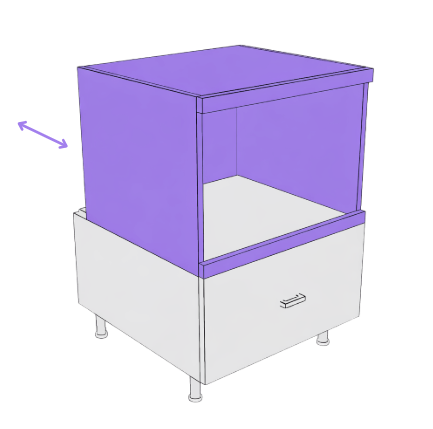

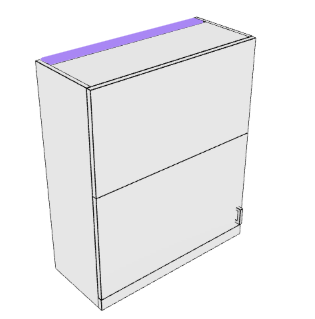

COMMON_CLEARANCE_BACK |
Structure - Clearance Back | Define the clearance of back panel. | 0 |
|
COMMON_CLEARANCE_BACK_WALL |
Structure - Distance From Back Wall | Define the final clearance dimension from wall on back. | 0 |
| COMMON_CLEARANCE_WALL_BLINDOPENING | Structure - Wall Blind Opening | Define the clearance on width. | 5.5 |
| COMMON_CLEARANCE_BASE_BLINDOPENING | Structure - Base Blind Opening | Define the clearance on width. | 8.5 |
|

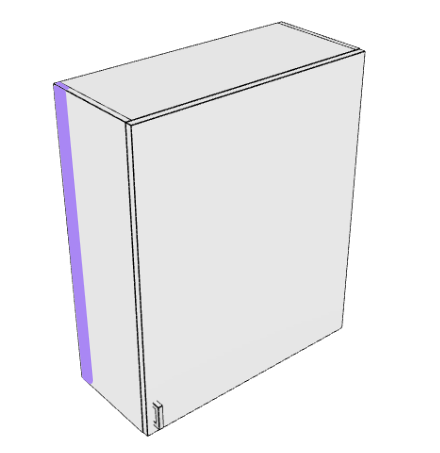

COMMON_DISTANCE_CLEARANCE |
Structure - Distance From Side Wall | Define the final clearance dimension from wall on side. | 0 |
|
COMMON_CLEARANCE_BACK_BASE |
Structure - Clearance Back Base | Define the final clearance dimension from wall on second height. | 0 |
|

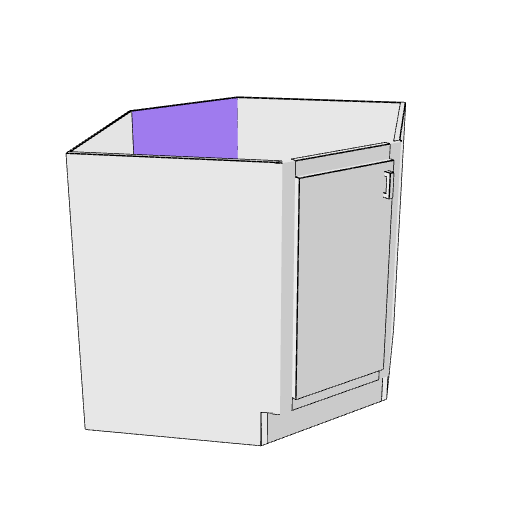

COMMON_CLEARANCE_BASE_DIAGONALCORNER_BACK |
Structure - Clearance Back Base Corner Diagonal | Define the back clearance of base corner diagonal. | 12 |
|

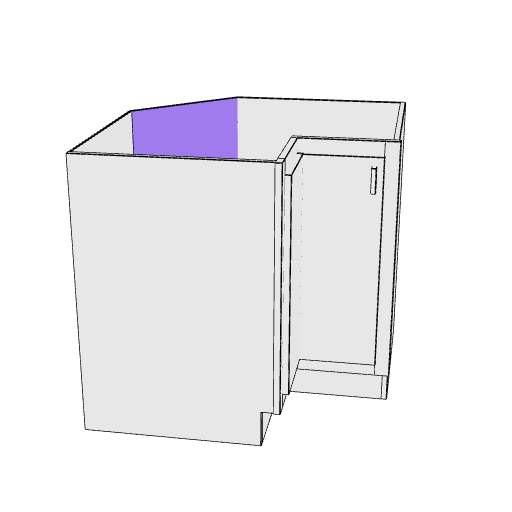

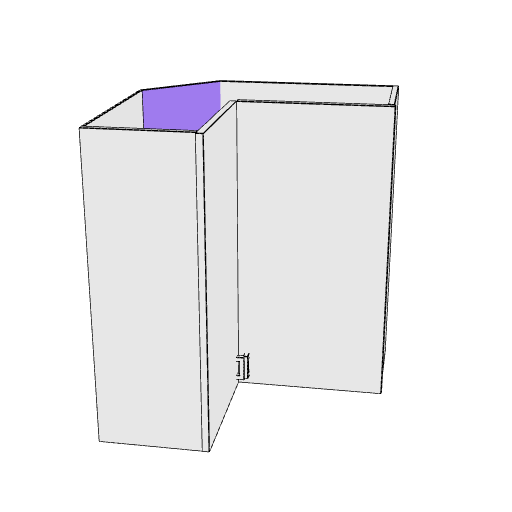

COMMON_CLEARANCE_BASE_SQUARECORNER_BACK |
Structure - Clearance Back Base Corner Square | Define the back clearance of base corner square. | 12 |
|

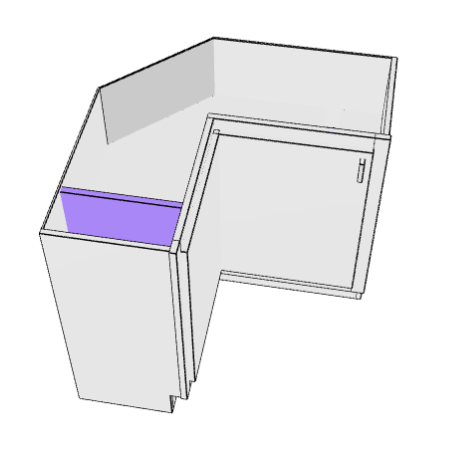

COMMON_CLEARANCE_CORNER_BACK |
Structure - Clearance Back Corner | Define the back clearance of corner. | 12 |
|

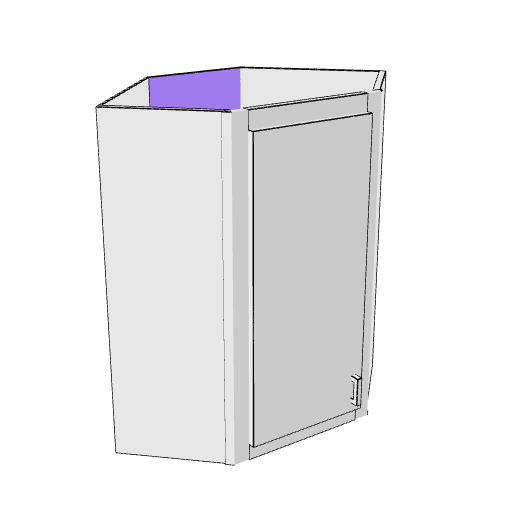

COMMON_CLEARANCE_WALL_DIAGONALCORNER_BACK |
Structure - Clearance Back Wall Corner Diagonal | Define the back clearance of wall corner diagonal. | 3 |
|
COMMON_CLEARANCE_WALL_SQUARECORNER_BACK |
Structure - Clearance Back Wall Corner Square | Define the back clearance of wall corner square. | 3 |
|

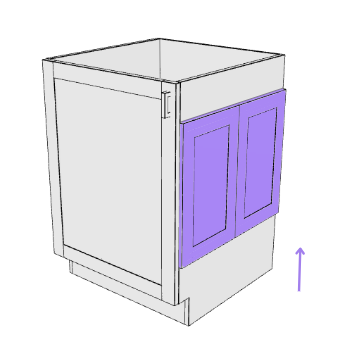

COMMON_RECESSED_BOTTOM |
Structure - Recessed From Bottom | Define the clearance from bottom of structure. | 0 |
|

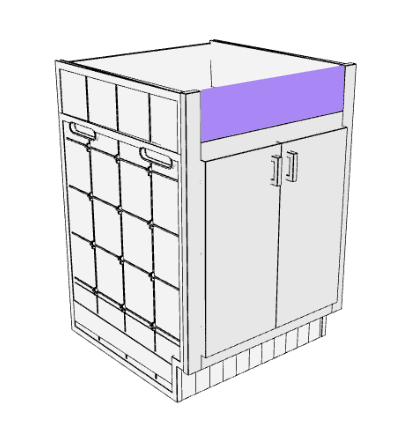

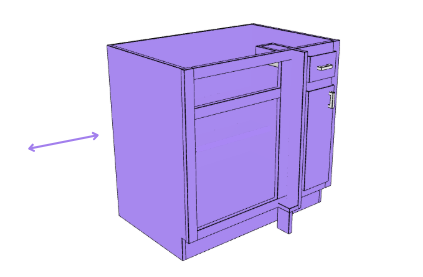

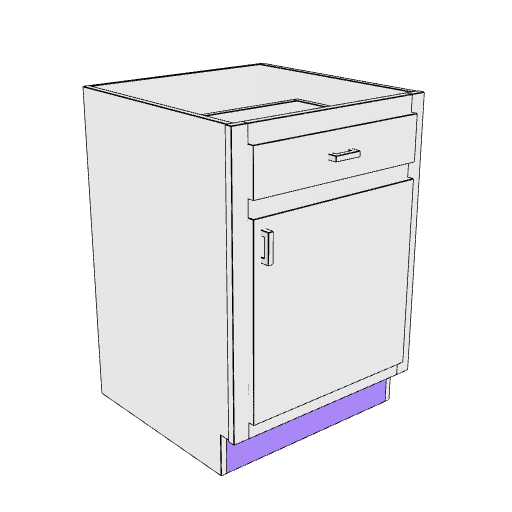

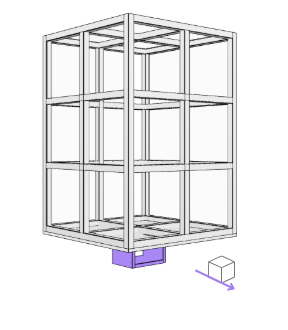

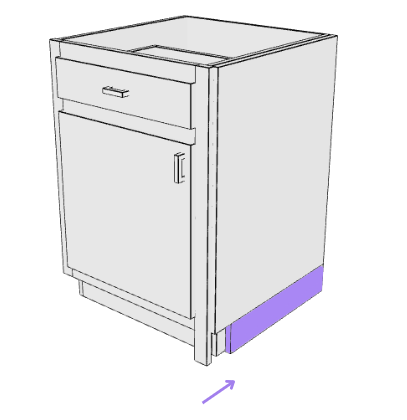

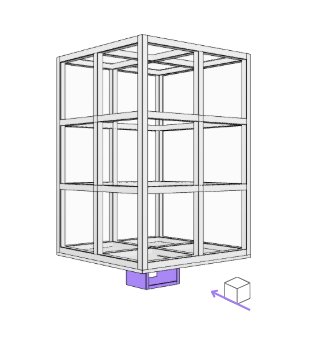

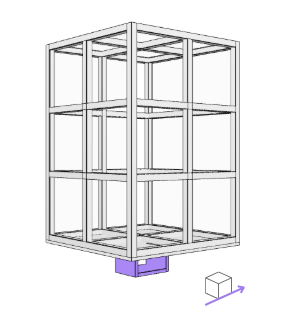

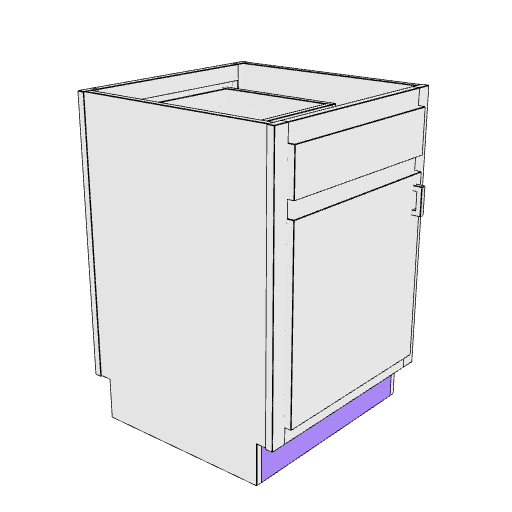

COMMON_CLEARANCE_TOEKICK |
Structure - Clearance Toe Kick Front | Define the clearance front of toekick. | 2.25 |
|
COMMON_CLEARANCE_SIDES |
Structure - Clearance Sides | Define the side clearance of structure. | 0 |
|
COMMON_CLEARANCE_TOEKICK2 |
Structure - Clearance Toe Kick Peninsula | Define the clearance front of toekick 2 on peninsulas. | 2.25 |
Bottom
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

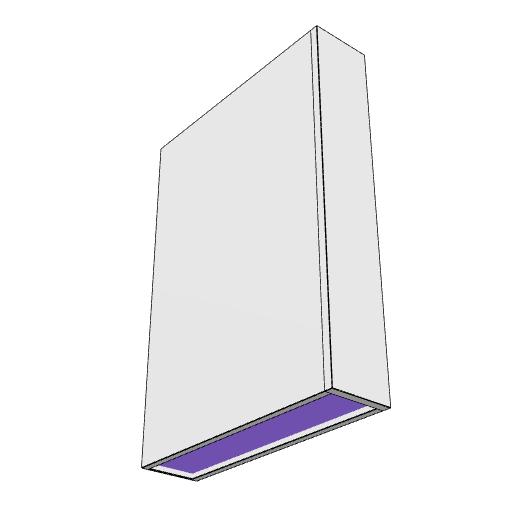

COMMON_CLEARANCE_BOTTOM |
Bottom - Clearance Bottom Panel | Define the bottom clearance panel. | 0 |
|
COMMON_CLEARANCE_BOTTOM_DEPTH |
Bottom - Clearance On Depth | Define the clearance bottom panel on depth. | 0 |
Drawer Box
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

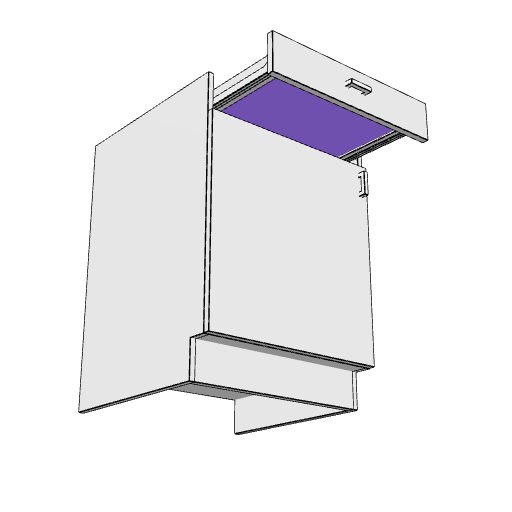

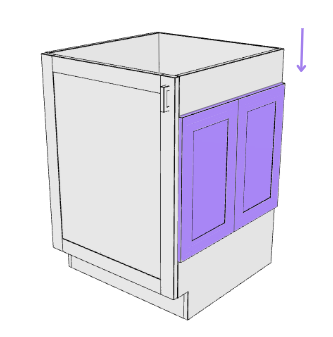

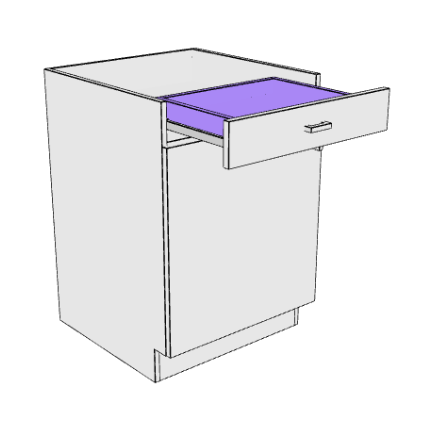

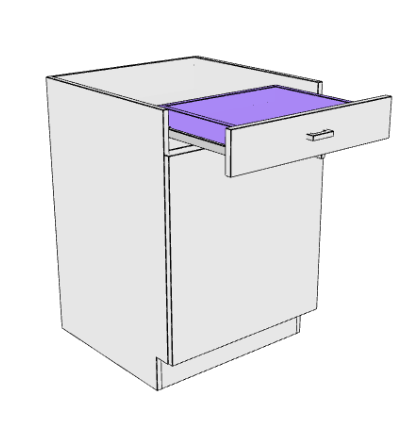

COMMON_CLEARANCE_DRAWERBOX_BELOW |
Drawer Box - Clearance Below | Define the bottom clearance of drawer box. | 1 |
|
COMMON_CLEARANCE_DRAWERBOX_BOTTOMPANEL |
Drawer Box - Clearance Bottom Panel | Define the clearance of bottom panel on drawer box. | 0 |
|
COMMON_CLEARANCE_DRAWERBOX_LEFTSIDE |
Drawer Box - Clearance Left Side | Define the clearance left of drawer box. | 1.125 |
|
COMMON_CLEARANCE_DRAWERBOX_RIGHTSIDE |
Drawer Box - Clearance Right Side | Define the clearance right of drawer box. | 1.125 |
|
COMMON_DRAWERBOX_BOTTOMCLEAR_LAST |
Drawer Box - Clearance Bottom Panel With Notch | Define the clearance bottom panel of drawer box with notch. | 1 |
Nailer
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

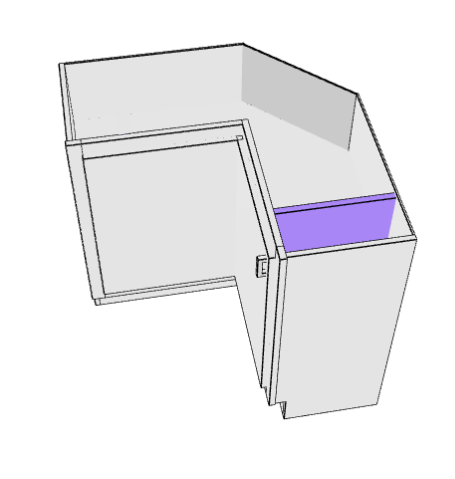

COMMON_CLEARANCE_NAILER |
Nailer - Clearance Vertical | Define the clearance of nailer on vertical. | 0 |
Accessories
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

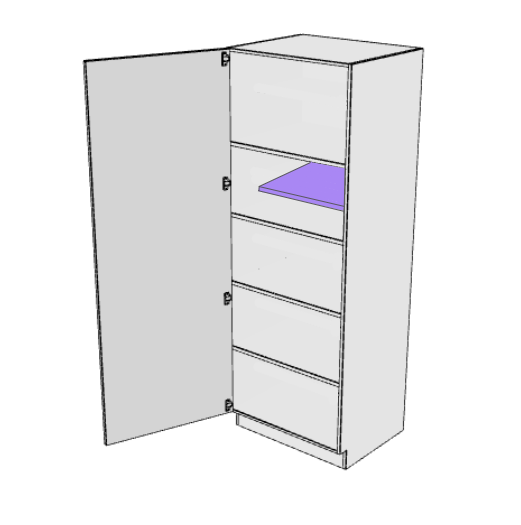

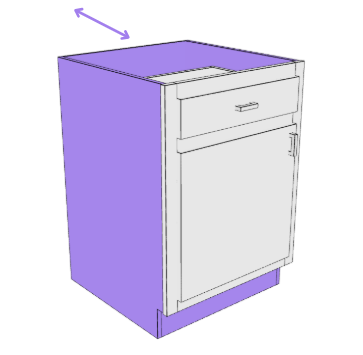

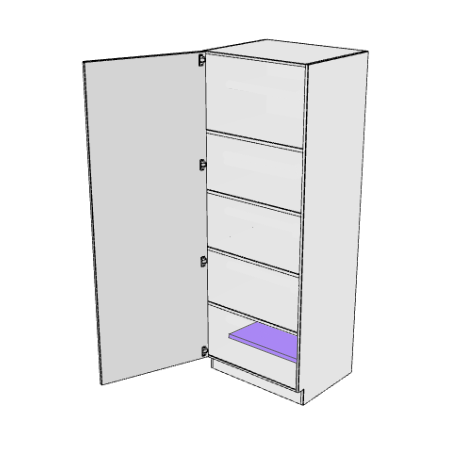

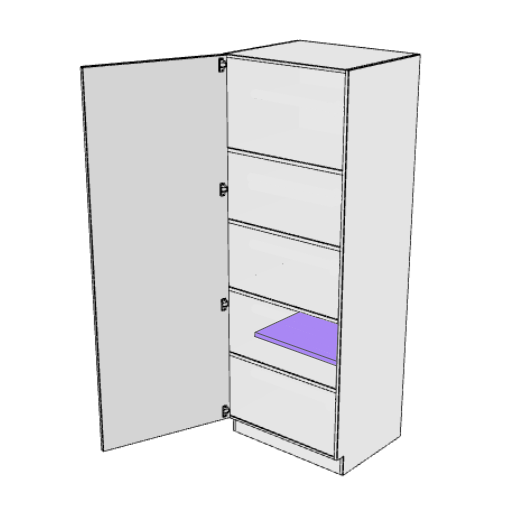

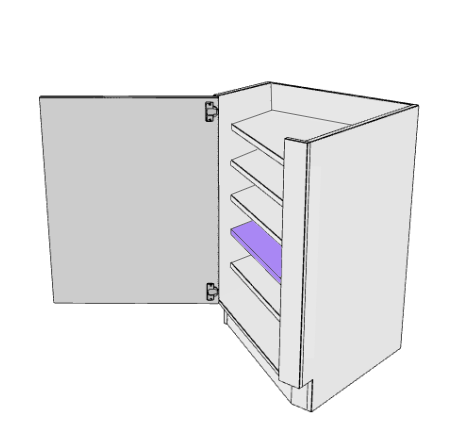

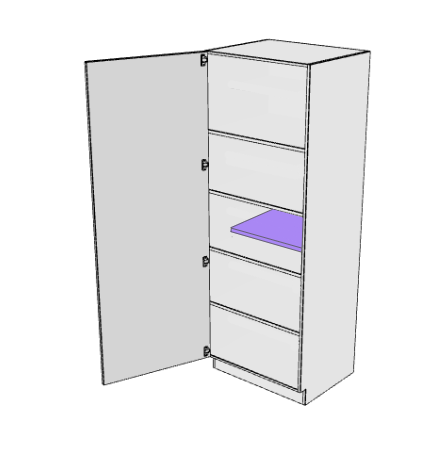

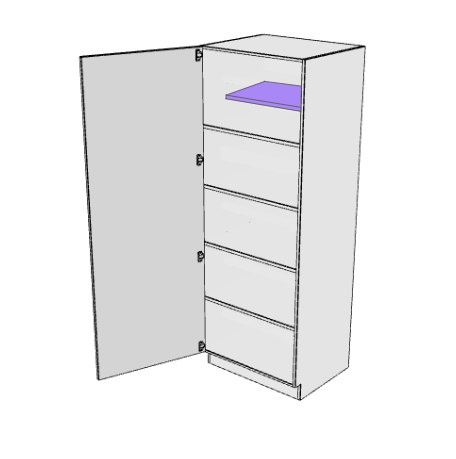

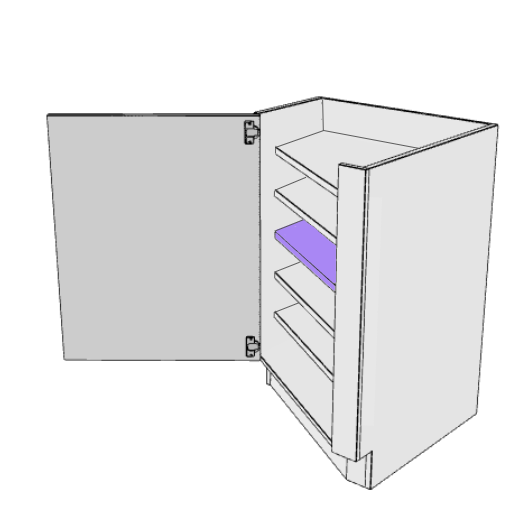

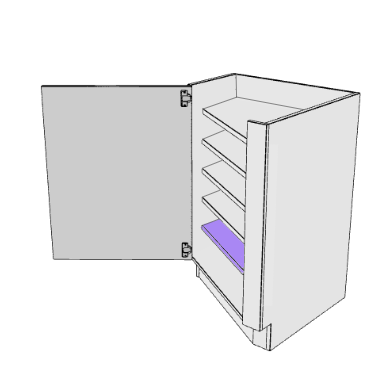

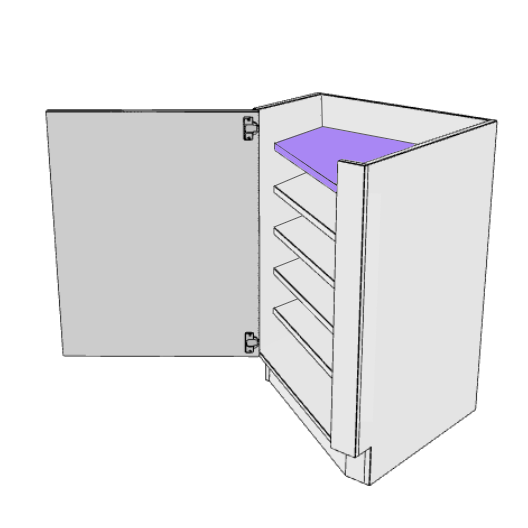

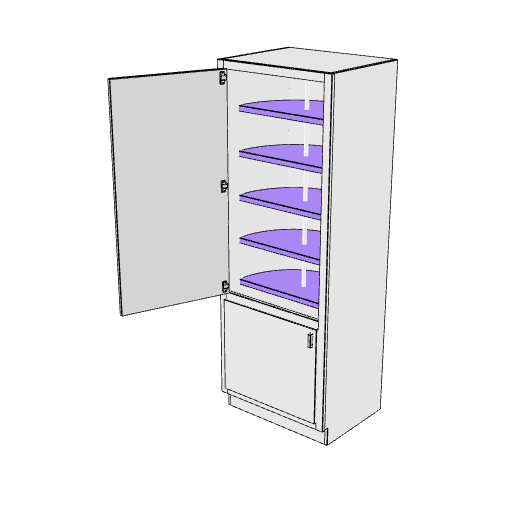

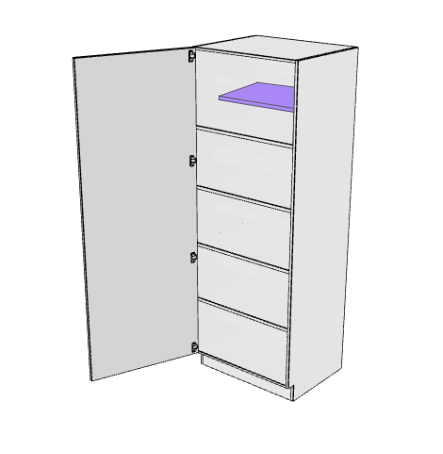

COMMON_FIXED_SHELF_FRONT_CLEAR1 |
Fixed Shelf - Clearance Front 1 | Define the front clearance on first height. | 0 |
|
COMMON_FIXED_SHELF_FRONT_CLEAR2 |
Fixed Shelf - Clearance Front 2 | Define the front clearance on second height. | 0 |
|
COMMON_FIXED_SHELF_FRONT_CLEAR3 |
Fixed Shelf - Clearance Front 3 | Define the front clearance on third height. | 0 |
|
COMMON_FIXED_SHELF_FRONT_CLEAR4 |
Fixed Shelf - Clearance Front 4 | Define the front clearance on fourth height. | 0 |
|
COMMON_FIXED_SHELF_FRONT_CLEAR5 |
Fixed Shelf - Clearance Front 5 | Define the front clearance on fifth height. | 0 |
|

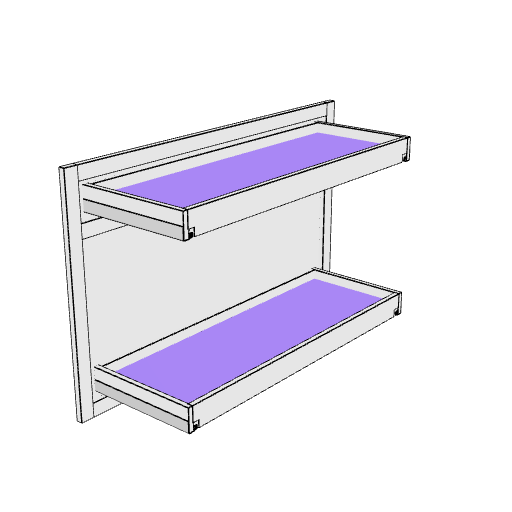

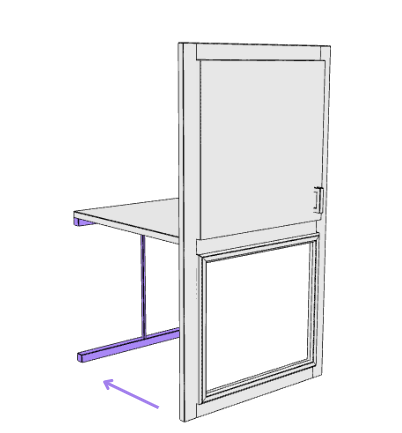

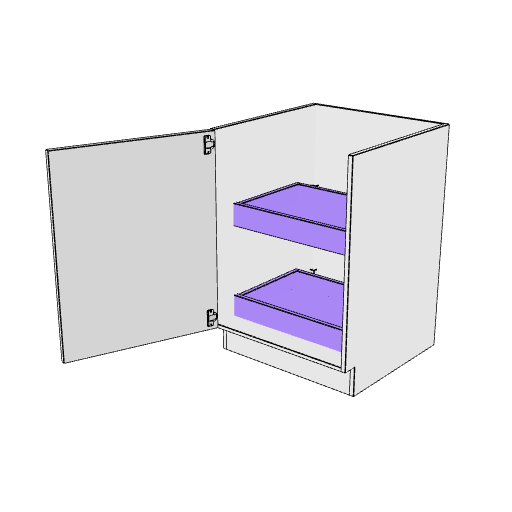

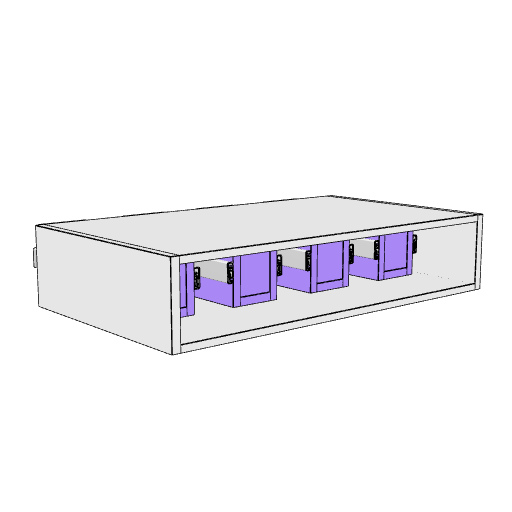

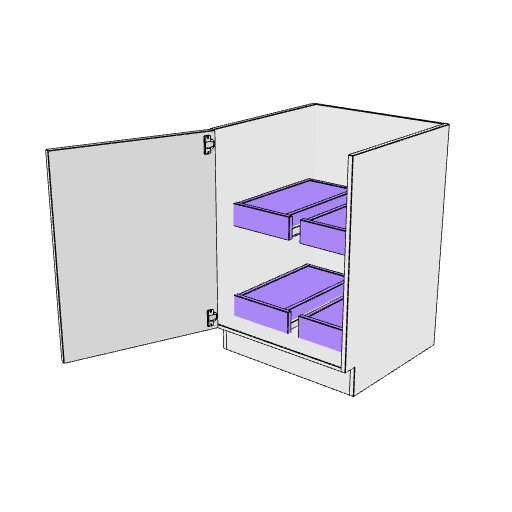

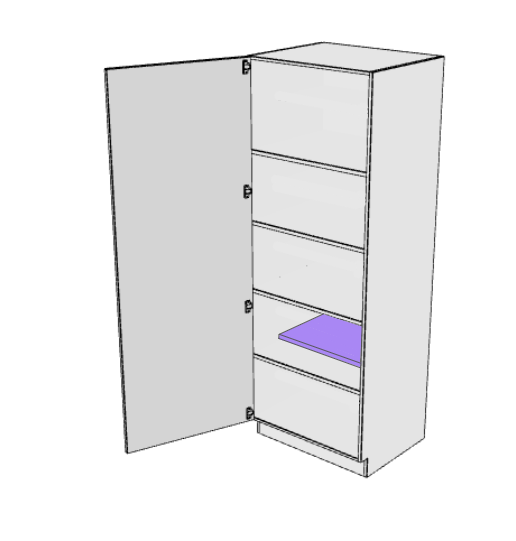

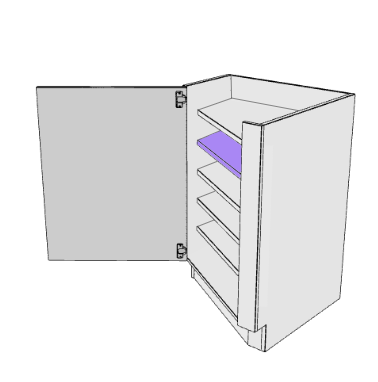

COMMON_HORIZONTAL_ROLLOUT_CLEAR |
Roll Out - Clearance Horizontal | Defines the clearance between roll outs on horizontal. | 0.25 |
|
COMMON_ROLLOUT_BACK_CLEAR |
Roll Out - Clearance Back | Defines the back clearance of roll out. | 2 |
|
COMMON_SIDE_CLEARANCE_ROLLOUT |
Roll Out - Clearance Side | Defines the side clearance of roll out. | 0.5 |
|

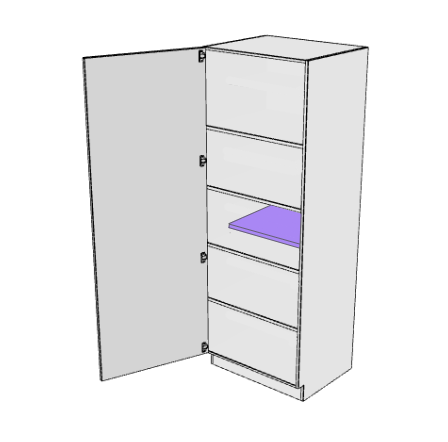

COMMON_CLEARANCE_PULLOUT_SHELF |
Pull Out - Clearance Back | Defines the back clearance of pull out. | 0.5 |
|
COMMON_DISTANCE_FRONT |
Distance - From Front | Define the frontal distance of the structure. | 0 |
|
COMMON_DISTANCE_BACK |
Distance - From Back | Define the back distance of the structure. | 0 |
|
COMMON_DISTANCE_LEFT_SIDE |
Distance - From Left | Define the left distance of the structure. | 0 |
|
COMMON_CLEARANCE_BELOW_1 |
Clearance - Below 1 | Define the clearance below on first height. | 0 |
|
COMMON_CLEARANCE_BELOW_2 |
Clearance - Below 2 | Define the clearance below on second height. | 0 |
|
COMMON_CLEARANCE_BELOW_3 |
Clearance - Below 3 | Define the clearance below on third height. | 0 |
|
COMMON_CLEARANCE_BELOW_4 |
Clearance - Below 4 | Define the clearance below on fourth height. | 0 |
|
COMMON_CLEARANCE_BELOW_5 |
Clearance - Below 5 | Define the clearance below on fifth height. | 0 |
|
COMMON_CLEARANCE_ABOVE_1 |
Clearance - Above 1 | Define the clearance above on first height. | 0 |
|
COMMON_CLEARANCE_ABOVE_2 |
Clearance - Above 2 | Define the clearance above on second height. | 0 |
|
COMMON_CLEARANCE_ABOVE_3 |
Clearance - Above 3 | Define the clearance above on third height. | 0 |
|
COMMON_CLEARANCE_ABOVE_4 |
Clearance - Above 4 | Define the clearance above on fourth height. | 0 |
|
COMMON_CLEARANCE_ABOVE_5 |
Clearance - Above 5 | Define the clearance above on fifth height. | 0 |
Side
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|
COMMON_CLEARANCE_SIDE_DEPTH |
Side - Clearance On Depth | Define the clearance of side panel depth on both. | 0 |
|

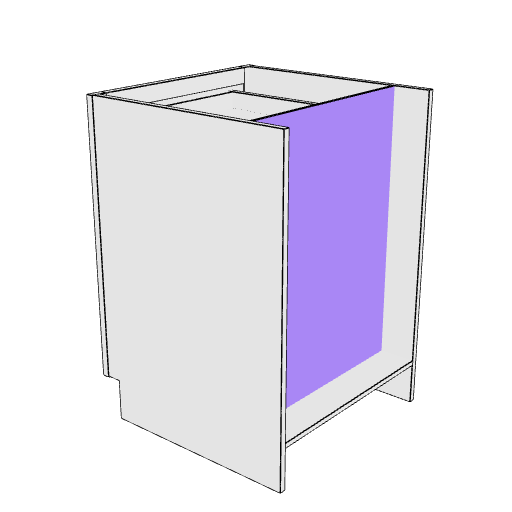

COMMON_CLEARANCE_SIDE_LEFT |
Side - Clearance Left | Define the clearance of left side panel. | 0 |
|
COMMON_CLEARANCE_SIDE_RIGHT |
Side - Clearance Right | Define the clearance of right side panel. | 0 |
Storage
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

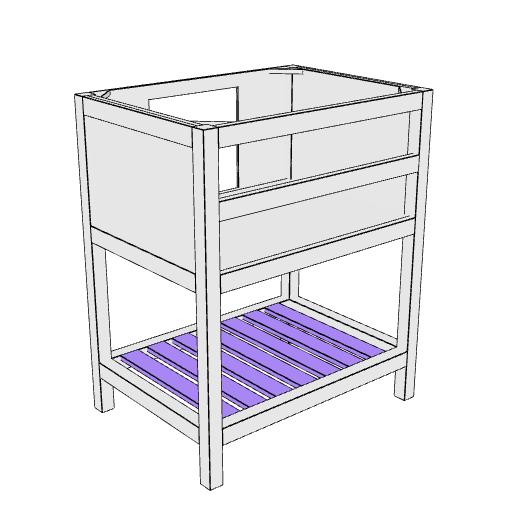

COMMON_CLEARANCE_STORAGE_FILE |
Storage - Clearance Slats | Define the clearance between slats. | 0.75 |
Top
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

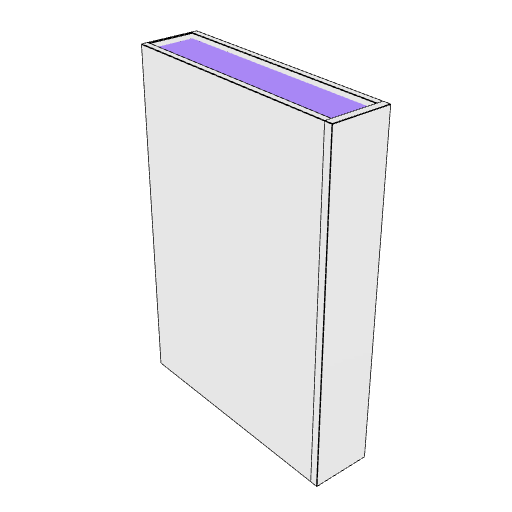

COMMON_CLEARANCE_TOP |
Top - Clearance Top Panel | Define the clearance top panel. | 0 |
|
COMMON_CLEARANCE_TOP_DEPTH |
Top - Clearance On Depth | Define the clearance top panel on depth. | 0 |
Wood Hood
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|
COMMON_WOODHOOD_ENDPANEL_CLEARANCE_ABOVE |
Wood Hood - End Panel Clearance Above | Defines the clearance top of end panel. | 0 |
|
COMMON_WOODHOOD_ENDPANEL_CLEARANCE_BELOW |
Wood Hood - End Panel Clearance Below | Defines the clearance bottom of end panel. | 0 |
Divider
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

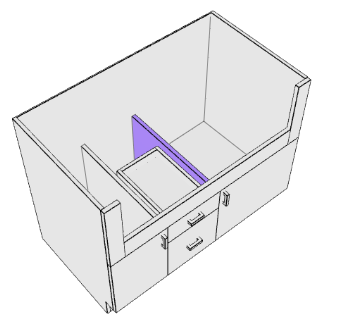

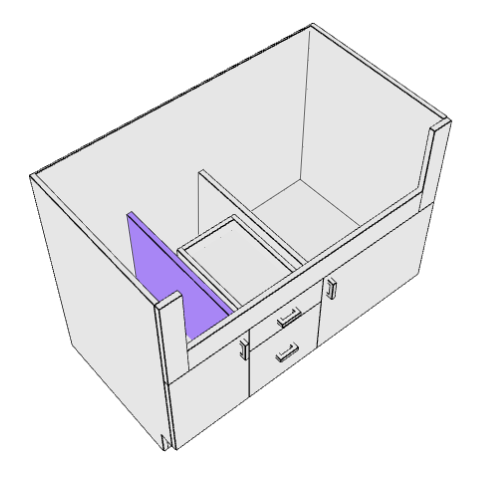

COMMON_DIVIDER_BACK_CLEAR1 |
Divider - Clearance Back | Define the back clearance of divider. | 0 |
|
COMMON_DIVIDER_CLEARANCE_LEFT |
Divider - Clearance Left | Define the clearance between the divider and left side. | 0 |
|
COMMON_DIVIDER_CLEARANCE_RIGHT |
Divider - Clearance Right | Define the clearance between the divider and right side. | 0 |
|
COMMON_DIVIDER_FRONT_CLEAR1 |
Divider - Clearance Front 1 | Define the front clearance of divider. | 0 |
|
COMMON_DIVIDER_FRONT_CLEAR2 |
Divider - Clearance Front 2 | Define the front clearance of divider. | 0 |
| COMMON_DIVIDER_FRONT_CLEAR3 | Divider - Clearance Front 3 | Define the front clearance of divider. | 0 |
| COMMON_DIVIDER_FRONT_CLEAR4 | Divider - Clearance Front 4 | Define the front clearance of divider. | 0 |
| COMMON_DIVIDER_FRONT_CLEAR5 | Divider - Clearance Front 5 | Define the front clearance of divider. | 0 |
Panel
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

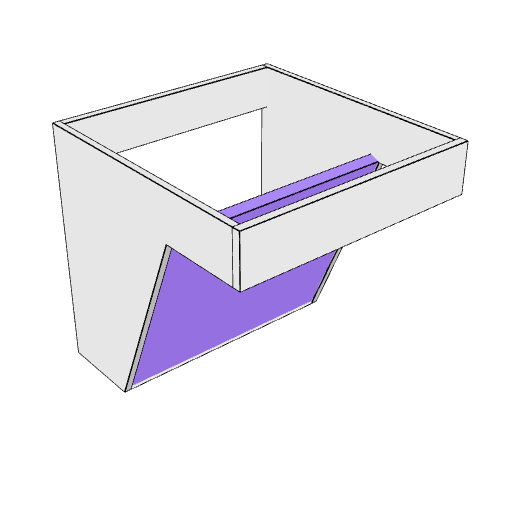

COMMON_TOP_CLEARANCE_INCLINATED_PANEL |
Panel - Clearance Top Inclinated | Define the top clearance of inclinated panel. | 0 |
|

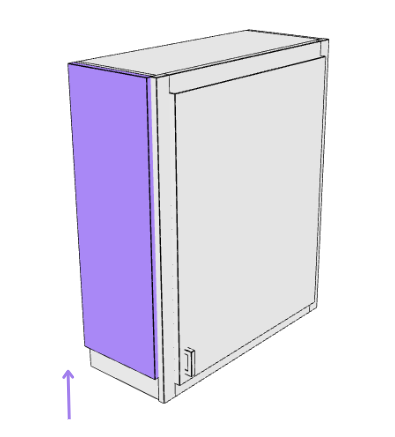

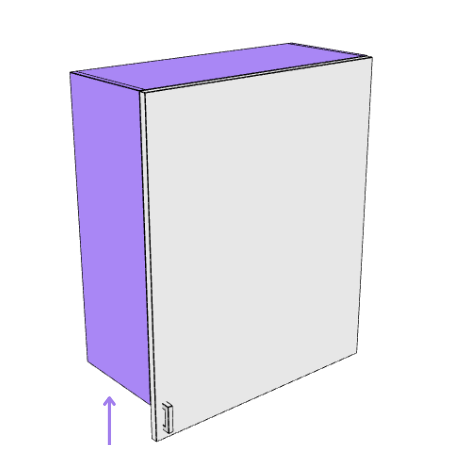

COMMON_ENDPANEL_BOTTOM_CLEAR |
Panel - Clearance Bottom End Panel | Define the bottom clearance of end panel. | 0 |
|
COMMON_ENDPANEL_CLEARANCE_TOEKICK |
Panel - Clearance Front Toekick | Define the clearance front toekick on end panel. | 2.25 |
|
COMMON_MIDDLE_HORIZ_PANEL_CLEAR |
Panel - Clearance Panel Middle | Define the clearance between panels on horizontal. | 0.0625 |
|

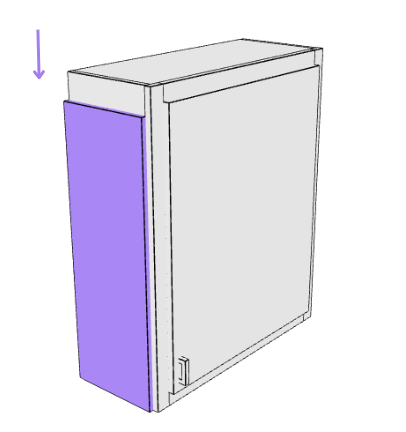

COMMON_ENDPANEL_TOP_CLEAR |
Panel - Clearance Top End Panel | Define the top clearance of end panel. | 0 |
Appliance
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|
COMMON_TOPCLEAR_APPLIANCES |
Appliance - Clearance Top | Define the top clearance for appliances/plumbing. | 0 |
Plate Rack
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|
COMMON_PLATERACK_FRONT_CLEAR |
Plate Rack - Clearance Front | Define the front clearance of plate rack. | 0 |
|
COMMON_PLATERACK_BACK_CLEAR |
Plate Rack - Clearance Back | Define the back clearance of plate rack. | 0 |
Filler
|
|
NAME | DESCRIPTION | DEFAULT VALUE |
|---|---|---|---|
|

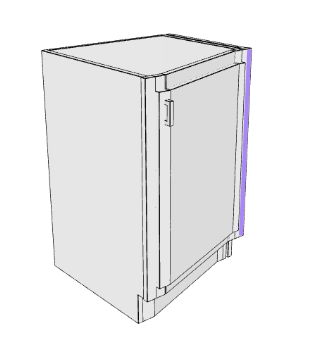

COMMON_ENDFILLER_BOTTOM_CLEAR |
Filler - Clearance Bottom End Filler | Defines the bottom clearance of filler. | 0 |
|
COMMON_ENDFILLER_SIDE_CLEAR |
Filler - Clearance Side End Filler | Defines the side clearance of filler. | 0 |
|
COMMON_CLEARANCE_ABOVE |
Filler - Clearance Above | Define the clearance above. | 0 |
|
COMMON_CLEARANCE_BELOW |
Filler - Clearance Below | Define the clearance below. | 0 |
|
COMMON_ENDFILLER_TOP_CLEAR |
Filler - Clearance Top End Filler | Defines the top clearance of filler. | 0 |
