This article presents detailed examples illustrating the utilization of attributes when working with Pin Doors, offering a comprehensive guide on how to effectively apply them.
Base Pin Doors

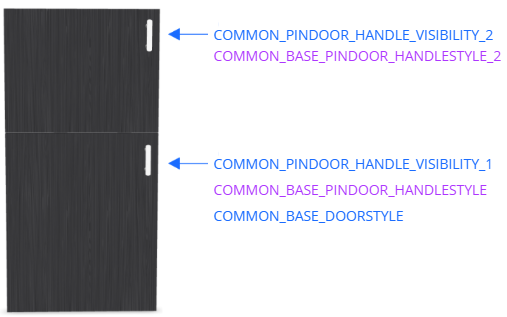

Two Pin Doors (Door/Drawer)
| Attributes | Utility | Values |
|---|---|---|
| COMMON_PINDOOR | Turn on and off the Pin Door | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_1 | Turn on and off the pin door handle for bottom door | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_2 | Turn on and off the pin door handle for top door | True/False |
| COMMON_BASE_PINDOOR_HANDLESTYLE | Define the style of the base pin door handle | Handle Style |
| COMMON_NUMPANEL_BASE_PINDOOR | Define the no. of panel in a base door height | 1 |
| COMMON_BASE_DOORSTYLE | Define base door style | Door Style |

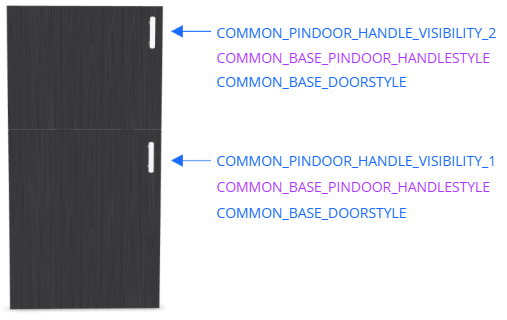

Two Pin Doors (Door/Door)
| Attributes | Utility | Values |
|---|---|---|
| COMMON_PINDOOR | Turn on and off the Pin Door | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_1 | Turn on and off the pin door handle for bottom door | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_2 | Turn on and off the pin door handle for top door | True/False |
| COMMON_BASE_PINDOOR_HANDLESTYLE | Define the style of the base pin door handle | Handle Style |
| COMMON_NUMPANEL_BASE_PINDOOR | Define the no. of panel in a base door height | 2 |
| COMMON_BASE_DOORSTYLE | Define base door style | Door Style |

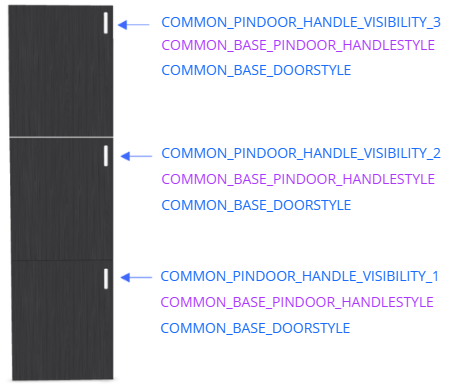

Three Pin Doors
| Attributes | Utility | Values |
|---|---|---|
| COMMON_PINDOOR | Turn on and off the Pin Door | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_1 | Turn on and off the bottom pin door handle | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_2 | Turn on and off the miDdle pin door handle | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_3 | Turn on and off the top pin door handle | True/False |
| COMMON_BASE_PINDOOR_HANDLESTYLE | Define the style of the base pin door handle | Handle Style |
| COMMON_NUMPANEL_BASE_DOOR | Define the no. of panel in a base door height | 3 |
| COMMON_BASE_DOORSTYLE | Define base door style | Door Style |
Tall Pin Door

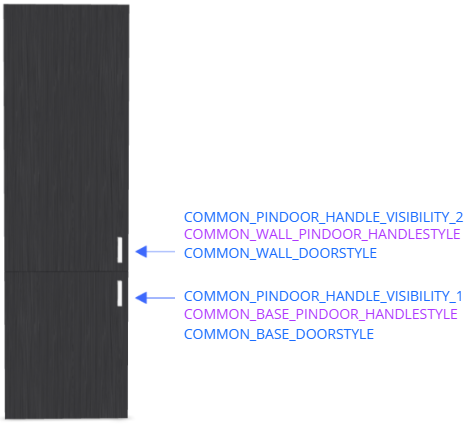

Two Pin Doors
| Attributes | Utility | Values |
|---|---|---|
| COMMON_PINDOOR | Turn on and off the Pin Door | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_1 | Turn on and off the pin door handle | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_2 | Turn on and off the middle pin door handle | True/False |
| COMMON_BASE_PINDOOR_HANDLESTYLE | Define the style of the base pin door handle | Handle Style |
| COMMON_WALL_PINDOOR_HANDLESTYLE | Define the style of the top pin door handle | Handle Style |
| COMMON_NUMPANEL_TALL_DOOR | Define the number of panels of the tall door | 2 |
| COMMON_WALL_DOORSTYLE | Define wall door style | Door Style |
| COMMON_BASE_DOORSTYLE | Define base door style | Door Style |

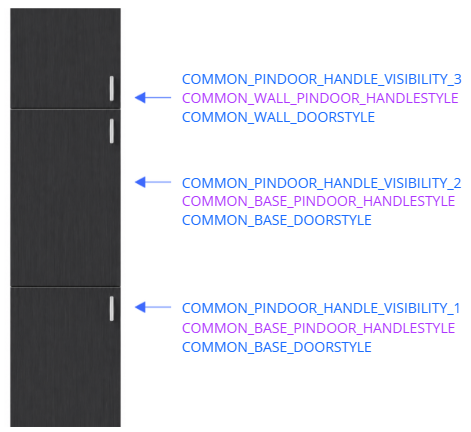

Three Pin Doors
| Attributes | Utility | Values |
|---|---|---|
| COMMON_PINDOOR | Turn on and off the Pin Door | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_1 | Turn on and off the pin door handle | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_2 | Turn on and off the second pin door handle | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_3 | Turn on and off the third pin door handle | True/False |
| COMMON_BASE_PINDOOR_HANDLESTYLE | Define the style of the base pin door handle | Handle Style |
| COMMON_WALL_PINDOOR_HANDLESTYLE | Define the style of the top pin door handle | Handle Style |
| COMMON_NUMPANEL_TALL_DOOR | Define the number of panels of the tall door | 3 |
| COMMON_WALL_DOORSTYLE | Define wall door style | Door Style |
| COMMON_BASE_DOORSTYLE | Define base door style | Door Style |

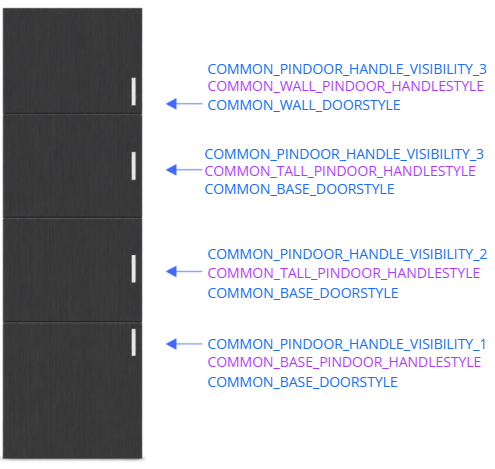

Four Pin Doors
| Attributes | Utility | Values |
|---|---|---|
| COMMON_PINDOOR | Turn on and off the Pin Door | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_1 | Turn on and off the pin door handle | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_2 | Turn on and off the second pin door handle | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_3 | Turn on and off the third pin door handle | True/False |
| COMMON_PINDOOR_HANDLE_VISIBILITY_4 | Turn on and off the fourth pin door handle | True/False |
| COMMON_BASE_PINDOOR_HANDLESTYLE | Define the style of the base pin door handle | Handle Style |
| COMMON_TALL_PINDOOR_HANDLESTYLE | Define the style of the two middle pin door handles | Handle Style |
| COMMON_WALL_PINDOOR_HANDLESTYLE | Define the style of the top pin door handle | Handle Style |
| COMMON_NUMPANEL_TALL_DOOR | Define the number of panels of the tall door | 4 |
| COMMON_WALL_DOORSTYLE | Define wall door style | Door Style |
| COMMON_BASE_DOORSTYLE | Define base door style | Door Style |
