In this article you will find attributes for the following categories: Overhang, Overlays and Style.

Note! The Search field cannot be used to find attributes listed in this article. To find a specific attribute in this article, use your browser’s page search (Ctrl + F).

Use the filter in the "ID" column to find the desired attribute.

Overhang

 NAME DESCRIPTION DEFAULT VALUE

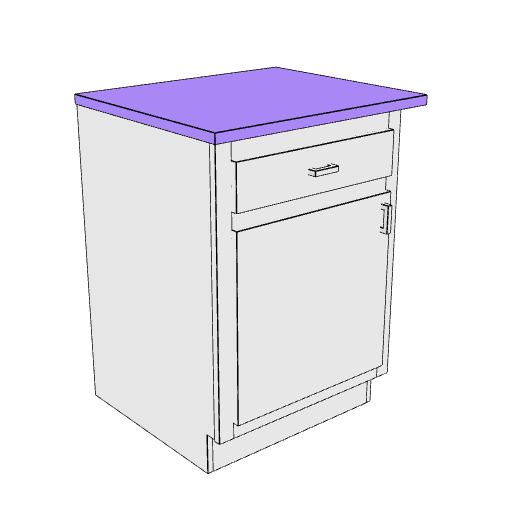

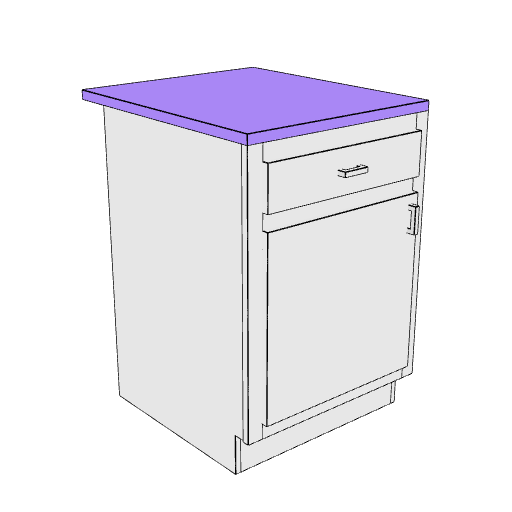

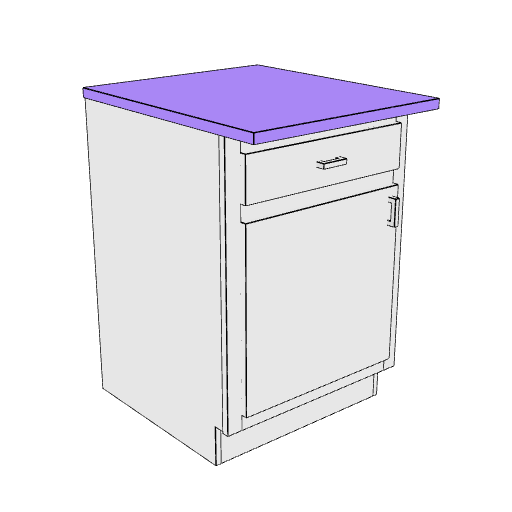

COMMON_WORKTOP_OVERHANG_BACK

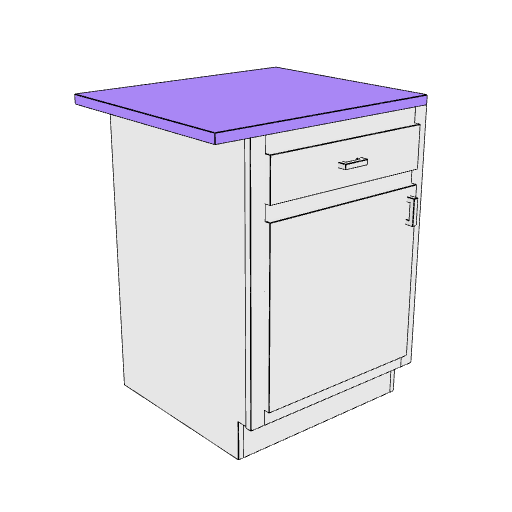

 Overhang - Worktop Back  Define the back overhang of the worktop. 0

COMMON_WORKTOP_OVERHANG_FRONT

 Overhang - Worktop Front Define the front overhang of the worktop. 0

COMMON_WORKTOP_OVERHANG_LEFT

 Overhang - Worktop Left Define the left overhang of the worktop. 0

COMMON_WORKTOP_OVERHANG_RIGHT

 Overhang - Worktop Right Define the right overhang of the worktop. 0



Overlays

In the Standard category you will find: Bottom Overlay, Top Overlay, Bottom Inter Overlay, Top Inter Overlay, Bottom Overlay Config, Top Overlay Config, Middle Overlay, Side Overlay and Style Overlay.

Standard

Bottom Overlay

 NAME DESCRIPTION DEFAULT VALUE

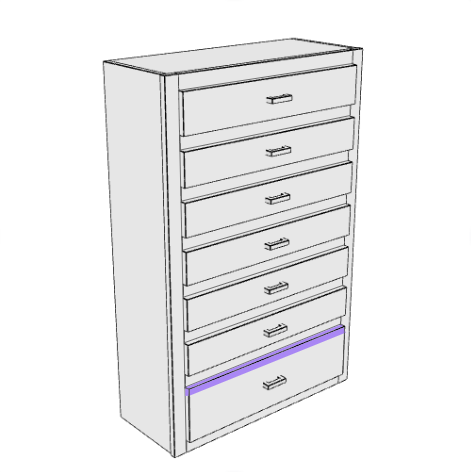

COMMON_BOTTOM_OVERLAY

 Standard - Overlay Bottom Define the vertical bottom overlay of the last door and drawer for the bottom rail. 0



Top Overlay

 NAME DESCRIPTION DEFAULT VALUE

COMMON_TOP_OVERLAY

 Standard - Overlay Top Define the vertical top overlay of the first door and drawer for the top rail. 0
Standard - Overlay Top 2 Define the vertical top overlay of the first door and drawer for the top rail. 0



Bottom Inter Overlay

 NAME DESCRIPTION DEFAULT VALUE

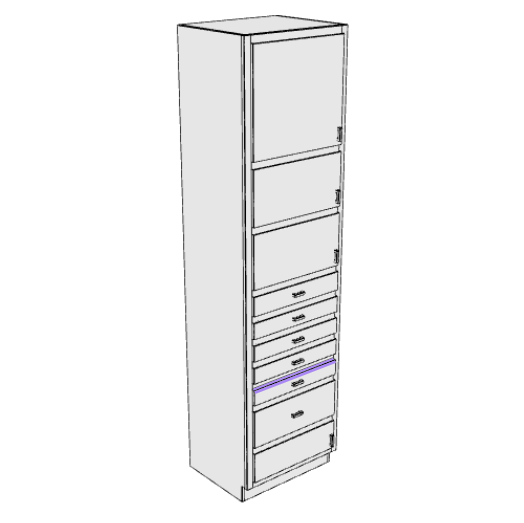

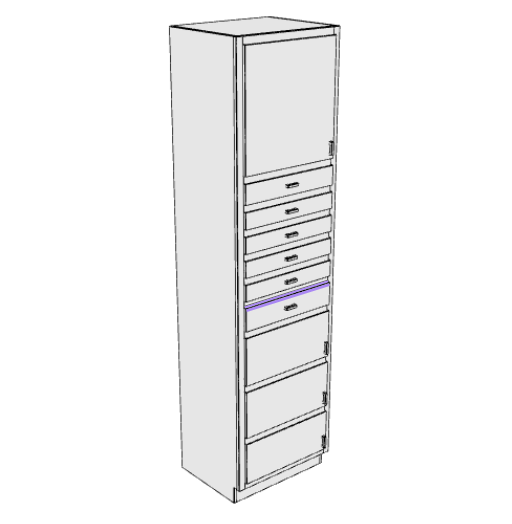

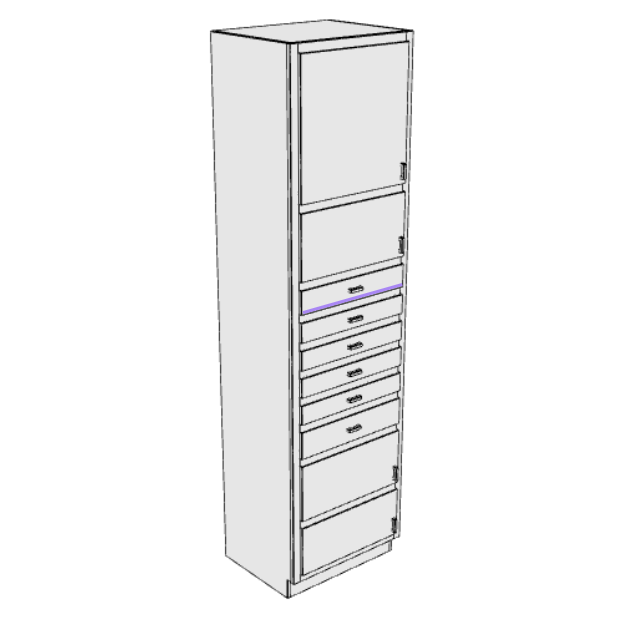

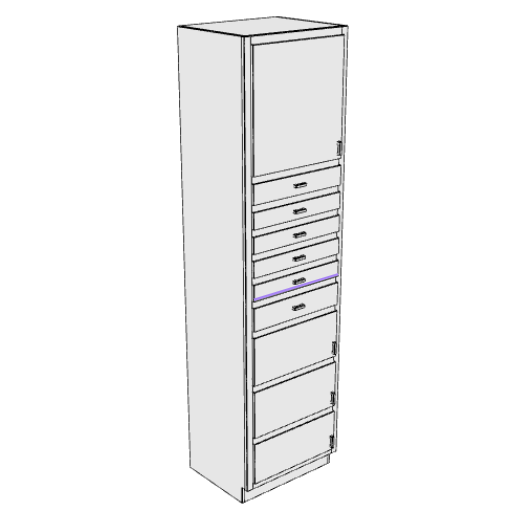

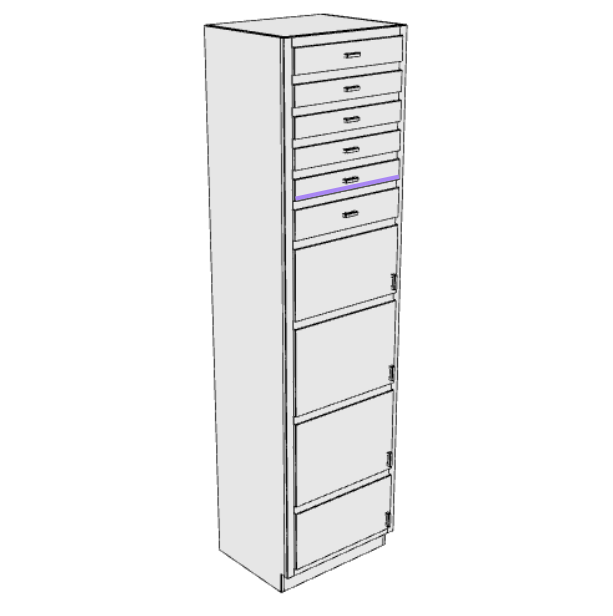

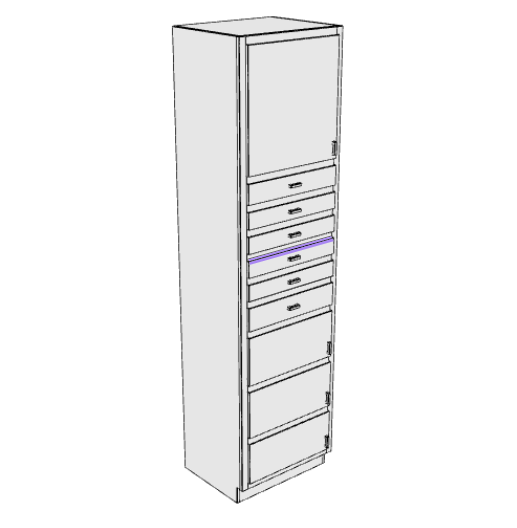

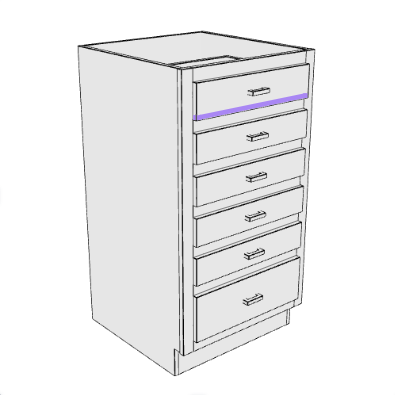

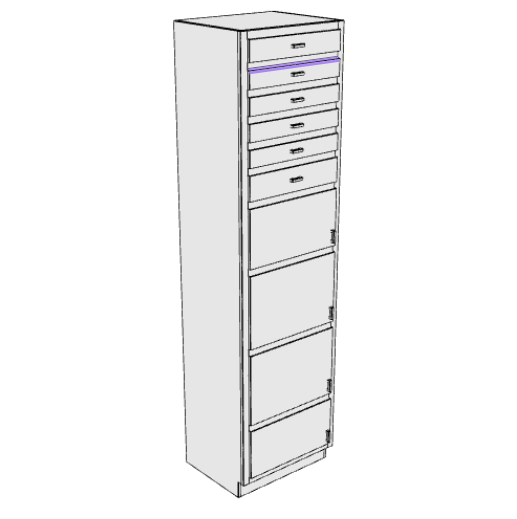

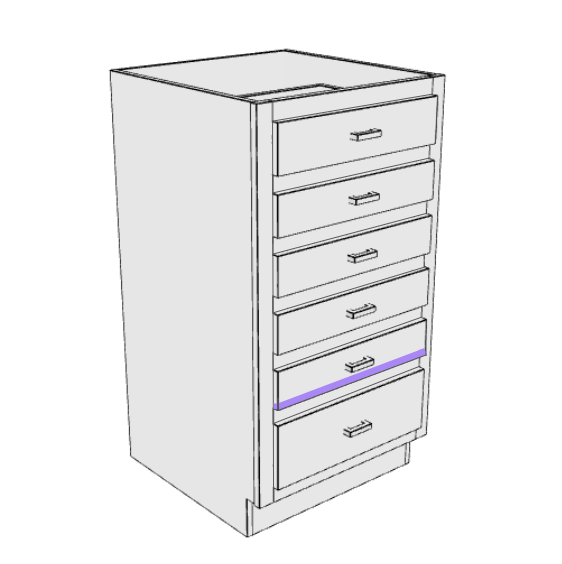

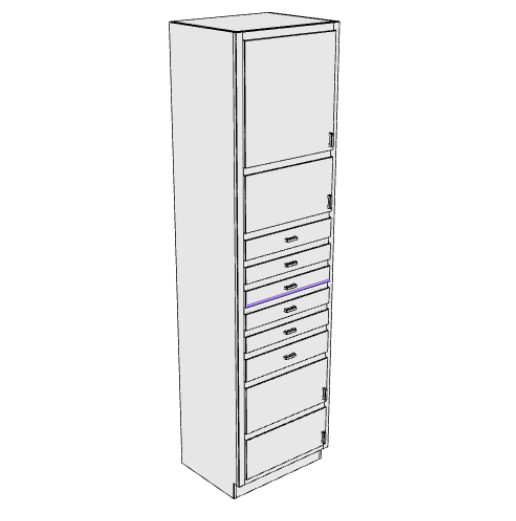

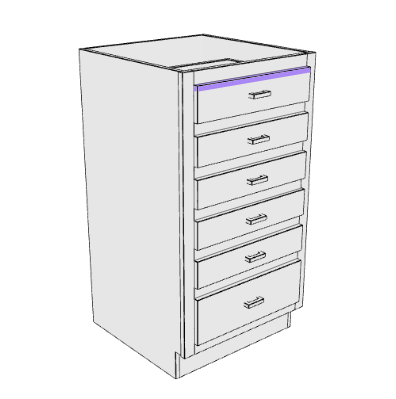

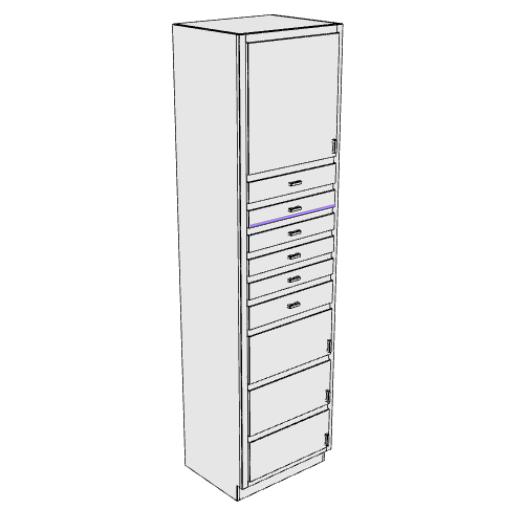

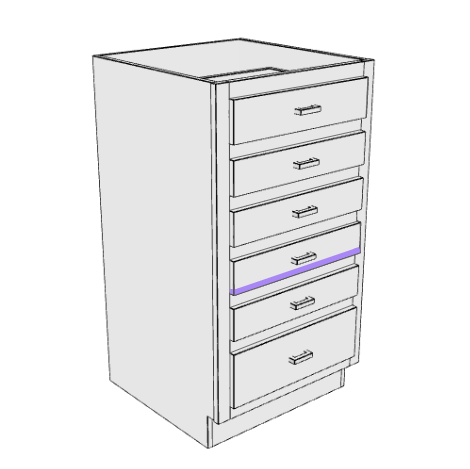

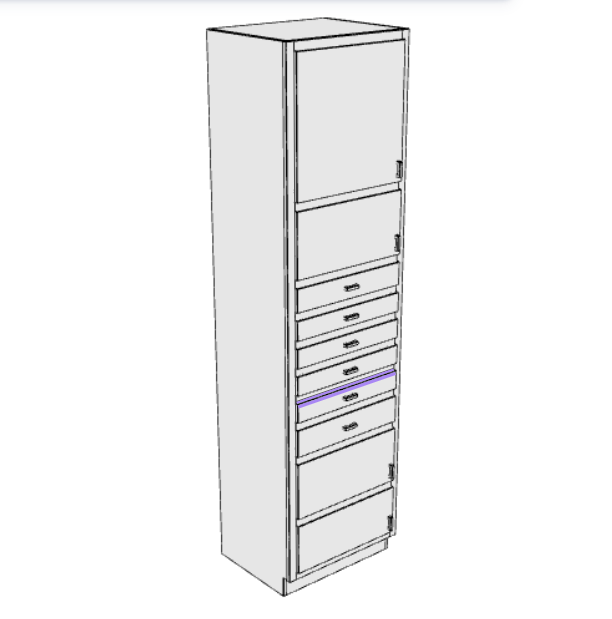

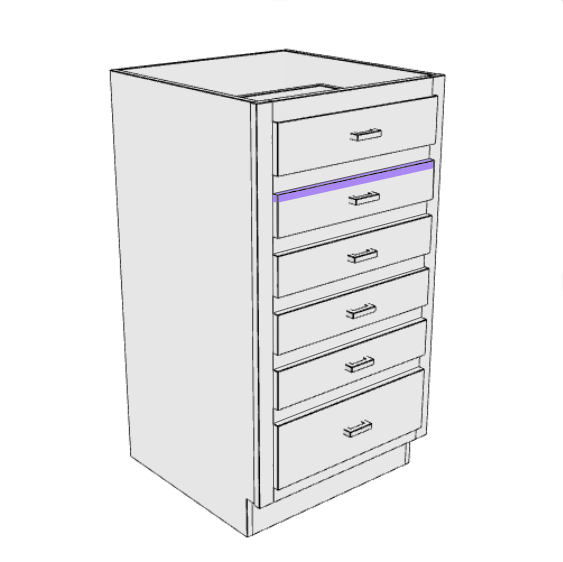

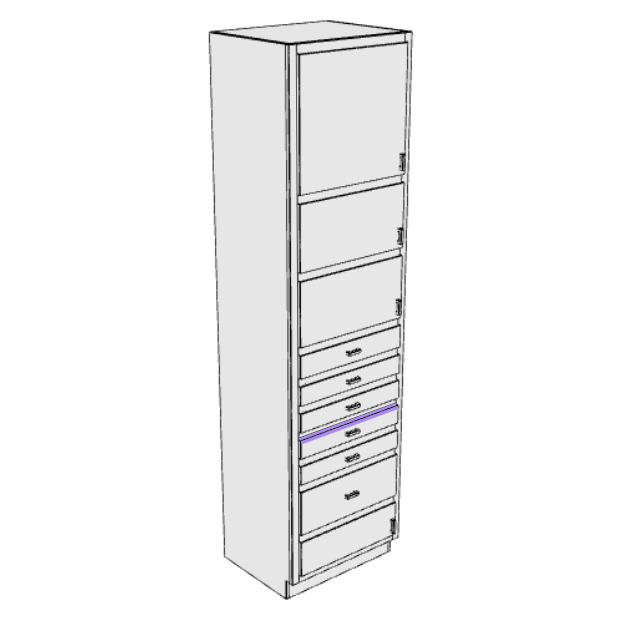

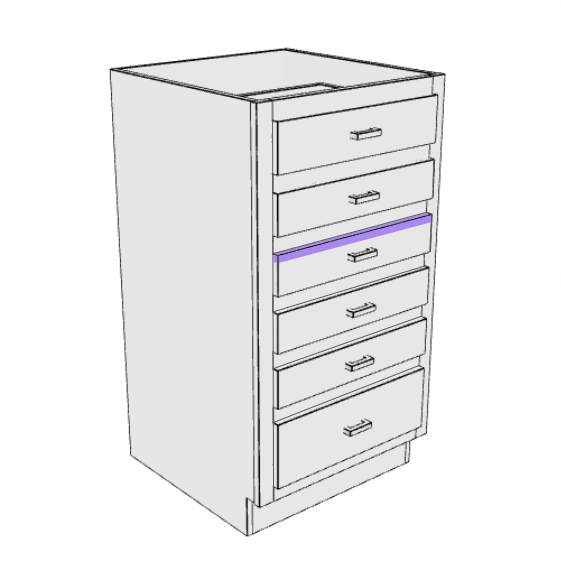

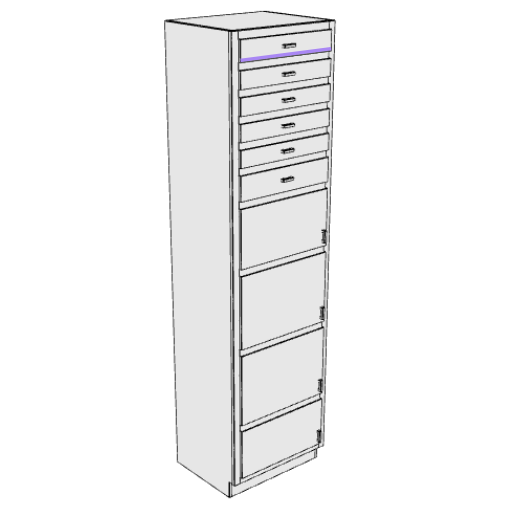

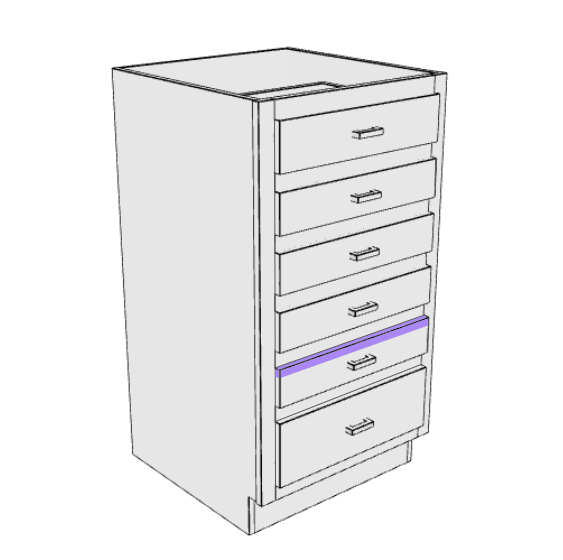

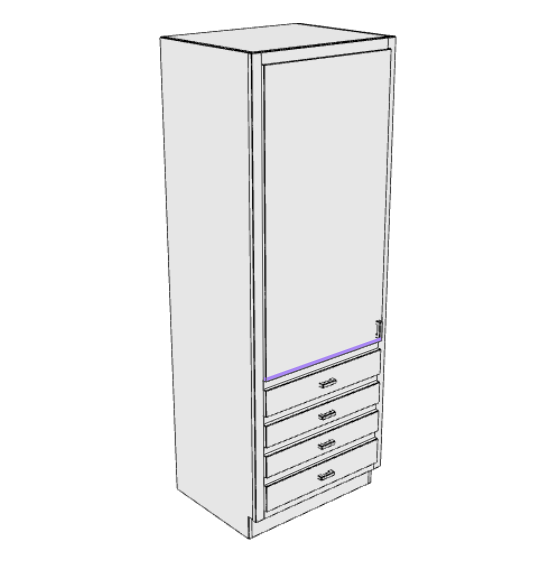

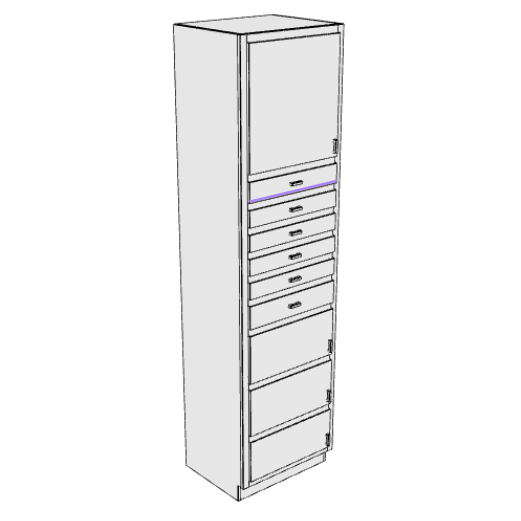

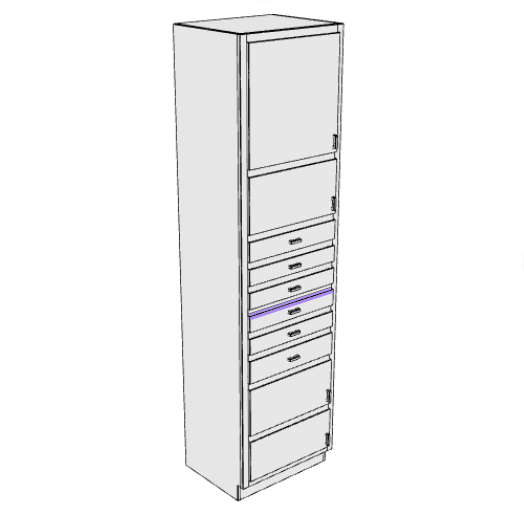

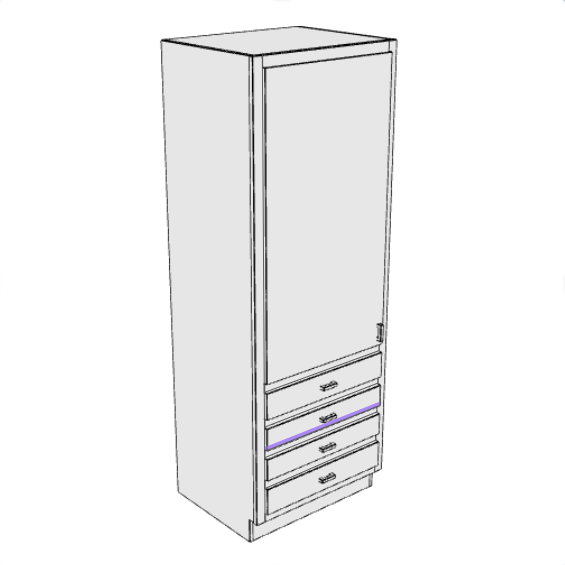

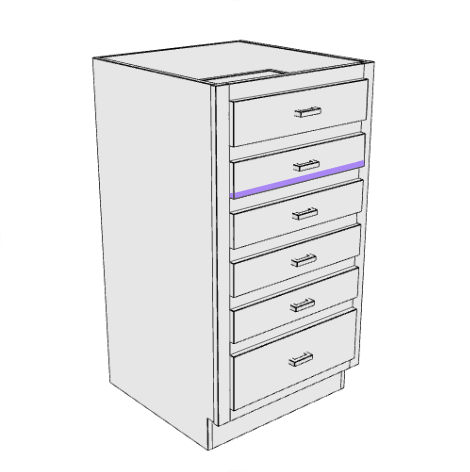

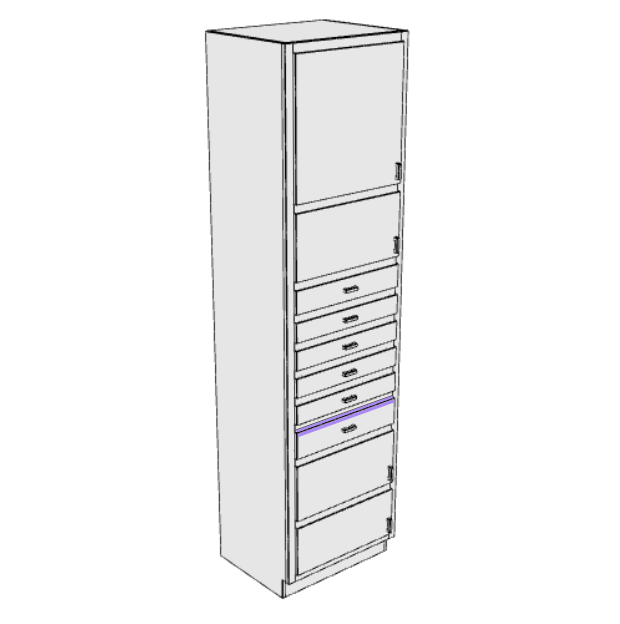

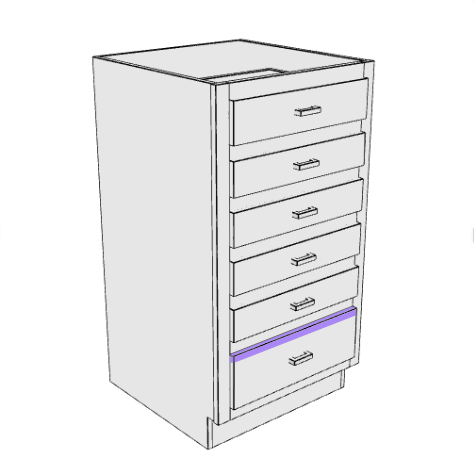

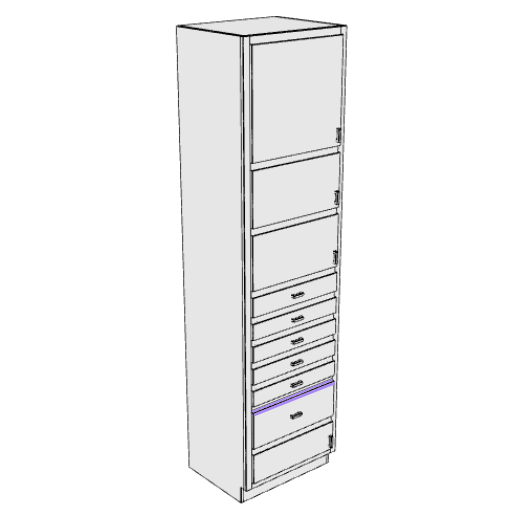

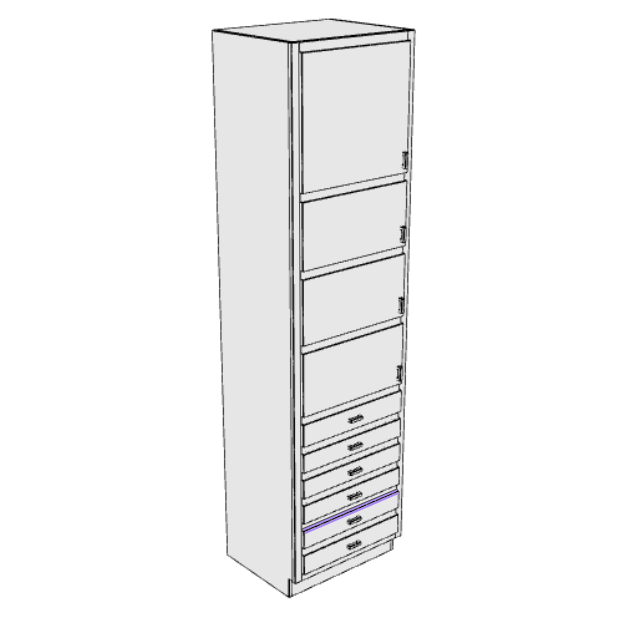

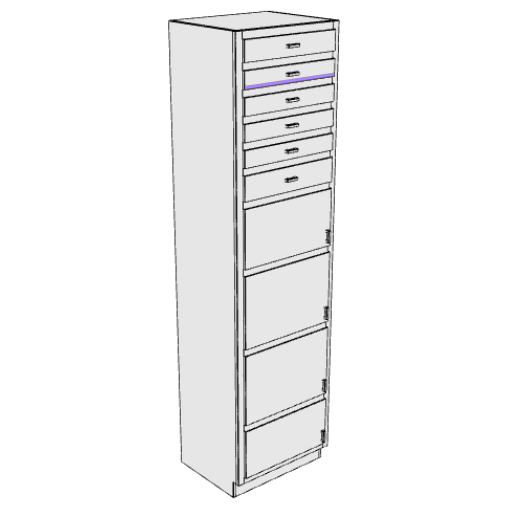

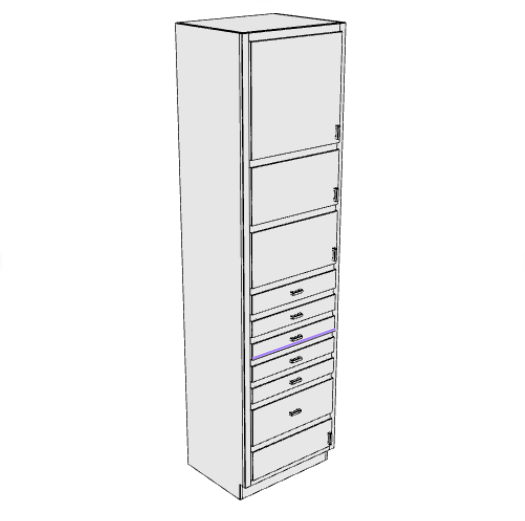

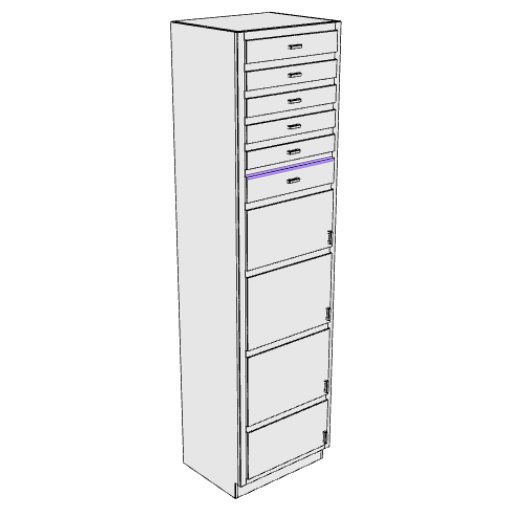

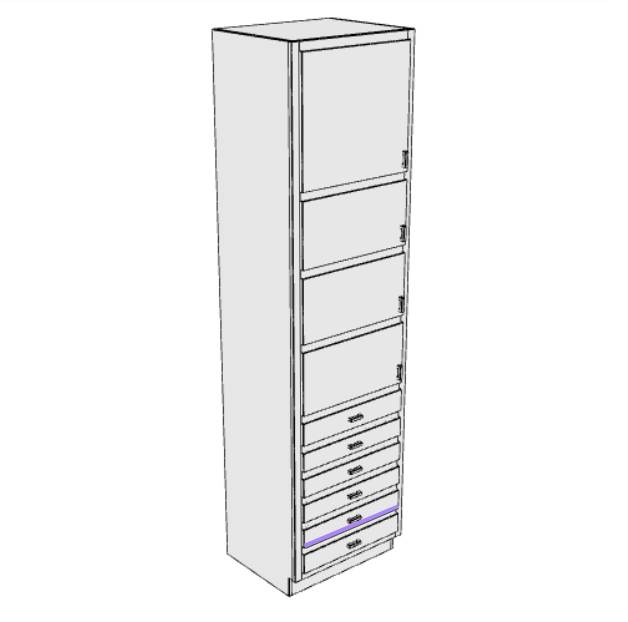

COMMON_INTER_OVERLAY_BOTTOM1

 Standard - Inter Overlay Bottom 1 Vertical door and first drawer bottom overlay for the intermediate rail. 0

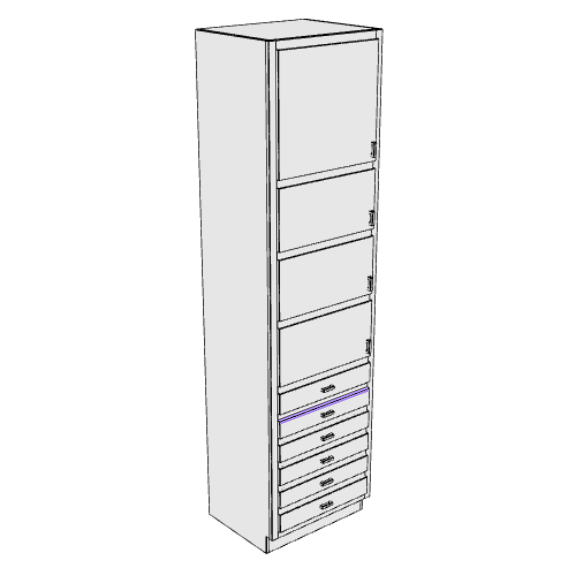

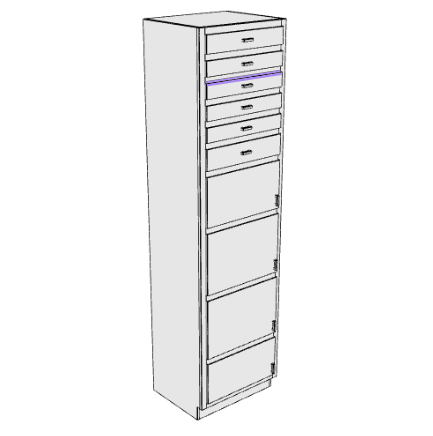

COMMON_INTER_OVERLAY_BOTTOM2

 Standard - Inter Overlay Bottom 2 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

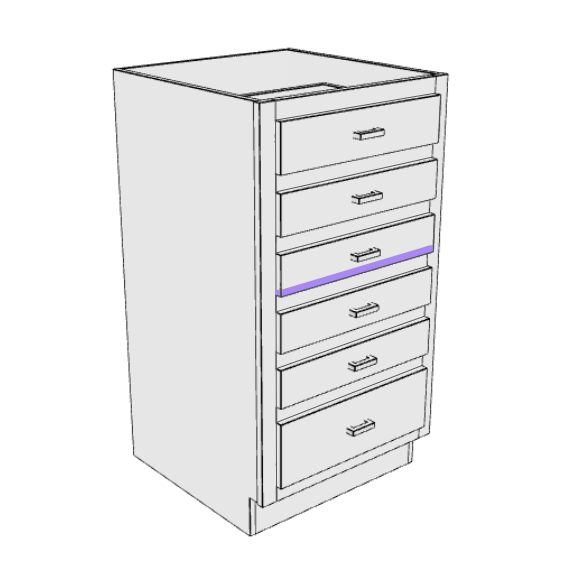

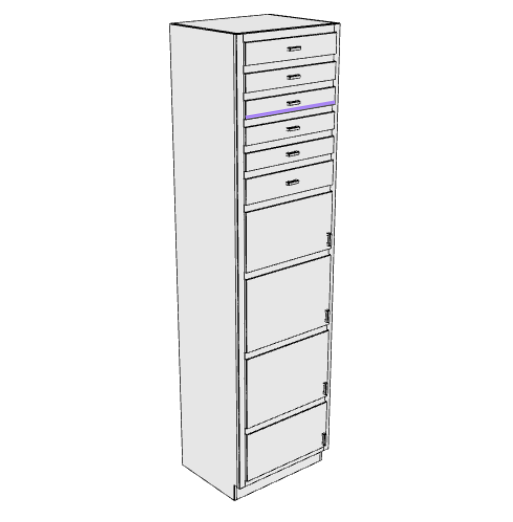

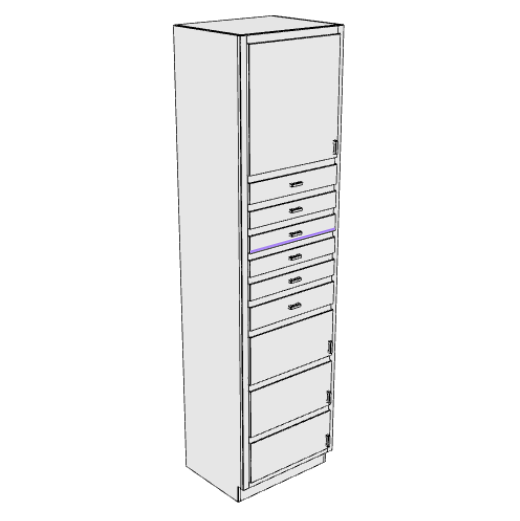

COMMON_INTER_OVERLAY_BOTTOM3

 Standard - Inter Overlay Bottom 3 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0'

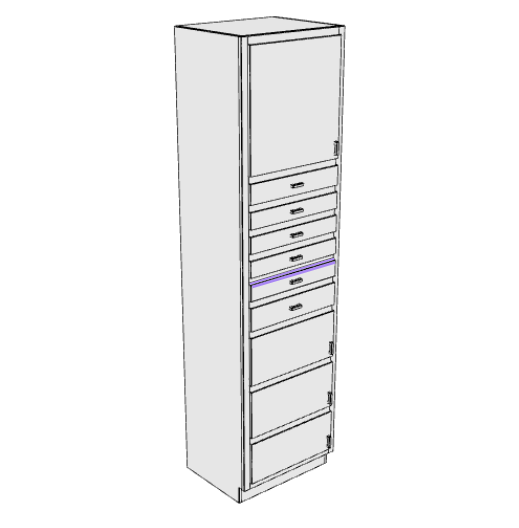

COMMON_INTER_OVERLAY_BOTTOM4

 Standard - Inter Overlay Bottom 4 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

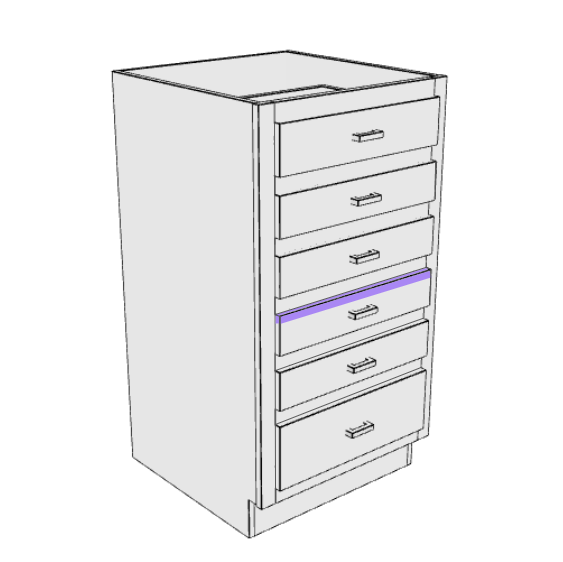

COMMON_INTER_OVERLAY_BOTTOM5

 Standard - Inter Overlay Bottom 5 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

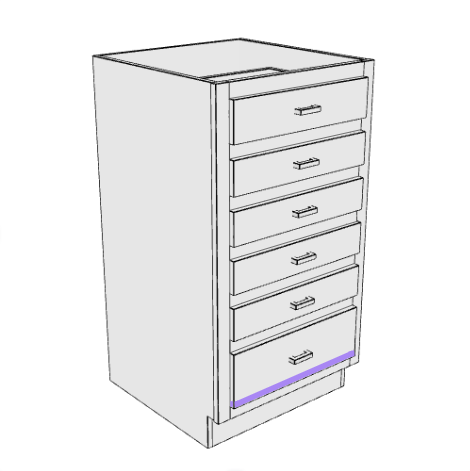

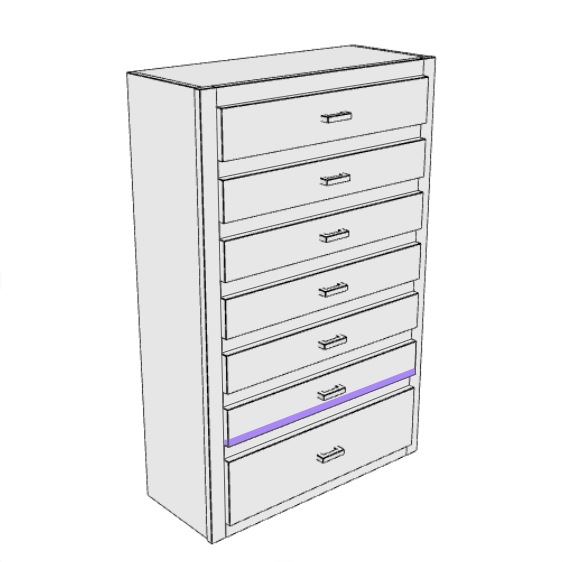

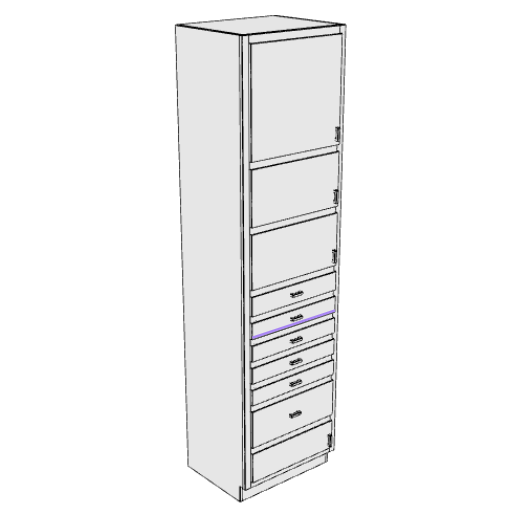

COMMON_INTER_OVERLAY_BOTTOM6

 Standard - Inter Overlay Bottom 6 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0



Top Inter Overlay

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_TOP1

 Standard - Inter Overlay Top 1 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP2

 Standard - Inter Overlay Top 2 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP3

 Standard - Inter Overlay Top 3 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP4

 Standard - Inter Overlay Top 4 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP5

 Standard - Inter Overlay Top 5 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP6

 Standard - Inter Overlay Top 6 Define the vertical top overlay of door and drawer for the intermediate rail. 0



Bottom Overlay Config

 NAME DESCRIPTION DEFAULT VALUE

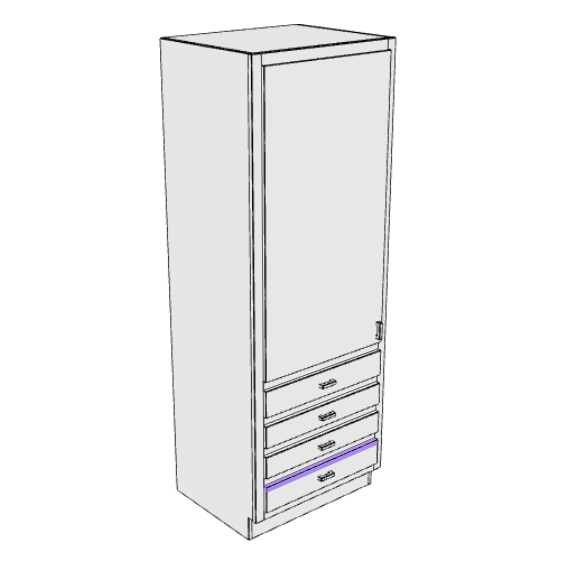

COMMON_CONFIG_OVERLAY_BOTTOM1

 Standard - Config Overlay Bottom 1 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_CONFIG_OVERLAY_BOTTOM2

 Standard - Config Overlay Bottom 2 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_CONFIG_OVERLAY_BOTTOM3

 Standard - Config Overlay Bottom 3 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_CONFIG_OVERLAY_BOTTOM4

 Standard - Config Overlay Bottom 4 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0



Top Overlay Config

 NAME DESCRIPTION DEFAULT VALUE

COMMON_CONFIG_OVERLAY_TOP1

 Standard - Config Overlay Top 1 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_CONFIG_OVERLAY_TOP2

 Standard - Config Overlay Top 2 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_CONFIG_OVERLAY_TOP3

 Standard - Config Overlay Top 3 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_CONFIG_OVERLAY_TOP4

 Standard - Config Overlay Top 4 Define the vertical top overlay of door and drawer for the intermediate rail. 0



Middle Overlay

 NAME DESCRIPTION DEFAULT VALUE

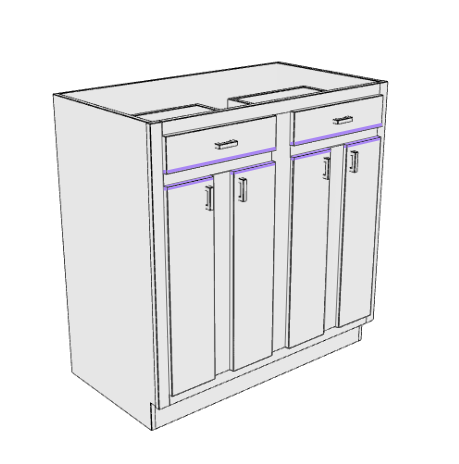

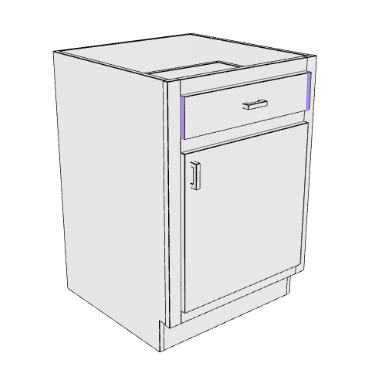

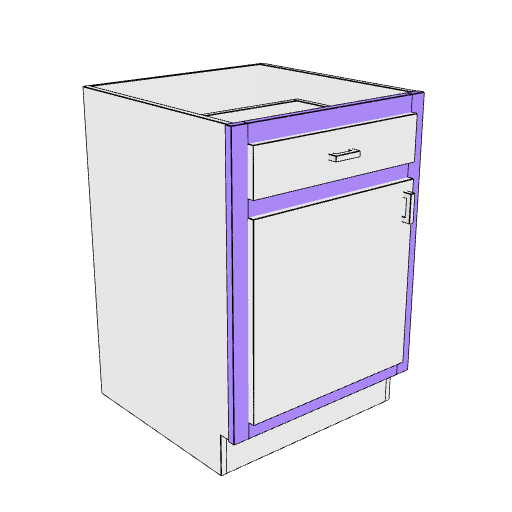

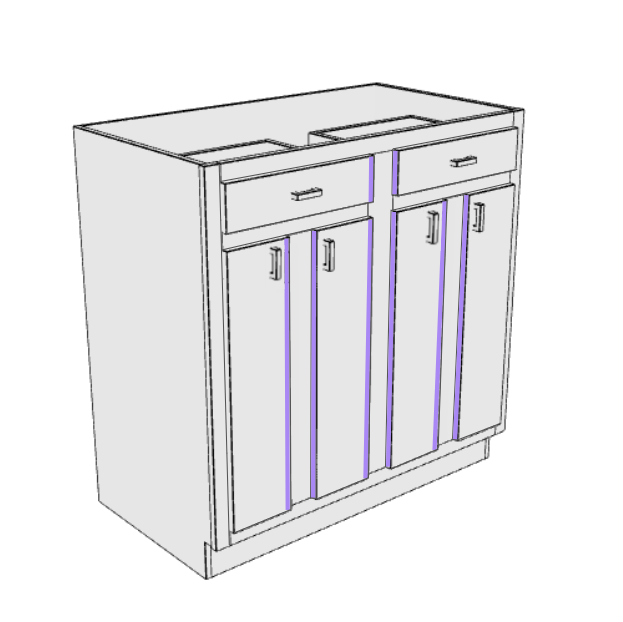

COMMON_MIDDLE_HORIZONTAL_OVERLAY

 Standard - Middle Overlay Horizontal Define the horizontal overlay of door and drawer in width for the intermediate rail. 0

COMMON_MIDDLE_OVERLAY

 Standard - Middle Overlay Vertical Define the vertical overlay of door and drawer in height intermediate for the rail. 0



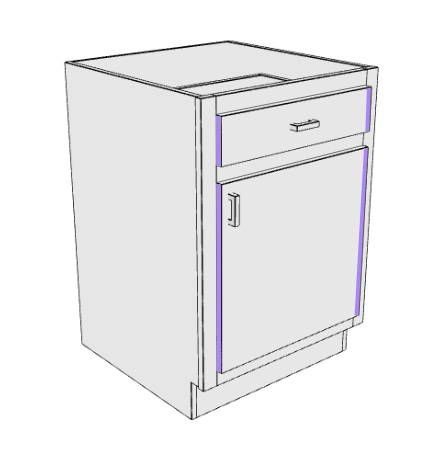

Side Overlay

 NAME DESCRIPTION DEFAULT VALUE

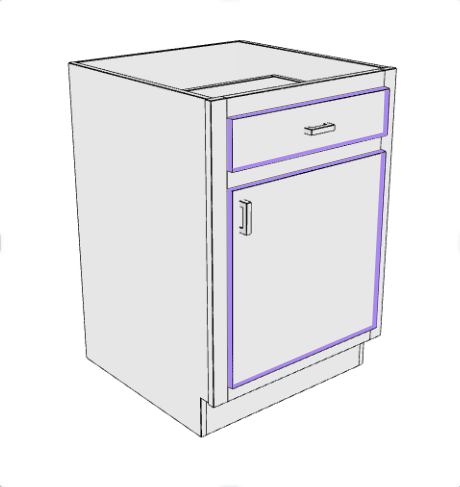

COMMON_SIDE_OVERLAY

 Standard - Side Overlay  Define the horizontal overlay of door and drawer in width for the rail. 0

COMMON_SIDE_OVERLAY_02

 Standard - Side Overlay 2  Define the horizontal overlay of door and drawer in width for the rail. 0



Style Overlay

 NAME DESCRIPTION PROPOSED VALUES

COMMON_OVERLAY_STYLE

 Standard - Style Overlay Type Define the type.
Options
  • None
  • Full
  • Standard
  • Inset



Vertical Custom

In the Inter Overlay Top and Inter Overlay Bottom categories you will find: Height 1, Height 2, Height 3, Height 4 and Height 5.



Height 1

Inter Overlay Top

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_TOP1_1

 Vertical Custom - Inter Overlay Top 1_1 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP2_1

 Vertical Custom - Inter Overlay Top 2_1 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP3_1

 Vertical Custom - Inter Overlay Top 3_1 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP4_1

 Vertical Custom - Inter Overlay Top 4_1 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP5_1

 Vertical Custom - Inter Overlay Top 5_1 Define the vertical top overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_TOP6_1 Vertical Custom - Inter Overlay Top 6_1 Define the vertical top overlay of door and drawer for the intermediate rail. 0



Inter Overlay Bottom

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_BOTTOM1_1

 Vertical Custom - Inter Overlay Bottom 1_1 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM2_1

 Vertical Custom - Inter Overlay Bottom 2_1 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM3_1

 Vertical Custom - Inter Overlay Bottom 3_1 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM4_1

 Vertical Custom - Inter Overlay Bottom 4_1 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM5_1

 Vertical Custom - Inter Overlay Bottom 5_1 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_BOTTOM6_1 Vertical Custom - Inter Overlay Bottom 6_1 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0



Height 2

Inter Overlay Top

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_TOP1_2

 Vertical Custom - Inter Overlay Top 1_2 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP2_2

 Vertical Custom - Inter Overlay Top 2_2 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP3_2

 Vertical Custom - Inter Overlay Top 3_2 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP4_2

 Vertical Custom - Inter Overlay Top 4_2 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP5_2

 Vertical Custom - Inter Overlay Top 5_2 Define the vertical top overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_TOP6_2 Vertical Custom - Inter Overlay Top 6_2 Define the vertical top overlay of door and drawer for the intermediate rail. 0



Inter Overlay Bottom

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_BOTTOM1_2

 Vertical Custom - Inter Overlay Bottom 1_2 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM2_2

 Vertical Custom - Inter Overlay Bottom 2_2 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM3_2

 Vertical Custom - Inter Overlay Bottom 3_2 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM4_2

 Vertical Custom - Inter Overlay Bottom 4_2 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM5_2

 Vertical Custom - Inter Overlay Bottom 5_2 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_BOTTOM6_2 Vertical Custom - Inter Overlay Bottom 6_2 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0



Height 3

Inter Overlay Top

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_TOP1_3

 Vertical Custom - Inter Overlay Top 1_3 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP2_3

 Vertical Custom - Inter Overlay Top 2_3 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP3_3

 Vertical Custom - Inter Overlay Top 3_3 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP4_3

 Vertical Custom - Inter Overlay Top 4_3 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP5_3

 Vertical Custom - Inter Overlay Top 5_3 Define the vertical top overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_TOP6_3 Vertical Custom - Inter Overlay Top 6_3 Define the vertical top overlay of door and drawer for the intermediate rail. 0



Inter Overlay Bottom

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_BOTTOM1_3

 Vertical Custom - Inter Overlay Bottom 1_3 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM2_3

 Vertical Custom - Inter Overlay Bottom 2_3 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM3_3

 Vertical Custom - Inter Overlay Bottom 3_3 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM4_3

 Vertical Custom - Inter Overlay Bottom 4_3 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM5_3

 Vertical Custom - Inter Overlay Bottom 5_3 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_BOTTOM6_3 Vertical Custom - Inter Overlay Bottom 6_3 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0



Height 4

Inter Overlay Top

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_TOP1_4

 Vertical Custom - Inter Overlay Top 1_4 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP2_4

 Vertical Custom - Inter Overlay Top 2_4 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP3_4

 Vertical Custom - Inter Overlay Top 3_4 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP4_4

 Vertical Custom - Inter Overlay Top 4_4 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP5_4

 Vertical Custom - Inter Overlay Top 5_4 Define the vertical top overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_TOP6_4 Vertical Custom - Inter Overlay Top 6_4 Define the vertical top overlay of door and drawer for the intermediate rail. 0



Inter Overlay Bottom

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_BOTTOM1_4

 Vertical Custom - Inter Overlay Bottom 1_4 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM2_4

 Vertical Custom - Inter Overlay Bottom 2_4 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM3_4

 Vertical Custom - Inter Overlay Bottom 3_4 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM4_4

 Vertical Custom - Inter Overlay Bottom 4_4 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM5_4

 Vertical Custom - Inter Overlay Bottom 5_4 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_BOTTOM6_4 Vertical Custom - Inter Overlay Bottom 6_4 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0



Height 5

Inter Overlay Top

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_TOP1_5

 Vertical Custom - Inter Overlay Top 1_5 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP2_5

 Vertical Custom - Inter Overlay Top 2_5 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP3_5

 Vertical Custom - Inter Overlay Top 3_5 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP4_5

 Vertical Custom - Inter Overlay Top 4_5 Define the vertical top overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_TOP5_5

 Vertical Custom - Inter Overlay Top 5_5 Define the vertical top overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_TOP6_5 Vertical Custom - Inter Overlay Top 6_5 Define the vertical top overlay of door and drawer for the intermediate rail. 0



Inter Overlay Bottom

 NAME DESCRIPTION DEFAULT VALUE

COMMON_INTER_OVERLAY_BOTTOM1_5

 Vertical Custom - Inter Overlay Bottom 1_5 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM2_5

 Vertical Custom - Inter Overlay Bottom 2_5 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM3_5

 Vertical Custom - Inter Overlay Bottom 3_5 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM4_5

 Vertical Custom - Inter Overlay Bottom 4_5 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0

COMMON_INTER_OVERLAY_BOTTOM5_5

 Vertical Custom - Inter Overlay Bottom 5_5 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0
COMMON_INTER_OVERLAY_BOTTOM6_5 Vertical Custom - Inter Overlay Bottom 6_5 Define the vertical bottom overlay of door and drawer for the intermediate rail. 0



Style

Structure

 NAME DESCRIPTION PROPOSED VALUES

COMMON_GENERAL_CAB_STYLE

 Standard - General Cabinet Style Defines if the cabinet is framed or frameless.
Options
  • Framed
  • Frameless

TEMPLATES_GENERAL_CAB_STYLE

 Templates - General Cabinet Style Defines if the cabinet is framed or frameless.
Options
  • Framed
  • Frameless
