This article presents detailed examples of JC Channels, which are metal profiles used horizontally in furniture assembly to connect and fix different components, providing more stability. They allow modularity in projects and can replace or complement traditional methods like visible screws and dowels, giving a better finish.
Below are the most generic examples of the library with the most used attributes, divided into Base Standard, Base Corner Square, Base Corner Blind and Tall Standard.
Note: It's important to remember that JC Channel components are only available in Cabinet Style Frameless.
Base Standard
J Channel:
To start creating your Base Standard - J Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Base.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:

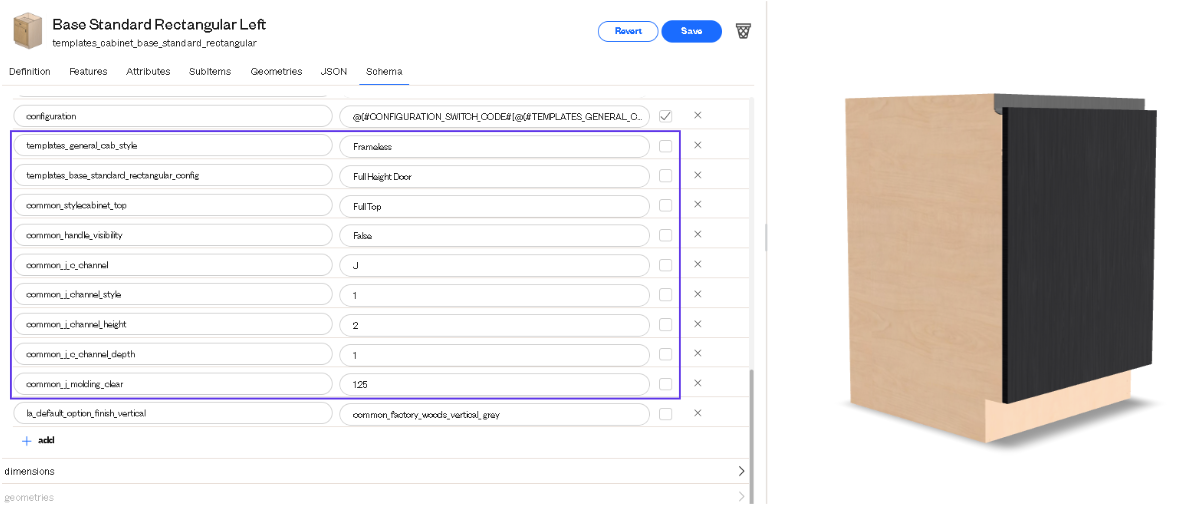

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_BASE_STANDARD_RECTANGULAR_STRUCTURE = Standard Base
TEMPLATES_BASE_STANDARD_RECTANGULAR_CONFIG = Full Height Door
COMMON_STYLECABINET_TOP = Full Top
COMMON_HANDLE_VISIBILITY = False
COMMON_J_C_CHANNEL = J
COMMON_J_CHANNEL_STYLE = 1
COMMON_J_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
COMMON_J_MOLDING_CLEAR = 1.25
J/C Channel:
To start creating your Base Standard - J/C Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Base.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:

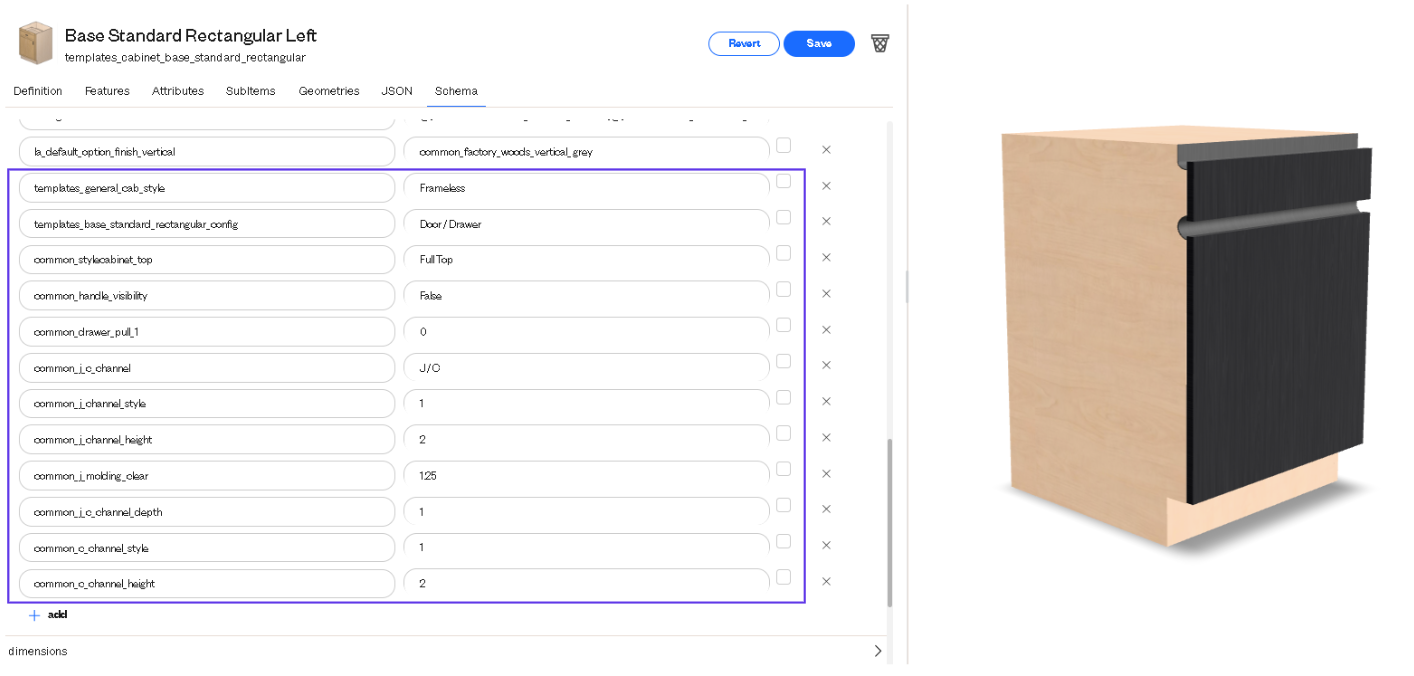

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_BASE_STANDARD_RECTANGULAR_STRUCTURE = Standard Base
TEMPLATES_BASE_STANDARD_RECTANGULAR_CONFIG = Door / Drawer
COMMON_STYLECABINET_TOP = Full Top
COMMON_HANDLE_VISIBILITY = False
COMMON_DRAWER_PULL_1 = 0
COMMON_J_C_CHANNEL = J / C
COMMON_J_CHANNEL_STYLE = 1
COMMON_J_CHANNEL_HEIGHT = 2
COMMON_J_MOLDING_CLEAR = 1.25
COMMON_J_C_CHANNEL_DEPTH = 1
COMMON_C_CHANNEL_STYLE = 1
COMMON_C_CHANNEL_HEIGHT = 2
J/C/C Channel:
To start creating your Base Standard - J/C/C Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Base.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:

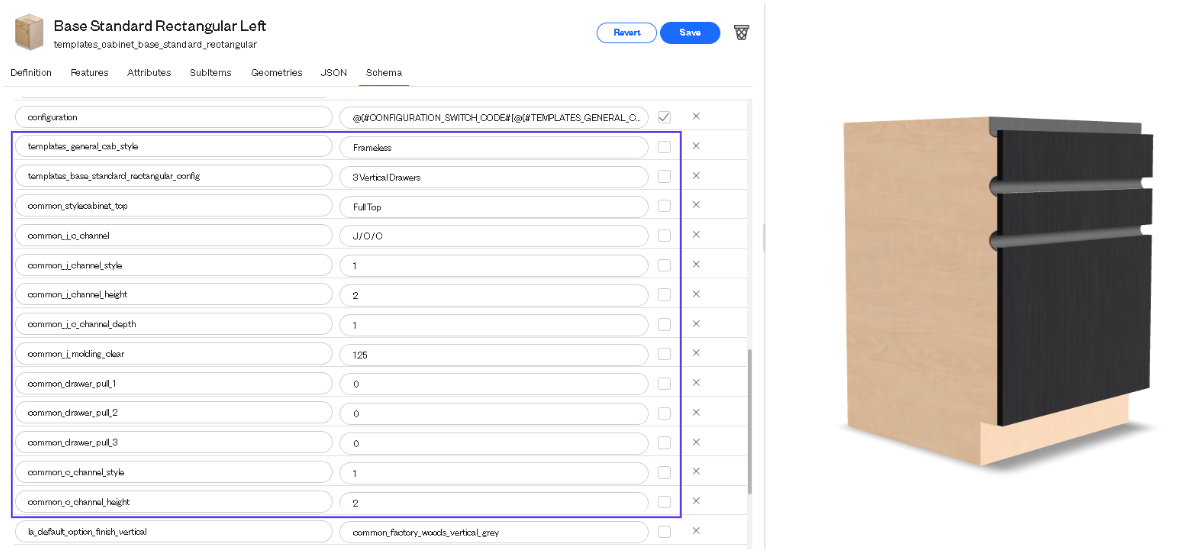

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_BASE_STANDARD_RECTANGULAR_STRUCTURE = Standard Base
TEMPLATES_BASE_STANDARD_RECTANGULAR_CONFIG = 3 Vertical Drawers
COMMON_STYLECABINET_TOP = Full Top
COMMON_DRAWER_PULL_1 = 0
COMMON_DRAWER_PULL_2 = 0
COMMON_DRAWER_PULL_3 = 0
COMMON_J_C_CHANNEL = J / C / C
COMMON_J_CHANNEL_STYLE = 1
COMMON_J_CHANNEL_HEIGHT = 2
COMMON_J_MOLDING_CLEAR = 1.25
COMMON_J_C_CHANNEL_DEPTH = 1
COMMON_C_CHANNEL_STYLE = 1
COMMON_C_CHANNEL_HEIGHT = 2
Base Corner Square
J Channel:
To start creating your Base Corner Square - J Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Base.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.

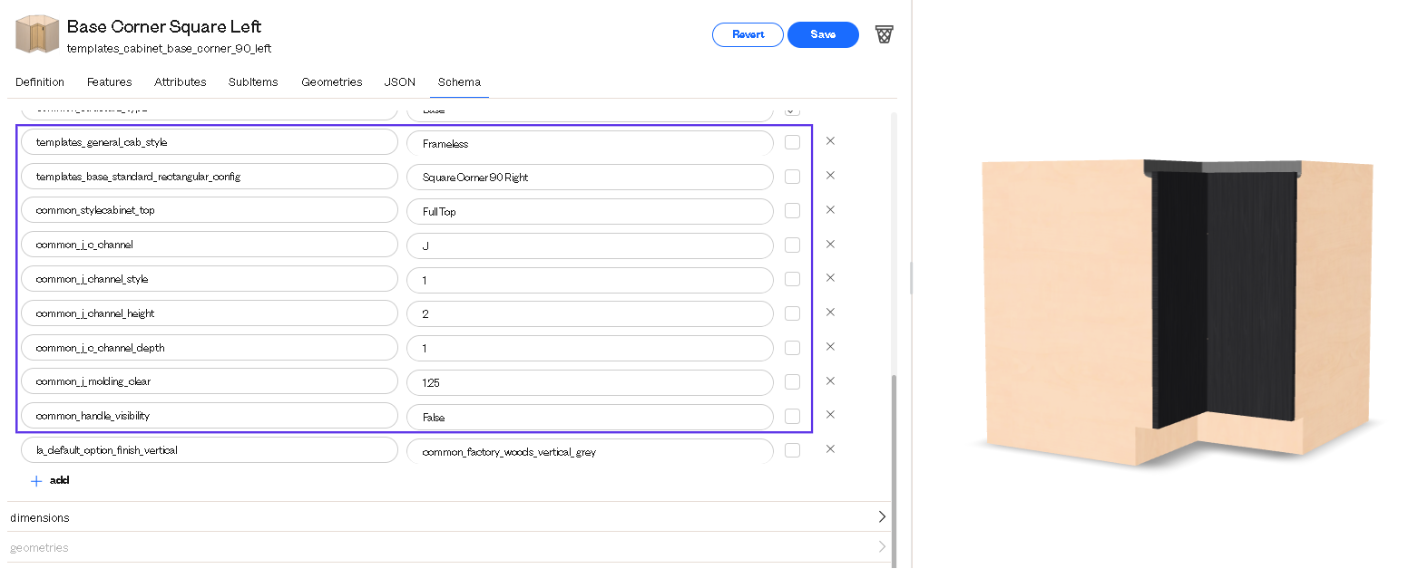

Example:
TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_BASE_CORNER_90_STRUCTURE = 90 Corner Base
TEMPLATES_BASE_CORNER_90_CONFIG = Square Corner 90 Right
COMMON_STYLECABINET_TOP = Full Top
COMMON_HANDLE_VISIBILITY = False
COMMON_J_C_CHANNEL = J
COMMON_J_CHANNEL_STYLE = 1
COMMON_J_CHANNEL_HEIGHT = 2
COMMON_J_MOLDING_CLEAR = 1.25
COMMON_J_C_CHANNEL_DEPTH = 1
Base Corner Blind
J Channel:
To start creating your Base Corner Blind - J Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Base.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.

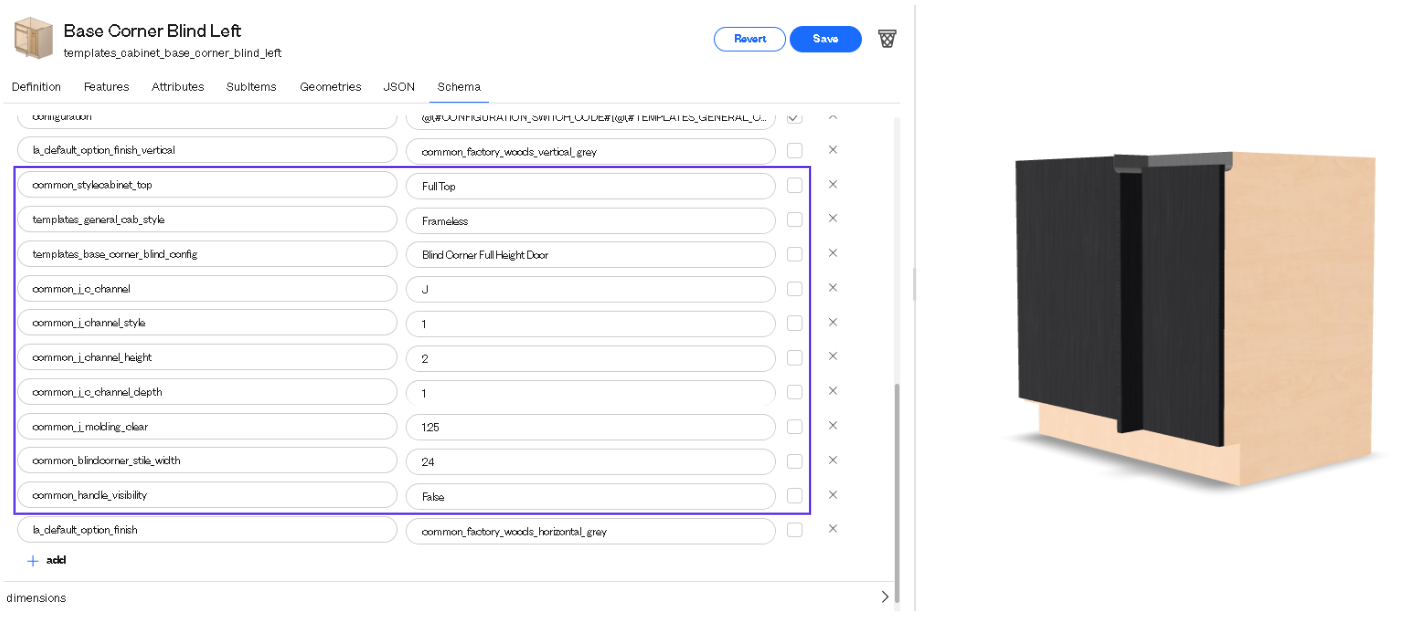

Example:
TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_BASE_CORNER_BLIND_STRUCTURE = Standard Base Blind
TEMPLATES_BASE_CORNER_BLIND_CONFIG = Blind Corner Full Height Door
COMMON_STYLECABINET_TOP = Full Top
COMMON_HANDLE_VISIBILITY = False
COMMON_J_C_CHANNEL = J
COMMON_J_CHANNEL_STYLE = 1
COMMON_J_CHANNEL_HEIGHT = 2
COMMON_J_MOLDING_CLEAR = 1.25
COMMON_J_C_CHANNEL_DEPTH = 1
Tall Standard
C Channel:
To start creating your Tall Standard - C Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.

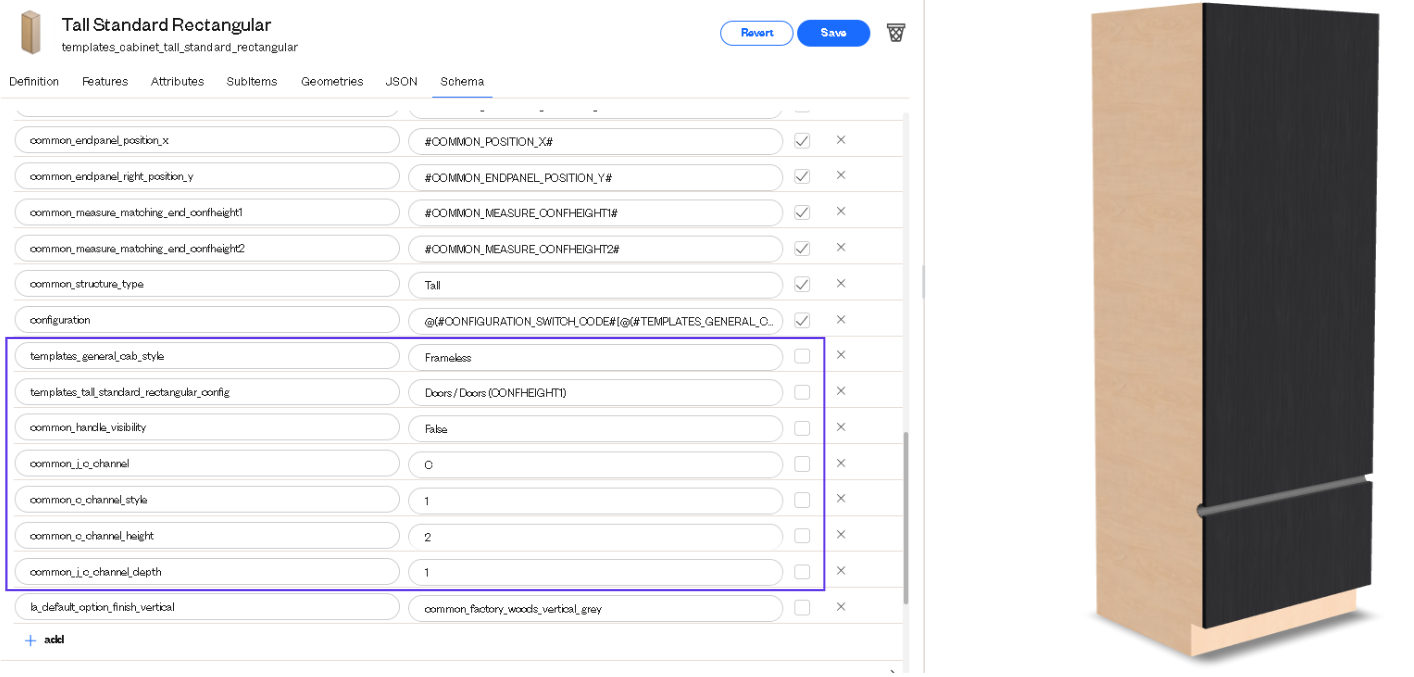

Example:

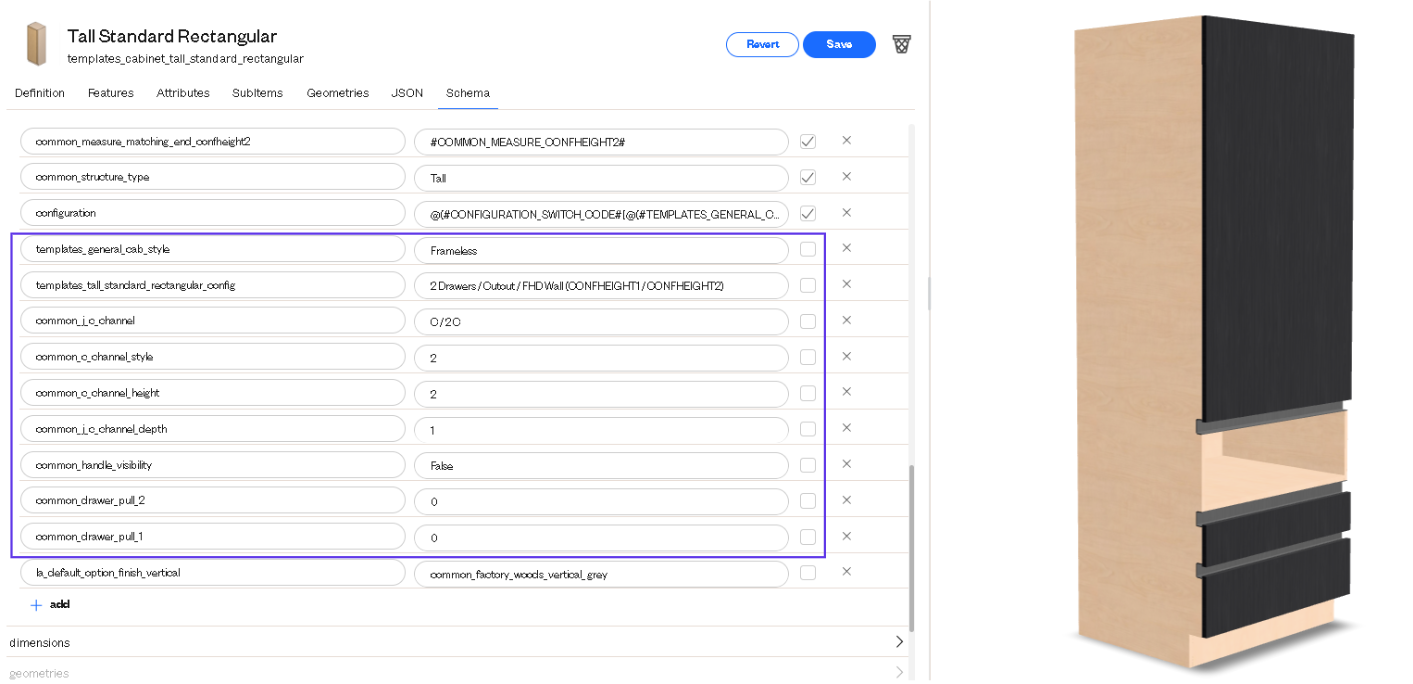

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = Doors / Doors (CONFHEIGHT1)
COMMON_HANDLE_VISIBILITY = False
COMMON_J_C_CHANNEL = C
COMMON_C_CHANNEL_STYLE = 1
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
C/C Channel:
To start creating your Tall Standard - C/C Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.

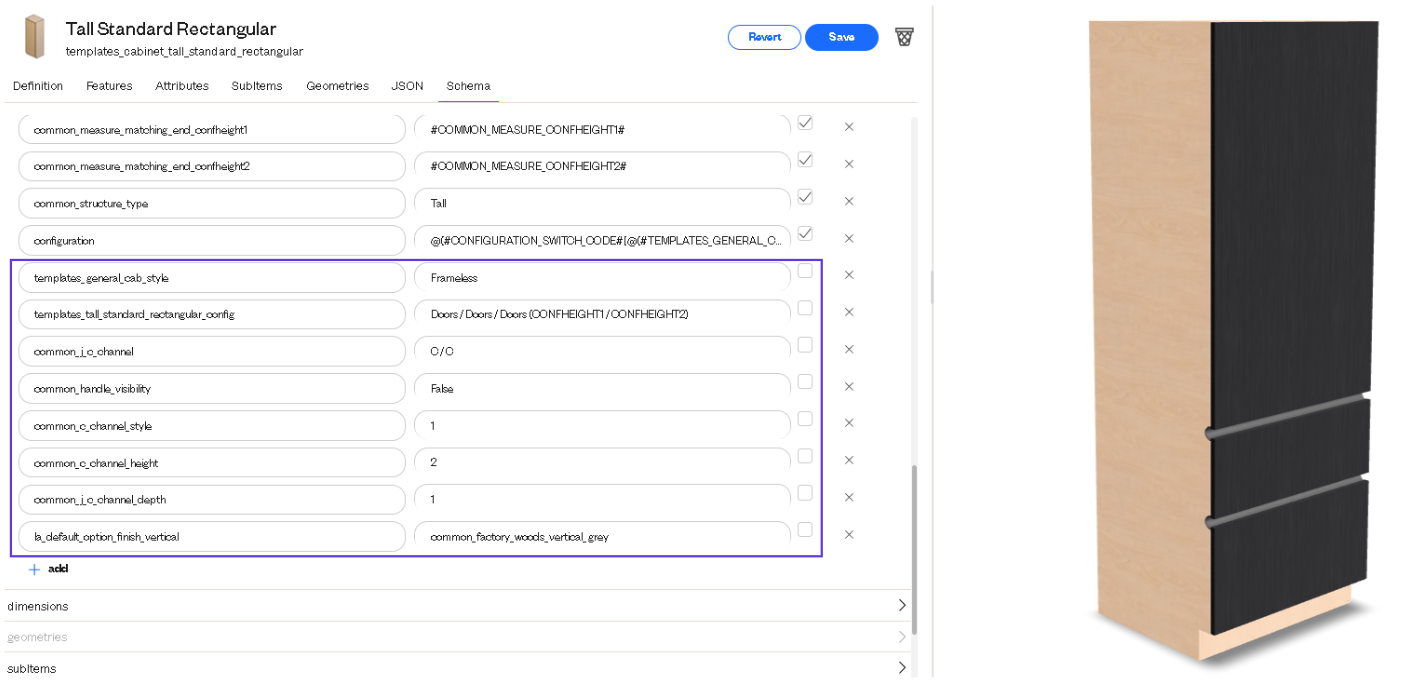

Example:
TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = Doors / Doors / Doors (CONFHEIGHT1 / CONFHEIGHT2)
COMMON_HANDLE_VISIBILITY = False
COMMON_J_C_CHANNEL = C / C
COMMON_C_CHANNEL_STYLE = 1
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
C/C/C Channel:
To start creating your Tall Standard - C/C/C Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:

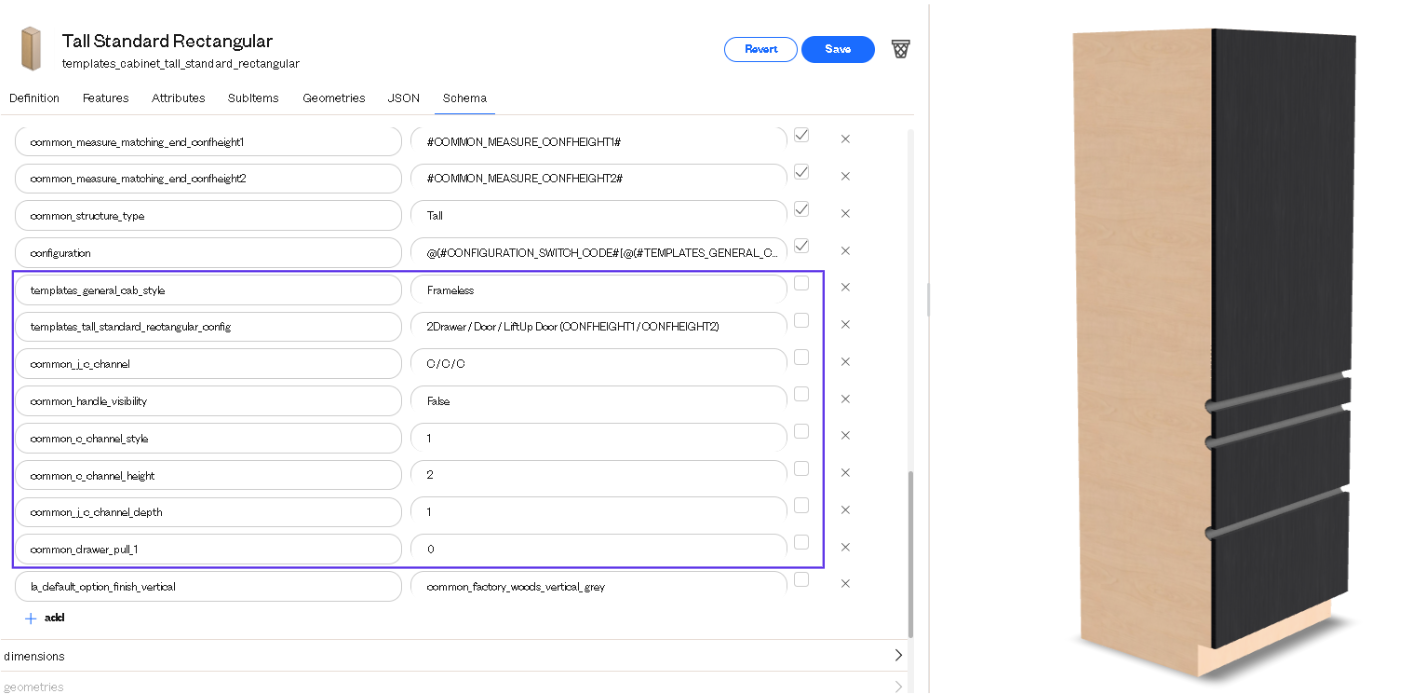

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = 2Drawer / Door / LiftUp Door (CONFHEIGHT1 / CONFHEIGHT2)
COMMON_HANDLE_VISIBILITY = False
COMMON_DRAWER_PULL_1 = 0
COMMON_J_C_CHANNEL = C / C / C
COMMON_C_CHANNEL_STYLE = 1
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
C/1C Channel:
To start creating your Tall Standard - C/1C Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:

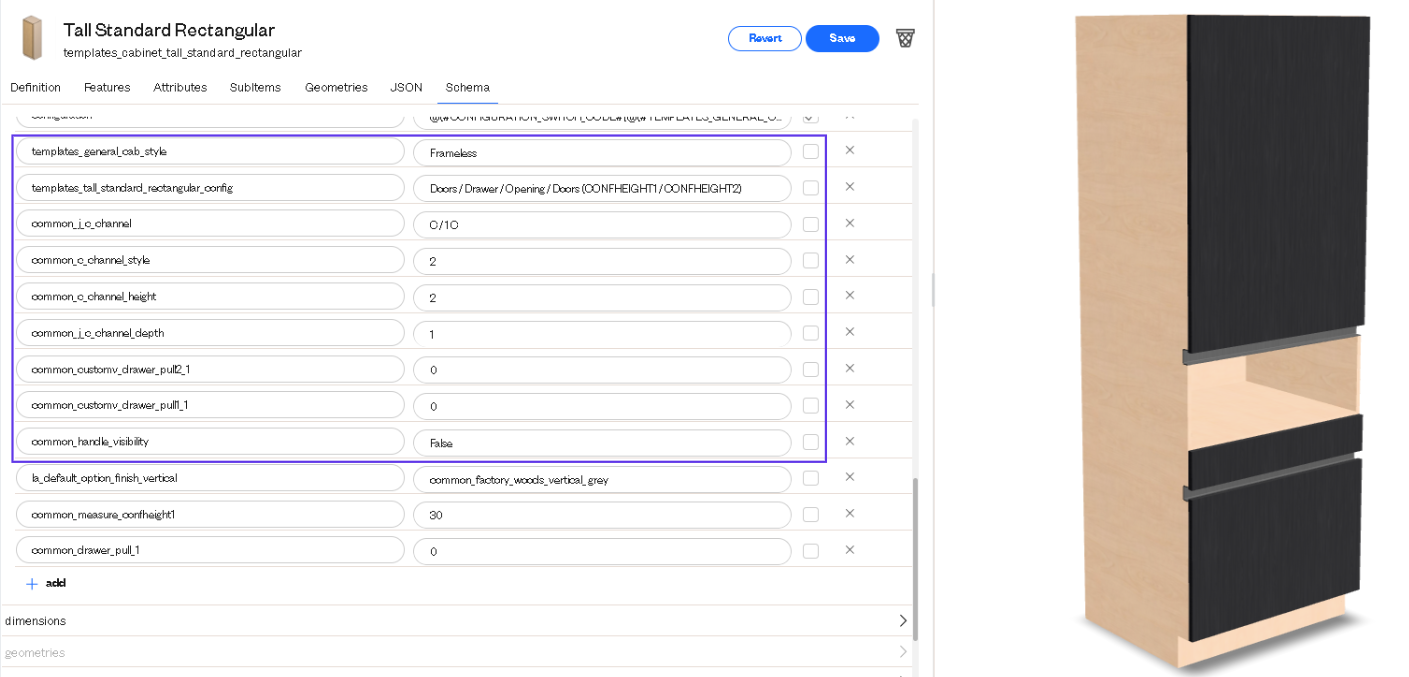

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = Doors / Drawer / Opening / Doors (CONFHEIGHT1 / CONFHEIGHT2)
COMMON_HANDLE_VISIBILITY = False
COMMON_CUSTOMV_DRAWER_PULL1_1 = 0
COMMON_CUSTOMV_DRAWER_PULL2_1 = 0
COMMON_J_C_CHANNEL = C / 1 C
COMMON_C_CHANNEL_STYLE = 2
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
C/2C Channel:
To start creating your Tall Standard - C/2C Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:
TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = 2 Drawers / Cutout / FHD Wall (CONFHEIGHT1 / CONFHEIGHT2)
COMMON_HANDLE_VISIBILITY = False
COMMON_DRAWER_PULL_1 = 0
COMMON_DRAWER_PULL_2 = 0
COMMON_J_C_CHANNEL = C / 2 C
COMMON_C_CHANNEL_STYLE = 2
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
C 02 Channel:
To start creating your Tall Standard - C 02 Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:

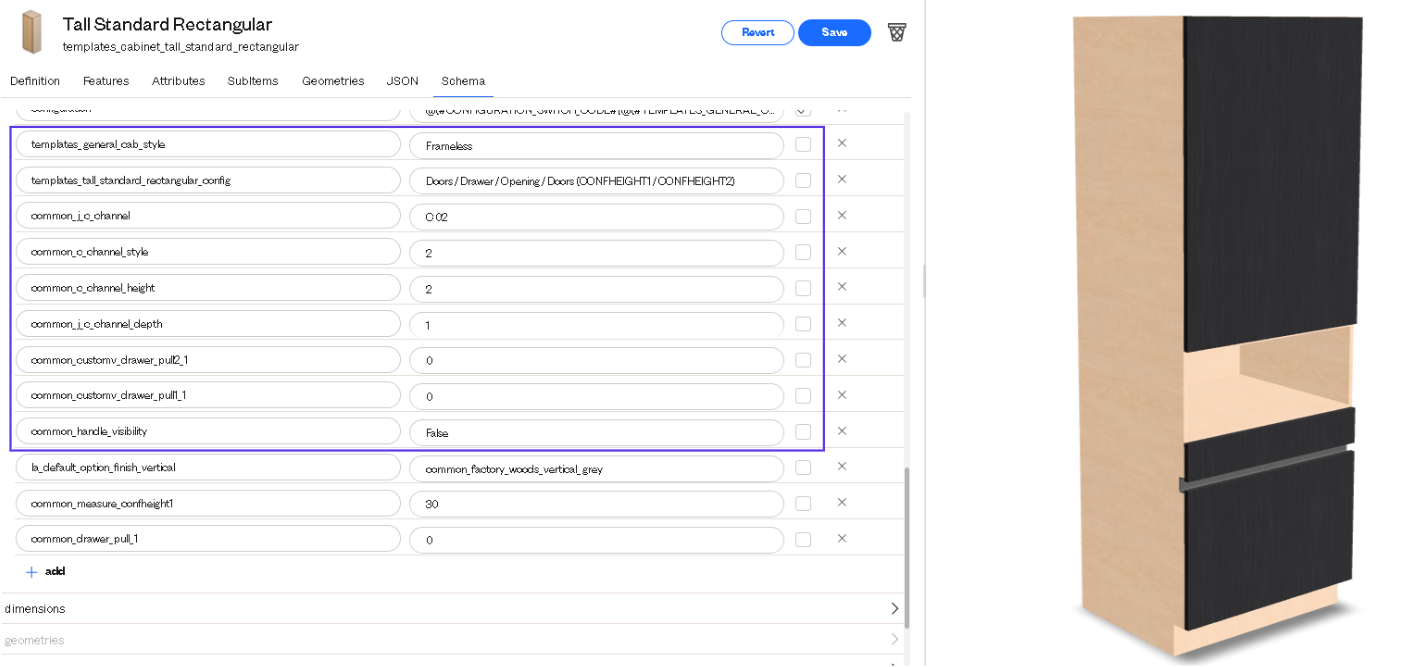

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = Doors / Drawer / Opening / Doors (CONFHEIGHT1 / CONFHEIGHT2)
COMMON_HANDLE_VISIBILITY = False
COMMON_CUSTOMV_DRAWER_PULL1_1 = 0
COMMON_CUSTOMV_DRAWER_PULL2_1 = 0
COMMON_J_C_CHANNEL = C 02
COMMON_C_CHANNEL_STYLE = 2
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
2C Channel:
To start creating your Tall Standard - 2C Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:

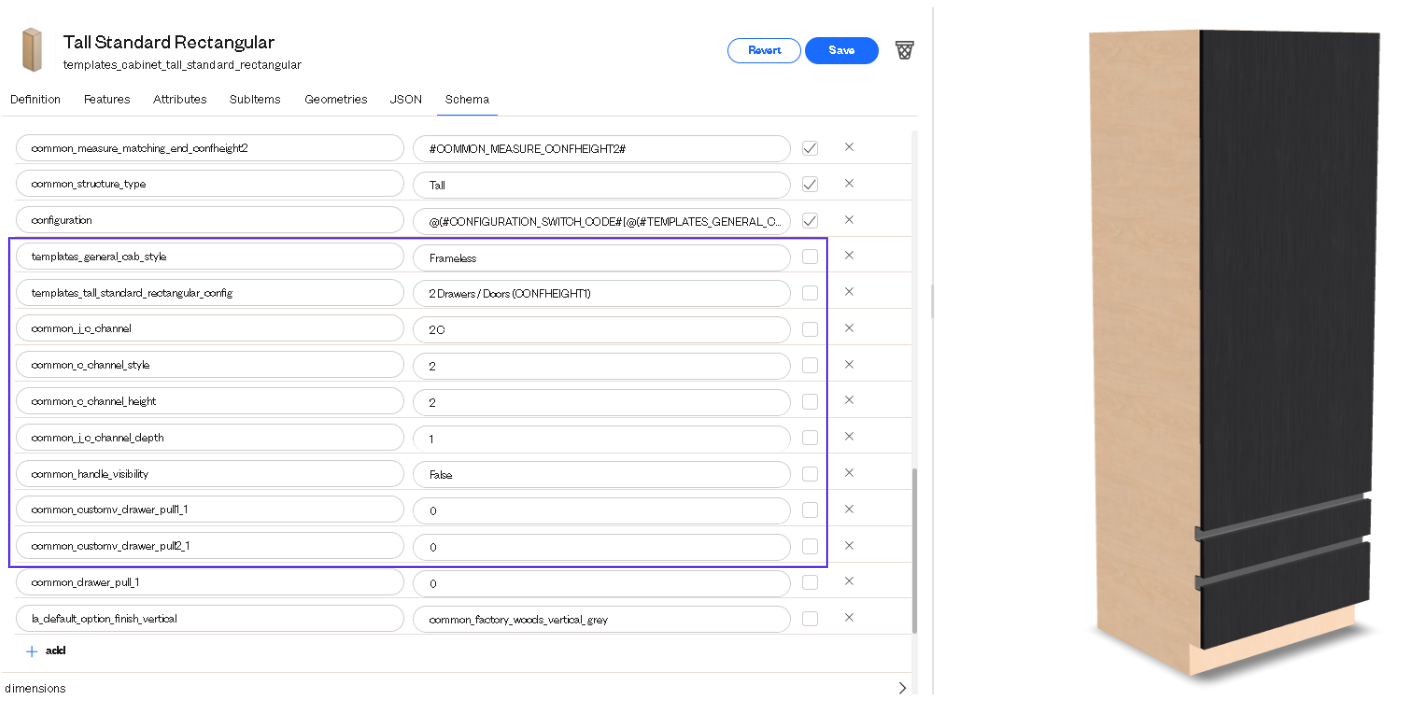

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = 2 Drawers / Doors (CONFHEIGHT1)
COMMON_HANDLE_VISIBILITY = False
COMMON_CUSTOMV_DRAWER_PULL1_1 = 0
COMMON_CUSTOMV_DRAWER_PULL2_1 = 0
COMMON_J_C_CHANNEL = 2 C
COMMON_C_CHANNEL_STYLE = 2
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
2 C 02 Channel:
To start creating your Tall Standard - 2C 02 Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.
Example:

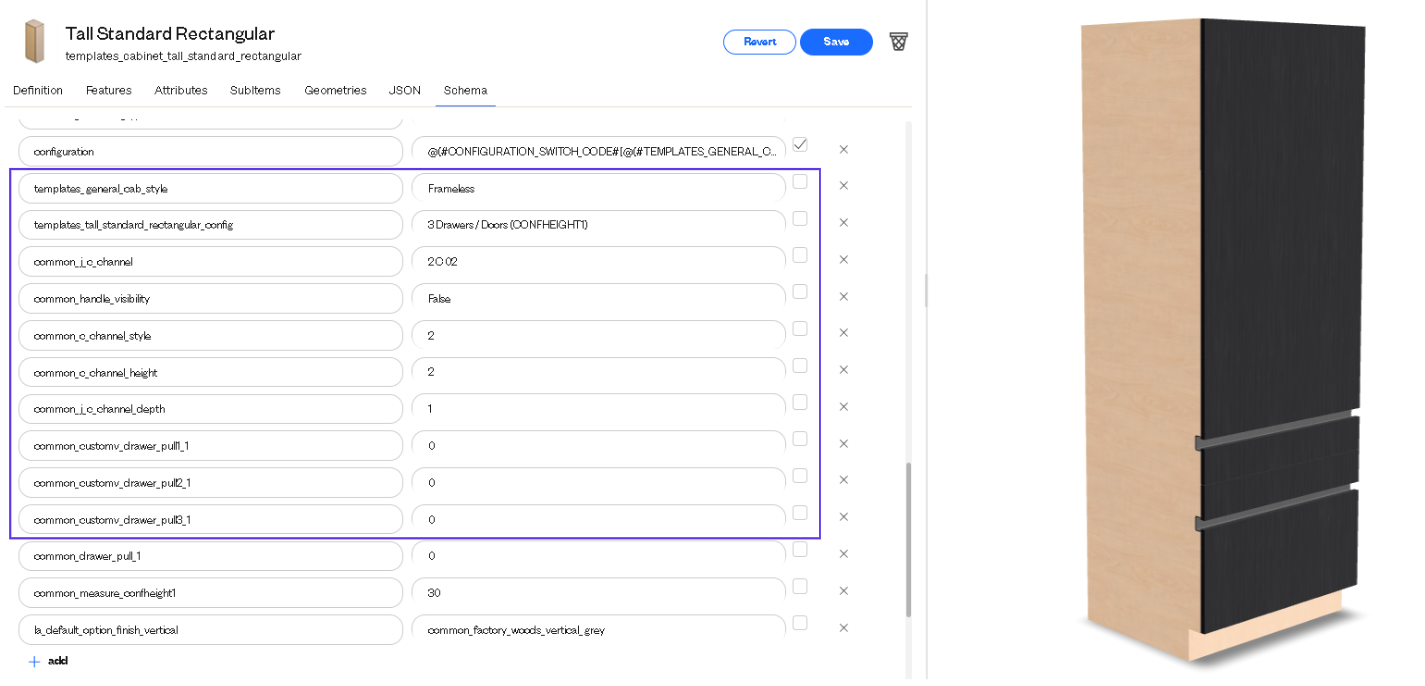

TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = 3 Drawers / Doors (CONFHEIGHT1)
COMMON_CUSTOMV_DRAWER_PULL1_1 = 0
COMMON_CUSTOMV_DRAWER_PULL2_1 = 0
COMMON_CUSTOMV_DRAWER_PULL3_1 = 0
COMMON_J_C_CHANNEL = 2 C 02
COMMON_C_CHANNEL_STYLE = 2
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
2C 03 Channel:
To start creating your Tall Standard - 2C 03 Channel, you need to select the compatible structure and configuration type. All model attributes related to the chosen structure and configuration with their proposed values, can be found at Core Library - Attributes: Item Construction - Cabinet Tall.
In addition, regarding the proposed values related to the styles, dimensions, visibility and clearances of the JC Channel, can be found at Core Library - Attributes: Item Configuration - Style 2, Core Library - Attributes: Item Construction - Dimensioning, Core Library - Attributes: Item Configuration - Visibility and Core Library - Attributes: Item Construction - Clearances.

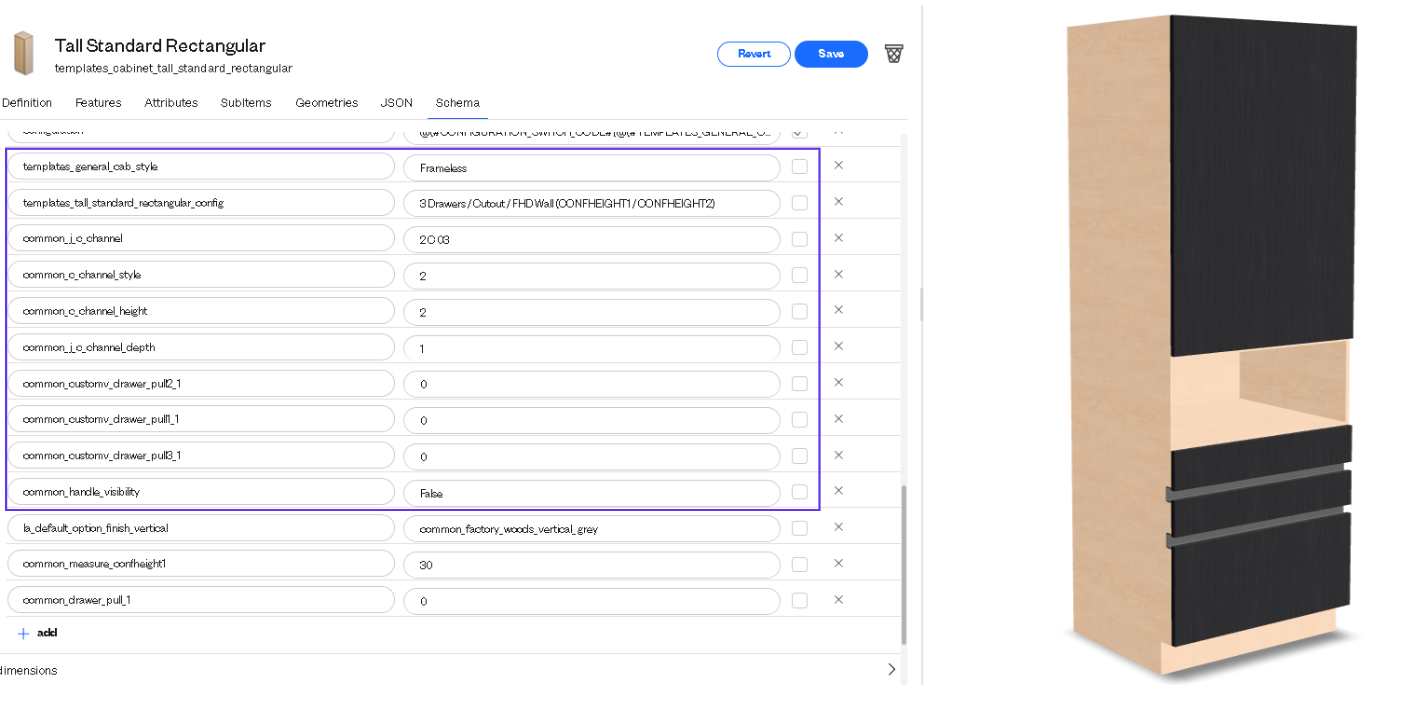

Example:
TEMPLATES_GENERAL_CAB_STYLE = Frameless
TEMPLATES_TALL_STANDARD_RECTANGULAR_STRUCTURE = Standard Tall
TEMPLATES_TALL_STANDARD_RECTANGULAR_CONFIG = 3 Drawers / Cutout / FHD Wall (CONFHEIGHT1 / CONFHEIGHT2)
COMMON_HANDLE_VISIBILITY = False
COMMON_CUSTOMV_DRAWER_PULL1_1 = 0
COMMON_CUSTOMV_DRAWER_PULL2_1 = 0
COMMON_CUSTOMV_DRAWER_PULL3_1 = 0
COMMON_J_C_CHANNEL = 2 C 03
COMMON_C_CHANNEL_STYLE = 2
COMMON_C_CHANNEL_HEIGHT = 2
COMMON_J_C_CHANNEL_DEPTH = 1
