Authoring Hub - How to use Blender integration

Alina Busel
  • Updated

This article explains how to use Blender integration to modify item geometry there and sync changes back to the catalog in the Authoring Hub.

Blender is a 3D modeling tool that can be integrated with the Authoring Hub to modify item geometry, apply materials, edit layers and components, update items directly in the catalog.

Please note that Blender version 5.0 or higher is required, and the Authoring Hub Extension plugin must be installed to enable the integration.

Installing the Authoring Hub Extension Plugin

Step 1: Download the Plugin

Download the plugin file from the attachment at the end of this article.

Step 2: Install in Blender

  1. Open Blender

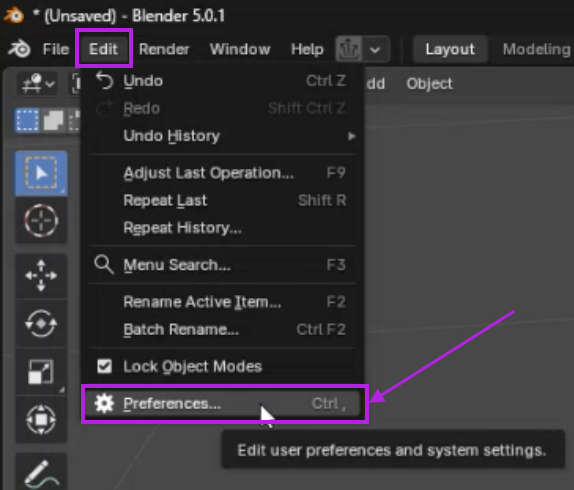

  2. Go to Edit → Preferences

    Screenshot 2026-04-13 at 16.25.25.png

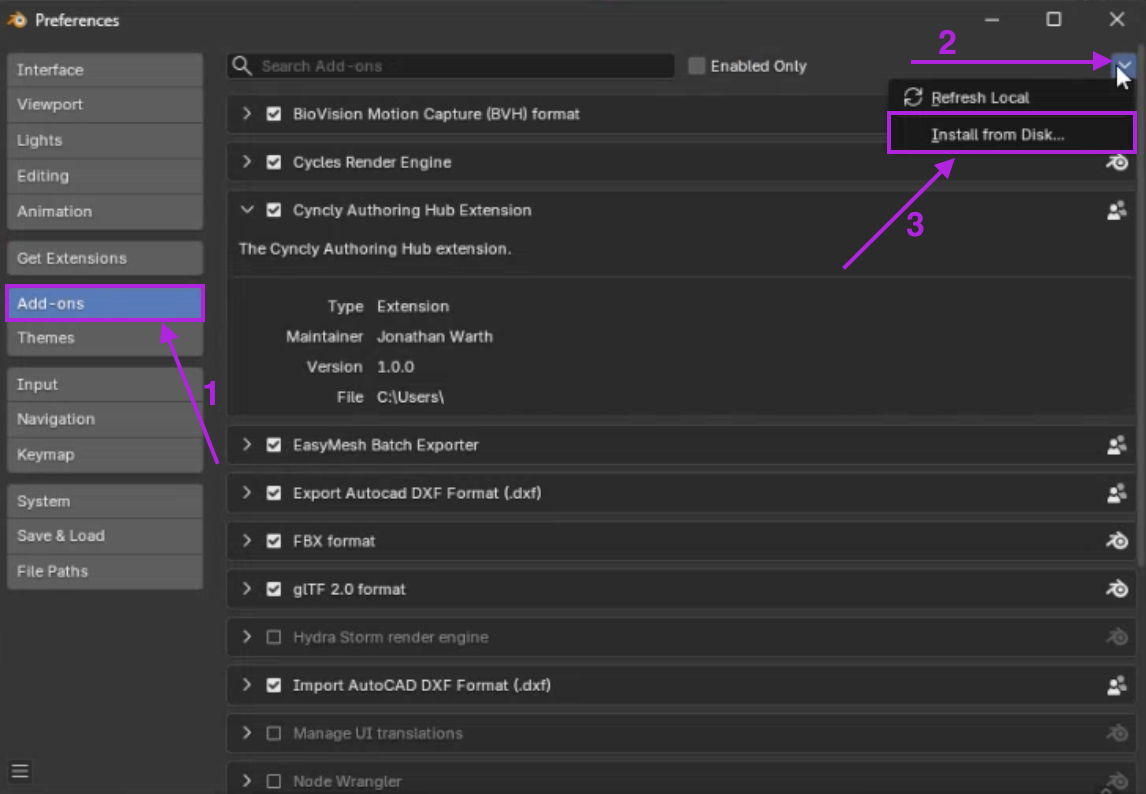

  3. Select the Add-ons tab
    Screenshot 2026-04-13 at 16.27.06.png
  4. Click the dropdown arrow (▼) at the top
  5. Select Install from Disk
  6. Browse and select the Authoring Hub Extension file
  7. Click Install

The plugin should now appear in the add-ons list as Cyncly Authoring Hub Extension.

Using Blender Integration

Step 1: Send Item to Blender

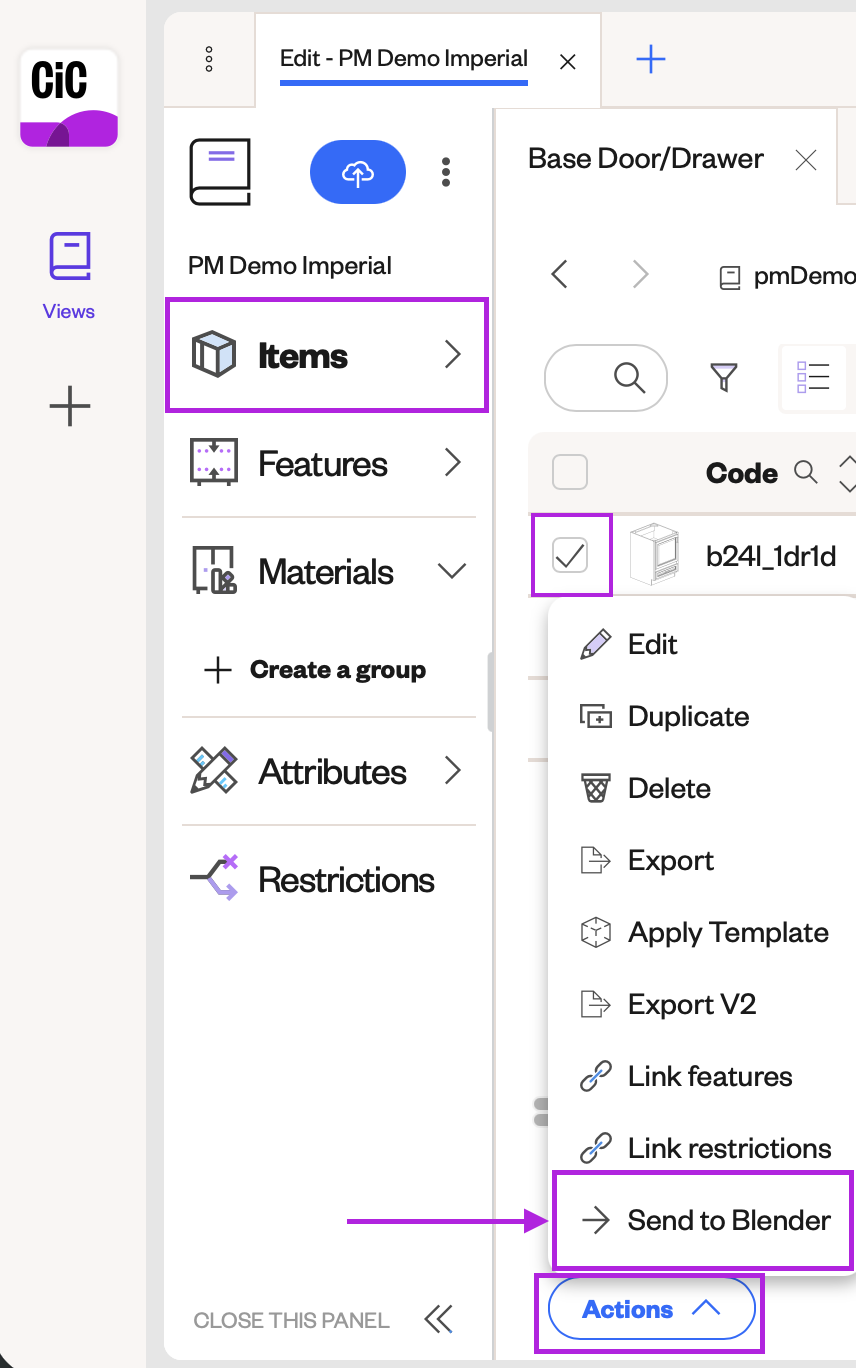

  1. In the Authoring Hub, select an item
  2. Click Actions

  3. Select Send to Blender

    Screenshot 2026-04-13 at 17.01.43.png

Step 2: Modify Geometry in Blender

Make the required modifications (for example, edit geometry, apply materials or adjust layers).

Step 3: Sync Changes Back to Authoring Hub

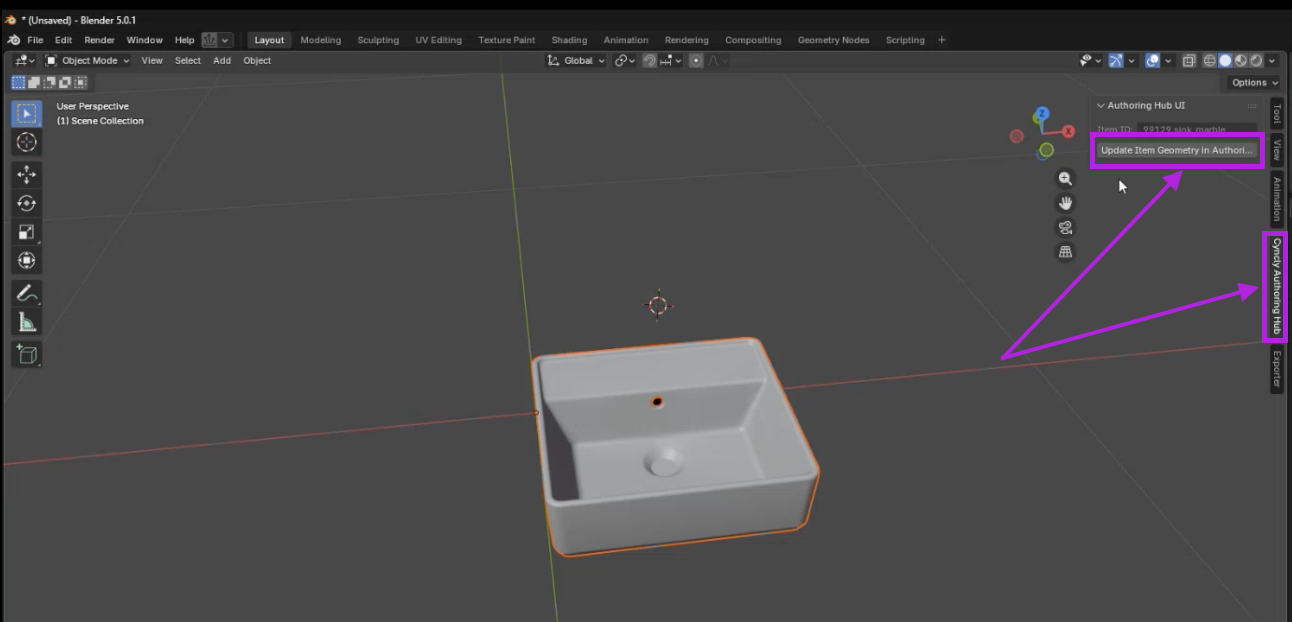

  1. In Blender, select the modified geometry
  2. Select the Cyncly Authoring Hub tab on the side panel

  3. Click Update Item Geometry in Authoring Hub

    Screenshot 2026-04-13 at 16.48.29.png

Step 4: Verify Changes in Authoring Hub

  1. Return to the Authoring Hub
  2. Open the item
  3. The updated geometry will be applied to the item
  4. Save the item to confirm changes
